Infraraudonųjų spindulių barjerinės besisukančios fotocelės vartams su dangteliais

Trumpai apie prekę

Prekė: Infraraudonųjų spindulių barjerinės besisukančios fotocelės vartams su dangteliais. Kategorija: Fotodavikliai.

• Gamintojas: Wan-Elektronik
• Modelis: FOTOKOM5

SET OF 2 x CANOPY HOUSING PHOTOCELL COVER

RELIABLE AUTOMATION PROTECTION

SAFE photocells are modern sensors used for automatic opening and closing of entrance gates.

• ✅ Principle of operation – the set consists of a transmitter and receiver, which form a light barrier on both sides of the gate. When the light beam is interrupted, e.g. through the vehicle or person, the photocell sends a signal to the gate control panel, which reacts by stopping traffic or opening the gate.
• ✅ Universal power supply – the ability to operate at 12V or 24V AC/DC, which ensures compatibility with most automation systems.
• ✅ User safety – photocells prevent the gate from closing if there is an obstacle within its range, protecting people, animals and vehicles.
• ✅ Everyday convenience – thanks to them you do not have to get out of the car to open or close the gate – everything happens automatically.

NOTE! Photocells do not work with the "BUS" system.

Technical specification of photocells:

• Condition: new
• Device dimensions: 108mm x 35mm x 30mm
• Power Supply: 12-24V AC or DC
• Range: max 15 meters (can drop to 30% in bad weather conditions i.e. rain, snow)
• Power consumption: 15mA(receiver) and 30mA(transmitter)
• Relay in receiver with load capacity: max 1A 36V
• Frequency: 1,92Khz
• Wavelength: 940nm
• Working temperature: -10 to +70°C
• Protection rating: IP54 - resistance to rain

TECHNICAL SPECIFICATION OF PHOTOCELLS SAFE

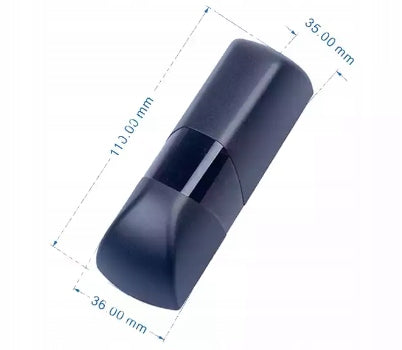

• ✅ Dimensions of the device – 110 × 35 × 36 mm
• ✅ Power supply – 12 – 24V AC or DC
• ✅ Range of operation – up to 15 meters (may drop by approx. 30% in bad weather conditions – rain, snow)
• ✅ Power consumption – 15 mA (receiver), 30 mA (transmitter)
• ✅ Relay in receiver – maximum load capacity: 1A / 36V
• ✅ Frequency – 1,92 kHz
• ✅ Wavelength – 940 nm
• ✅ Working temperature – from -10°C to +70°C
• ✅ Protection rating – IP54 (resistance to rain and outdoor conditions)

THE SET INCLUDES:

• photocell transmitter,
• photocell receiver,
• necessary mounting elements,
• instruction in Polish with assembly diagram and instruction in English, which are included in the set.

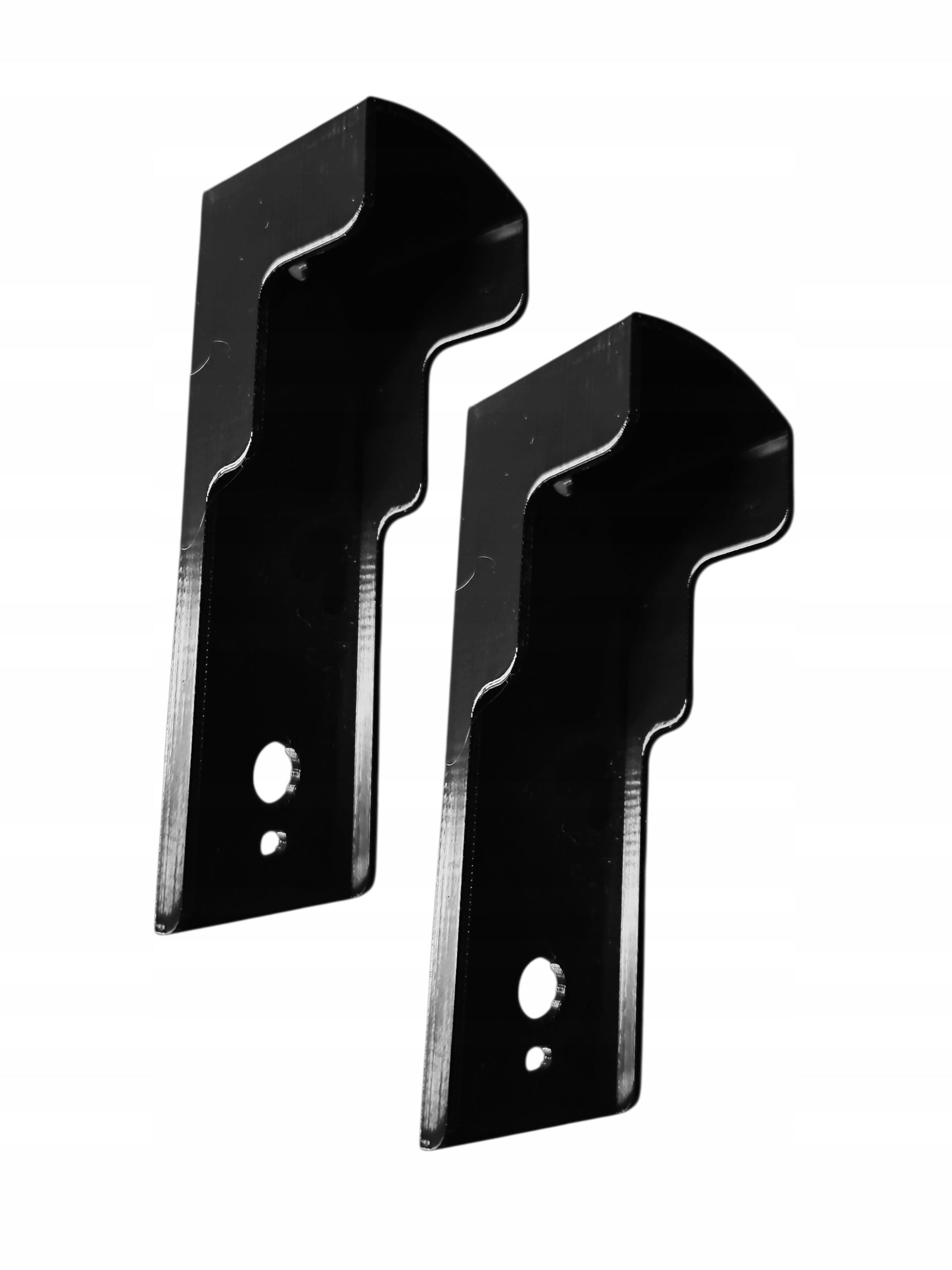

• set of canopies
