Indukcinis šildytuvas TELWIN Smart Inductor 5000

Trumpai apie prekę

Prekė: Indukcinis šildytuvas TELWIN Smart Inductor 5000. Kategorija: Oro šildytuvai.

• Gamintojas: Telwin
• Modelis: Smart Inductor 5000 230V 2,3kw

✅ Induction heating system designed for professional use in carrot repair plants and car workshops.

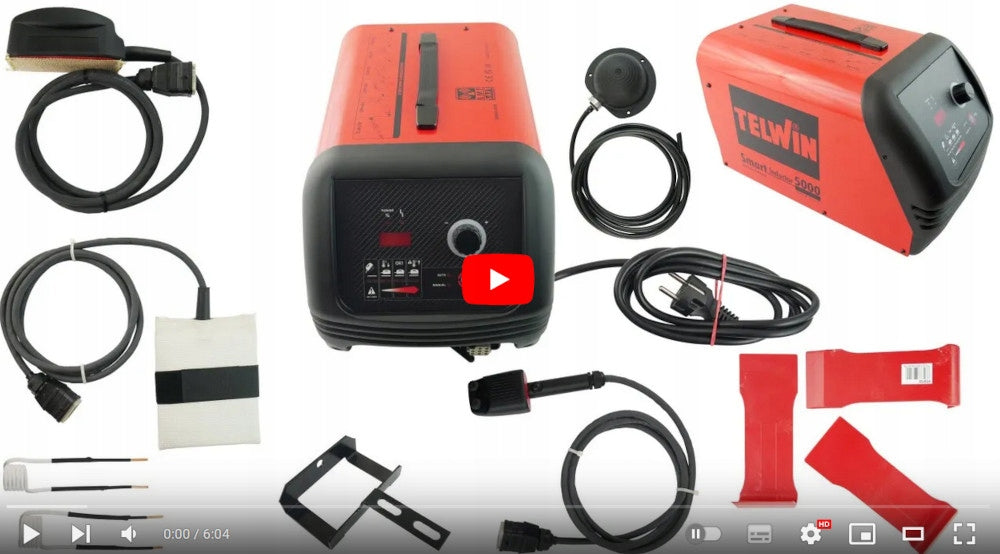

See the induction heater Telwin 5000 in the video:

Copy the link and paste into your browser window

✅ Portable induction heater Telwin 5000 is designed for induction heating of metal elements mainly made of steel.

The main application of the device:

✅ Delete:

• ✔ trademarks
• ✔ stickers
• ✔ decorative strips
• ✔ plastic elements
• ✔ rubber elements glued to the sheet metal

✅ In addition:

• ✔ unlocking rusted screws and spigots
• ✔ lifting sheets
• ✔ repair of small damage in sheets
• ✔ easy and fast removal of windscreen, rear window and side windows glued to the vehicle

Technical data:

✅ Power supply parameters

• Power supply: 230V
• Number of phases: 1ph
• Network frequency: 50/60Hz

✅ Technical parameters

• Max power: 2.3kVA
• Induction frequency: 35-100kHz

✅ Physical parameters

• Protection class: IP21
• Weight: 7.3kg
• Dimensions: 390x260x230mm

Main parameters

• ✔ automatically recognizes connected tool
• ✔ the ability to choose manual mode (MANUAL) or auto mode (AUTO)
• ✔ displays the power bar (diode), which is transferred to the item
• ✔ sound signal proportional to the heater power used
• ✔ automatic system for recognizing an object intended for heating
• ✔ the ability to display on the display the functions of the device such as: used tools, percentage power adjustment, alarms

Connection to the network:

• ✔ before connecting the device to the network, check whether the data contained in the device correspond to the voltage and frequency of the network to which you want to connect the device
• ✔ the heater should be connected only to the power system with a neutral cable connected to the ground.
• ✔ the device has a cable with a standardized plug 16A/250V

Coil holder with long cable

• ✔ Installation of the coil of the handle is very easy and fast. Properly contoured button starts the heating process of the installed coil

✅ Bayonet, METAL RELEASER is used to heat bolts, nuts, etc. in order to unscrew them from the repaired surface.

✔ While the inductor is on, generates strong magnetic fields invisible at the ends. The inductor must be directed exclusively at the metal elements that it intends to heat up. In no case, do not point the device at body parts!

______________________________

See the bayonet for screws in the video:

Copy the link and paste into your browser window

Twisted coils

• ✔ 10v m8/m10
• ✔ 14v m12/m14

Foot switch

• ✅ REMOTE CONTROL FOOT PEDAL - allows remote control of the device.

✅ Ceramic tape type TCZ is a specialized product woven from high quality ceramic yarn, reinforced with inconel wire. It is characterized by excellent insulation properties and is designed to work at high temperatures, providing effective thermal protection in the most demanding conditions.

Application

• ✔ Thermal insulation: Ideal for all types of machinery, equipment, installation and construct requiring heat flow limitation.
• ✔ Heat screens: Effectively protects against excessive heating of surfaces and elements located near heat sources.
• ✔ Soaking processes: Perfectly suited as insulation in welded structure soaking processes.
• ✔ Wire Protection: Provides shield for hoses and cables operating near heat sources, protecting them from overheating.

Technical parameters

• ✔ Raw material: Ceramic yarn reinforced with inconel wire (CrNi with a diameter of 0,1 mm)
• ✔ Maximum instantaneous temperature: 1200°C
• ✔ Maximum continuous operating temperature: 1100°C
• ✔ Losses after roasting: up to 18% – organic fibres burn out in the initial phase without affecting key technical parameters
• ✔ Maximum shrinkage: 3%
• ✔ Density: 0,5 g/cm³ ± 15%
• ✔ Colour: White

Additional Information

• ✔ The product is characterized by high durability and resistance to thermal damage, which makes it an ideal solution for industrial applications. The use of inconel wire increases the mechanical strength of the tape.

✅ The material of inconel reinforced ceramic tape is also used in products such as:

• ✔ Metal Releaser
• ✔ SUPER REMOVER
• ✔ GLASS GENIUS

➡ Inconel reinforced ceramic tape provides excellent thermal insulation and protection, making it an ideal material in products requiring high temperature resistance and effectiveness in harsh working conditions.

• ✅ Holder for fixing device on the working table

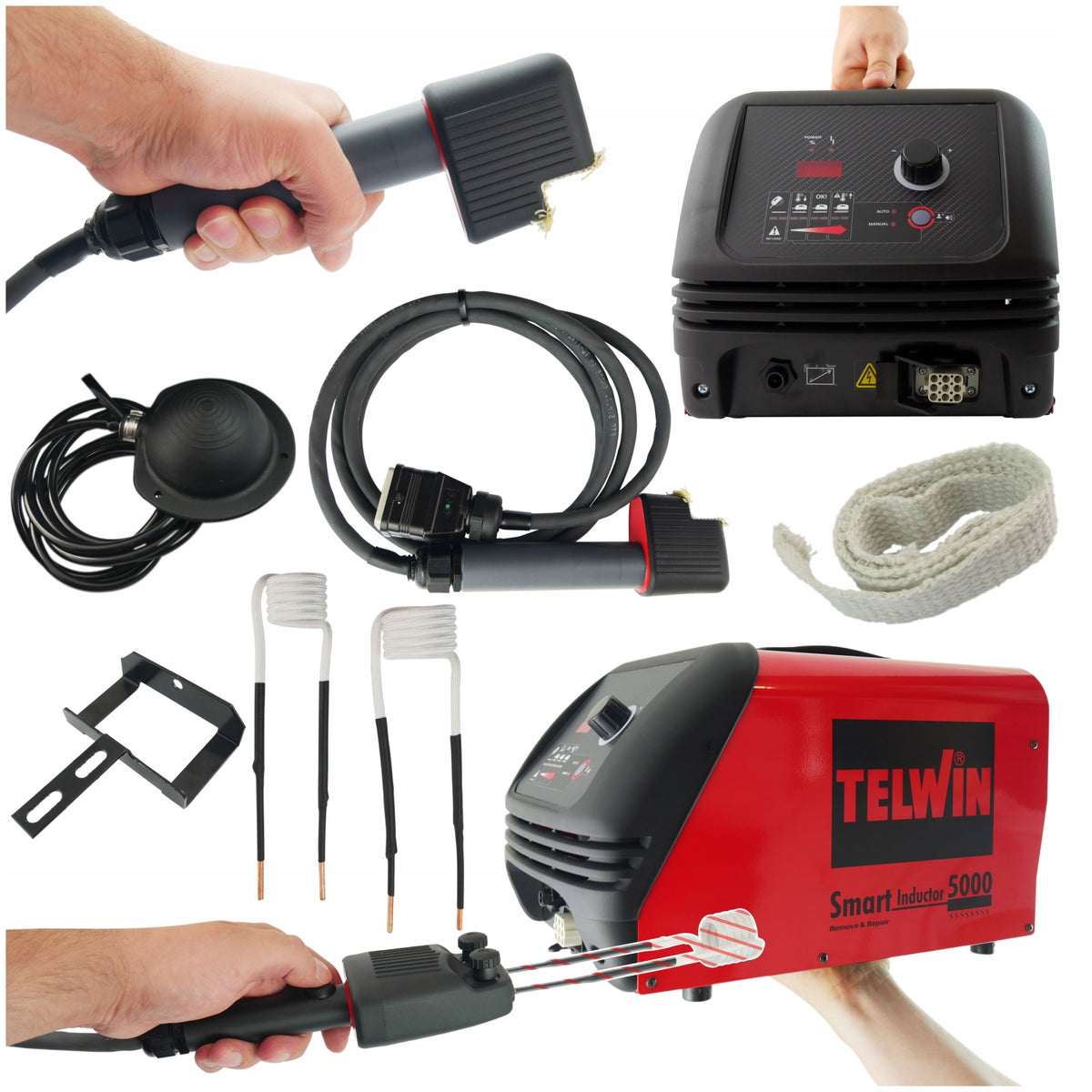

Included in the set:

• ✔ Induction heater Telwin 5000
• ✔ Handle for coils
• ✔ Foot switch
• ✔ Bayonet for screws
• ✔ ceramic reinforcement tape 1m - 1pc.
• ✔ Coil - 2pcs.
• ✔ Mounting bracket

Specifications
