Indukcinis šildytuvas 2500 W su EW moduliu

Trumpai apie prekę

Prekė: Indukcinis šildytuvas 2500 W su EW moduliu. Kategorija: Oro šildytuvai.

• Gamintojas: no brand
• Modelis: AG260522003418

Function:

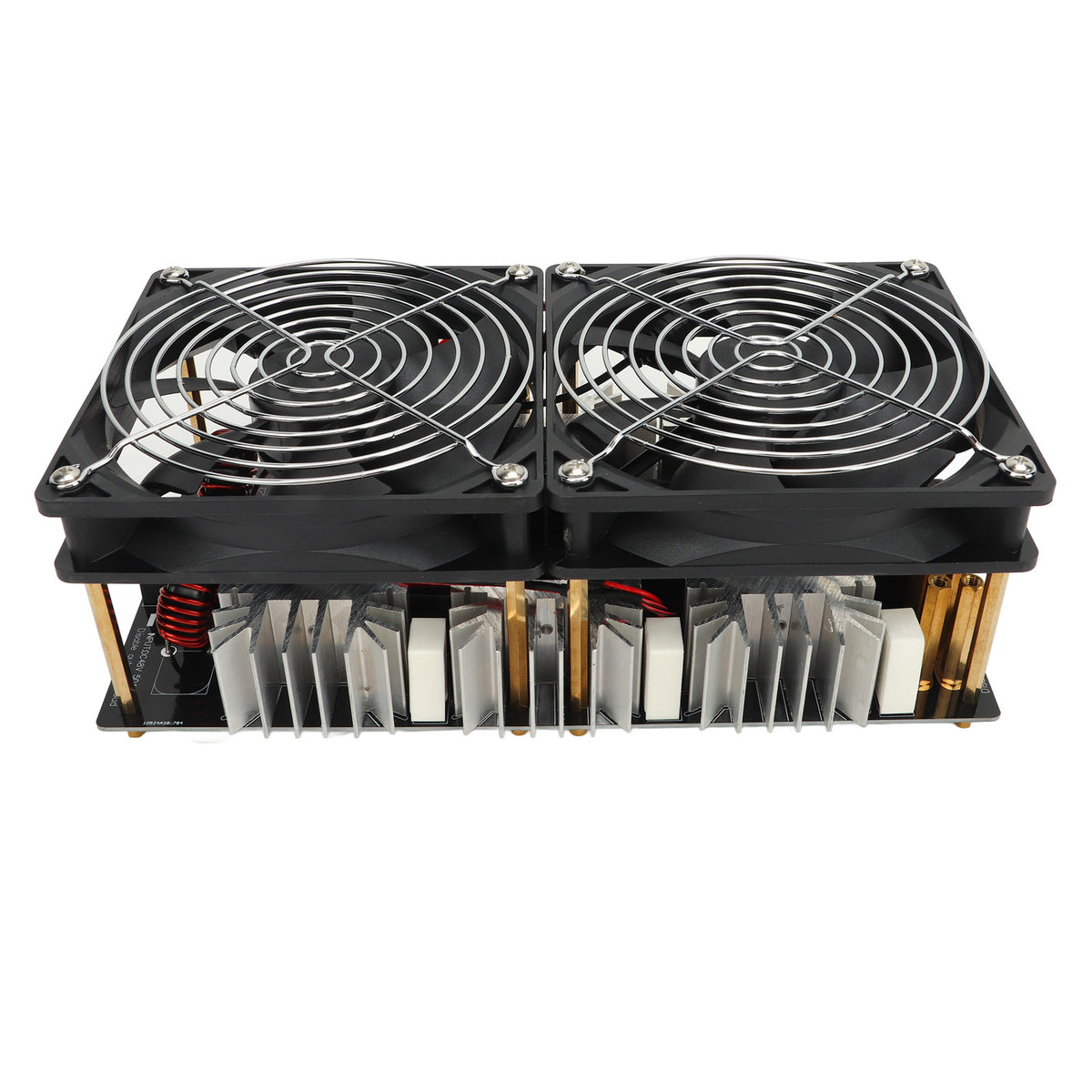

1. EXCELLENT DESIGN: The induction hob has a very large PCB chip and a very large heat sink, which provides good heat dissipation and high power. Equipped with cooling fan interface and can also be used for discharge, generator, high voltage inverter power supply, etc.

2. POWERFUL FUNCTION: There are three brass M4 columns in parallel at the output end, which can be connected to other outputs, such as high voltage packets; Using 6 IRFP260 and 12 parallel resonance capacitors, the heating plate has high power and efficiency.

3. OPERATING DETAILS: This induction heating circuit uses a low voltage DC power supply with a voltage of 12 to 48 V, a maximum current of 50 A and a maximum power of 2500 W.

4. WIDELY USED: Induction heater can work continuously under good heat dissipation conditions. Due to its moderate power, the module can be used by DIYers to perform heat treatment such as hardening and annealing on small parts. It can also be combined with graphite crucible (without) to melt metals such as gold, silver, copper, aluminum, etc., heating evenly and quickly, making it very convenient.

5. EASY INSTALLATION: The compact size makes the module easy to install on your equipment and machine, perfect replacement for old and damaged parts.

Specification:

• Item Type: Induction Heater
• Material: PCB, Brass
• Input voltage: 12 V-48 V, recommended above 36 V
• Power Requirements:
• Less than 12 V, greater than or equal to 10 A
• Above 15 V, greater than or equal to 20 A
• Fan: With silent fan
• Maximum power: 2500 W
• Maximum current: 50A

1. The heating power is very high, except for very hot plates and components, and the heating performance of brass pipes is very high. Buyers can prepare a separate water cooling system by purchasing a small water pump and a 2-meter rubber hose with an inner diameter of 4 mm.

2. When using switching power supplies, care should be taken, as high-power switching power supplies usually have a soft start function, and the output voltage increases slowly. If the Y voltage rises earlier to 10 V, the circuit will not be able to withstand vibration due to insufficient voltage, resulting in the simultaneous conduction of two MOS transistors and the burning of components. Therefore, it is necessary to change the supply voltage to stabilize, and then connect them to the heating circuit by induction.

3. When heating metal objects, do not heat too much metal, otherwise it can cause power overload. Add a fuse or 35A ammeter and the air switch will be better. (Packaging not included)

4. Although this drive plate can withstand current over 40A, it is recommended not to exceed 48V 35A to avoid accidents and damage.

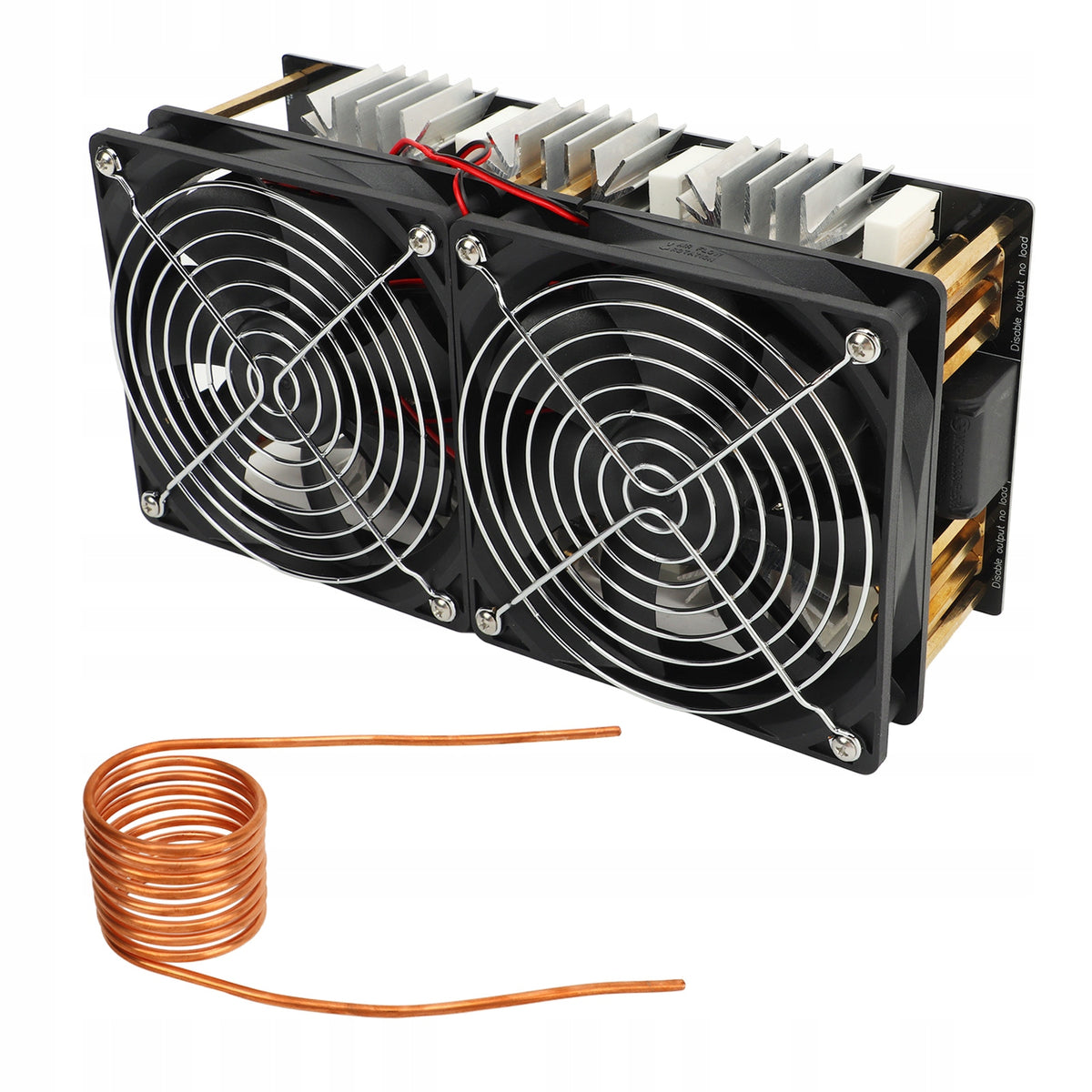

5. The package includes a heating ring with a diameter of 60mm and a design voltage of 36V. If a power supply with a voltage of 40 or higher is used, it is used for heating with an internal diameter of 70 mm above the diameter of the heating ring. The water pump is powered by 12V DC voltage. To burn the fan and water pump, use a separate power regulator module.

6. The minimum input voltage of the module is 12V, which does not mean that the entire 12V power supply can be used. Some novice buyers may use smaller power supplies. This module has specific voltage and current requirements, and the current voltage of 12V must be greater than 10A. If the battery level is too low, you can use the power supply. This greatly reduces the power output. When the voltage is lower than 12V, it will cause both MOS transistors to conduct simultaneously and burn the MOS transistor.

7. When heating MOS lamps, the first thing to consider is whether the output power meets the requirements.

8. Do not empty the board, otherwise it will emit high-frequency interference and burn the MOS transistor.

9. For induction heating, it is recommended to use a 36V 20A power supply. The 12V power supply is too small and hardly responds, and the 12V power supply can easily cause the output voltage of the power supply to drop. Using a voltage lower than 12 V is very dangerous.

10. Inductive heating power is excellent, so heating is a normal phenomenon and good heat dissipation is necessary. Induction heating, the recommended power supply is a switching power supply 48 V 50 A or higher. If the supply voltage exceeds 24 V, the supply voltage exceeds 20 A. The higher the voltage, the greater the current, the greater the heating power and faster the heating.

List of packages:

• 1 x Induction Heater
• 1 x Brass Ring
