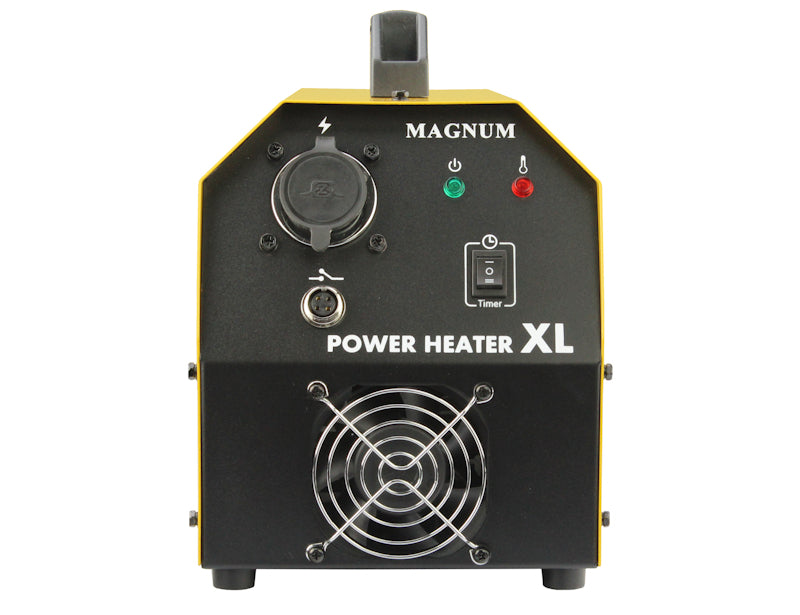

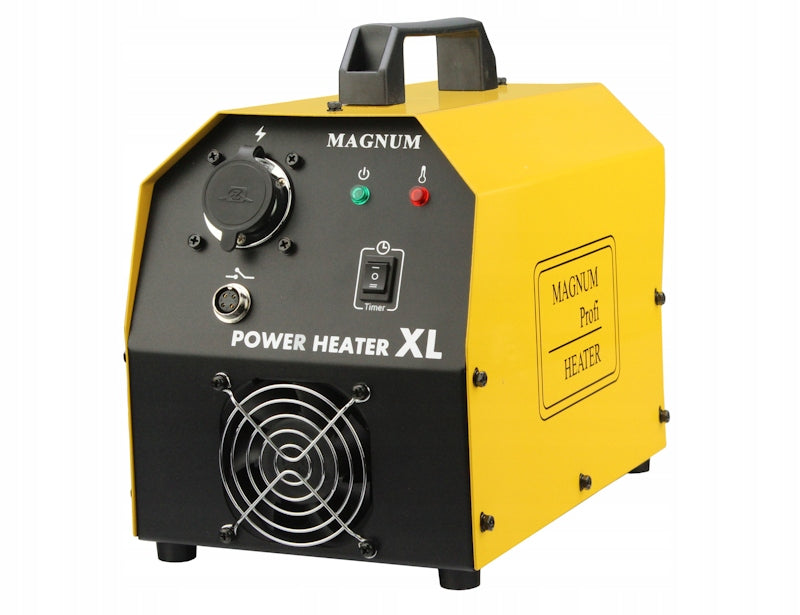

Indukcinis šildytuvas 230V POWER HEATER XL MAGNUM

Trumpai apie prekę

Prekė: Indukcinis šildytuvas 230V POWER HEATER XL MAGNUM. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: US-PIA-NI3KW

Induction heater 230V 3kVa

Induction heater 230V 3kVa POWER HEATER MAGNUM

The device brand MAGNUM - POWER HEATER XL - is designed for precise, fast heating of protruding elements or flat surfaces, e.g. bolts, nuts, pins, pipes, glass, sheets, etc., of a diameter or surface limited by the type and size of working tips available, designed to work with the device. The induction heater replaces standard methods of heating with a gas flame. Thanks to this, we protect the area of the heated element from: melting, tanning, etc.

The device has a patented handle with control. Interchangeable tip sockets allow longitudinal and transverse installation of induction tips!

Even, fast and stable heating of details. The surface of the heated part is only in the place required for thermal treatment and is under full control of the place where the influence of temperature is required.

High work safety (no combustible gases) and better working conditions for service. The operator shall not be exposed to open fire, hot gases and the risk of fire and explosion when using open fire.

Lower costs associated with crew training, lower wage costs. There is no need for periodic employee training that is required when working with gases.

Low cost of purchase and operation. No costs associated with the purchase of technical gases and the lease of cylinders.

High energy efficiency.

Possibility of heating details to a temperature of 800 ° C and above.

The induction heating process begins after connecting the heater to the 230 V socket, embedding or approaching the inductor coil to the heated detail and after pressing the button. The heat-treated detail is heated very quickly according to individual requirements even to “redness”. Induction coils are easily replaceable and come in many sizes and different types ranging from fixed diameter round coils, flat coils to sheet metal and flexible coils with which we can wrap a detail of any surface.

APPLICATION:

• Automotive, railway and shipbuilding industries, machinery industry, repair plants, assembly workshops, district heating installers, services, etc.

  • Production, repair, repair, maintenance of machinery.

  • Details requiring heating: bolts, rods, profiles, sheets, bearings, housings, drive shafts, hinges, nuts, pipes, gears,

  fitting of bearings, lambda sensors, parts and components of machinery and vehicles, exhaust systems, pulleys, clamps, etc.

  • Heating of instruments and details before hardening, joining, soldering, welding.

  • Defrost

  • Application for the same work as for the use of propane-oxygen and acetylene-oxygen gas burners.

SUMMARY OF PRODUCT CHARACTERISTICS

• Reliable IGBT technology
• Easy operation and low operating costs.
• Optimal user protection, by separating the main power circuit from the main power supply network
• Device made in microprocessor technique
• Automatic selection of frequency and impedance of power inverter operation
• Overload alarm
• High mobility – low weight and small dimensions – the size of a small welding machine.
• Power 3 kVa, with high load factor.
• Easy manipulation and access – in a meter cord with a handle.
• Flexibility and ease of use – 1x230 V power supply, simple operation and speed of preparation.
• Comprehensive use - heating details of various shapes of flat, round, placed centrically or on a flat surface.
• Available at a low price modern method of workshop heating by induction method of steel elements.

EQUIPMENT:

Set of tips (coils):

• angular 20 mm,

• Angle 28 mm,

•flat 55 mm,

•butt 20 mm,

•butt 28 mm,

•flexible (for pipes and rods),

•for spot heating of sheets

TECHNICAL PARAMETERS

Operating frequency 100 kHz

Bent induction coils YES

Fixed induction coils YES

Degree of protection IP 21 S

Power consumption 3,0 kVA

Current L1 max: 10A

Voltage U2: 16V

Current L2: 120A

Rated supply voltage 230 V, 50+60 Hz

Weight 5,6 kg

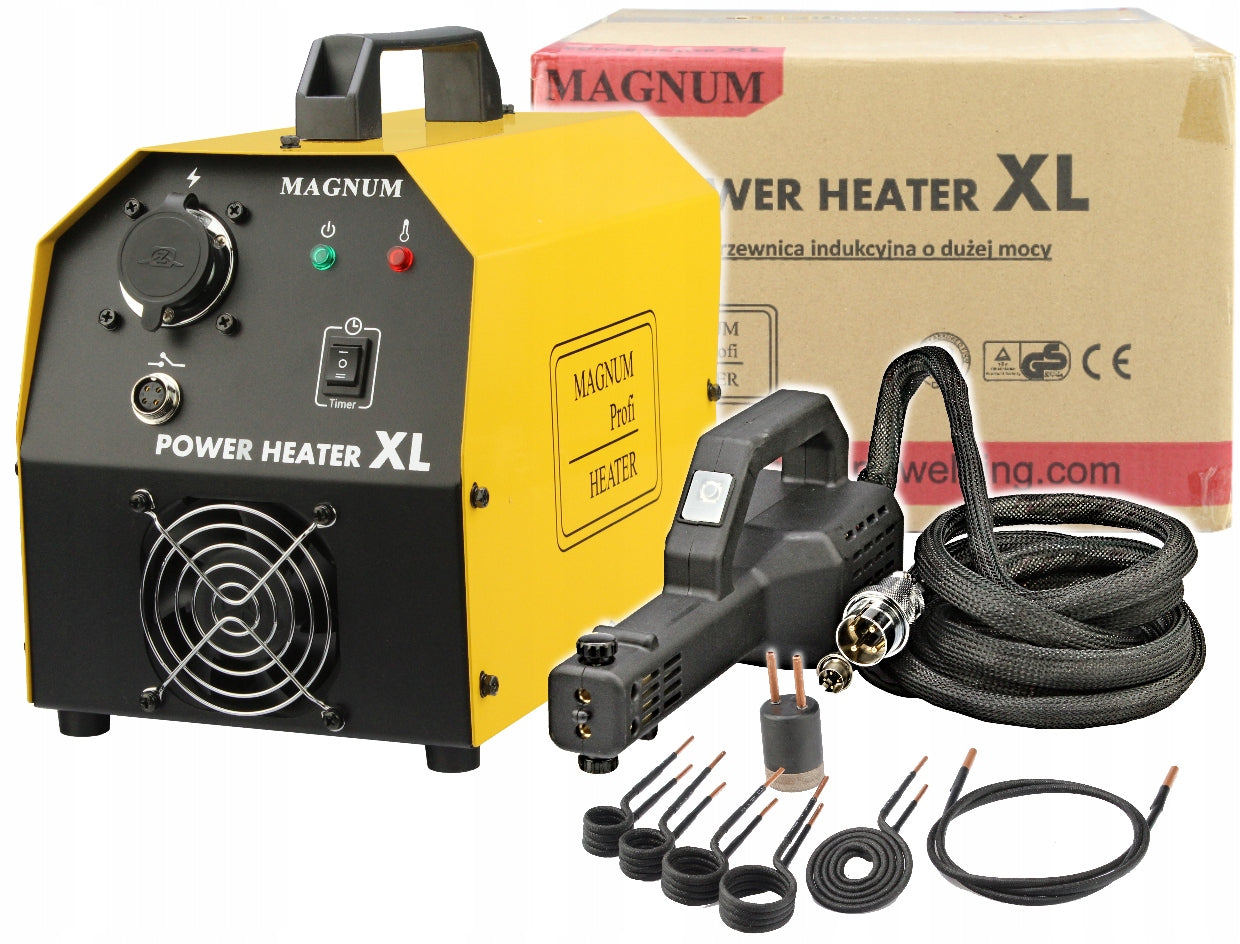

DELIVERY CONTAINS

Induction heater

Working cable 2m

Angle tip 20 mm

Angle tip 28 mm

Flat tip 55 mm

Butt tip 20 mm

Butt tip 28 mm

Flexible tip (for pipes and rods)

Tip for spot heating of sheets

Operating instructions

Warranty card

Specifications
