Pristatymo terminas kiekvienai prekei nurodomas prie kainos bloko.
Pristatymas visoje Lietuvoje: nemokamas.
Trumpai apie prekę

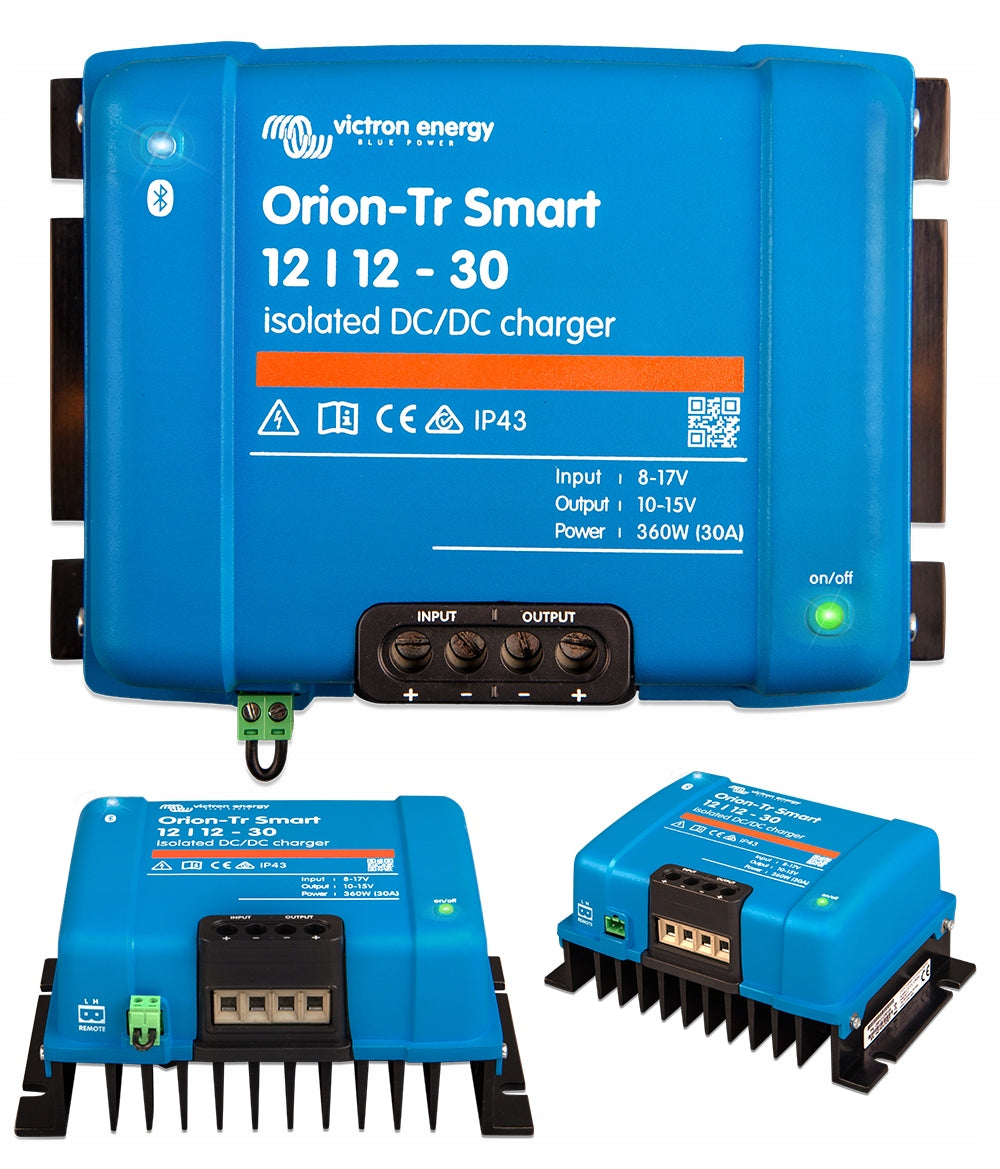

Prekė: Įkroviklis VICTRON ORION izoliuotas 12/12-30A 360W. Kategorija: Baterijų įkrovikliai.
- Gamintojas: Victron energy
The Orion-Tr Smart DC-DC Charger is a professional, adaptive, 3-degree DC to DC charger with built-in Bluetooth chip.
It is designed for use in dual battery systems in vehicles or boats where the main battery is charged by a (smart) alternator and starter battery. The device can be monitored and programmed via Bluetooth, can be remotely controlled by a remote on/off switch, and is equipped with a motor detection mechanism.
The Orion-Tr Smart charger can be used in 12V or 24V installations, and is suitable for both lead-acid and lithium batteries. Models with a power of up to 400W are available, and in order to increase the output power, an unlimited number of devices can be connected in parallel.
It can operate at temperatures as low as 55°C and maintains full nominal power at temperatures up to 40°C.
The set includes:
- Orion-Tr Smart
- User manual in English
Technical data
- Power [W]: 360
- Maximum efficiency [%]: 87
- Input voltage range DC [V]: 10 - 17
- Minimum start voltage [V]: 7.5
- Approximate cut-off voltage [V]: 7
- Circuit current [A]: 60
- Continuous output current [A]: 30
- Mass [kg]: 1.8
- Output voltage DC [V]: 12.2
- Output voltage range DC [V]: 10 - 15
- Communication type: Bluetooth
- Dimensions: [mm] 186 x 130 x 80
With Bluetooth Smart support
You can use any Bluetooth-enabled smartphone, tablet or other Bluetooth-enabled device to monitor, change settings and update the charger when new software features are available.
Fully programmable
- Battery charging algorithm (customizable) or constant output power.
- Intelligent alternator compatibility: engine detection mechanism.
Adaptive 3-degree charging algorithm: bulk - absorption - float
- For lead-acid batteries, it is important that during shallow discharges the absorption time is short to prevent the battery from overcharging. After deep discharge, the absorption time is automatically extended to make sure the battery is fully charged again.
- For lithium batteries, the absorption time is constant, 2 hours by default.
- Alternatively, a constant output voltage can be selected.
Suitable for use in vehicles with intelligent alternator (with Euro 5 and Euro 6 engines)
The built-in motor shutdown detection system turns off the inverter when the engine is not running. This prevents the starter battery from being discharged (details in the user manual).
Remote on/off
The remote on/off switch or relay contact can be connected to a bipolar connector. Alternatively, the H (right) terminal of the bipolar connector can be switched to the plus of the battery or the L (left) terminal of the bipolar connector can be switched to the minus of the battery (or, for example, the chassis of the vehicle).
All models are short-circuit resistant and can be parallel to increase the output current
Unlimited units can be connected in parallel.
Protected from high temperature
The output current will decrease at high ambient temperature.
Degree of protection IP43
In the case of installation with screw-on terminals facing downwards.
Screw-on clamps
Assembly does not require special tools.
Input fuse (non-replaceable)
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With a VAT invoice |
| Parametry | Brand | Victron energy |
| Parametry | Maximum amperage | 30 A |
| Parametry | Product weight with unit packaging | 1.8 kg |
| Parametry | EAN (GTIN) | 8719076038825 |
| Parametry | Batteries included | no |
