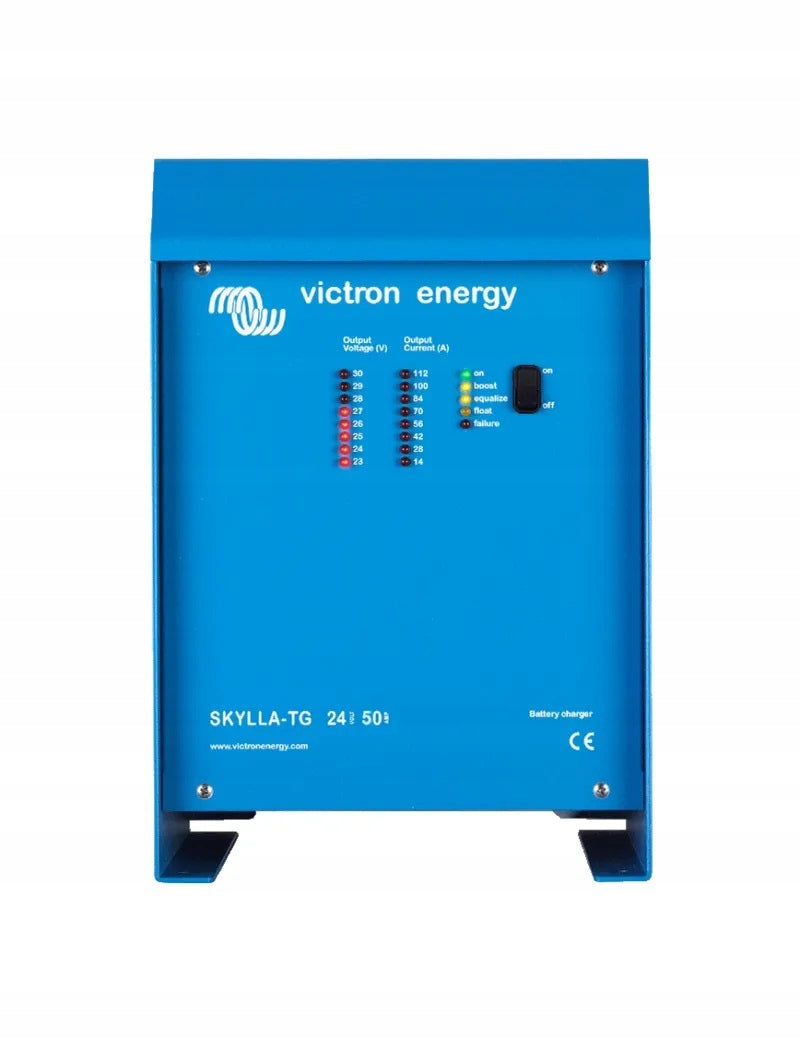

Įkroviklis Skylla-TG 24V 50A 1+1 Victron Energy

Trumpai apie prekę

Prekė: Įkroviklis Skylla-TG 24V 50A 1+1 Victron Energy. Kategorija: Baterijų įkrovikliai.

• Gamintojas: Victron energy
• Modelis: Skylla-TG 24/50 1+1 GL

Battery technology

• AGM
• Gel
• Classic
• Lithium-ion

Nominal battery voltage [V]: 24

Input voltage range AC [V]: 90 - 265

Input voltage range DC [V]: 90 - 400

Absorption charging [V]: 28.5

Maintenance charging [V]: 26.5

Rated charging current [A]: 50

Number of phases: 1

Battery capacity [Ah]: 250 - 500

Mass [kg]: 5.5

Dimensions [mm]: 250 x 365 x 147

The Skylla-TG charger is the perfect charger for any type of battery. The charging voltage can be finely tuned and matched to both sealed and unsealed batteries. Especially if we care about the long life of fully sealed batteries, we must remember that they are charged correctly. Recharging such a battery would result in excessive gassing and unsealing, which will result in drying and unreliability of the battery.

Suitable for AC and DC resources (AC-DC and DC-DC operations)

In addition to models with three-phase inputs, chargers also accept power from DC resources.

Controlled charging

Each TG charger has a microprocessor that properly controls charging in three steps. The charging process follows the characteristics of IuoUo more rapidly than other processes.

Using TG chargers as a power source

Thanks to the effect of perfectly stabilized voltage at the output, TG chargers can be used as a power source when batteries or other large buffer containers are not available.

Two outputs for charging two battery banks (24V models only)

TG chargers are characterized by two isolated outputs. The second output, limited to about 4 A and with a slightly lower voltage at the output, is designed to be connected to the starter battery.

To extend battery life – temperature compensation

Each Skylla TG charger is equipped with a battery temperature sensor. When it is connected, the charging voltage will be automatically reduced as the battery temperature rises. This feature is especially recommended when using fully sealed batteries, which could otherwise be overcharged and dried due to unsealing.

Battery voltage sensor

In order to compensate for the voltage drop through cable resistance, TG chargers are equipped with voltage sensors, so that the battery always gets the correct charging voltage.

Specifications
