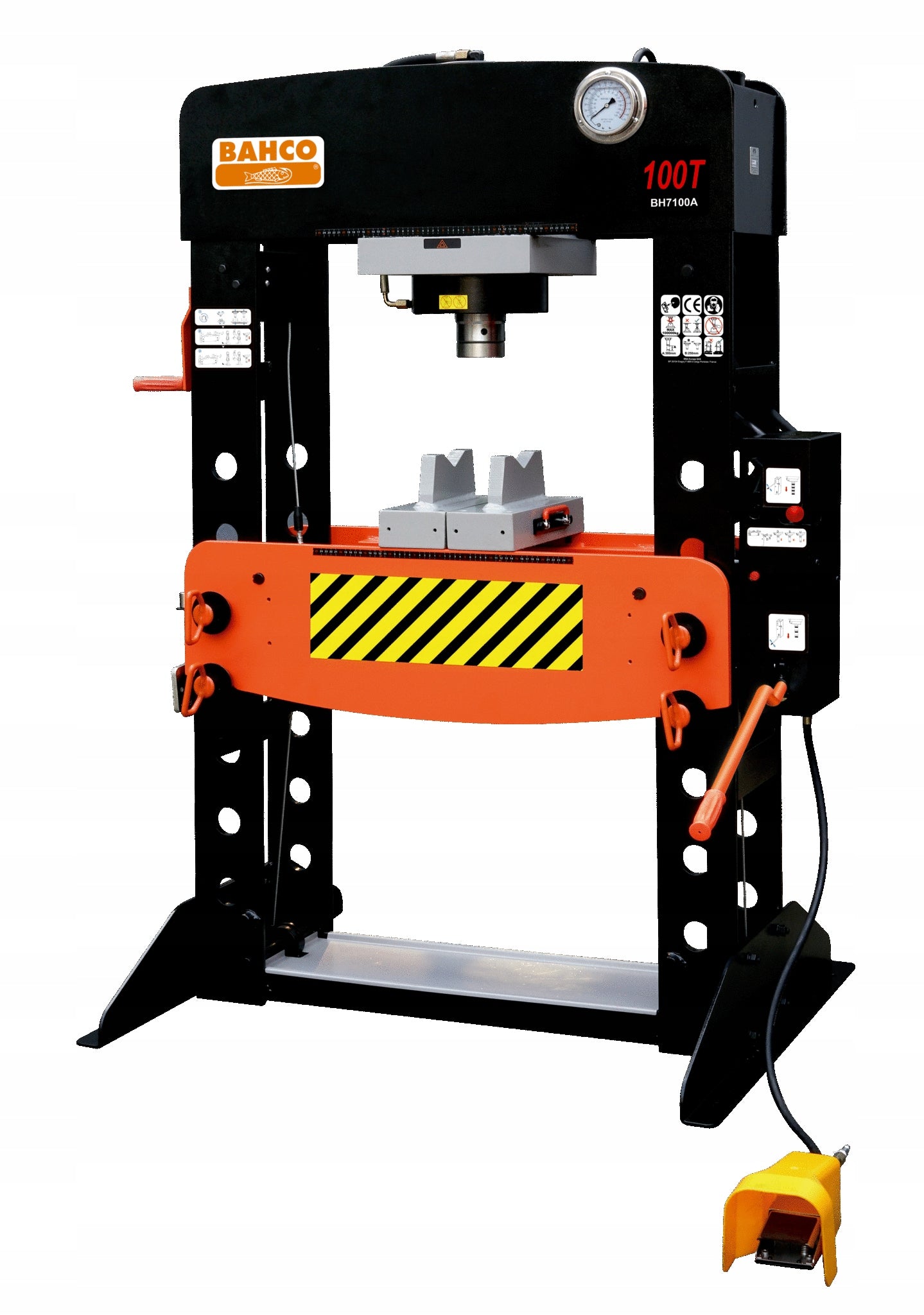

Hidropneumatinis dirbtuvių presas Bahco 100T

Trumpai apie prekę

Prekė: Hidropneumatinis dirbtuvių presas Bahco 100T. Kategorija: Butelių kėlimo įrankiai.

• Gamintojas: Bahco
• Modelis: BH7100A

Code: BH7100A

Manufacturer: Bahco

Pressure force: 100 000 kg (100T)

Mass: 674 kg

• Dual-speed hydropneumatic pump with control pedal and built-in overload valve
• Strong welded frame with exclusive design and rounded shapes
• Large pressure gauge with glycerin for easy reading at an eye-friendly level
• The sliding of the chrome piston is carried out thanks to the girder built into the frame
• Easy lifting and lowering of the table press thanks to the winch combined with a rotating handle
• Linear for easy centering of the piston
• Two blocks for supporting the detail - on one side flat on the other with V indentation

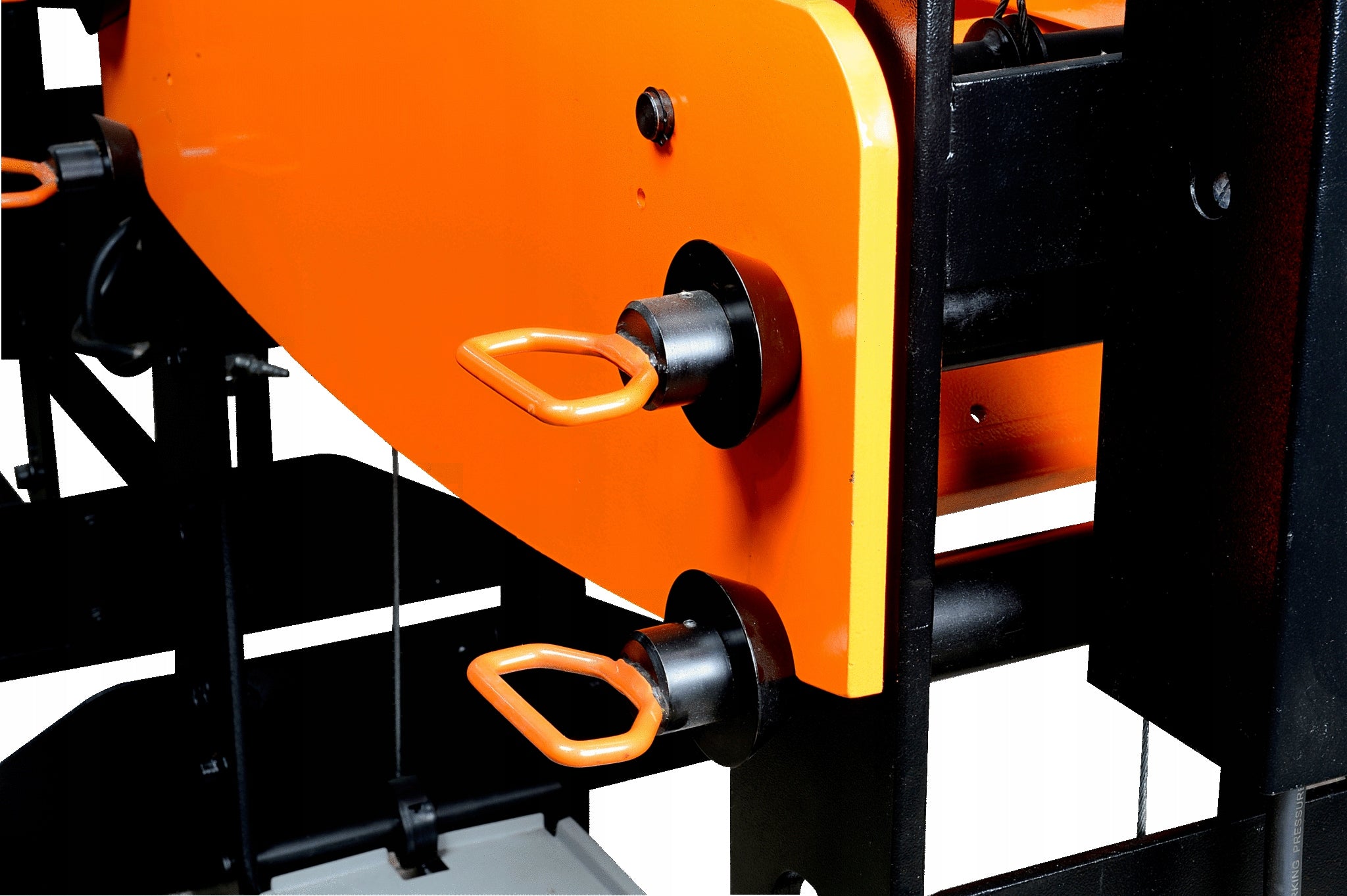

• Automatic table centering with pins with built-in locking butterflies for safety
• All insulated handles
• Includes a set of 8 pins with a holding plate
• Tool tray at the bottom of the device
• Operating pressure: 7,5-8,5 bars 0,75-0,85 MPa air connection: 1/4" NPT
• Certified up to 2006/42/EC

The product complies with the 2006/42/EC standard

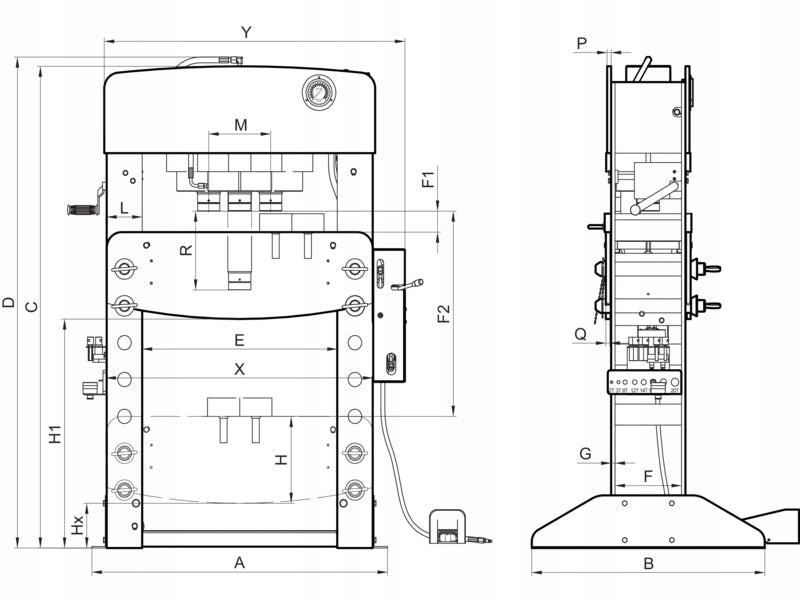

Geometry

A= 1193 mm

B=940 mm

C=1830 mm

D=1865 mm

E= 787 mm

F1=85 mm

F2= 785 mm

F= 268 mm

G=16 mm

H=325 mm

L=143 mm

M=250 mm

X= 1073 mm

Y=1210 mm
