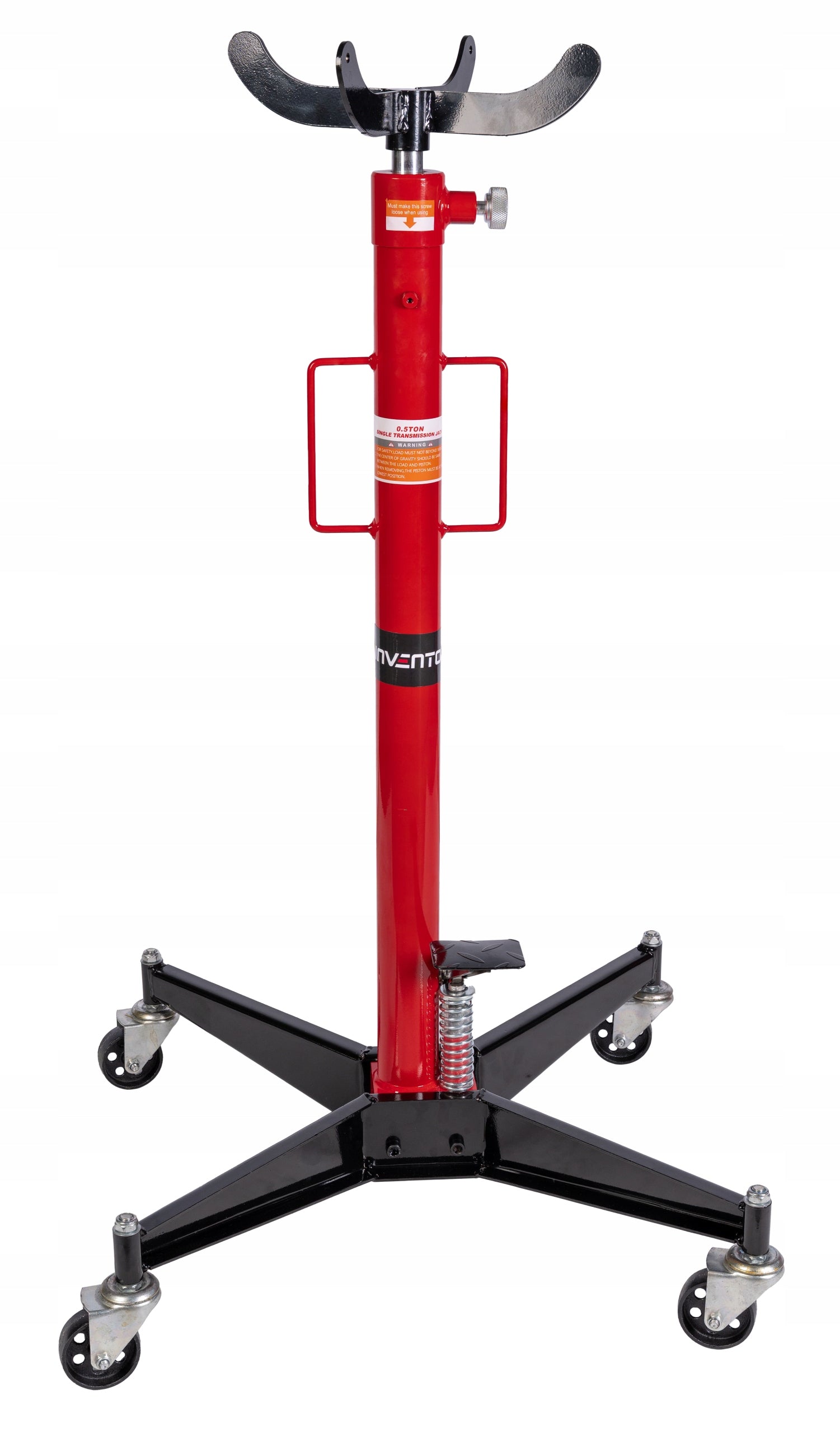

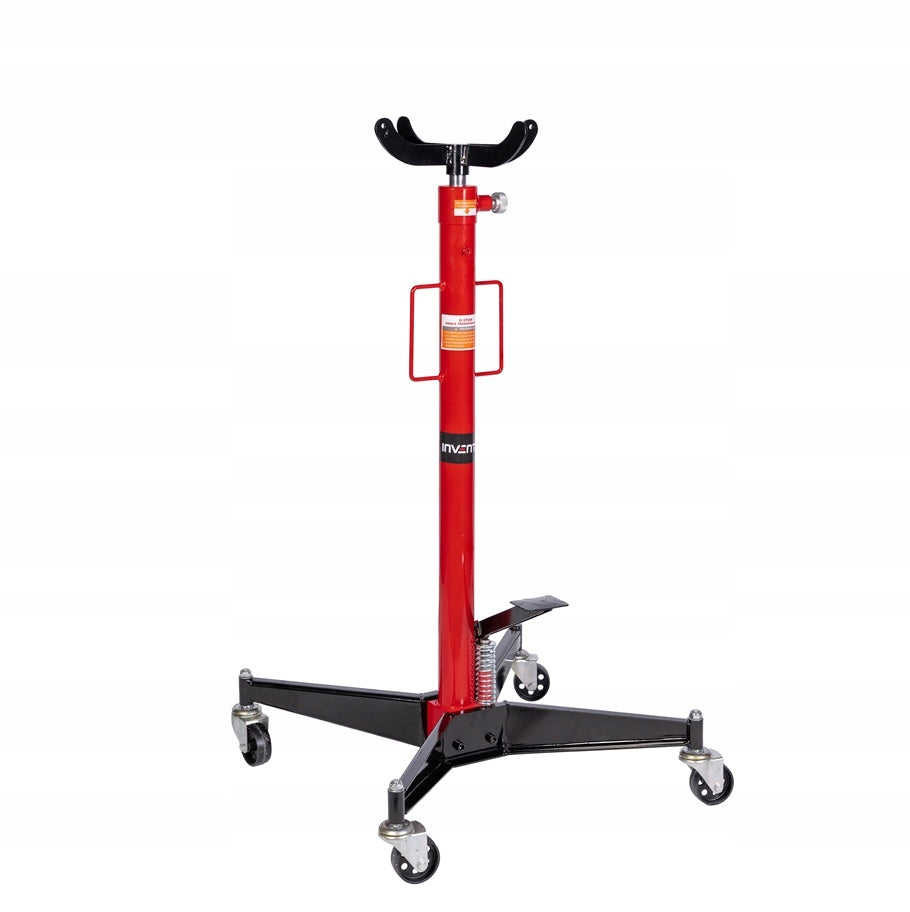

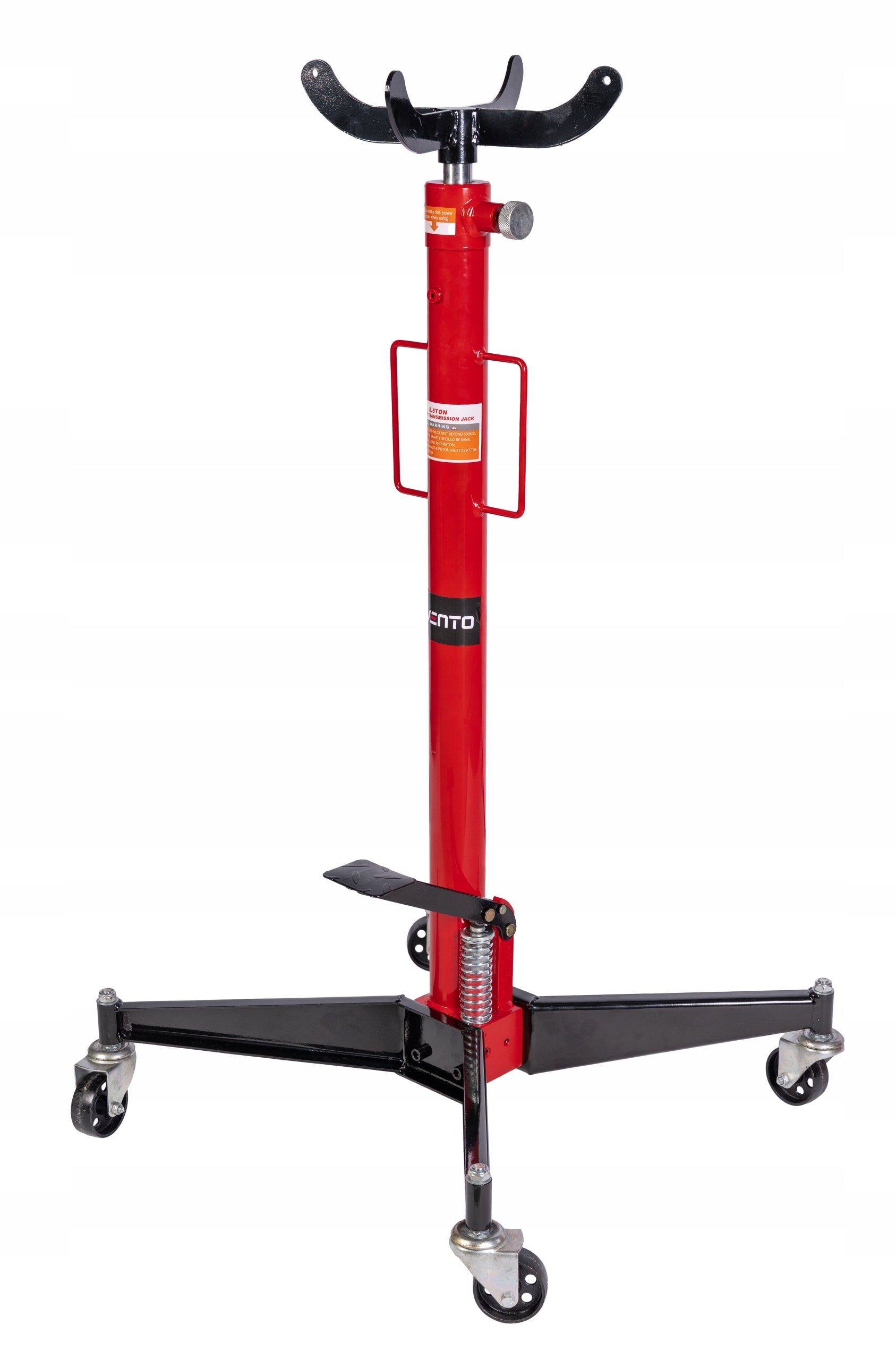

Hidraulinis variklio ir pavarų dėžės keltuvas INVENTO 500 kg

Trumpai apie prekę

Prekė: Hidraulinis variklio ir pavarų dėžės keltuvas INVENTO 500 kg. Kategorija: Pavarų dėžės keltuvai.

• Gamintojas: Invento
• Modelis: INVTP03

LIFT FOR ENGINE GEARBOX STAND 500KG FOOT PRESSER WORKSHOP

Solid quality INVENTO - Lift for gearbox INVENTO 500kg

Professional lift for gearboxes and engines, ideal for service work in car workshops. It enables quick and safe disassembly and assembly of gearboxes, drive system components and even entire engines.

The lift is solidly made, which ensures stability and safety during operation.

The set includes a special overlay/handle for easy placement of the gearbox on the lift.

Support for lift

Thanks to the four swivel wheels on the bearing turntables, the device can be easily moved around the workshop.

Operation is carried out using the leg hydraulic pumpj – lifting is done by pressing the pedal, and lowering after releasing the knob. The lift already has an oil-filled actuator!

ATTENTION:

The lift does not have a mechanical lock (detent) to secure the actuator. After dismantling the element, it is recommended to immediately support it with another device (e.g. trestles).

Technical data:

• Brand: INVENTO
• Model: INVTP03
• Lifting capacity: 500 kg
• Height adjustment range: 1 055 – 1 855 mm
• Base dimensions (with wheels): 590 x 610 mm
• Weight: 25 kg
• Drive Type: Hydraulic, Foot
• Actuator: factory flooded with oil
• Lift mounted on 4 swivel castors on bearings
• Base dimensions with wheels 56 x 56 cm which makes it stable
• Metal wheels with a diameter of 7 cm
• Weight about 30 kg
• Color: Red
• Comes with an easy-release basket (spider)
• Included: gearbox cover/handle
• Lifting by foot pumping
• Lowering by unscrewing the valve manually.
