Hidraulinis pavarų ir variklio keltuvas AREBOS, plieninis, 500 kg

Trumpai apie prekę

Prekė: Hidraulinis pavarų ir variklio keltuvas AREBOS, plieninis, 500 kg. Kategorija: Pavarų dėžės keltuvai.

• Gamintojas: Arebos
• Modelis: ar-he

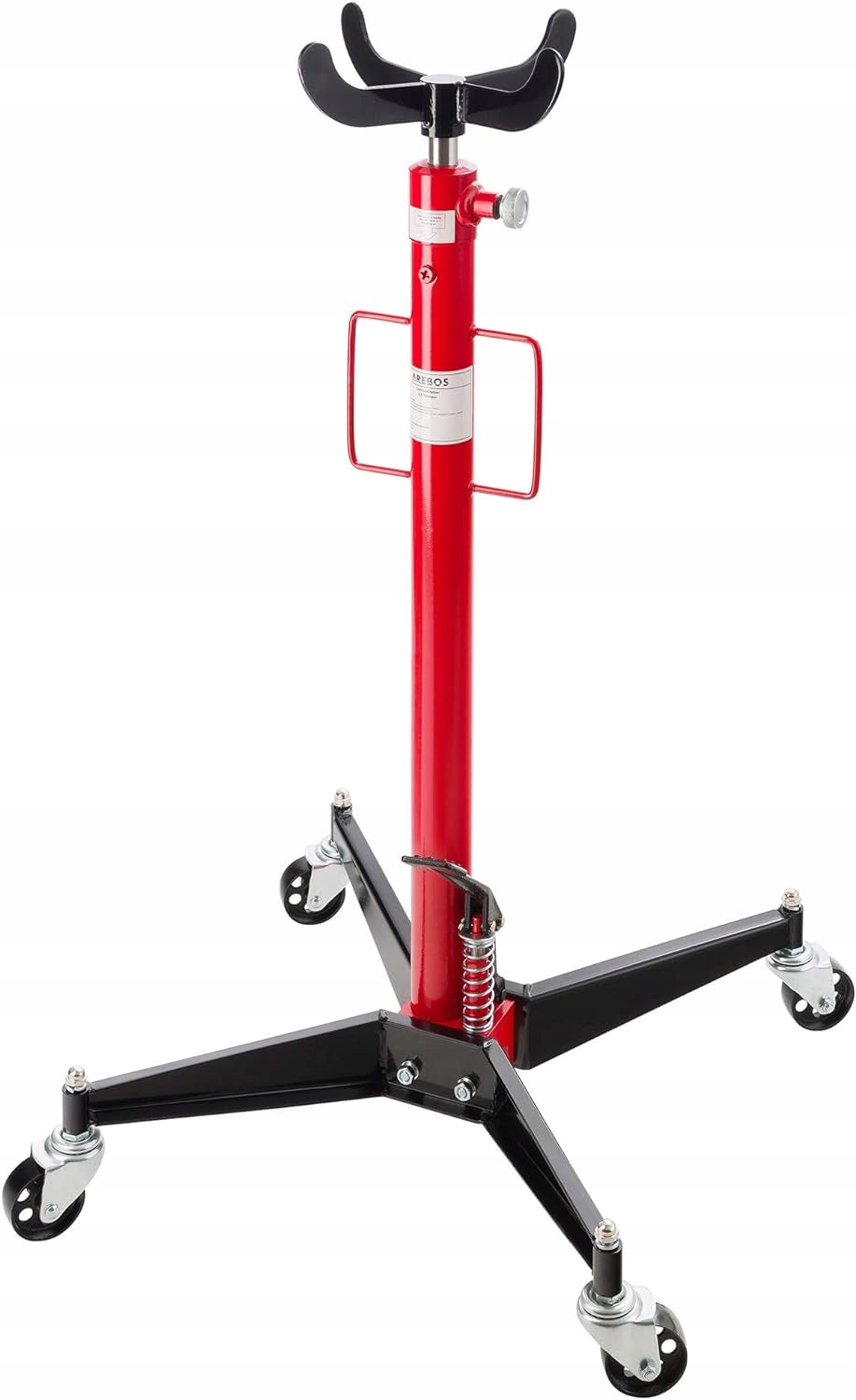

Arebos transmission lift | engine lift |Steel hydraulic lift 500 kg | workshop folding | Adjustable height from 105 to 185 cm | Steel | with 4 wheels

• Gearbox lift AREBOS 500 kg

  No workshop should do without our gearbox lift AREBOS.

  With its hydraulic cylinder, it is ideal for mounting and disassembling gearboxes and other engine parts, as well as for a variety of maintenance and maintenance tasks. In accordance with our AREBOS quality standards, we have designed this element in such a way that its design and functionality are tailored to the customer’s needs.

  The result is a robust gearbox lift that safely and stably lifts up to 500 kg. It is pumped using a hydraulic foot pump, which allows you to work simultaneously with your hands. The wide wheelbase of the gearbox lift ensures stability when lifting and manoeuvring heavy loads. 75 mm diameter wheels are mounted on ball bearings and are extremely stable.

  The side-mounted handles make it easy to transport the gearbox lift, and its light weight of 23,5 kg makes it convenient to carry anywhere. The crank allows you to manually adjust the lift and its gradual, gentle lowering. The dimensions of the motorized lift are 57 × 57 × 110 cm.

  Take this practical helper to your workshop!

  EASY OPERATION

  No more tedious lifting! Take advantage of the integrated AREBOS gearbox lift hydraulics. Press the pedal to create pressure in the gearbox lift and pump the gripping claw upwards.

  After the work is completed, you can simply release the pressure with a valve and the claw will lower again.

The most important features of the AREBOS lift

• Leverage up to 500 kg

  The AREBOS gear lifter is suitable for lifting heavy elements in garages, workshops, craft plants, agriculture, industry, gardening and landscaping work.

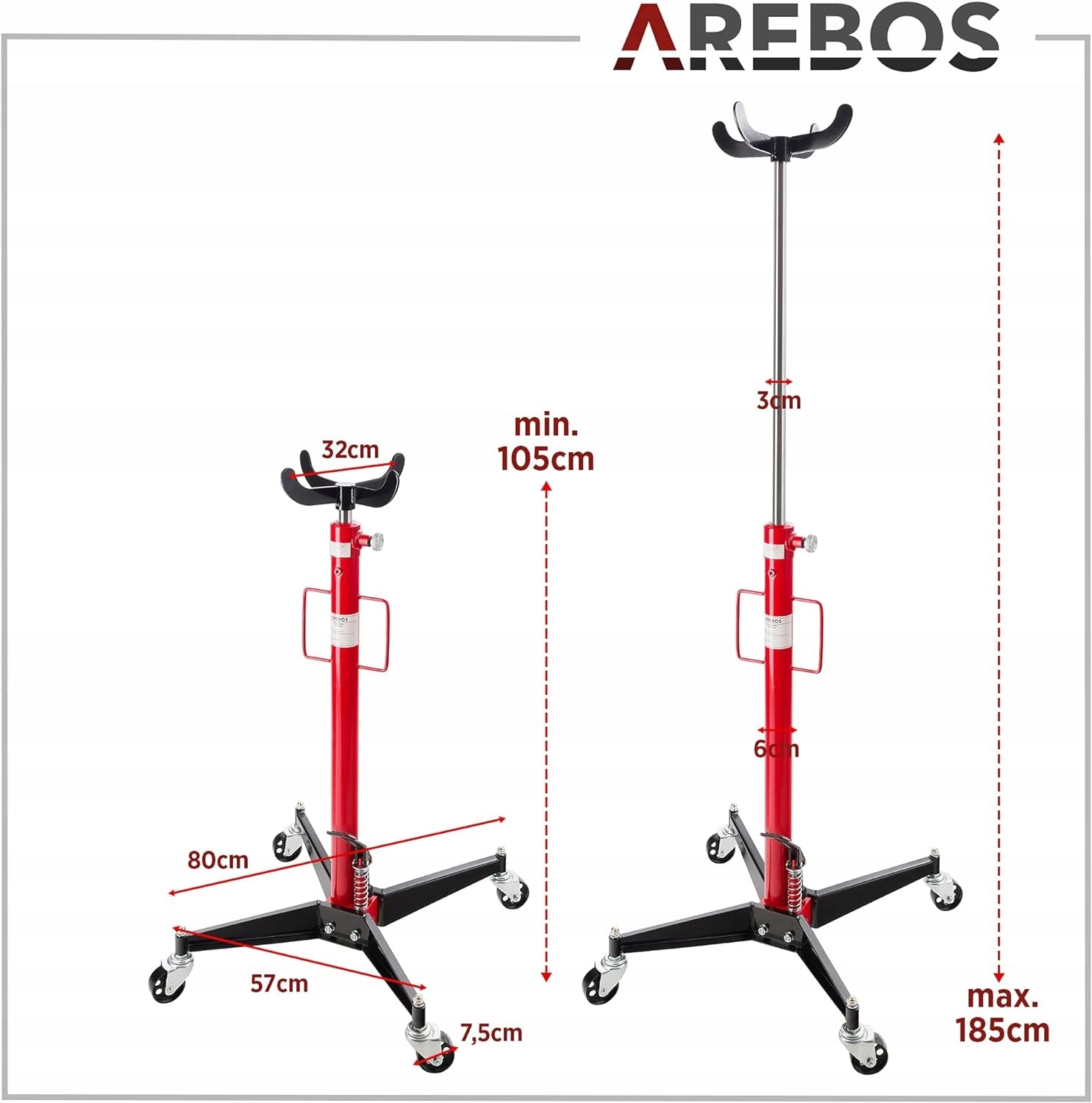

• Adjustable height from 105 to 185 cm

  The wide range of adjustment makes the lift suitable for many assembly and service work performed under the vehicle.

• Comfortable hydraulic lifting

  The foot pedal allows you to easily and comfortably lift the load without the need for a lot of force.

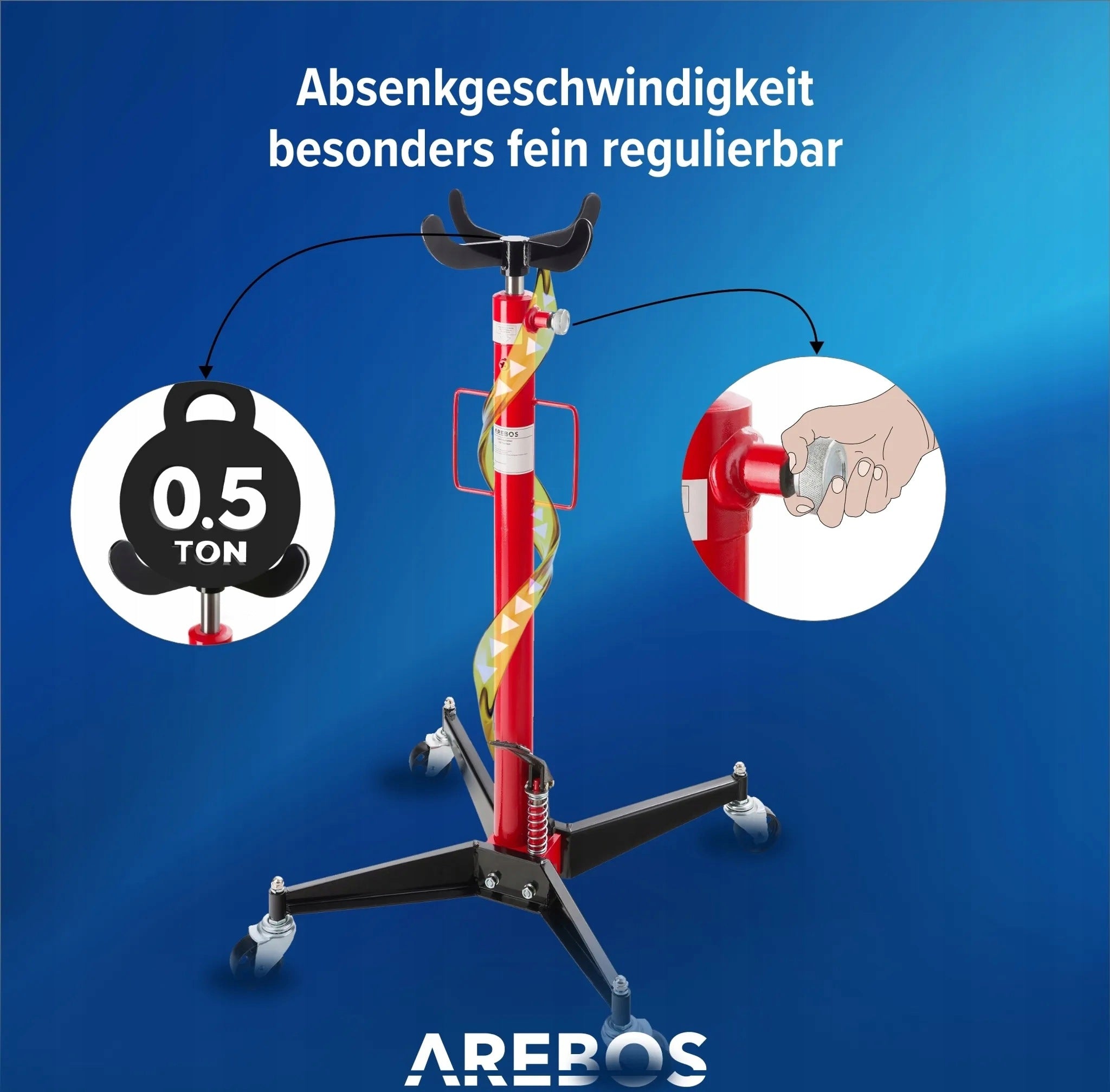

• Smooth lowering control

  The control valve in the form of a knob allows you to steplessly adjust the descent speed and safely lower the lifted element.

• Solid and mobile design

  Sturdy construction ensures stability during operation, and four rotating steel wheels make it easy to move and position the lift in the right place.

The most important features at a glance:

• Lifting capacity 0,5 tons
• Adjustable height from 105 to 185 cm
• Hydraulic lifting with foot pedal
• Lowering with a knob
• Particularly precisely adjustable lowering speed
• With 4 swivel casters for easy maneuverability and handles
• Rotating support plate

QUICK START

For a fast life, you need a fast vehicle - which is annoying when there are faults or damage. Fortunately, AREBOS offers suitable workshop equipment such as gearbox and car lifts, motorcycle lifts, ramps, tension belts, car care products, brake vents, brake piston regeneration, wheel bearings or valve compression and repair kits. This way you are prepared for anything.

Technical data

• Dimensions: 57 x 57 x 110 cm
• Drive: hydraulic
• Working height: 105 - 185 cm (measured at the base of the support cross)
• Support cross: yes
• Chassis: with 4 swivel castors
• Material: tool steel
• Product Type: Gearbox Trolley and Lift
• Roll diameter: 75 mm
• Max. load capacity: 500 kg
• Base width: 80 cm
• Weight: 23,5 kg
• Color: Red
• Rotating support plate: yes
• Brand: AREBOS
• Scope of delivery: 1x gear lift with wheels 1x instruction manual

Additional tip AREBOS:

Purchase criteria

A high-quality gearbox lift, such as our AREBOS model, perfectly adjusts the height to the required distances, making it a flexible helper in any workshop. Whether it's a passenger car, a van, or an agricultural vehicle, the robust engine lift can handle all your requirements. The criteria for the purchase decision relate to the maximum load that the gearbox lift is able to bear, as well as the maximum possible height, quality and material.

What should I pay attention to when buying a gearbox lift?

Advantages of gearbox lift:

Anyone who decides to use a gearbox flooding machine should not ignore several criteria. Thanks to the lift, popularly called the "lazy lift", it is possible to service the gearbox in a raised car without the need for cranes or lifts to secure the gearbox block. This auxiliary tool is therefore a classic help in vehicle maintenance.
