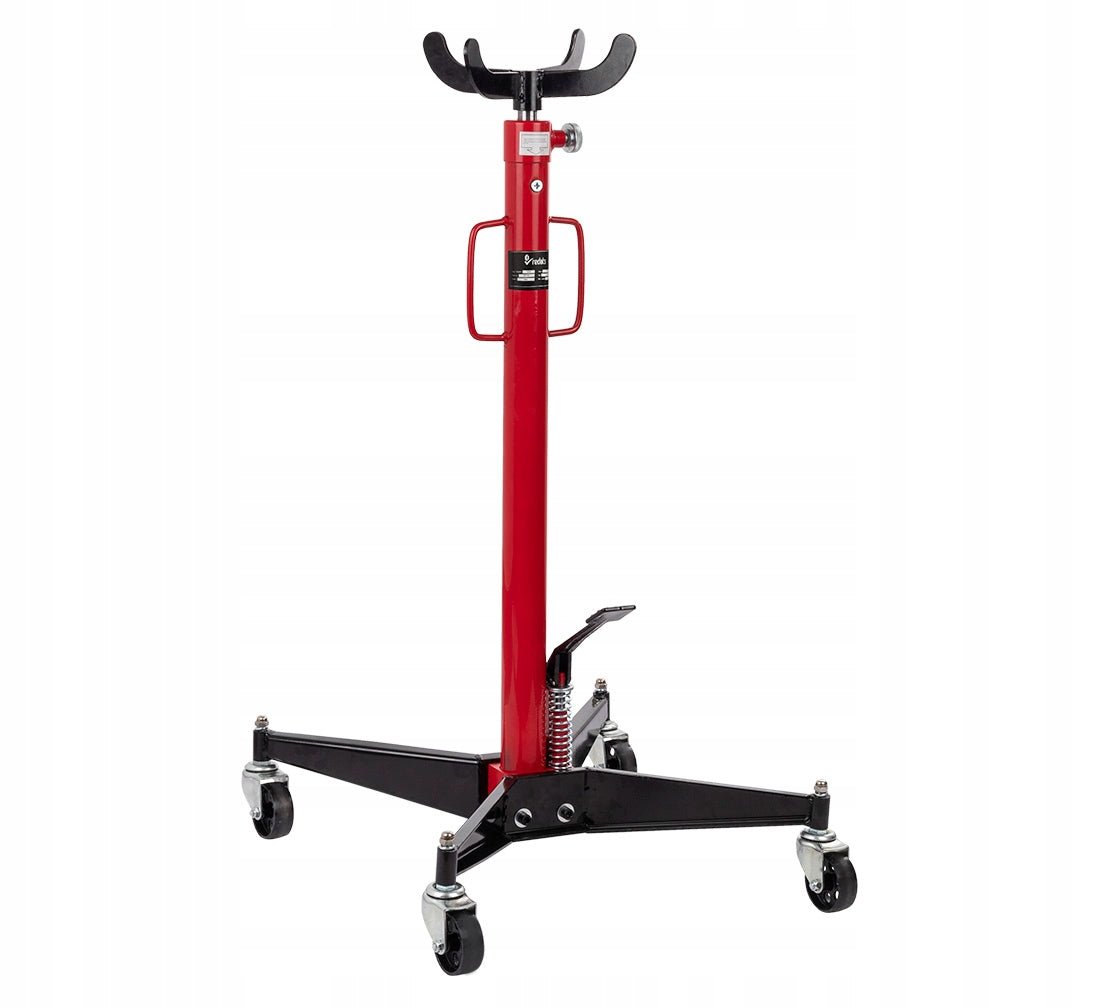

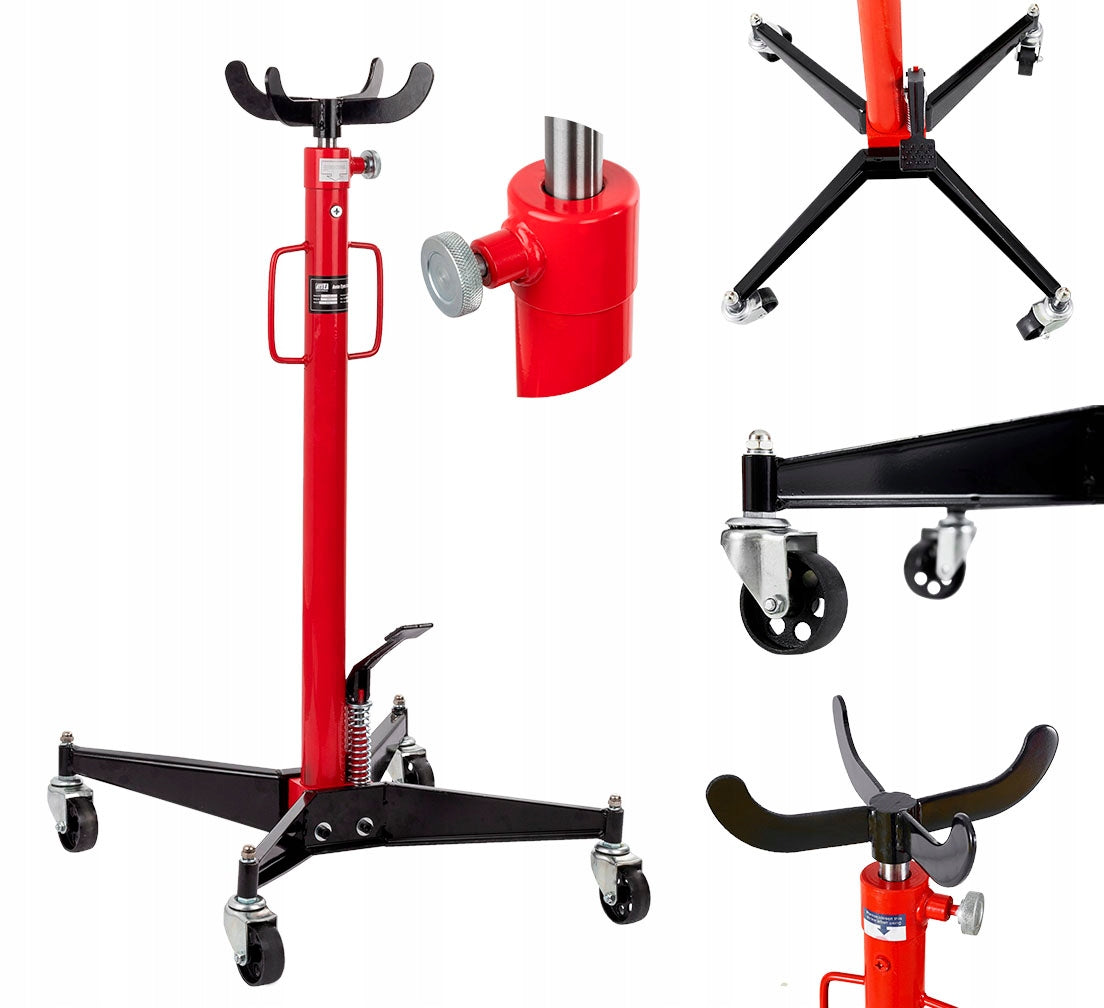

Hidraulinis pavarų dėžės ir variklio keltuvas 500 kg REDATS H-220

Trumpai apie prekę

Prekė: Hidraulinis pavarų dėžės ir variklio keltuvas 500 kg REDATS H-220. Kategorija: Pavarų dėžės keltuvai.

• Gamintojas: Redats
• Modelis: 07-01-82

• Producer: REDATS
• Max. lifting capacity: 500 kg
• Working range (min. - max.): 1100 - 1910 mm
• Base dimensions with wheels (width. x L ): 670 x 660 mm

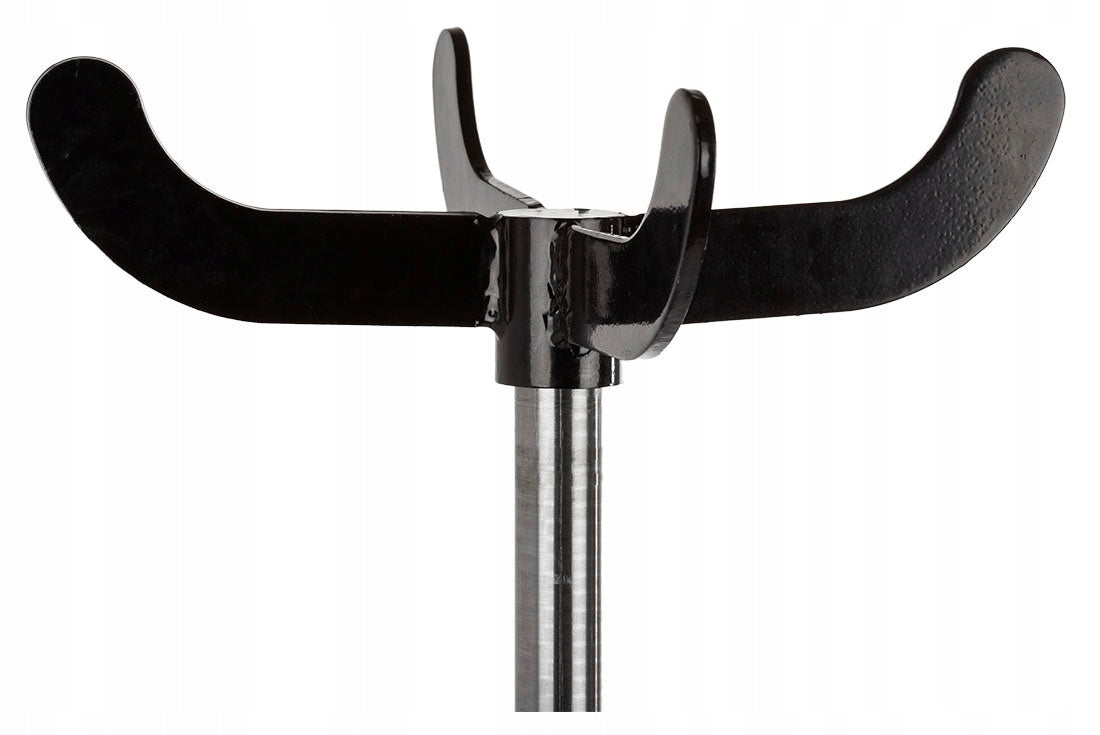

• Package contents: overlay (spider) 320 mm
• Weight: 23 kg
• Catalogue index: 07-01-82

Purpose

The presented lift will work both when lifting gearboxes, engine components or the power unit itself.

Remember about safety

The device uses a single-acting actuator. It is designed exclusively for lifting the load up/pressure one way. The actuator does not have safety latches that could support the weight.

Scope of work

The working range of the lifting element is 1100-1910 mm (up to 810 mm), which will allow easy adjustment of the lifted part to most cars.

Solid workmanship

Based on solid metal elements and durable welds, the lift will ensure long and trouble-free operation for many years in the workshop. There is no question of any loss of stability or problems with lifting individual elements.

Convenient movement

For your convenience, we have equipped this lift with four wheels (diameter 7cm) on a bearing turntable, which will allow you to move it much easier in the workshop.

What does that mean for you?

Once the load is lifted, additional support should be provided as soon as possible. The device cannot be used as a support for weight.

Foot presser - simple operation

The weight is lifted using a foot pump, and lowering the weight is carried out after releasing the knob located in an ergonomic place at the "hand's reach".

Why shouldn't the weight rest on the actuator?

The weight of the lifted element held in the raised position will lead to inevitable wear of the actuator. This can lead to the actuator leaving. Pull out the crate and provide support.

Quality REDATS!

By choosing REDATS you buy from the official distributor of devices of this brand in Poland and Europe. REDATS devices are manufactured in leading factories of this type of equipment, so you do not have to worry about the standards of workmanship or used parts.

Distributor of tools and machines REDATS is a company operating successfully on the Polish and international market since 2006. It is a recognized entity that has already gained the trust of over 500 000 recipients. When buying REDATS machines, you can count on professional and comprehensive support at every stage of the purchase or use of equipment.

Product gallery:

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Product weight with unit packaging	24.5 kg
Parametry	Brand	Redats
Parametry	Manufacturer code	07-01-82
Parametry	EAN (GTIN)	5902730115144
Parametry	Lifting capacity	500 kg
Parametry	Minimum lifting height	1100 mm
Parametry	Maximum lifting height	1910 mm
