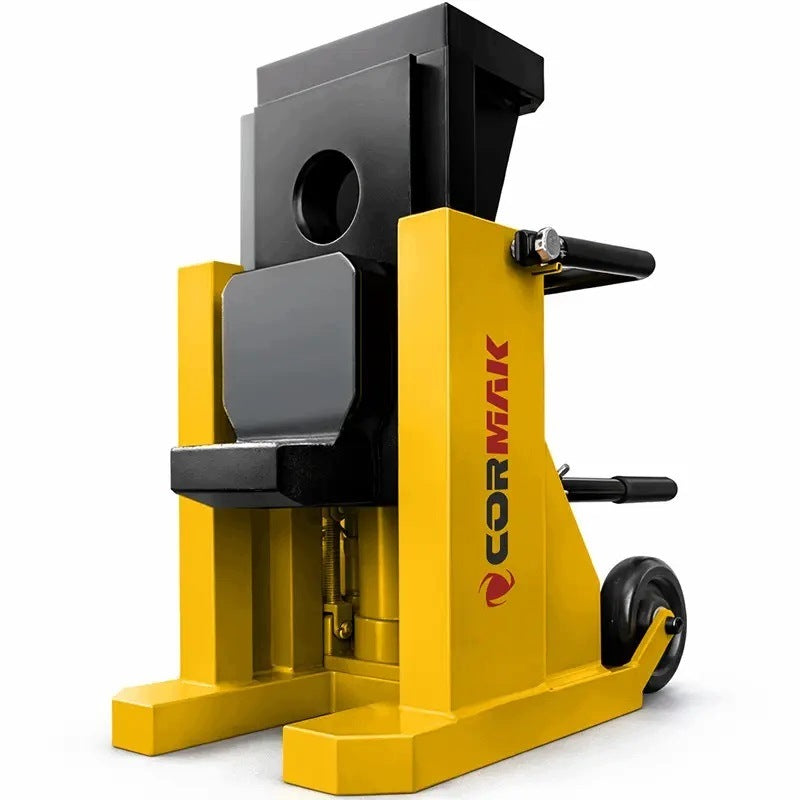

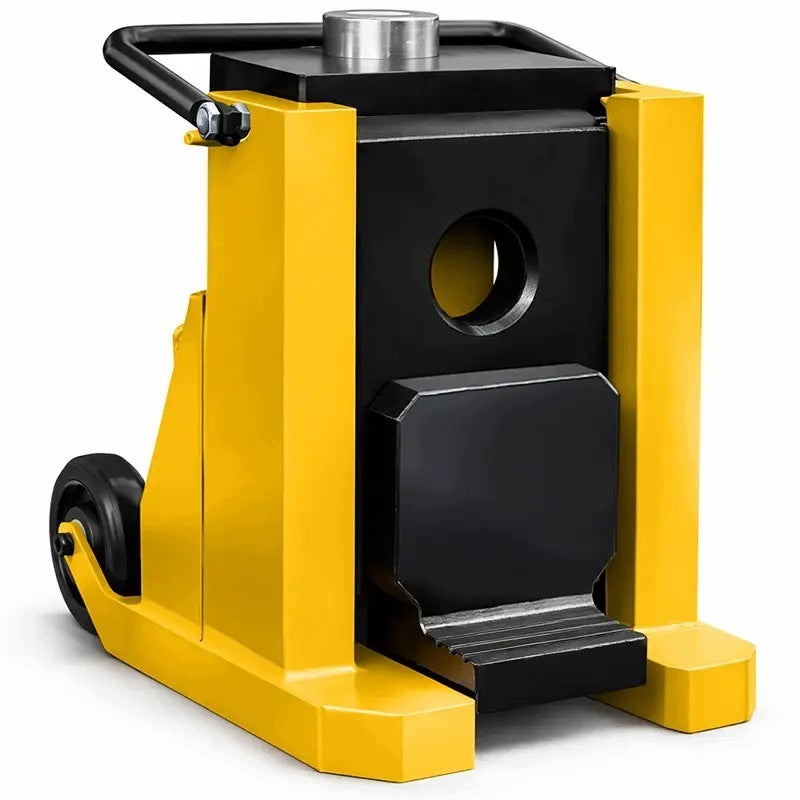

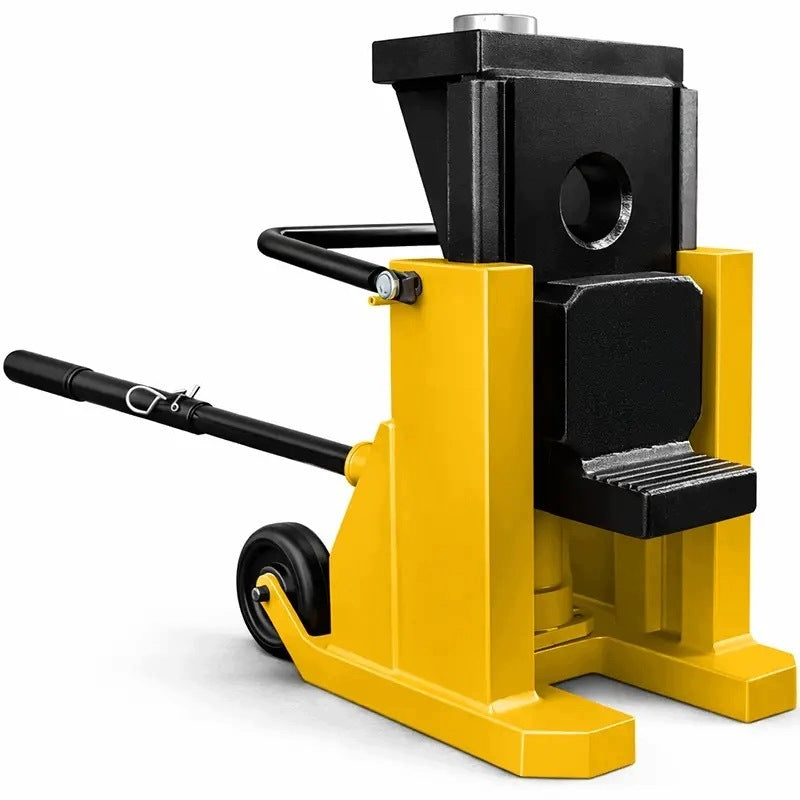

Hidraulinis keltuvas Cormak HP20, 20 t (20 000 kg)

Trumpai apie prekę

Prekė: Hidraulinis keltuvas Cormak HP20, 20 t (20 000 kg). Kategorija: Butelių kėlimo įrankiai.

• Gamintojas: Cormak
• Modelis: Podnośnik HP20

static load 20 t | head load 15 t | foot load 12 t | stroke 140 mm

Hydraulic claw lift CORMAK HP20 is designed for controlled lifting of heavy machinery, industrial equipment, steel structures and other massive loads. It will work well during the relocation of machines, assembly and service work and preparation of the device for inserting rollers or transport platforms.

The lift allows you to work with low-set foot or upper lifting head. The foot starts working from a height of 40 mm, so you can slide it under the machine with little clearance. The minimum lifting height on the head is 325 mm.

The maximum static load of the structure is 20 tons. The actual lifting capacity depends on the selected support point: 15 tons on the head and 12 tons on the lift foot.

The most important advantages

• Maximum static load 20 000 kg – robust construction for heavy industrial applications.
• Head lift 15 000 kg – the possibility of lifting the load with the upper support point.
• Leverage on foot 12 000 kg – for working with machines with a low base.
• Minimum foot height 40 mm – easier to slide under the device with little clearance.
• 140 mm lifting stroke – allows you to get the space you need to slide rollers, platforms or supports.
• Adjustable screw pin 0 to 60 mm – allows pre-adjustment of the head height.
• Two lifting points – the foot and upper head increase the range of applications.
• Hydraulic mechanism – enables smooth and controlled lifting of heavy loads.
• Weight 68 kg – stable construction designed to work with heavy loads.

Elements of the set

• CORMAK HP20 hydraulic claw lift,
• lever for operating a hydraulic pump,
• instruction in Polish.

Technical data

• Model: HP20
• Maximum static load: 20 000 kg
• Maximum lifting capacity on the head: 15 000 kg
• Maximum lifting capacity on the foot: 12 000 kg
• Minimum foot height: 40 mm
• Minimum head height: 325 mm
• Lifting height: 140 mm
• Screw shank adjustment: 0 to 60 mm
• Net weight: 68 kg
• Brand: CORMAK

You buy the presented product from proven seller CORMAK — polish brand providing equipment for warehouses, workshops, production and industry.

You get a product from a reliable source, consistent with the description and intended for everyday work.

• Quality – robust equipment for warehouse and industrial applications.
• Service – access to technical support and parts.
• Security – the device has the required markings and documentation.
• Counselling – help in choosing the right solution for the company.
