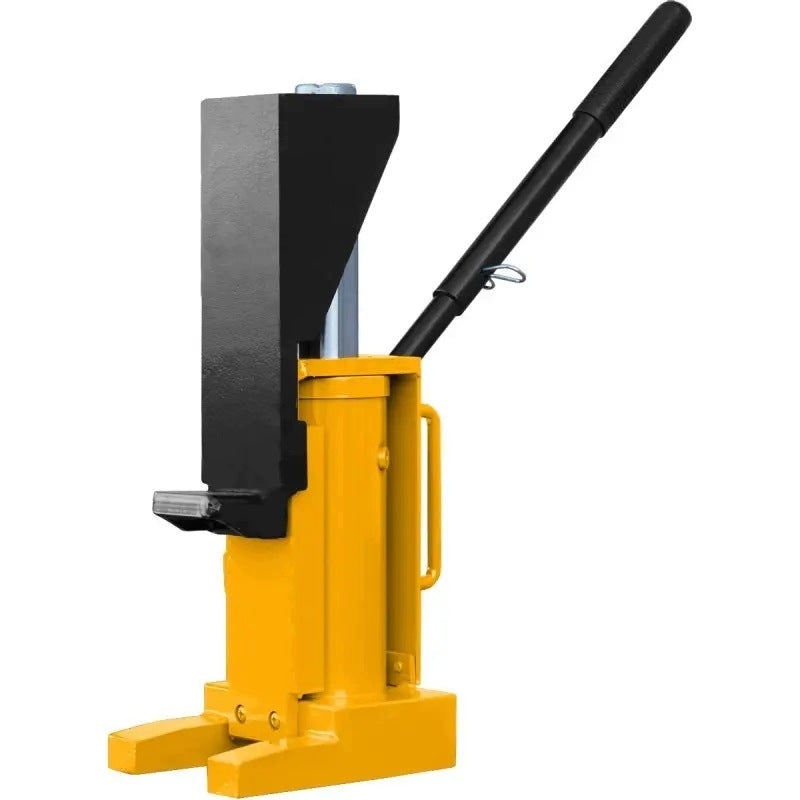

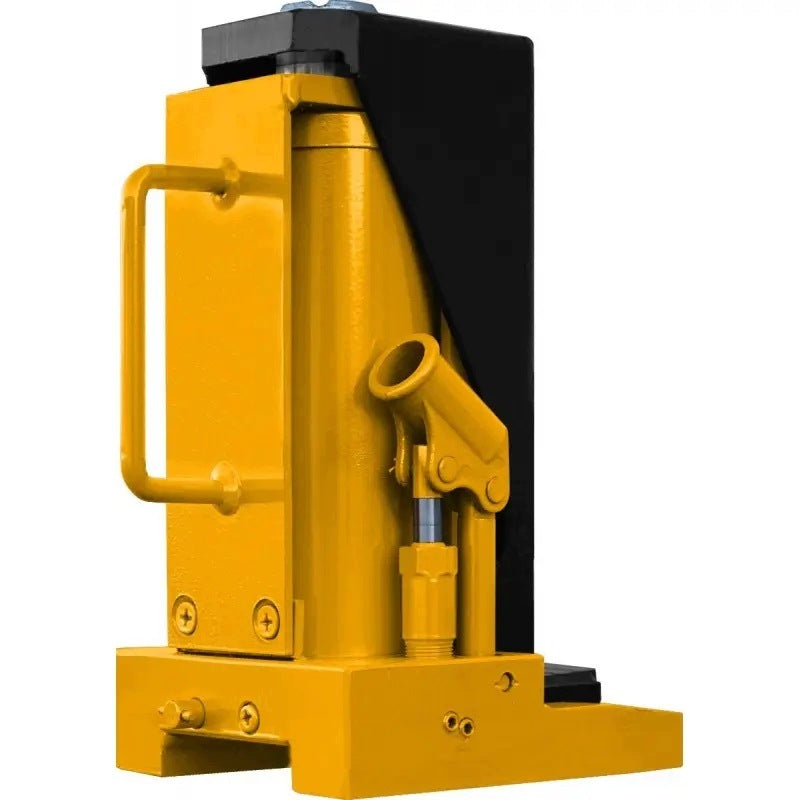

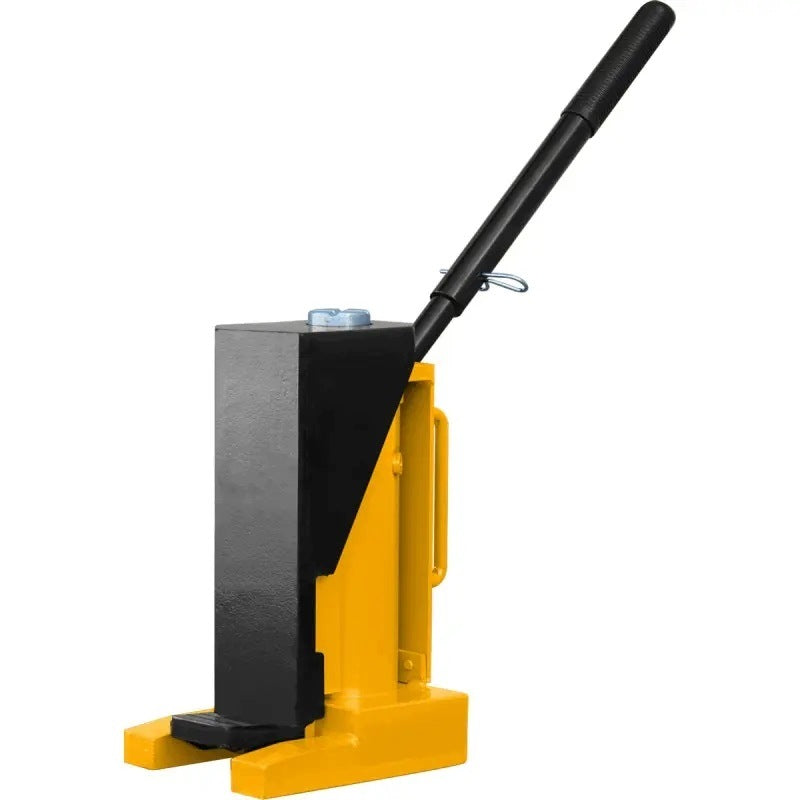

Hidraulinis keltuvas Cormak HP10, 10 000 kg

Trumpai apie prekę

Prekė: Hidraulinis keltuvas Cormak HP10, 10 000 kg. Kategorija: Butelių kėlimo įrankiai.

• Gamintojas: Cormak
• Modelis: Podnośnik HP10

static load 10 t | head load 7,5 t | foot load 6 t | stroke 160 mm

The CORMAK HP10 hydraulic claw lift is used for controlled lifting of heavy machinery, industrial equipment, steel structures and other massive loads. It will work well during the relocation of machines, assembly and service work and preparation of the device for inserting transport rollers.

The lift can work in two ways: with the low-set lifting foot or the upper head of the lift. The foot starts working from a height of 35 mm, so it allows you to approach the machine with little clearance. The lift head allows lifting from a height of 320 mm.

The maximum static load of the structure is 10 tons. The actual lifting capacity depends on the support point used: 7,5 t on the head and 6 t on the foot.

The most important advantages

• Maximum static load 10 tons – robust construction for heavy industrial applications.
• Head lift 7500 kg – the possibility of lifting the load with the upper support point.
• Leverage on foot 6000 kg – for lifting machines with a low base.
• Minimum foot height 35 mm – easier to slide under the machine with little clearance.
• Lifting height 160 mm – allows you to prepare the machine for setting on transport rollers or supports.
• Adjustable screw pin 0 to 80 mm – allows additional adjustment of the height of the support point.
• Hydraulic lifting mechanism – smooth and controlled operation under load.
• Two lifting points – the foot and upper head increase the range of applications.
• Weight 25 kg – a stable structure that can be moved between stations.

Elements of the set

• CORMAK HP10 hydraulic claw lift,
• screw pin with height adjustment,
• operating leverage,
• instruction in Polish.

Technical data

• Model: HP10
• Maximum static load: 10 000 kg
• Maximum lifting capacity on the head: 7500 kg
• Maximum lifting capacity on the foot: 6000 kg
• Minimum foot height: 35 mm
• Minimum head height: 320 mm
• Lifting height: 160 mm
• Screw shank adjustment: 0 to 80 mm
• Net weight: 25 kg
• Brand: CORMAK

Practical application of HP10

The HP10 lift is suitable for lifting and setting:

• CNC machine tools and machines,
• lathes, milling machines and presses,
• carpentry machinery,
• industrial cabinets,
• aggregates and generators,
• steel structures,
• heavy production equipment.

The lift can be used as a complement to transport roller sets. It allows you to lift the edge of the machine, slide under it a platform or transport chassis, and then prepare the device for relocation to a new station.

You buy the presented product from proven seller CORMAK — polish brand providing equipment for warehouses, workshops, production and industry.

You get a product from a reliable source, consistent with the description and intended for everyday work.

• Quality – robust equipment for warehouse and industrial applications.
• Service – access to technical support and parts.
• Security – the device has the required markings and documentation.
• Counselling – help in choosing the right solution for the company.
