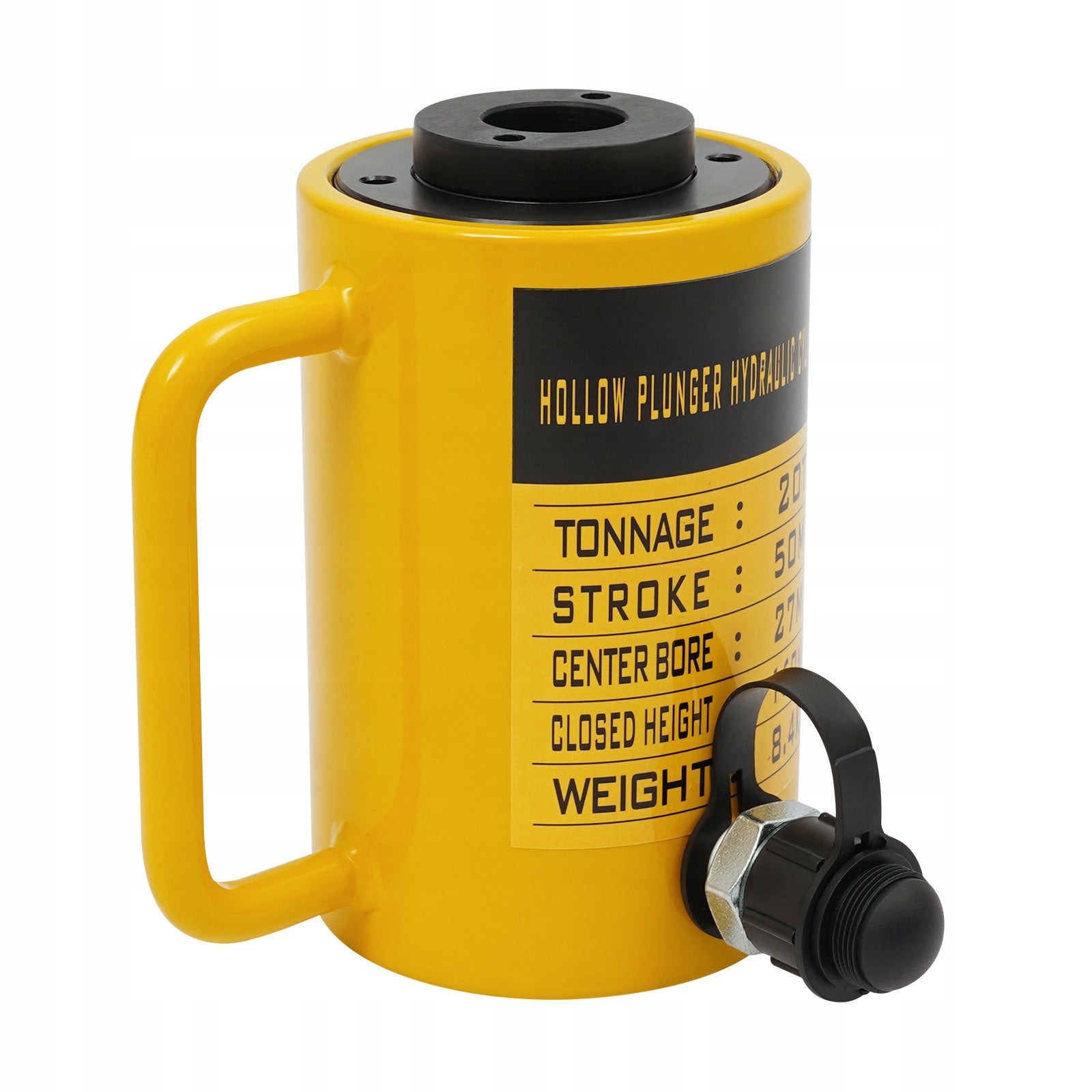

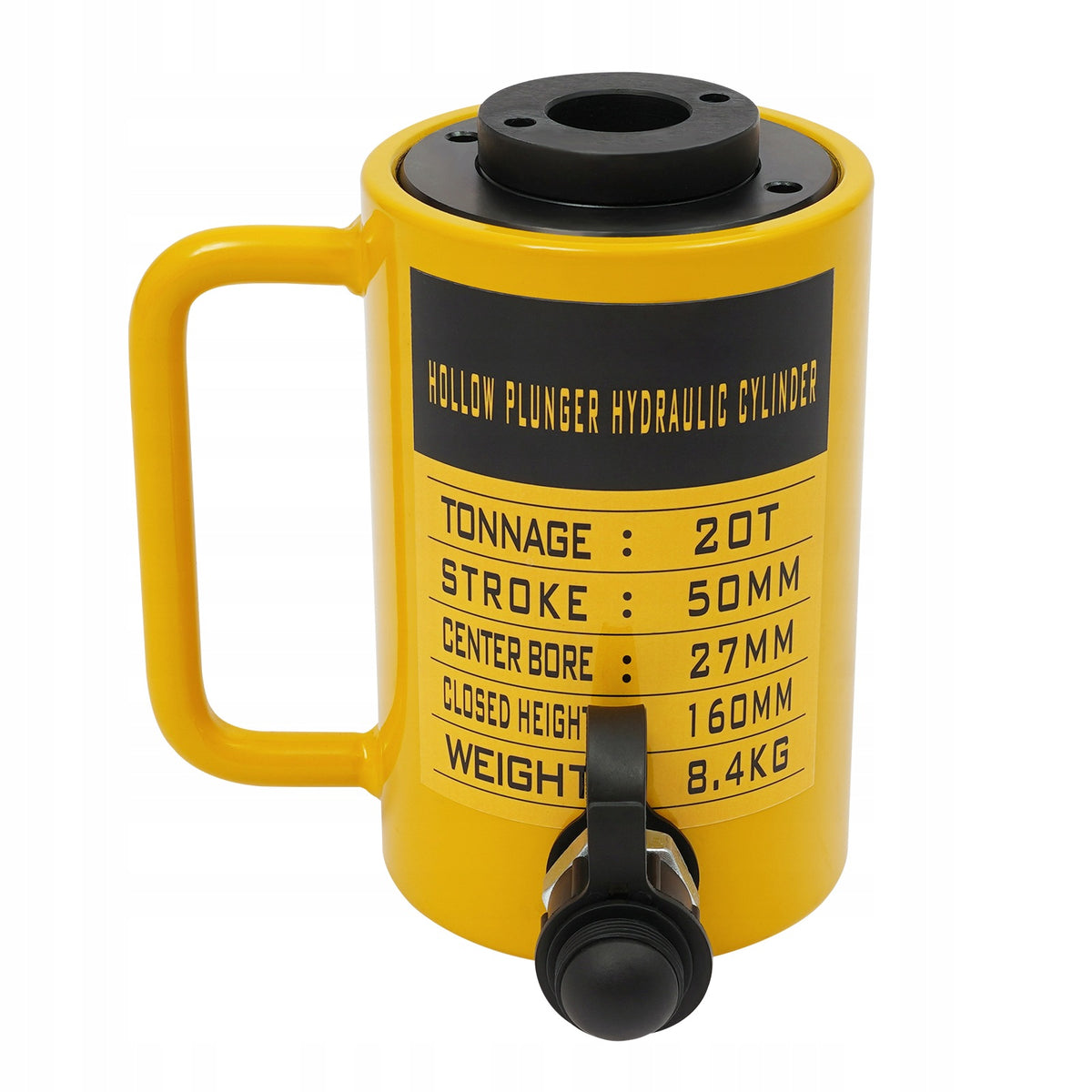

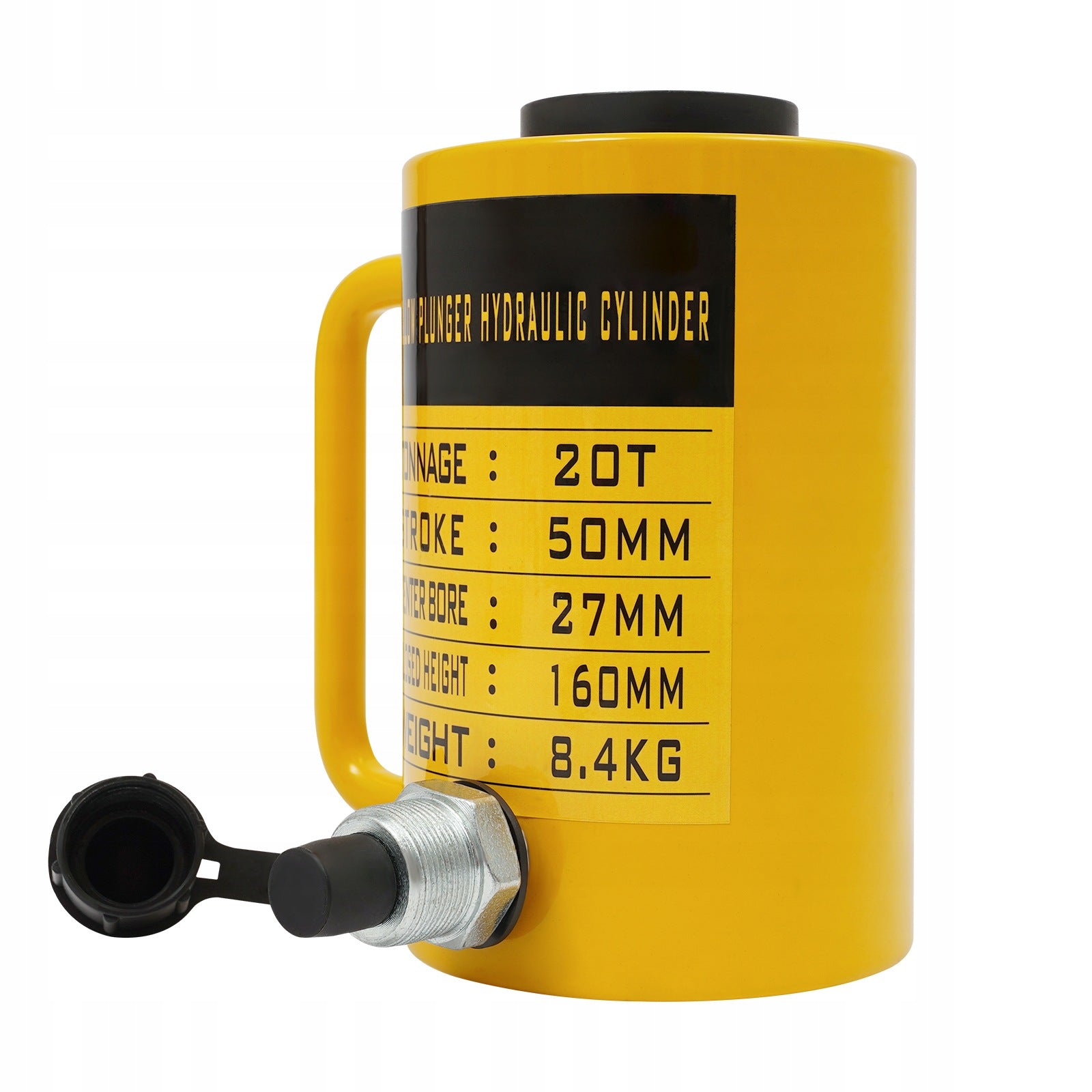

Hidraulinis keltuvas 20T, cilindras 50 mm, 70 MPa, pramoninis

Trumpai apie prekę

Prekė: Hidraulinis keltuvas 20T, cilindras 50 mm, 70 MPa, pramoninis. Kategorija: Butelių kėlimo įrankiai.

• Gamintojas: no brand
• Modelis: 9301532

This hydraulic jack, made of sturdy materials, combines power with compact portability and is designed for efficient heavy-duty work. It is easy to operate, safe, and reliable, with a variety of functions such as lifting, jacking, pushing, and pulling, which is an indispensable and powerful assistant in your engineering projects.

It is widely used in construction sites, petroleum, electric power, metallurgy, chemical industry, ships, bridges, steel, and other industries for installation and maintenance of large and medium-sized mechanical equipment.

• Mount Type: Freestanding
• Assembly Required: No
• Material: 45# Steel
• Process: Heat Treatment, Blackening Treatment, Baking Paint
• Colour: Yellow, Black
• Style: Modern
• Applicable Hand Pump: CP-700 Series Hand Pump ( Not Included )
• Quick Coupling Standard: ZG3/8
• Discharge Force: 20T/44,092.45 lbs
• Outside Diameter: 100mm/3.94in
• Rated Stroke: 50mm/1.97in
• Actual Stroke: 60mm/2.36in
• Piston Diameter: 54mm/2.13in
• Bore Diameter: 27mm/1.06in
• Body Height: 160mm/6.3in
• Hand Pump Working Pressure: 70MPa
• Hand Pump High-Pressure Flow Rate: 2.2CC
• Hand Pump Low-Pressure Flow Rate: 13CC
• Hand Pump Reservoir Capacity: 900CC
• Net Weight: 8.4kg/18.52lbs
• Gross Weight: 8.8kg/19.40lbs
• Package Size: 25*23*20cm/9.84*9.06*7.87in

• 1* Hydraulic Jack

1. Please check the style and size before purchasing.

2. Please note that this product is not suitable for jacking cars.

3. Please tighten the male connector on the jack and the female connector on the pump, otherwise it will leak oil or not reset properly.

4. If there is a bit of oil on the outside of the quick coupling, this is normal and does not affect the normal use of the quick coupling.

5. In order to operate correctly, please connect all cylinders to a solid, flat jacking surface, if used on sandy, muddy, loose, soft, or rough surfaces it will cause cylinder unloading, uneven force, and lead to oil leakage and damage.

6. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement and make sure you do not mind before ordering.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	no brand
Parametry	Manufacturer code	9301532
Parametry	EAN (GTIN)	9585029301532
Parametry	Lifting capacity	20000 kg
Parametry	Minimum lifting height	160 mm
Parametry	Maximum lifting height	220 mm
