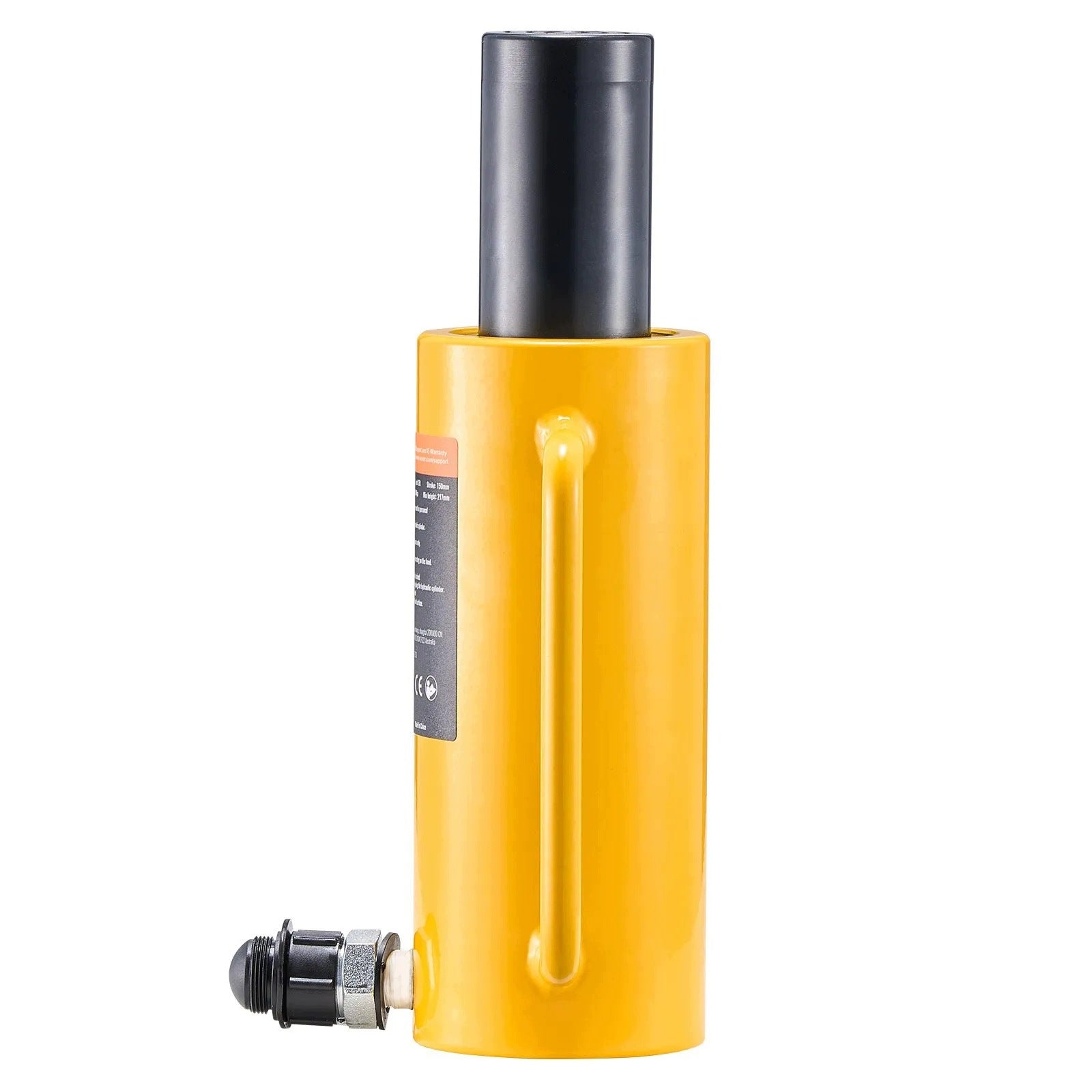

Hidraulinis keltuvas, 20 t, vienpusis, eiga 152 mm

Trumpai apie prekę

Prekė: Hidraulinis keltuvas, 20 t, vienpusis, eiga 152 mm. Kategorija: Butelių kėlimo įrankiai.

• Gamintojas: no brand
• Modelis: 5907021476461

• We focus on quality, professionalism and comprehensive service of the public sector.

Dimensions:

Height: 21.7

Width: 9.9

Length: 9.9

Why choose our product?

In professional workshop, assembly and industrial work, what counts above all is certain handling of heavy loads, precision of operation and durability of the tool. Compact dimensions often determine the possibility of working in places with limited space, where standard solutions do not provide adequate convenience.

This hydraulic cylindrical lift with a lifting capacity of 20 tons is designed for demanding lifting, pressing and leveling tasks of heavy components. Solid metal construction, smooth operation of hydraulics and small dimensions allow it to be used both in workshops, as well as during industrial, assembly or maintenance work.

Thanks to the 150 mm cylinder jump and a large working surface, the device provides stable support and controlled lifting. This solution is for users who need a tool designed to work regularly under heavy loads.

Key benefits and technologies

• Leverage 20 tons / 44000 lbs – high load capacity allows you to perform demanding work related to lifting heavy elements, providing reliable support in workshop and industrial applications.
• Solid metal construction – durable housing increases resistance to intensive use, and the painted surface helps reduce the risk of scratches and corrosion.
• 150 mm / 6 inch hydraulic cylinder stroke – provides the right range of work during lifting and allows precise performance of tasks requiring controlled movement.
• Compact design for working in limited space – small dimensions make it easier to use the lift in places where access is difficult.
• Quick coupler with dust cover – protects the connection from dust and dirt, helping to maintain the tightness and reliability of the hydraulic system.
• Integrated transport handle – makes it easy to carry, set up and store the device in the workplace.
• Smooth contact surface with round texture – ensures stable contact during operation, supporting safe force transmission.
• Comprehensive application – the device will work well during automotive, assembly, bodywork, steel structures and other industrial tasks.

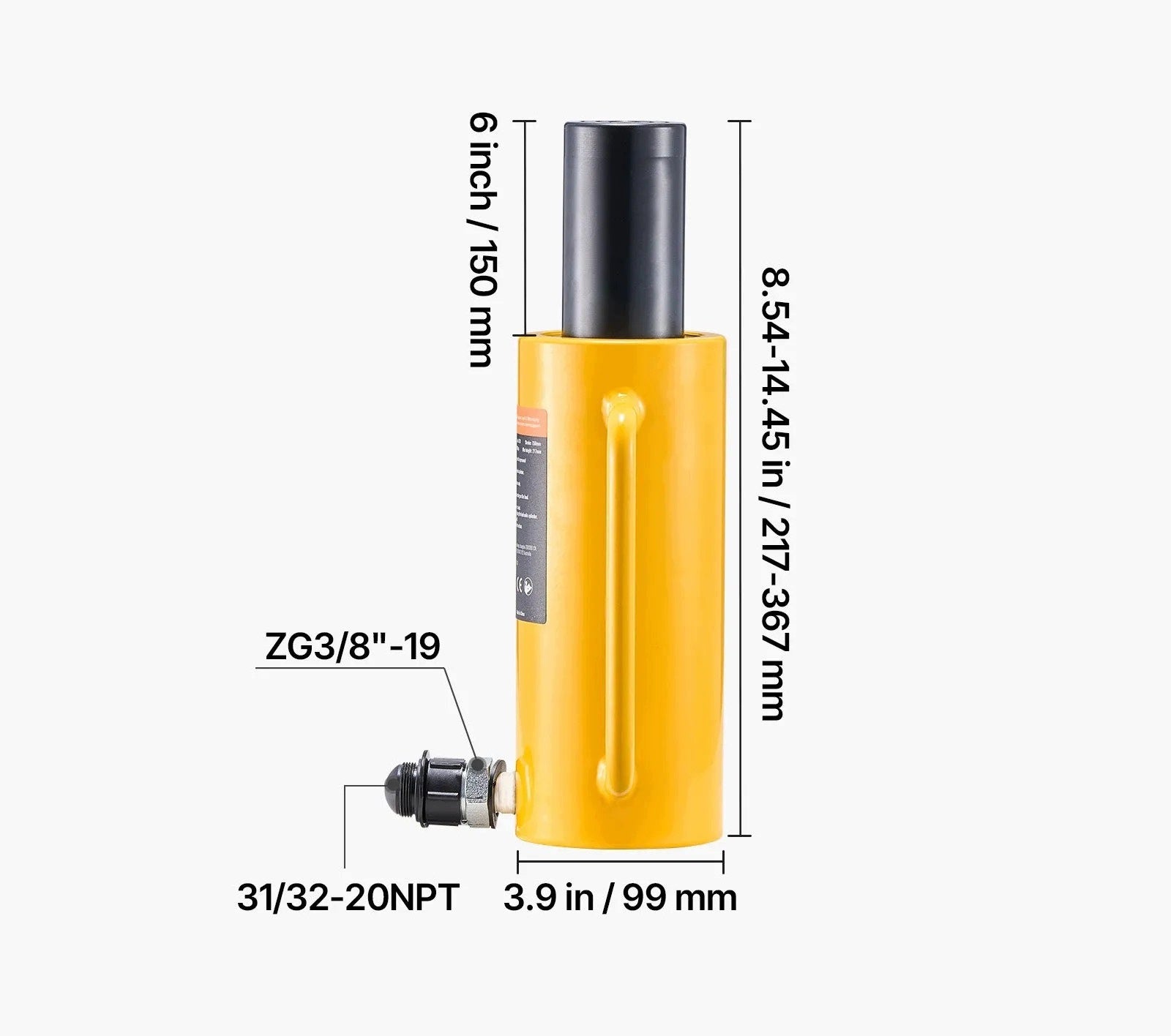

Technical specification

• Capacity: 20 t / 44000 lbs
• Hydraulic cylinder stroke: 150 mm / 6 inches
• Total height: 210 mm / 8,3 inch
• Outer diameter: 84 mm / 3,3 inch
• Internal diameter: 50 mm / 2 inches
• Item weight: 10 kg / 22 lbs
• Active surface: 33,16 cm²/5 square inches

Application in practice

⭐ Car workshop – for work requiring controlled lifting and positioning of heavy components during repairs and maintenance.

⭐ Industrial and assembly work – for lifting, pressing and leveling structural elements requiring high pressure.

⭐ Machine construction and steel structures – a helpful solution for the installation and adjustment of heavy components.

⭐ Flat metal and technical work – compact form allows the tool to be used in hard-to-reach workspaces.

Contents of the set

• The set includes a hydraulic cylindrical lift.
• The device is equipped with a quick coupler with a dust cover.

Summary – choose a professional solution

If you need a tool for working with heavy loads, choose a solution designed for durability, stability and precise operation. The 20 ton hydraulic cylindrical lift provides the right force for demanding applications while maintaining a compact design that facilitates work in limited space.

Invest in a reliable lifting, pressing and leveling tool – choose a professional solution that supports effective work every day.

Robust construction and reliable sealing

The lift is characterized by exceptional durability thanks to the use of high hardness alloy steel and powder coating with anti-corrosion properties. The key element of the device is a tight sealing ring, which effectively prevents oil leaks, guaranteeing trouble-free operation even under heavy loads.

Powerful lifting power of 20 tons

This hydraulic lifter offers an impressive lifting capacity of 20 tons, allowing for stable lifting of heavy structures. The device provides a piston stroke of about 15,24 cm, and the polished surface of the cylinder guarantees smooth movement without jams, which significantly facilitates precise weight handling.

Automatic lowering and high control

The device is designed with safety and comfort in mind, offering an automatic piston return function. The lowering process is controlled by a pump valve, which ensures smoothness and eliminates the risk of damage to the piston rod that could occur when trying to manually press the piston.

Quick coupler with dust cover

The lift is equipped with a 31/32"-20 NPT standard size male hydraulic quick coupler, which allows a secure and tight connection to the hydraulic pumps. The connector has been additionally protected with a special dust cap, which protects the system from contamination, prolonging the life of the entire system.

Flexibility and safety at work

The lift design allows you to work in various positions: vertical, horizontal and inverted, making it an extremely versatile tool. To maintain safety and avoid damage, always set the device on flat and stable surfaces and ensure that the pressure on the piston is distributed evenly (one-sided force is prohibited).

We offer you a team of experienced experts, ready to provide comprehensive assistance and advice at every step of cooperation.

Trust our experience – welcome to buy!

• Sales with FV 23%
• Handling of in Poland

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	no brand
Parametry	Manufacturer code	5907021476461
Parametry	EAN (GTIN)	5907021476461
Parametry	Lifting capacity	20000 kg
Parametry	Minimum lifting height	217 mm
Parametry	Maximum lifting height	367 mm
