Pristatymo terminas kiekvienai prekei nurodomas prie kainos bloko.
Pristatymas visoje Lietuvoje: nemokamas.
Trumpai apie prekę

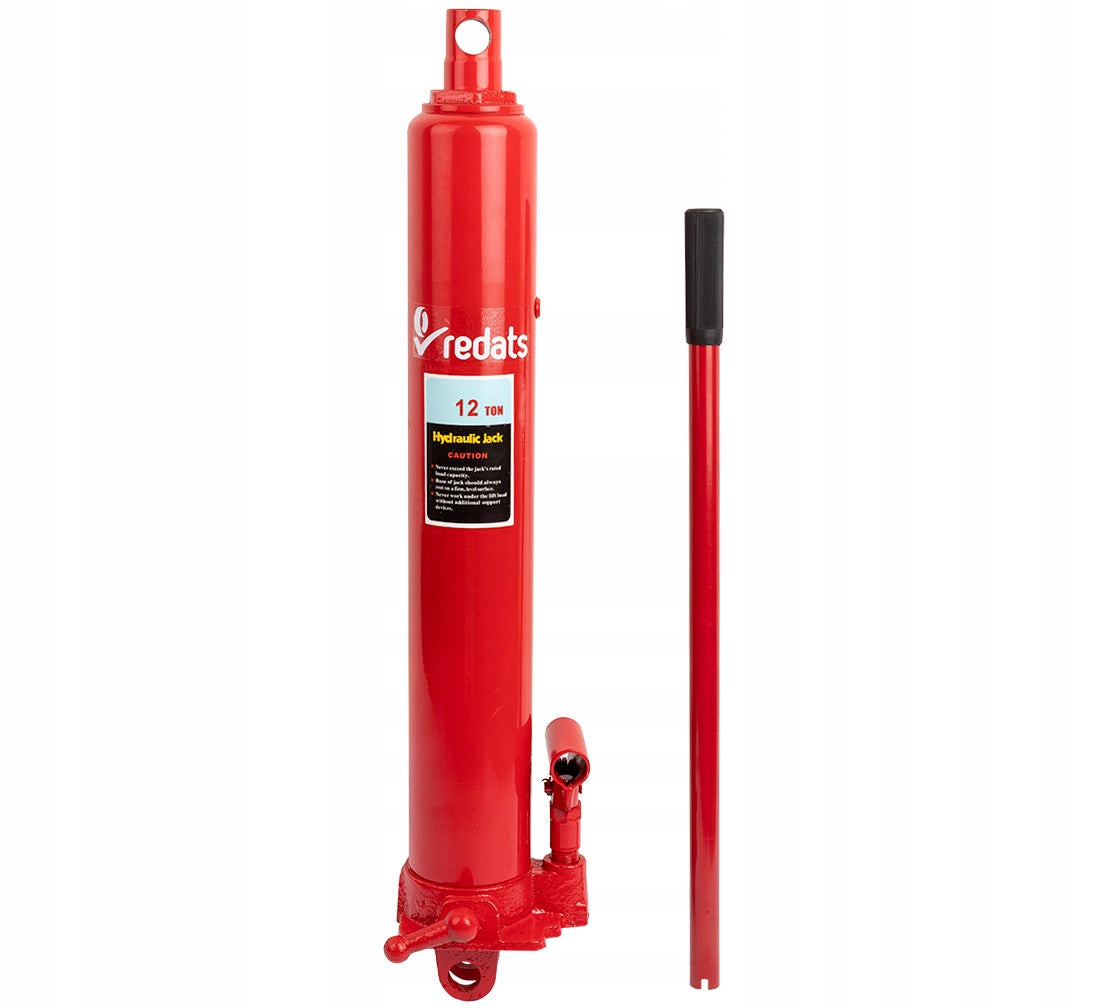

Prekė: Hidraulinis cilindras 12T REDATS variklio keltuvui. Kategorija: Butelių kėlimo įtaisai.
- Gamintojas: Redats
- Modelis: 10-00-54
- Producer: REDATS
- Maximum lifting capacity: 12 tons
- Maximum piston extension: 500 mm

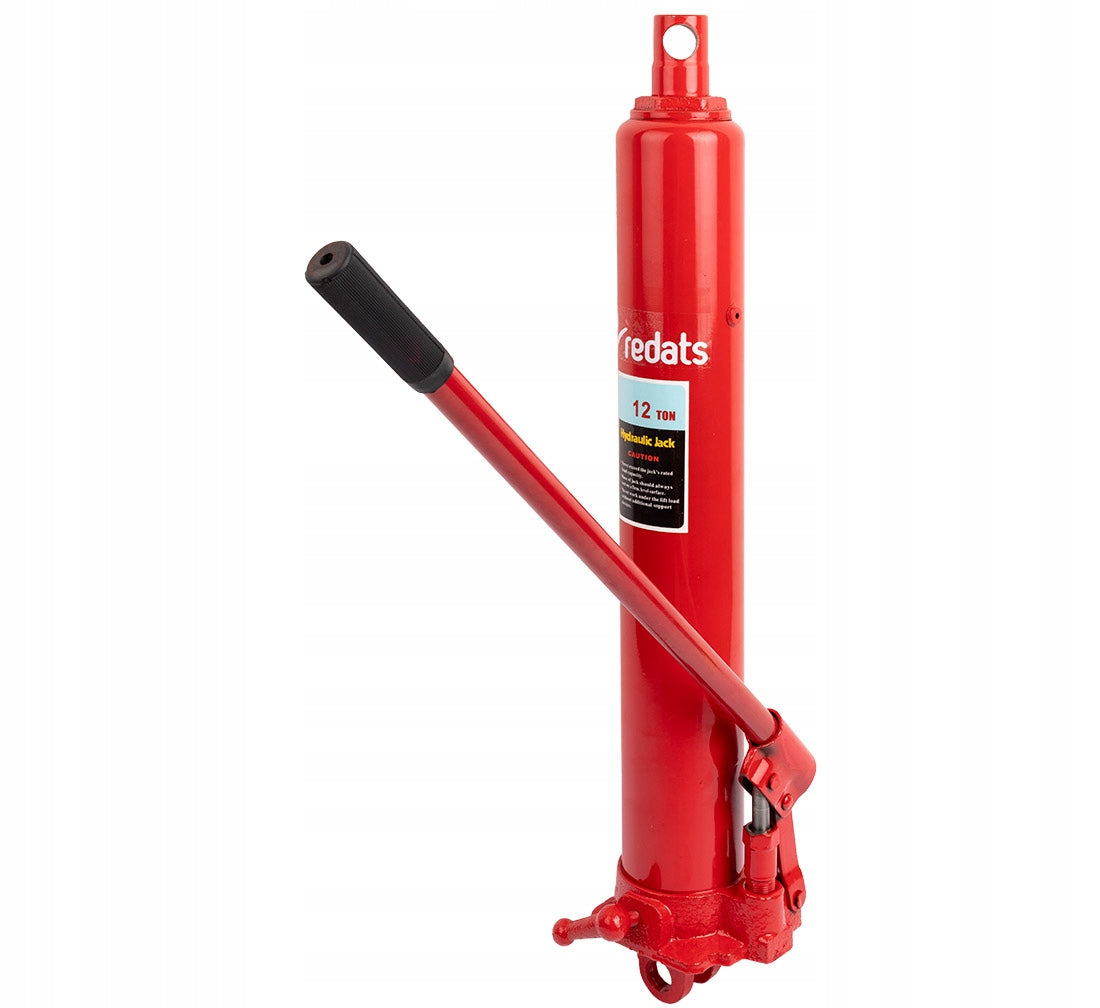

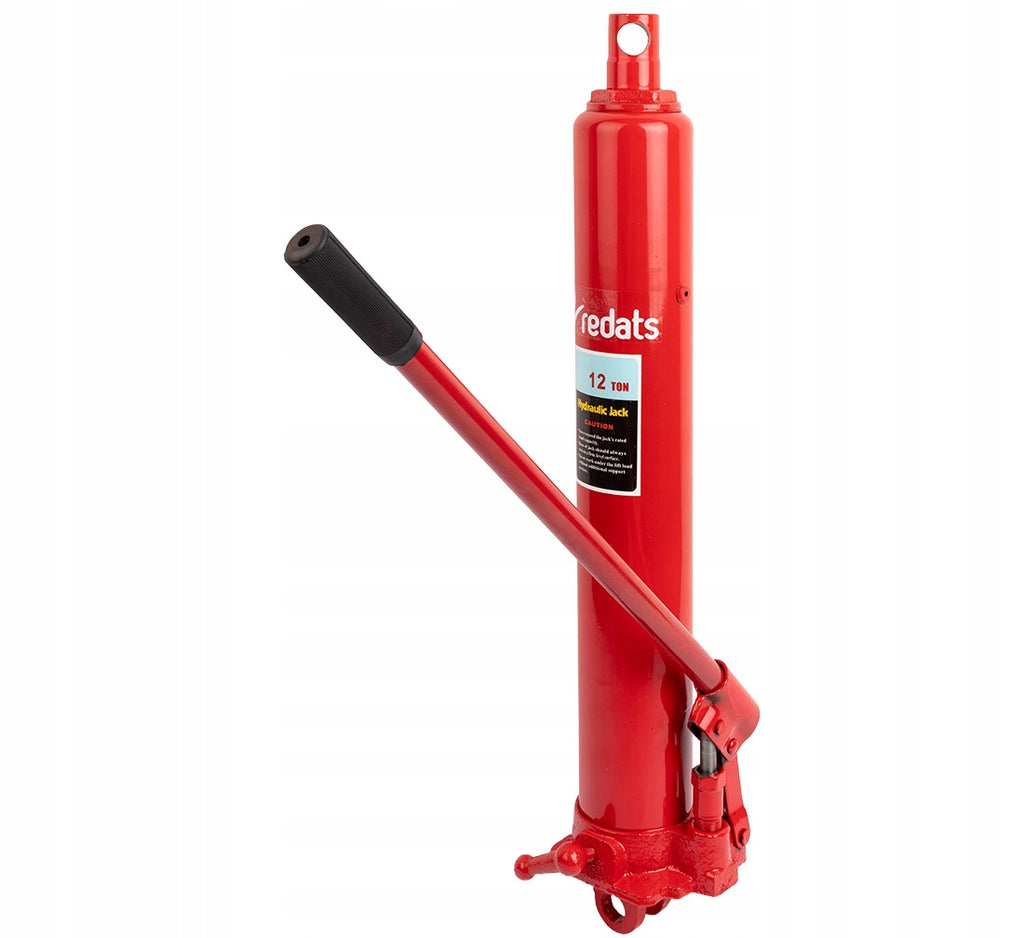

- Minimum height: 680 mm

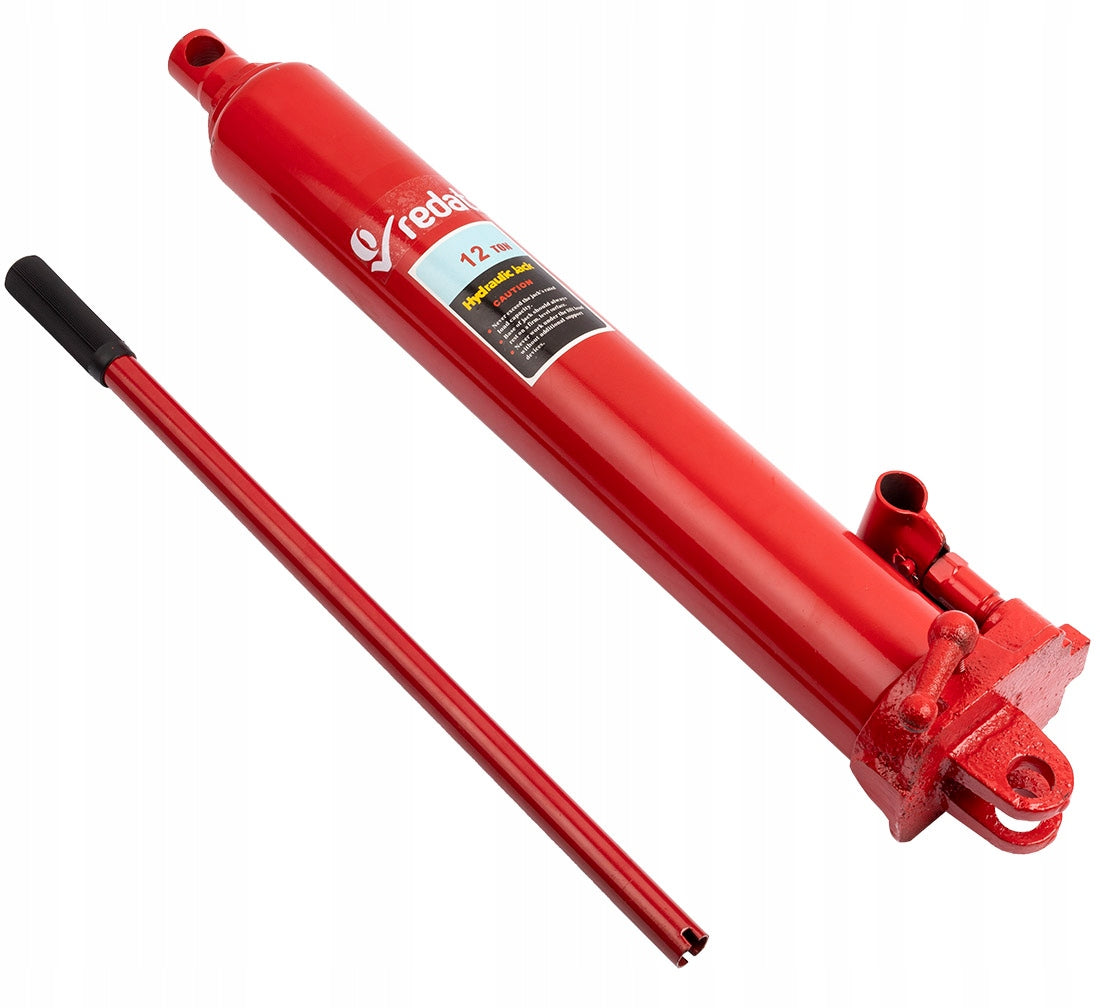

- Maximum height: 1180 mm
- Diameter of mounting holes: 22 mm
- Piston rod diameter: 38 mm
- Cylinder diameter: 85 mm
- Weight: 16 kg
- Catalog Index: 10-00-54
Application
The actuator has a number of applications in the workshop and beyond. It can be used in:
- workshop cranes
- channel lifts
- spreaders
Characteristic
The load capacity of this cylinder reaches 12 tons and the piston extension is 500 mm. Thanks to the ready-made mounting holes from the top and bottom, its attachment is very practical and versatile.
Remember about safety
The device uses a single-acting actuator. It is designed exclusively for lifting the load up/pressure one way. The actuator does not have safety latches that could support the weight.
What does that mean for you?
Once the load is lifted, additional support should be provided as soon as possible. The device cannot be used as a support for weight.
Why shouldn't the weight rest on the actuator?
The weight of the lifted element held in the raised position will lead to inevitable wear of the actuator. This can lead to the actuator leaving.
Attention!
For the actuator to work properly, it must be placed in an upright position.
What does that mean?
It should not be placed horizontally or upside down
Attention!
For the actuator to work properly, it must be placed in an upright position.
What does that mean?
It should not be placed horizontally or upside down.
Quality REDATS!
By choosing REDATS you buy from the official distributor of devices of this brand in Poland and Europe. REDATS devices are manufactured in leading factories of this type of equipment, so you do not have to worry about the standards of workmanship or used parts.
Distributor of tools and machines REDATS is a company operating successfully on the Polish and international market since 2006. It is a recognized entity that has already gained the trust of over 500 000 recipients. When buying REDATS machines, you can count on professional and comprehensive support at every stage of the purchase or use of equipment.
Product gallery:
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Product weight with unit packaging | 16 kg |
| Parametry | Brand | Redats |
| Parametry | Manufacturer code | 10-00-54 |
| Parametry | EAN (GTIN) | 5902730119067 |
| Parametry | Lifting capacity | 12000 kg |
| Parametry | Minimum lifting height | 680 mm |
| Parametry | Maximum lifting height | 1180 mm |
