Trumpai apie prekę
Prekė: Hidraulinis automobilių keltuvas 3T su guminėmis pagalvėlėmis SUV Offroad. Kategorija: Prailgintojai (varlės).
- Gamintojas: Stix
- Modelis: 23-03-75294

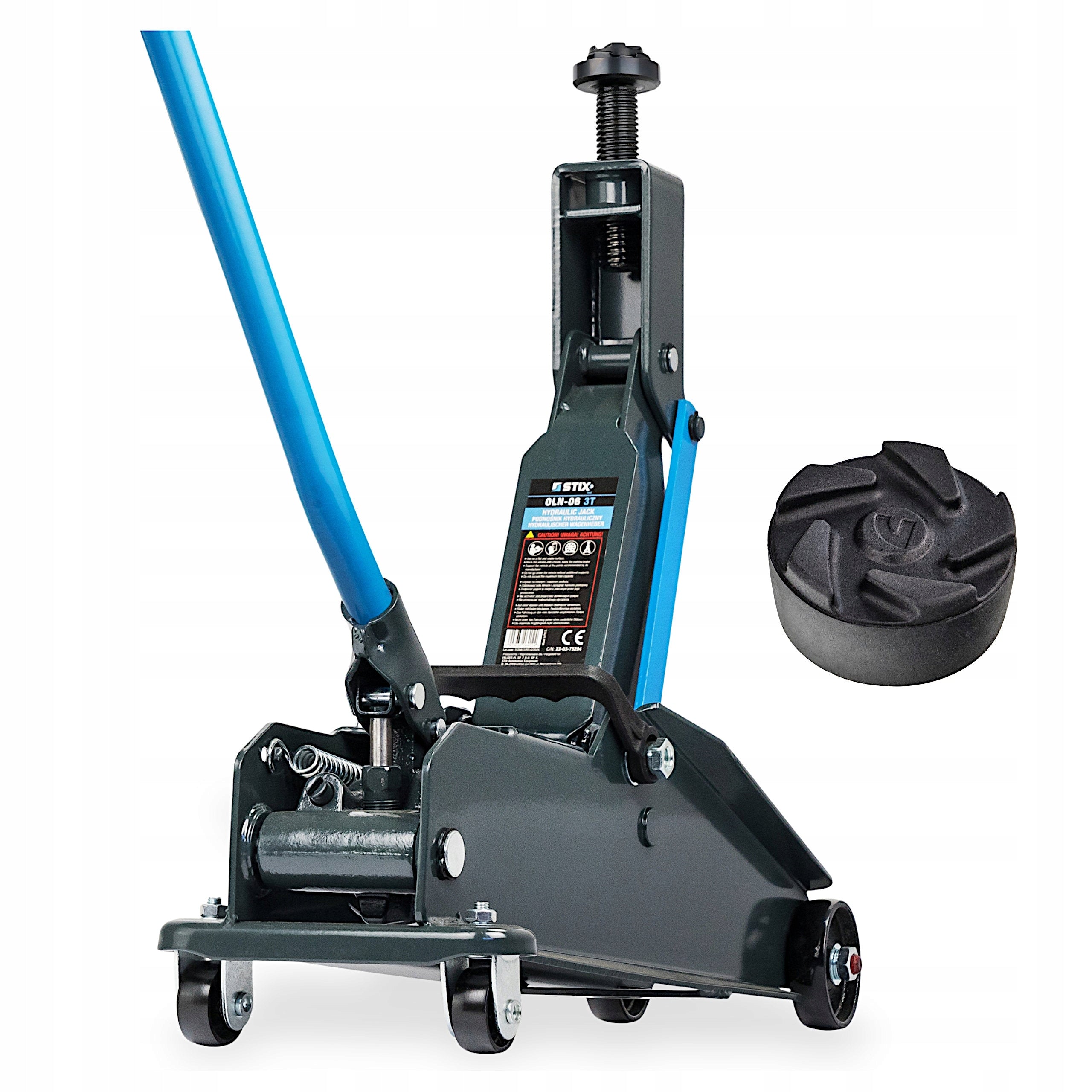

The OLN-06 hydraulic frog lift with a lifting capacity of 3T is a model designed to lift one axle of the vehicle. The operating range from 200 to 535 mm makes it best suited for SUVs, crossovers and vehicles with higher clearance. The compact design provides convenience for use and storage.
Catalog number: 23-03-75294
Model: OLN-06 3T
Manufacturer: Stix Tool
Quantity: 1 pc.
⚙ Technical specification
- Lift type: hydraulic
- Maximum lifting capacity: 3000 kg
- Maximum lifting height: 485 mm / 535 mm
- Minimum lifting height: 200 mm / 250 mm
- Lever length: 510 mm
- Net weight: 16,75 kg
- Package dimensions: 630 x 220 x 210 mm
⚙ Technical drawing
➡ 3T car lift for vehicles with higher clearance
The OLN-06 is designed to lift one axle of a vehicle with a maximum load of 3000 kg.
With its increased operating height range, it is suitable for vehicles where the support point is higher than standard passenger cars, such as SUVs, crossovers, and light commercial vehicles.
The set includes a protective rubber, which helps to secure the vehicle's support point during lifting.
➡ Adjustable lifting range – from 200 to 535 mm
The OLN-06 lift is equipped with a saddle mounted on a thread that allows you to adjust the working height.
🔹 At lower saddle position:
- Initial height: 200 mm
- Maximum height: 485 mm
🔹 At higher saddle position:
- Initial height: 250 mm
- Maximum height: 535 mm
➡ Hydraulic cylinder and lever 510 mm – convenient operation
The OLN-06 model is equipped with a hydraulic actuator for smooth lifting of the vehicle.
The lever with a length of 510 mm allows efficient operation of the lift, and the notched handle improves grip confidence.
The lowering valve is controlled by a knob operated by a lever tip, which allows precise and controlled lowering of the vehicle.
➡ Mobile design and easy maneuverability
The compact design and weight of 15,6 kg make the OLN-06 lift convenient for transport and storage.
The Transport handle located at the back of the structure makes it easy to carry the device, and the rear twist wheels allow for efficient maneuvering and precise positioning under the vehicle.
➡ Stable construction for everyday use
The design of the OLN-06 has been developed to provide stability when lifting the vehicle while maintaining a compact form factor.
The lift works well for everyday use in the garage and during basic maintenance work.
➡ What distinguishes the OLN-06 3T?
✅ Leverage - 3000 kg
✅ Lifting range - 200 – 535 mm
✅ Adjustable saddle on thread
✅ Recommended for SUV, crossover and cars with higher clearance
✅ Leverage - 510 mm
✅ Carbonated handle for improved grip
✅ Drain knob for precise lowering
✅ Protective rubber included
✅ Compact design - 15,6 kg
✅ Handle for carrying and rear twist wheels
➡ Why choose the OLN-06?
OLN-06 is a model designed for vehicles where standard lifts may not provide an adequate range of work. The adjustable saddle allows you to adjust the working height to suit different support points.
The compact design and low weight make the lift convenient for everyday use and easy to transport.
💡 FAQ – Frequently Asked Questions
1. Is the lift suitable for low suspension vehicles?
- No. The minimum height of 200 mm is designed for vehicles with higher clearance.
2. Does 3T mean the weight of the entire vehicle?
- No. 3000 kg is the maximum load when lifting one axle of the vehicle.
3. Which vehicles are best suited for the OLN-06?
- For SUVs, crossovers and other vehicles with higher suspension.
4. Can the lifting height be adjusted?
- Yes. The saddle mounted on the thread allows you to change the working height.
5. Is the lift easy to transport?
- Yes. It weighs 15,6 kg and has a handle for easy carrying.

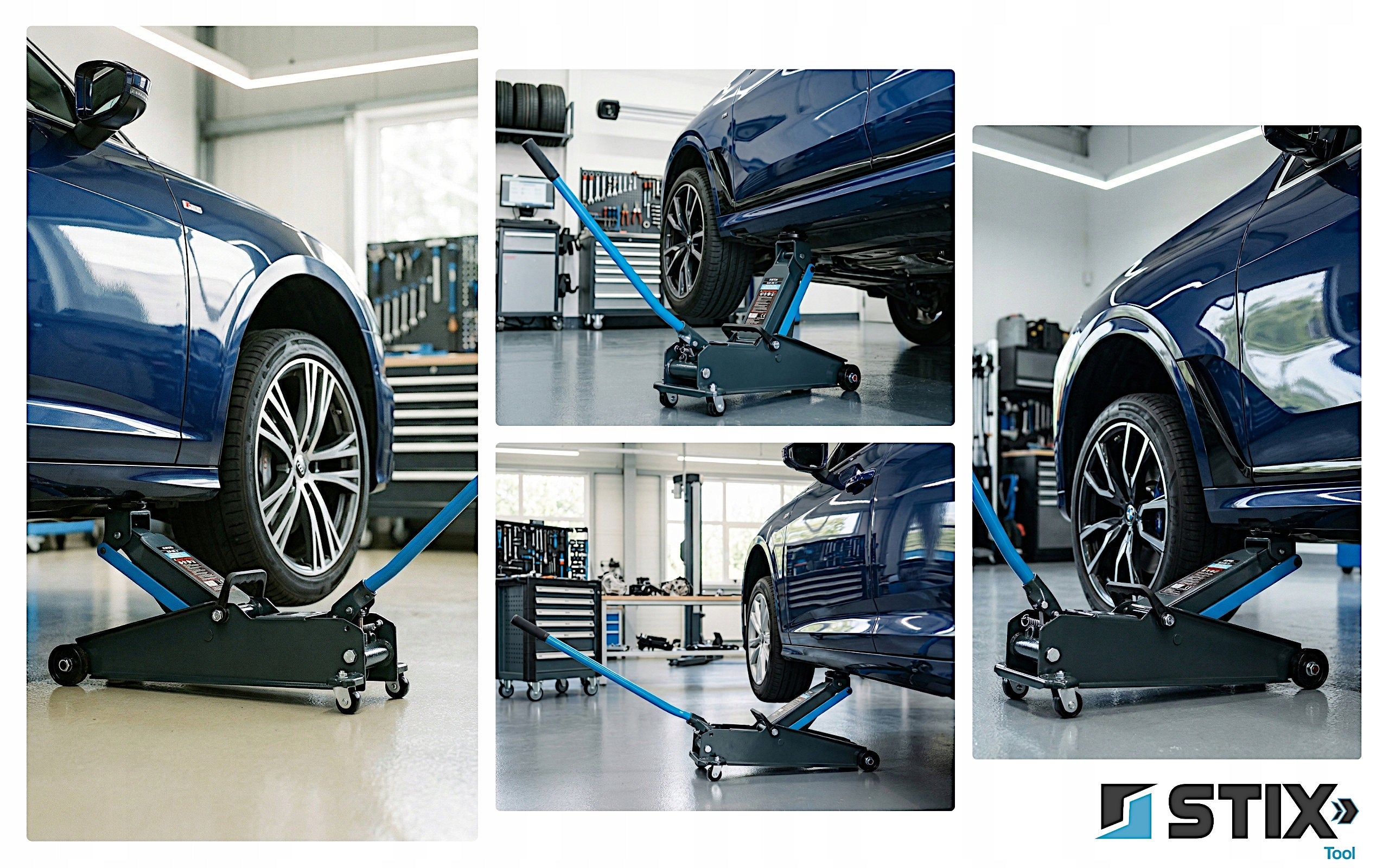

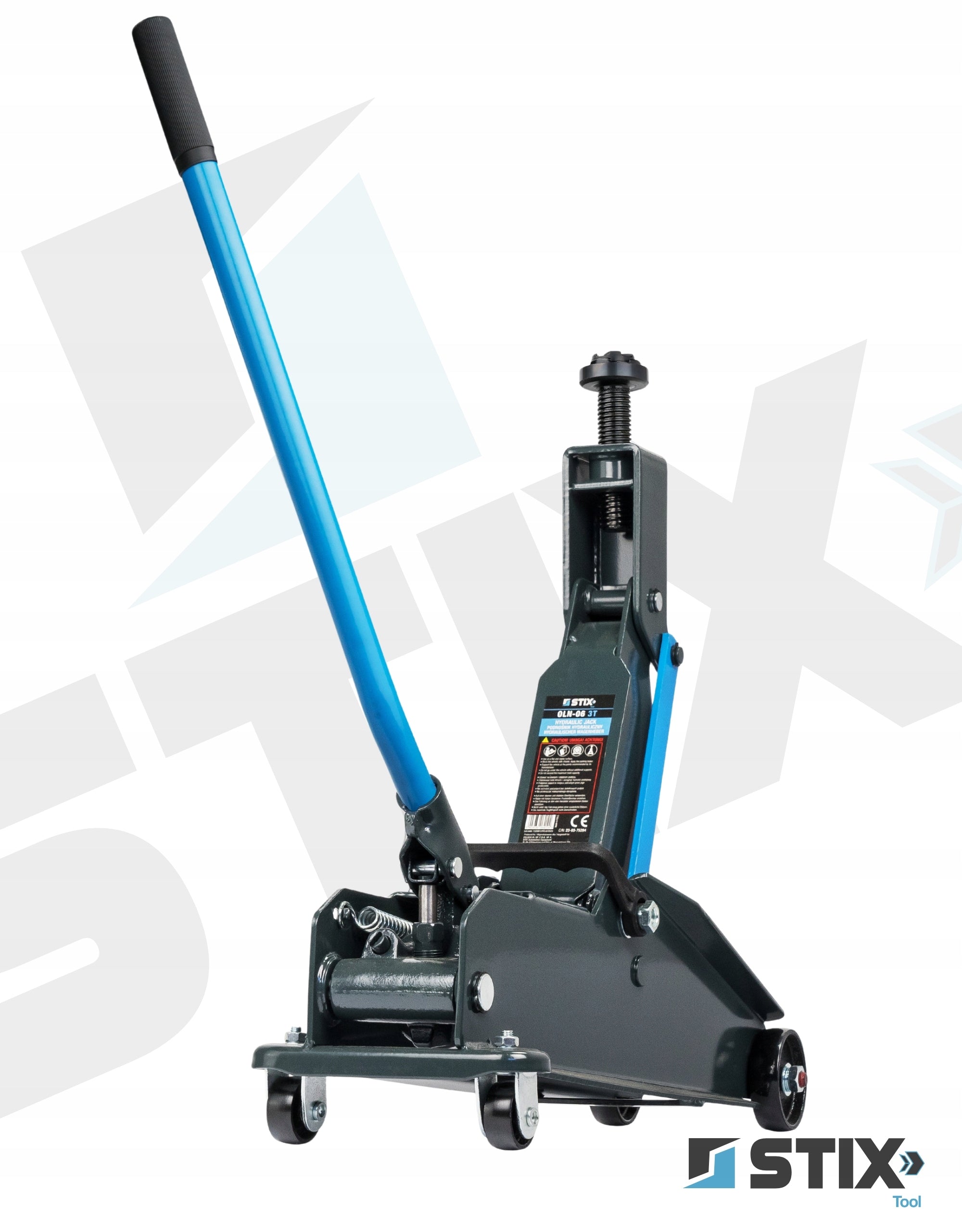

📷 Photo gallery
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Product weight with unit packaging | 18 kg |
| Parametry | Brand | Stix |
| Parametry | Manufacturer code | 23-03-75294 |
| Parametry | EAN (GTIN) | 5903636064024 |
| Parametry | Lifting capacity | 3000 kg |
| Parametry | Minimum lifting height | 200 mm |
| Parametry | Maximum lifting height | 535 mm |
