Hidraulinis automobilio keltuvas FROG 3 t STIX su guminiu atrama

Trumpai apie prekę

Prekė: Hidraulinis automobilio keltuvas FROG 3 t STIX su guminiu atrama. Kategorija: Prailgintojai (varlės).

• Gamintojas: Stix
• Modelis: 23-03-75290

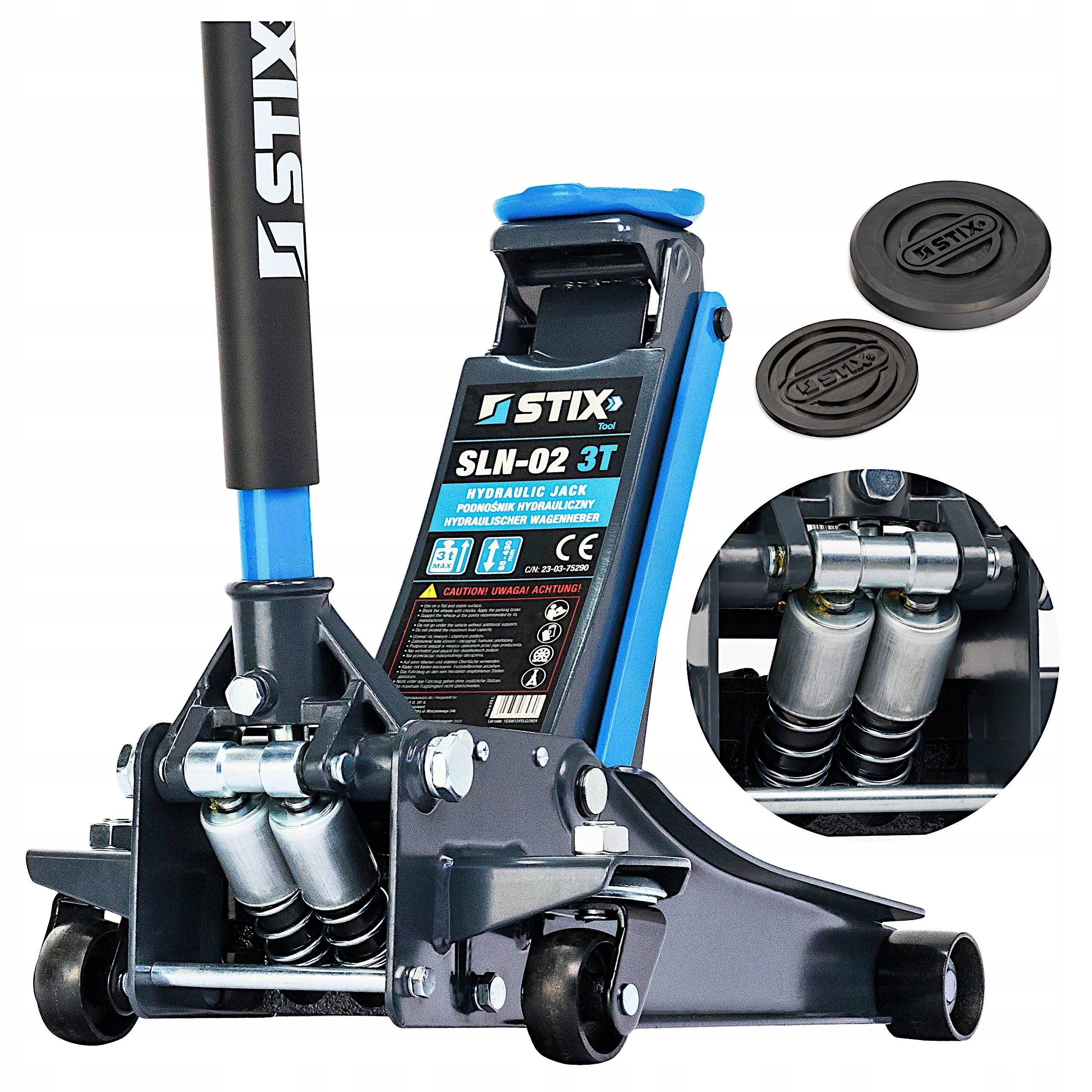

The SLN-02 hydraulic frog lift with a lifting capacity of 3T is a model designed for service work on passenger cars, SUVs and light commercial vehicles. The low profile of 85 mm allows you to work with cars with reduced suspension, and the range up to 430 mm will work well for standard workshop work. Double hydraulic pump and long lever 1150 mm ensure fast and convenient lifting of the vehicle.

Catalog number: 23-03-75290

Model: SLN-02 3T

Manufacturer: Stix Tool

Quantity: 1 pc.

⚙ Technical specification

• Lift type: hydraulic
• Maximum lifting capacity: 3000 kg
• Maximum lifting height: 430 mm
• Minimum lifting height: 85 mm
• Lever length: 1150 mm
• Net weight: 23,5 kg
• Package dimensions: 680 x 370 x 180 mm

⚙ Technical drawing

➡ 3T car lift for workshop work

SLN-02 is a hydraulic car lift with a maximum lifting capacity of 3000 kg.

Designed for lifting vehicles at factory support points, it ensures stable and safe operation in garage and workshop conditions.

➡ Working range of lift 85 – 430 mm

✅ Low profile – only 85 mm

The minimum height of 85 mm allows the lift to be inserted under vehicles with reduced suspension. The contoured design makes it easy to position the device at the factory support point.

✅ Maximum height – up to 430 mm

The lifting range up to 430 mm provides adequate working space for wheel changes and basic service work. This height also allows the use of workshop supports.

➡ Dual hydraulic cylinder – fast lifting

The SLN-02 model is equipped with a dual pump, which allows you to quickly lift the vehicle with less effort.

The full working height can be achieved in about 8 full lever movements, which reduces the working time compared to standard lifts.

Lever-controlled lowering valve allows for precise and controlled lowering of the vehicle without the need to bend down or remove the lever.

➡ Ergonomic operation and precise manoeuvring

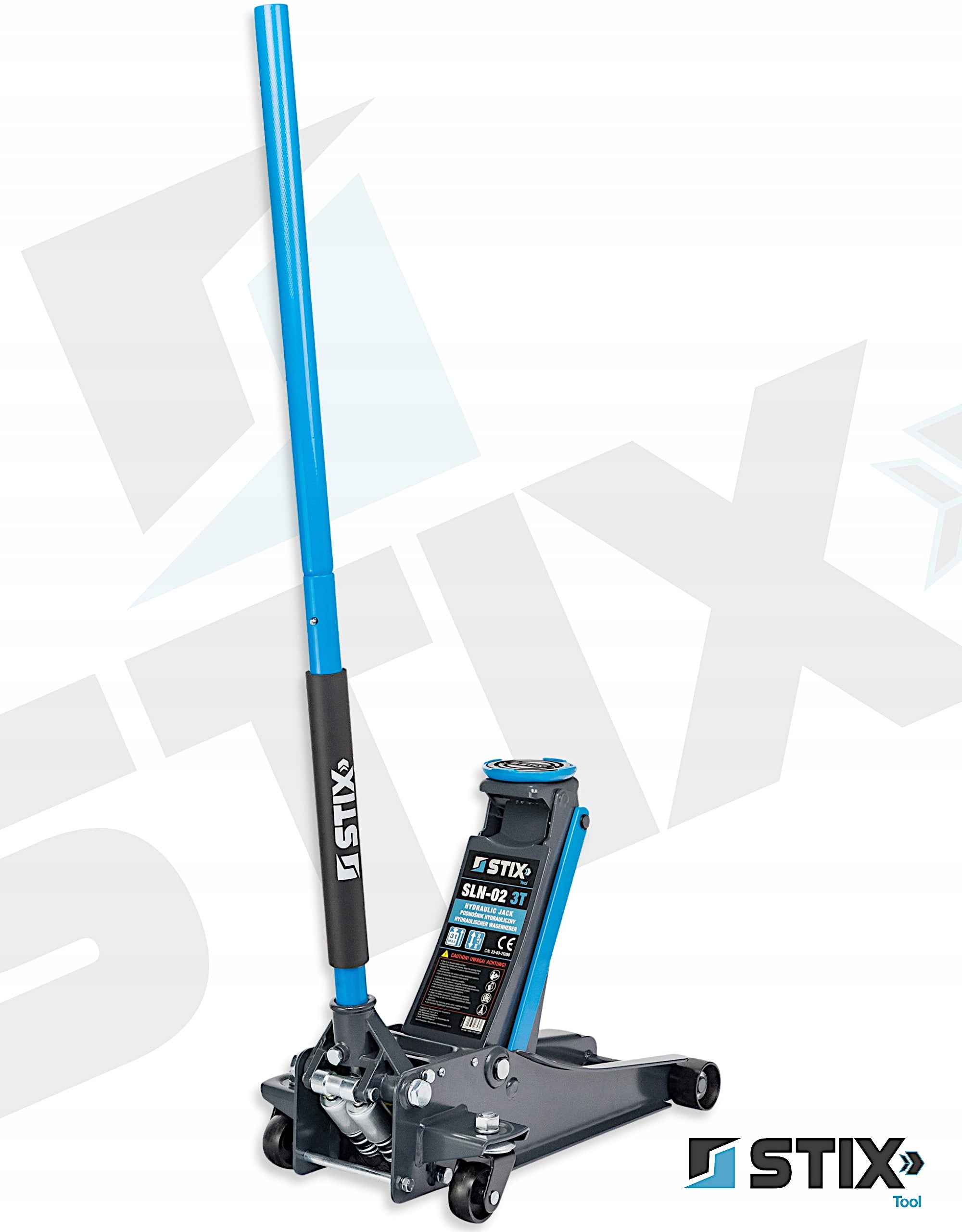

The steel lever with length of 1150 mm consists of two segments, which makes it easy to store and transport. The long length increases the mechanical lever, so lifting the vehicle requires less operator effort.

The lower part of the lever has been covered with protective foam, which helps to protect the body from accidental damage during operation.

The lift is equipped with four metal wheels, including two swivel, which allow efficient maneuvering and precise positioning under the vehicle.

➡ Two protective covers included

The lift is equipped with a standard working cap and an additional rubber overlay Ø120 mm.

The enlarged overlay provides a larger support surface and helps protect the contact point with the vehicle during lifting.

➡ Reinforced construction and practical details

The design of the SLN-02 has been adapted for more intensive use in workshop conditions, ensuring stability during operation.

The actuator cover has been formed into a metal tray, on which you can conveniently put bolts, nuts or small tools during operation. This facilitates the organization of the position and reduces the risk of losing elements.

➡ What distinguishes the SLN-02 3T lift?

✅ Lifting Capacity – 3000 kg

✅ Low Profile – 85 mm

✅ Working Range – 85–430 mm

✅ Dual Hydraulic Pump

✅ Maximum Height in approx. 8 lever strokes

✅ Long Lever – 1150 mm (2 sections) with protective foam

✅ Two Protective Adapters Included (including Ø120 mm)

✅ Metal Wheels (including 2 swivel wheels) – easy maneuvering

✅ Lever-Controlled Valve – precise lowering

✅ Reinforced Construction for intensive use

✅ Metal Tray for screws and small parts

➡ Why choose the SLN-02?

SLN-02 is a model for more demanding users who expect a stable and comfortable tool for workshop work. Long lever and efficient hydraulic system translate into faster and less demanding operation.

Robust construction and practical solutions increase the comfort of everyday work and make the lift work well with regular use.

💡 FAQ – Frequently Asked Questions

1. Is the SLN-02 suitable for cars with low ground clearance?

• Yes – the minimum height of 85 mm allows you to slide under most passenger cars with reduced suspension.

2. Is lifting a vehicle fast?

• Yes – the double hydraulic pump allows you to reach the maximum height in about 8 full lever movements.

3. Can the lift be safely lowered without jerking?

• Yes – the lever-controlled valve allows smooth and controlled lowering of the vehicle.

4. Are there protective covers included?

• Yes – the lift is equipped with a standard working cap and an additional Ø120 mm overlay.

5. Is the lever foldable?

• Yes – it consists of two segments, which makes it easy to store and transport.

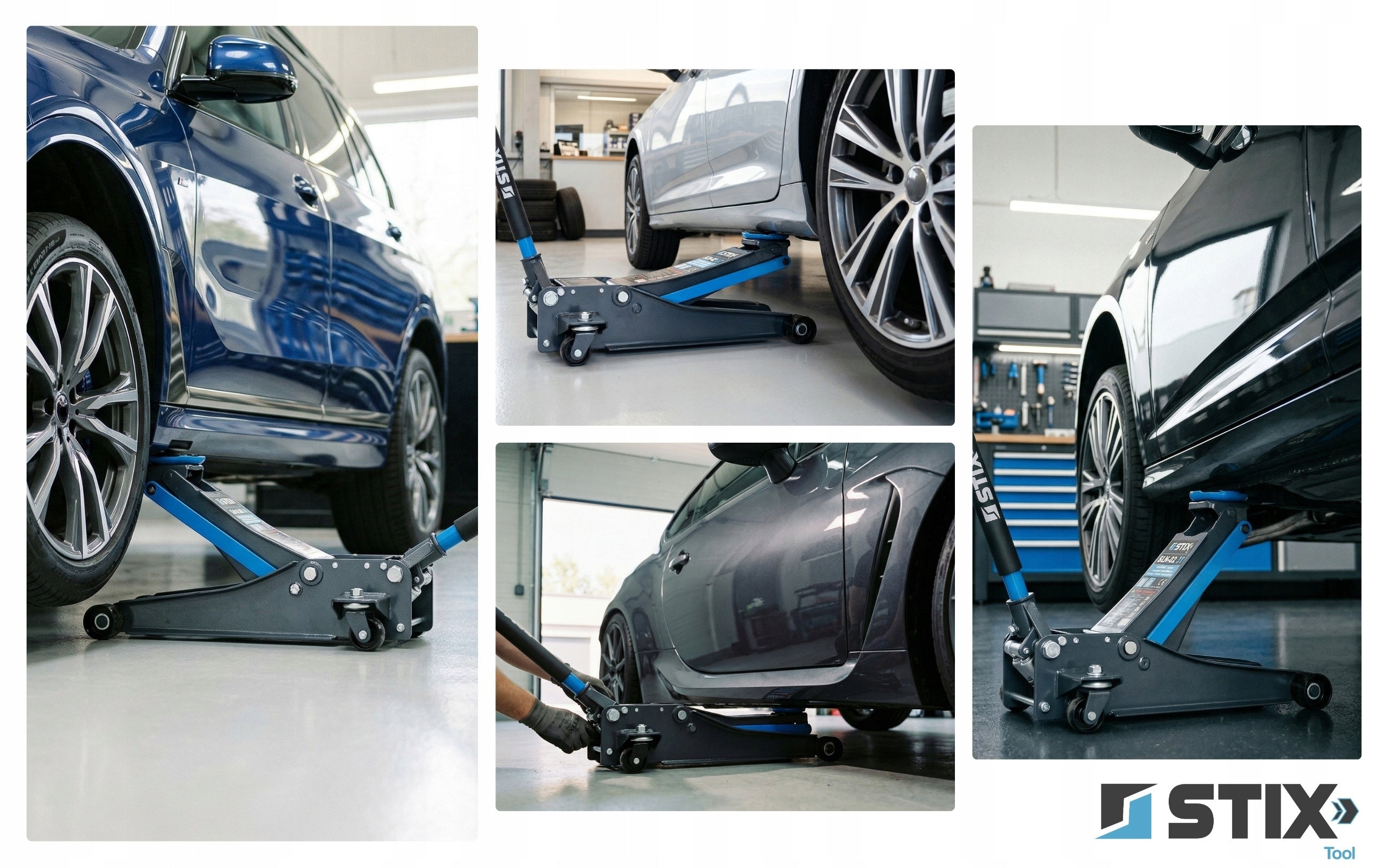

📷 Gallery

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Product weight with unit packaging	25 kg
Parametry	Brand	Stix
Parametry	Manufacturer code	23-03-75290
Parametry	EAN (GTIN)	5903636063980
Parametry	Lifting capacity	3000 kg
Parametry	Minimum lifting height	85 mm
Parametry	Maximum lifting height	430 mm
