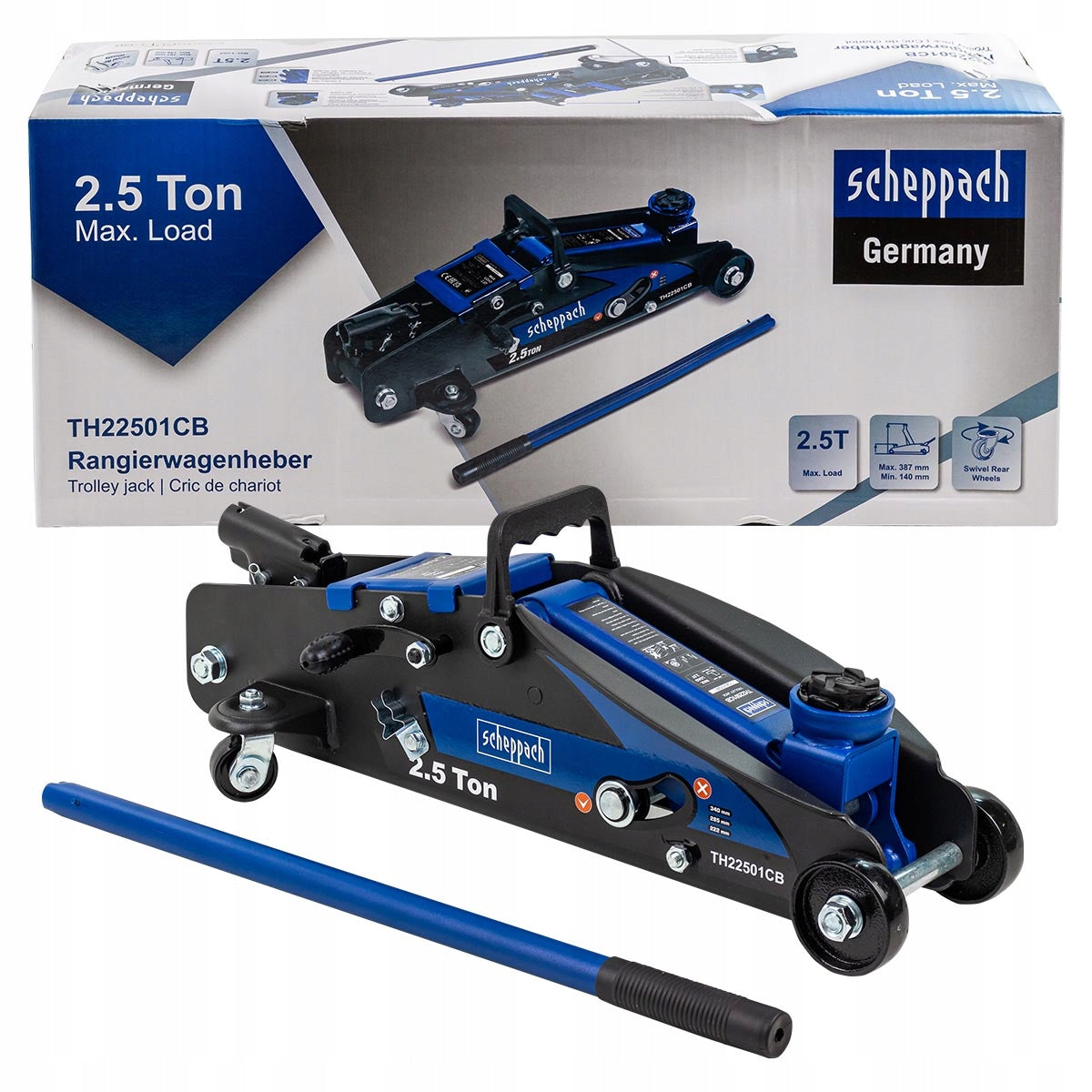

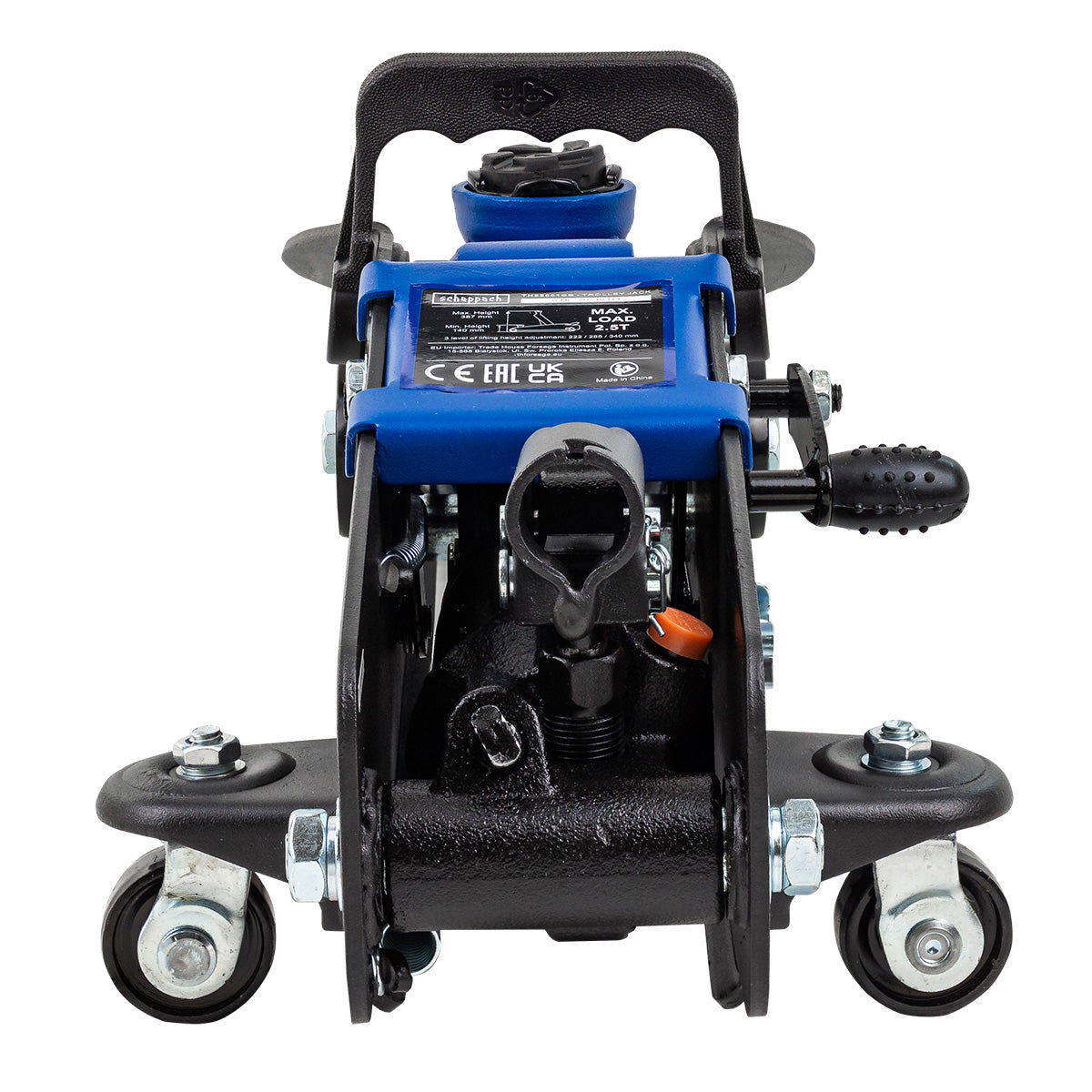

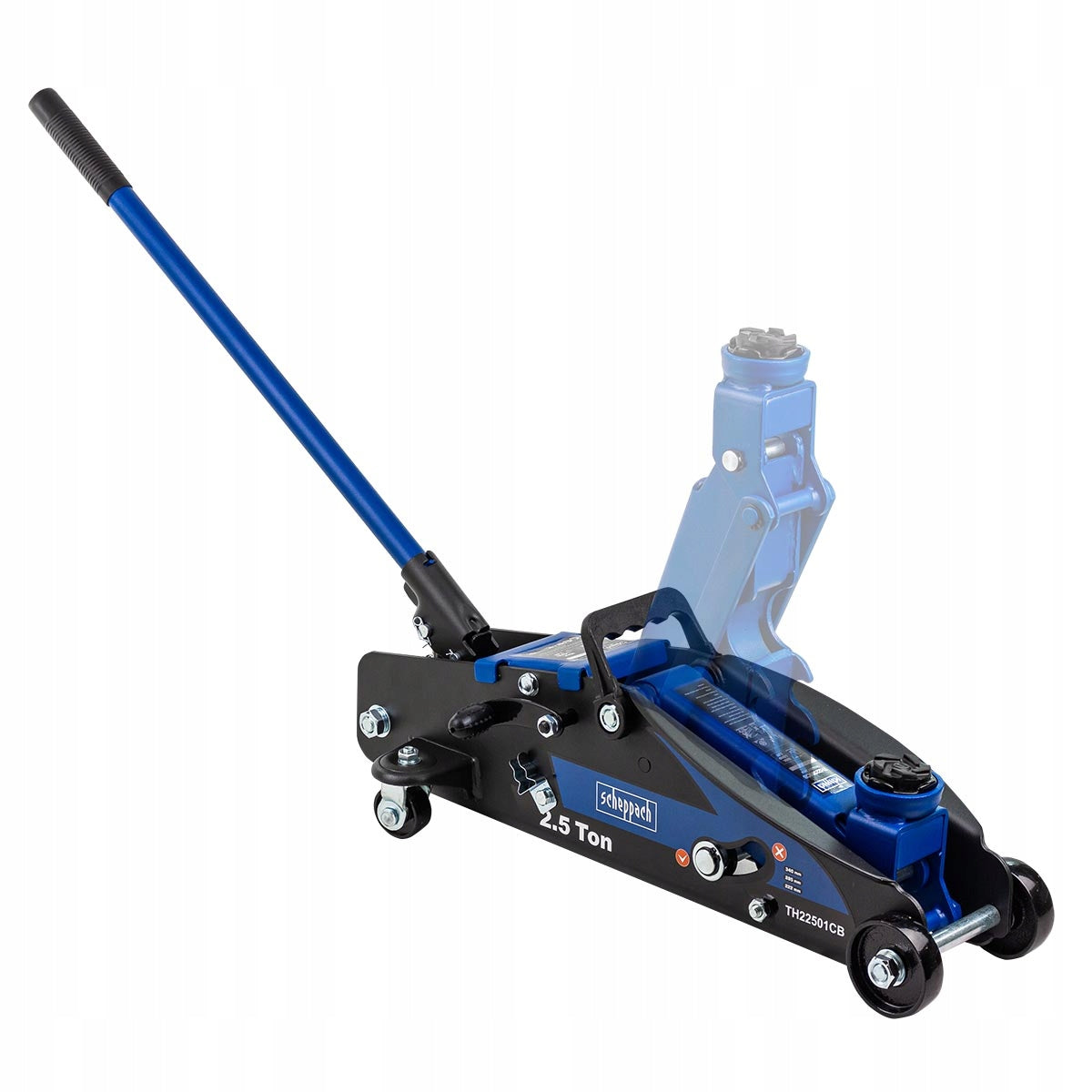

Hidraulinis automobilio keltuvas FROG 2,5T 140-387 mm

Trumpai apie prekę

Prekė: Hidraulinis automobilio keltuvas FROG 2,5T 140-387 mm. Kategorija: Prailgintojai (varlės).

• Gamintojas: Scheppach
• Modelis: 65256

► Wide front wheels ► Lifting capacity 2,5 tons ► Powerful hydraulic cylinder ► 13-kilogram, thick stainless steel ► Rubber cap ►3-degree lock adjustment ► Thick brackets

⭐ Lift to suit your needs

✅ Low profile ► lifting range 140-387 mm, ideal for sports cars with low suspension

✅ CONFIRMED TESTED lifting capacity ► The lift of 2,5 tons has been verified under the pressure of a hydraulic press, which guarantees reliability in everyday use. Tests confirm that the structure maintains stability even under full load

✅ Real lifting capacity of 2,5 tons ► reliable in lifting passenger cars, indispensable in every garage

✅ Powerful cylinder ► efficient hydraulic mechanism for quick and easy lifting

✅ Easy oil change ► quick maintenance and venting, no specialized assistance

✅ Rubber overlay ► will protect the chassis from damage during lifting

⚡ Investing in quality that pays off!

✅ Robust 4-centimeter profiles ► make the lift more resistant to damage, thus guaranteeing a longer service life

✅ High quality steel Q345 ► construction of low alloy, thick steel with increased strength

✅ Robust construction ► or thick, durable steel guaranteeing the longevity of the lift

✅ Wide and massive wheels ► easy manoeuvring of the lift, precise positioning under the chassis

✅ Thick brackets and profiles ► increased stability and safety during operation

✅ Savings on service ► do most of the work yourself, saving on the cost of the mechanic

► Unrivalled lift, in which every detail was taken care of!

⚙ Technical data:

Lift Type: Hydraulic

Maximum lifting capacity: 2500 kg

Lifting range: 140 - 387 mm

Hydraulic cylinder: Single piston

Material: Steel Q345

Wide front wheels: Yes

Weight: ~14 kg

Dimensions: 58x26x16cm (length-width-height)

✅ CONFIRMED TESTED LIFTING CAPACITY

Strength tests were carried out on a hydraulic press, which gradually increased the load by simulating extreme conditions

The lift not only maintained the declared 2,5 tons, but also did not show signs of deformation or decrease in efficiency

The descent mechanism is based on the precision hydraulic valve, which regulates the flow of oil in the system

Thanks to this, the lift leaves the car in a controlled and uniform way - without the risk of sharp drops or tilts

The system works even under heavy load, which is crucial e.g. when replacing wheels in the field or working on uneven ground

The user has full power over the rate of leaving, which increases comfort and safety of daily repairs

⭐ Refined safeguards

The hydraulic system uses a double safety system:

• Overload valve ► automatically blocks lifting if it detects pressure above 2,5 tons, protecting both the car and the lift from damage

• Mechanical lock ► stabilizes the frame in the maximum position (375 mm), preventing accidental fall when working under the car

  Additionally, all moving parts are protected against corrosion, which extends the life of the mechanisms

⚡ Accurate Welds = Strength

Welds were made using TIG method (arch welding in argon sheath), which provides perfect tightness and strength

Each connection is ground and controlled for micro-damage

Thanks to this, the lift does not leak even after years of intensive use, and the frame retains rigidity - crucial when lifting cars with low clearance

► Do not think about cheaper alternatives and choose a LIFT FOR YEARS!

⭐ Discover the advantages of our lift!

Our lifts are designed to be comfortable for the user and completely safe for your vehicle!

⚙ Reinforced sheet metal

The lifts are made of high-quality, additionally reinforced Q345 steel with a thickness of up to 5 mm

⚙ Large, comfortable handle

It allows you to easily carry the lift, and the durable and comfortable material makes the handle fit perfectly in your hand

⚙ Strong rubber stand

Rest assured, this element absorbs pressure so that does not damage the chassis

The lift is equipped with a special safety valve and a relief valve that protect against overload and allow smooth, effortless lowering of the lift.

The return spring easily restores the lifting mechanism to its starting position.

The set includes a rubber overlay that protects the car's threshold from damage during operation.

Hydraulic oil operates in a wide temperature range: from –50 °C to +50 °C.

Thanks to its compact dimensions, the lift is mobile and easy to transport – ideal for the garage, workshop or travel.

⚡ Premium lift at a competitive price!

✔ The lift is made of high-quality materials, which can be seen from reinforced brackets and profiles, which additionally stiffen the entire structure

✔ High quality can already be seen with the naked eye, while the actuator used inside has been selected to easily lift the vehicle weight up to 2500 kg

✔ The lift is low profile (wide lifting range 140-387mm) so it will work especially for cars with low suspension

✅ More weight = more durability

Our lift weighs more than 3 kg more than competing models, which is due to the use of thicker and more durable materials

This additional weight translates into increased durability, stability, and reliability, guaranteeing safe operation even on the most difficult tasks

⚙ How to change the oil in the lift?

Before starting, make sure the lift is completely lowered and stably positioned on a flat surface

Find the drain plug in the upper part of the oil tank, base the container for used liquid and empty the system

Check the condition of seals and valves – in case of damage, replace them

Then pour in the new hydraulic oil, taking care of the correct level

After replacement, and perform several lifting/lowering cycles to vent the system. Finally, check the tightness and remove any leaks

• ✅ Remember to regularly review and use only recommended liquids!

⚡ Easy to use lift for everyone!

► The lift is very easy to operate. Simply screw the actuator valve with the handle and then pump to the desired height

► Changing the oil and venting the lift is really simple, so it is a device that will serve you for many years

► Bearing swivel wheels and solid rear wheels make the lifter mobile and can be easily placed under the vehicle

⚡ Self-repair with lift – safe and cheap!

✔ Replace wheels, tires

✔ Fix exhaust system

✔ Replace oil, coolant

✔ Check the brake system

✔ You will perform a regular inspection of the condition of the car

✔ Fix suspension

✔ You will replace wear parts such as: swing arms, joints and much more
