Hibridinis generatorius EXTRALINK EGH-3000

Trumpai apie prekę

Prekė: Hibridinis generatorius EXTRALINK EGH-3000. Kategorija: Elektros generatoriai.

• Gamintojas: Extralink
• Modelis: EGH-3000
• Įtampa: 220 V

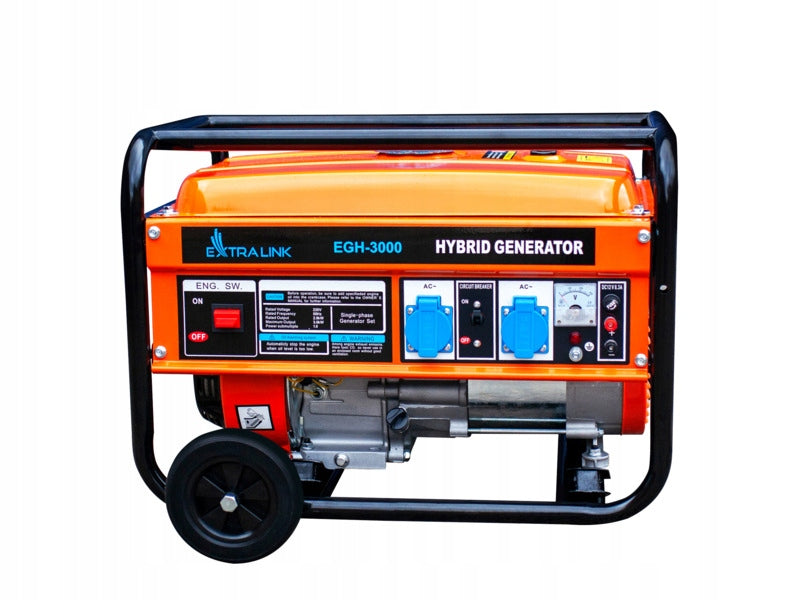

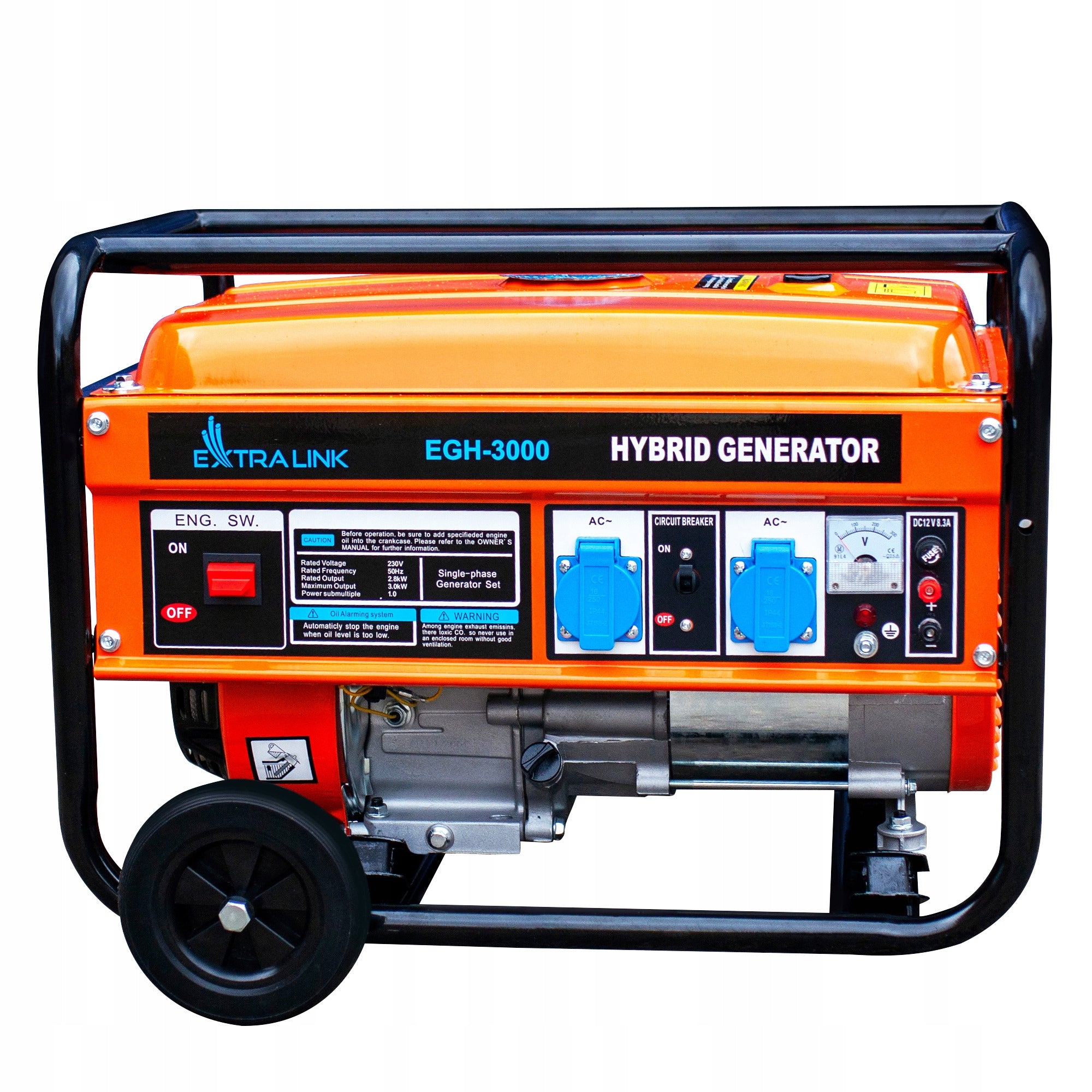

Generator set EXTRALINK Hybrid EGH-3000

• Startup: Manual
• Type of generator: Synchronous
• Engine capacity [cm3]: 210
• Working time on tank [h]: 11
• Maximum fuel consumption [l/h]: 1.4
• Number of phases: Single-phase
• Voltage stabilization: Yes
• Overload protection: Yes
• Weight [kg]: 45
• Continuous power [W]: 2800
• Engine power [kW]: 3
• Engine type: Four-stroke, Single-cylinder
• Voltage [V]: 220-240
• Type of fuel: Petrol, LPG
• Oil sensor: Yes

• Index: 497929

Alternative power source

Application of the device

The EXTRALINK EGH-3000 Hybrid generator set is the perfect solution for any location where access to a power source is difficult. It will work both on the plot, in a summer house or campsite, as well as on the construction site. In the event of a power outage or failure, the device also becomes a source of replacement power.

Four-stroke hybrid engine

The EGH-3000 Hybrid by EXTRALINK is equipped with a single-cylinder, 4-stroke air-cooled hybrid engine. The engine is made of pure copper, which guarantees reliability, and its capacity is 210 cm³. The unit also has a 15-liter steel fuel tank, which significantly affects the working time without having to refill it. The oil tank capacity is 0,6 l. The device is able to work up to 11 hours without refueling. The maximum output power of the device is 3000 W, while the rated power is 2800 W.

Power supply for the unit

EXTRALINK EGH-3000 Hybrid is a hybrid unit – so you can power it with gasoline, LPG and CNG. The procedure for starting a generator set is extremely simple. In order to start it, you need to pull the boot cord. With its easy-start system, you can start your engine without any effort - in just a few seconds! Two 230 V sockets are placed on the panel. Transportation of the device also does not cause any difficulties – this is due to the solid wheels and handles with which they are equipped.

Effective safeguards

The EGH-3000 Hybrid generator set by EXTRALINK has a durable steel frame, protecting its components from damage. It is also equipped with a special protection system – in case of overload, it is able to automatically turn off the generator, preventing unwanted failure. Moreover, in case of too low oil level, it is also impossible to turn on the unit.

Equipment

The unit comes with an instruction manual and a warranty card.

• Startup: Manual
• Type of generator: Synchronous
• Engine capacity [cm3]: 210
• Working time on tank [h]: 11
• Capacity of fuel tank[l]: 15
• Maximum fuel consumption [l/h]: 1.4
• Type of oil: 10W30
• Capacity of oil tank [l]: 0.6
• Number of phases: Single-phase
• Type of cooling: Air
• Type of lubrication: Splash
• Voltage stabilization: Yes
• Structure: Open
• Overload protection: Yes
• Dimensions [cm]: 60.5 x 44 x 44
• Weight [kg]: 45
• Weight with packaging [kg]: 48
• Engine brand: EXTRALINK
• Color: Black and orange
• Continuous power [W]: 2800
• Type: Aggregate
• Engine power [kW]: 3
• Engine type: Four-stroke, Single-cylinder
• Voltage [V]: 220-240
• Output current: 13.64 A
• Frequency [Hz]: 50
• Type of fuel: Petrol, LPG
• Noise level [dB]: 95
• Oil sensor: Yes

Specifications
