HDMI perjungiklis SCU21E CODEC su USB-C, 4K vaizdo konferencijoms

Trumpai apie prekę

Prekė: HDMI perjungiklis SCU21E CODEC su USB-C, 4K vaizdo konferencijoms. Kategorija: Vaizdo konferencijų rinkiniai ir kameros.

• Gamintojas: no brand
• Modelis: SCU21E CODEC

• Offers 2 inputs – HDMI 2.0 and USB-C with video support up to 4Kx2K 60Hz 4:4:4 8 bit, 1080P and 3D
• intelligent management of EDID
• Supports USB devices necessary for software video conferencing – cameras, microphones, speakersphones
• Button management on housing, RS-232 and CEC.

The SCU21E CODEC presentation switch has been designed for soft codec video conferencing systems, i.e. those that are implemented on the basis of a computer with appropriate software such as MS Teams, Zoom, etc. You can connect 2 computers to it – one via HDMI 2.0 input and at the same time USB (USB-B 'host' port), the other via USB-C port, which supports both video and audio transfer, as well as data. Choosing a computer sends its signals to HDMI and Audio Out outputs and at the same time connects USB HID devices from USB-A ports 1 and 2 to the computer – e.g. microphone and camera.

This functionality allows the user to connect the computer brought to the room in one of two available ways and use the entire infrastructure that is in the room.

There are various modes of operation of the device – AUTO mode, which grants all resources to the last connected users, manual mode – with the switching of users using the button on the front plate of the device, RS232 or CEC command. There are also other modes, freely configurable by the user using RS232 commands.

The device supports video resolutions up to 4Kx2K@60Hz 4:4:4 8 bit, 1080P and 3D.

Main features:

• 18G 2×1 switch with HDMI and USB C inputs
• Supports automatic switching
• Control via buttons on the front panel and RS-232
• Supports HDMI 2.0, 4Kx2K@60Hz 4:4:4, HDR 10, Dolby Vision, HDCP 2.2
• Provides charging on USB C port up to 4 0W
• Provides USB data transfer (USB 3.0/2.0) and 4K video transmission on USB C port
• Symmetrical audio output for audio extracted from HDMI signal
• Peripheral devices (e.g. microphone and camera) can be connected via USB type A (USB 3.0/2.0) and automatically switched with HDMI and USB C input, as USB devices for the selected HOST
• Intelligent and flexible EDID management
• The buttons on the front panel trigger both CEC and RS232 commands to control the display (ON, OFF, MUTE, VOL+, VOL-).

Video

Video Inputs: (1) HDMI, (1) USB-C

Video input connectors: (1) HDMI – A, (1) USB C

HDMI input resolution: up to 4Kx2K@60Hz 4:4:4 8bit

USB-C input resolution: up to 4Kx2K@30Hz 4:4:4

Video Output: (1) HDMI

Video Output Connector: (1) HDMI – A

HDMI output resolution: up to 4Kx2K@60Hz 4:4:4 8bit

HDMI Version: 2.0

HDCP version: 2.2

USB version: 3.0

Support: HDR 10, CEC, HPD

Audio Output: (1) symmetrical, linear

Audio Output Connector: (1) Phoenix 5-pin jack

HDMI audio format

LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby Digital® Plus, DTS:X™ and DTS-HD® Master Audio™ pass-through

Audio format of symmetrical stereo output: PCM

Maximum Output Level:

2.0Vrms ± 0.5dB. 2V = 16dB margin above -10dBV (316mV) nominal user linear level

THD+N: < 0.05% (-80dB), 20Hz ~ 20KHz band, 1KHz sine at 0dBFS (or maximum level)

SNR: >80dB, 20Hz~20KHz band

Stereo channel separation: >70dB@1KHz

Management: (1) EDID, (1) FW, (1) RS232, (1) HOST, (2) DEVICE

Management connector: (1) 4-pin DIP switch, (1) Micro-USB, (1) 3-pin terminal block, (1) Type B USB 3.0 3.0, (2) Type A USB 3.0

Permissible length of HDMI 2.0 cable:

- 4K@60Hz 4:4:4 ≤ 5m,

- 4K@60Hz 4:2:0 ≤ 10m,

- 1080P ≤ 15m

Bandwidth: 18 Gbps

Operating temperature: -10 ~ +55

Storage temperature: -25~+70

Relative humidity: 10%~90%

Power Supply: Input: AC 100~240V, 50/60Hz, Output: 24V DC 2.71A

Power consumption: 54W (max. )

Dimensions: 168 x 24,5 x 95 mm

Net weight: 245g

Set Contents:

• 1x SCU21E CODEC HDMI USB-C Presentation Switch with Soft Codec Video Conferencing Support
• 2x mounting bracket
• 4x self-adhesive cushioning pad
• 1x 5-pin Phoenix plug
• 1x RS-232 cable (3-pin plug – DB9)
• 1x power cord
• 1x power supply (24V DC, 2,71A)
• 1x User Manual (English) )

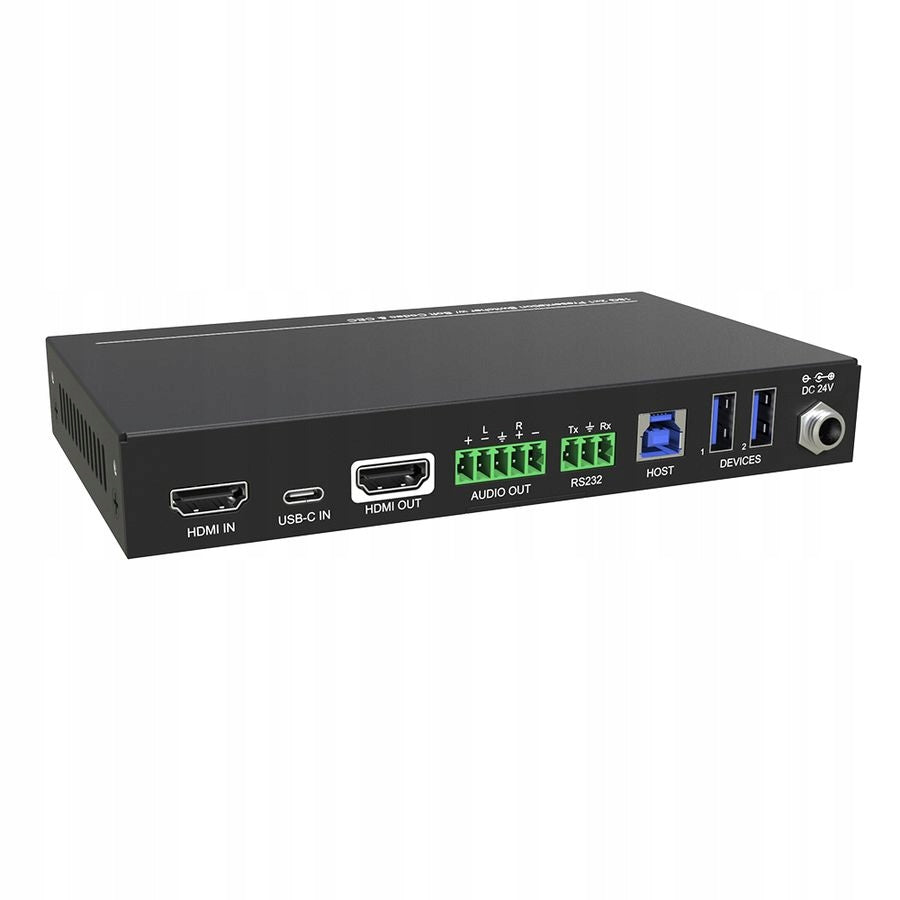

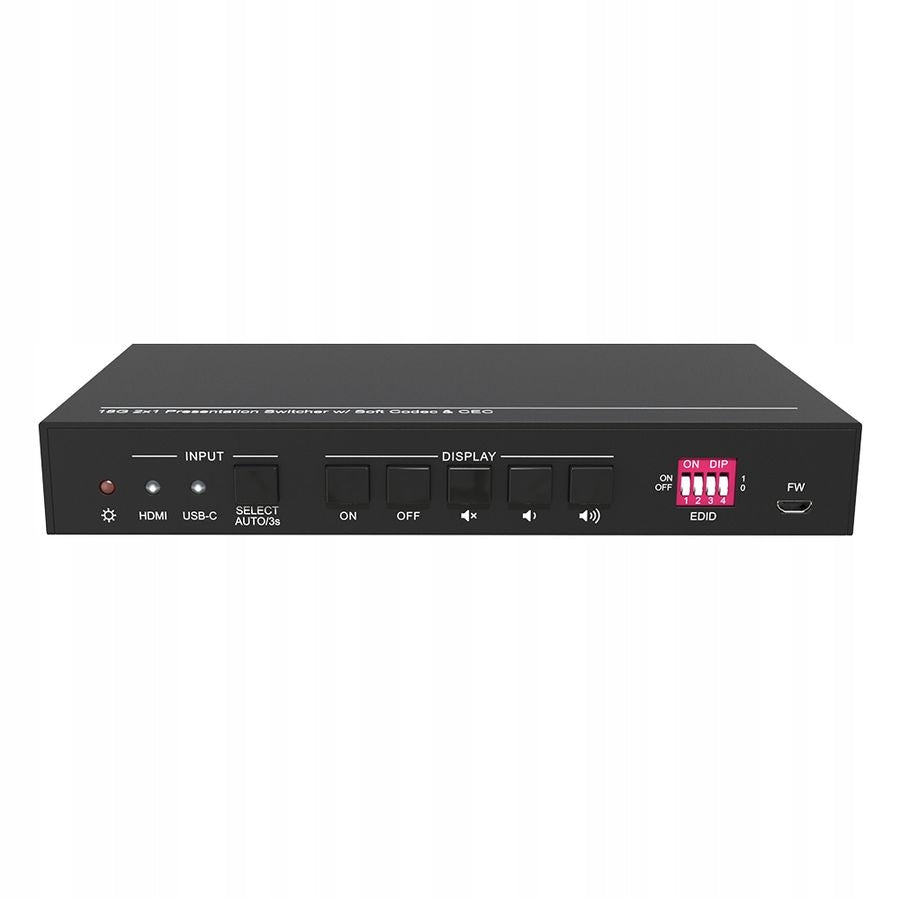

Connection diagram:

Specifications
