Prekė: HDMI ARC garso išskyrimo konverteris su koaksialiniu ir optiniu jungtimis. Kategorija: Garso DAC keitikliai.

• Gamintojas: no brand
• Modelis: WS65200

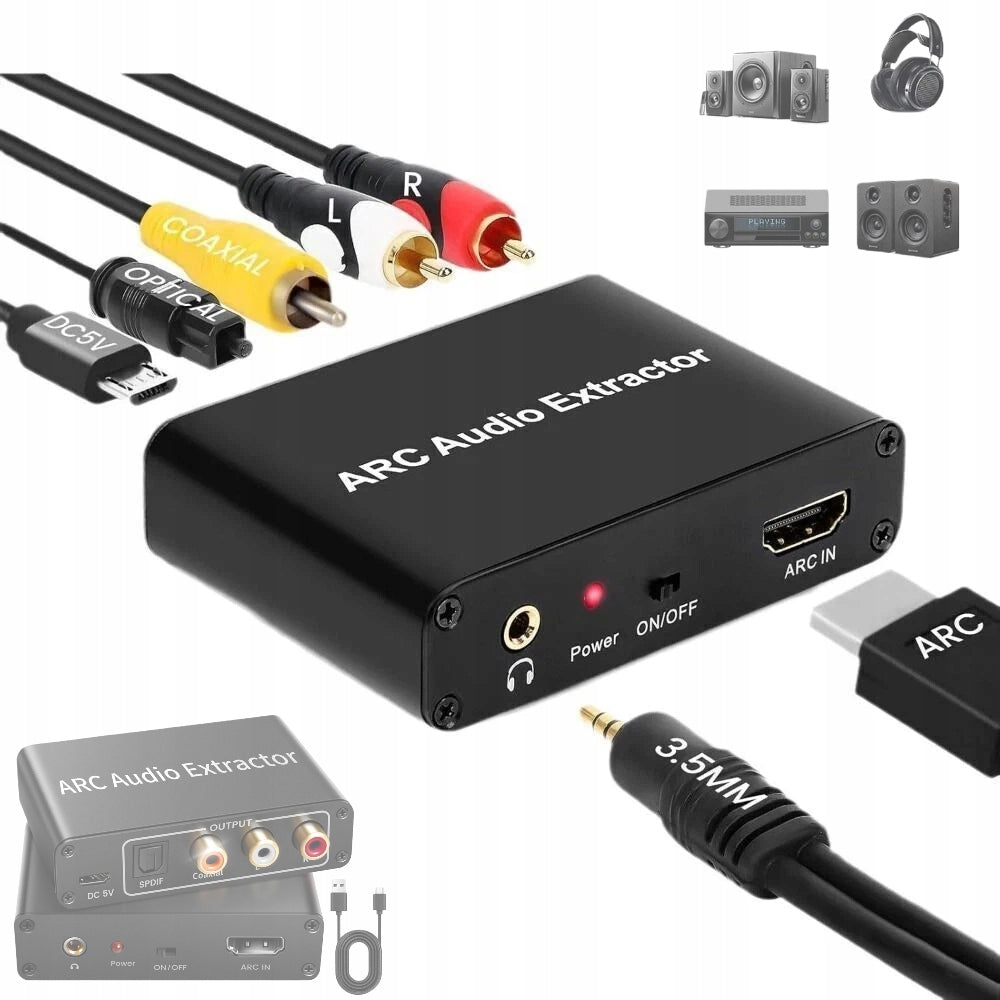

1. ARC Audio Extractor --- This audio extractor with coaxial input and SPDIF L/R RCA 3,5mm (0,14 inch) output is suitable for TVs. (NOTE: Only TVs with ARC functionality are supported.)

2. DAC CONVERTER --- This converter can convert PCM/LPCM 2.0CH digital audio signal to analog stereo L/R RCA and 3,5mm (0,14inch) audio signal.

3. 4 INTERFACE AUDIO SEPARATOR --- Coaxial/SPDIF interface supports 5.1-channel audio output, RCA and 3,5 mm (0,14 inch) interfaces support 2.0-channel audio output, and 4 interface synchronization outputs.

4. 192 kHz 24 bits --- Supports 32 kHz, 44,1 kHz, 48 kHz, 96 kHz and even 192 kHz 24 bits sampling rates, ensuring high quality audio transmission.

5. CONVENIENT DESIGN --- Aluminum alloy housing with gold-plated interface provides good interference protection, allowing lossless switching of sound quality.

Supports SPDIF output

Supports coaxial output

Supports RCA stereo output

Supports 3,5mm (0,14 inch) stereo headphone output

3,5 mm (0,14 inch) stereo headphone jack with powerful audio amplifier.

Supports noise reduction on the switch

Supports automatic signal silencing

Supports audio transmission with 192 kHz sampling rate

Fiber optic coaxial interface supports 5.1-channel transmission

Maximum operating current: 65 mA

Power Interface: Micro USB

Package Contents: 1 x ARC Audio Adapter, 1 x USB Cable, 1 x User Manual

Power adapter specification: AC 100 V-240 V 50/60 Hz, DC 5 V/1 A

Operating temperature: -10 ~ +55°C

Material: Aluminum Alloy

Storage temperature: -20 ~ +60°C

Color: Black

1. Q: Right channel output

2. L: Left channel output

3. Concentric: Concentric digital audio output, for connecting audio amplification devices

4. SPDIF: Optical digital audio output, for connecting audio amplification devices

5. DC 5V: 5V power interface

6. Stereo Output 3,5 mm (0,14 inch)

7. Power Supply: Power Indicator, Lights Up

8. ON. /OFF: ARC function switch (not power switch)

9. ARC IN: ARC input port, for connecting TV ARC interface

1 x HDMI ARC Sound Extractor

1 x Micro USB Cable

1 x User Manual
