Trumpai apie prekę

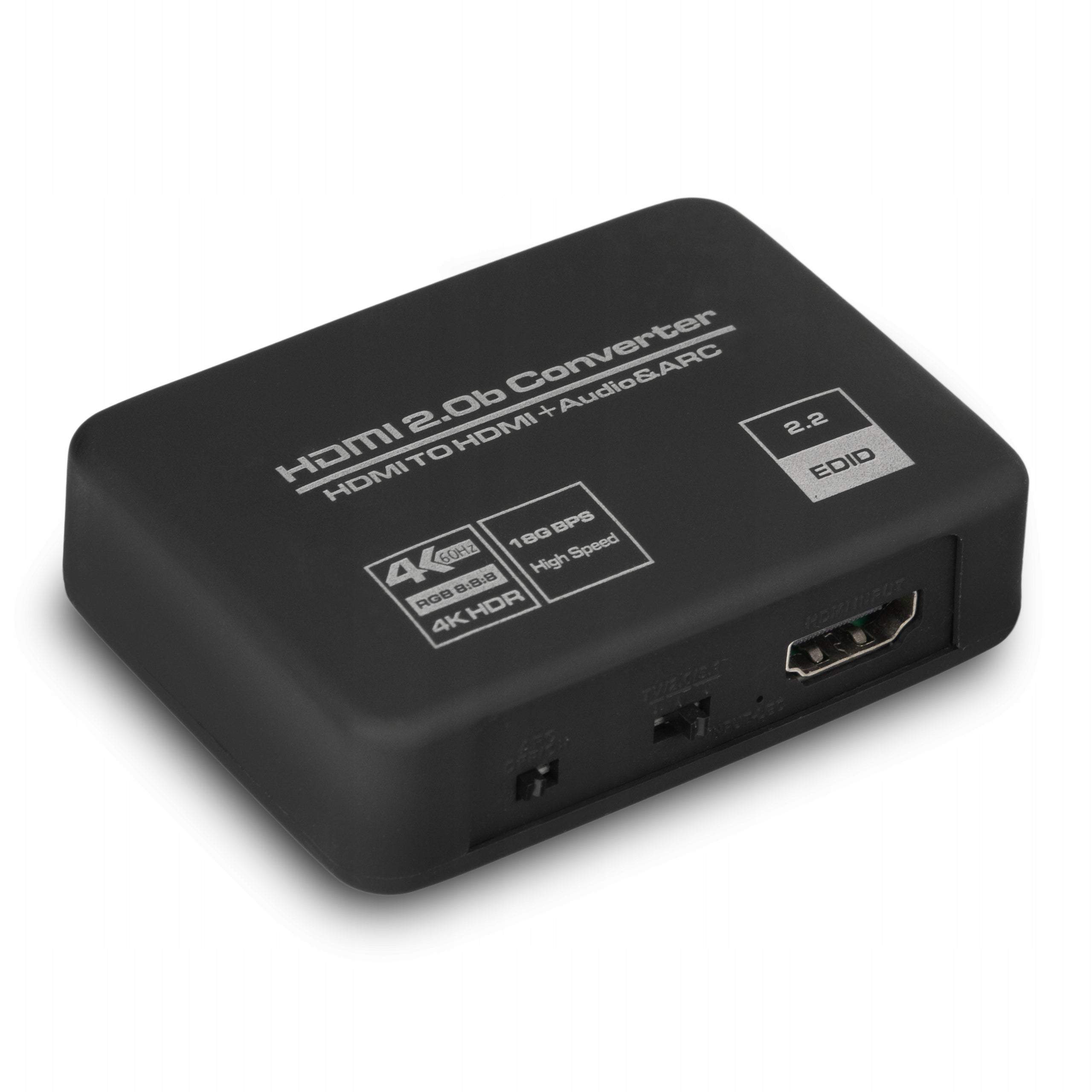

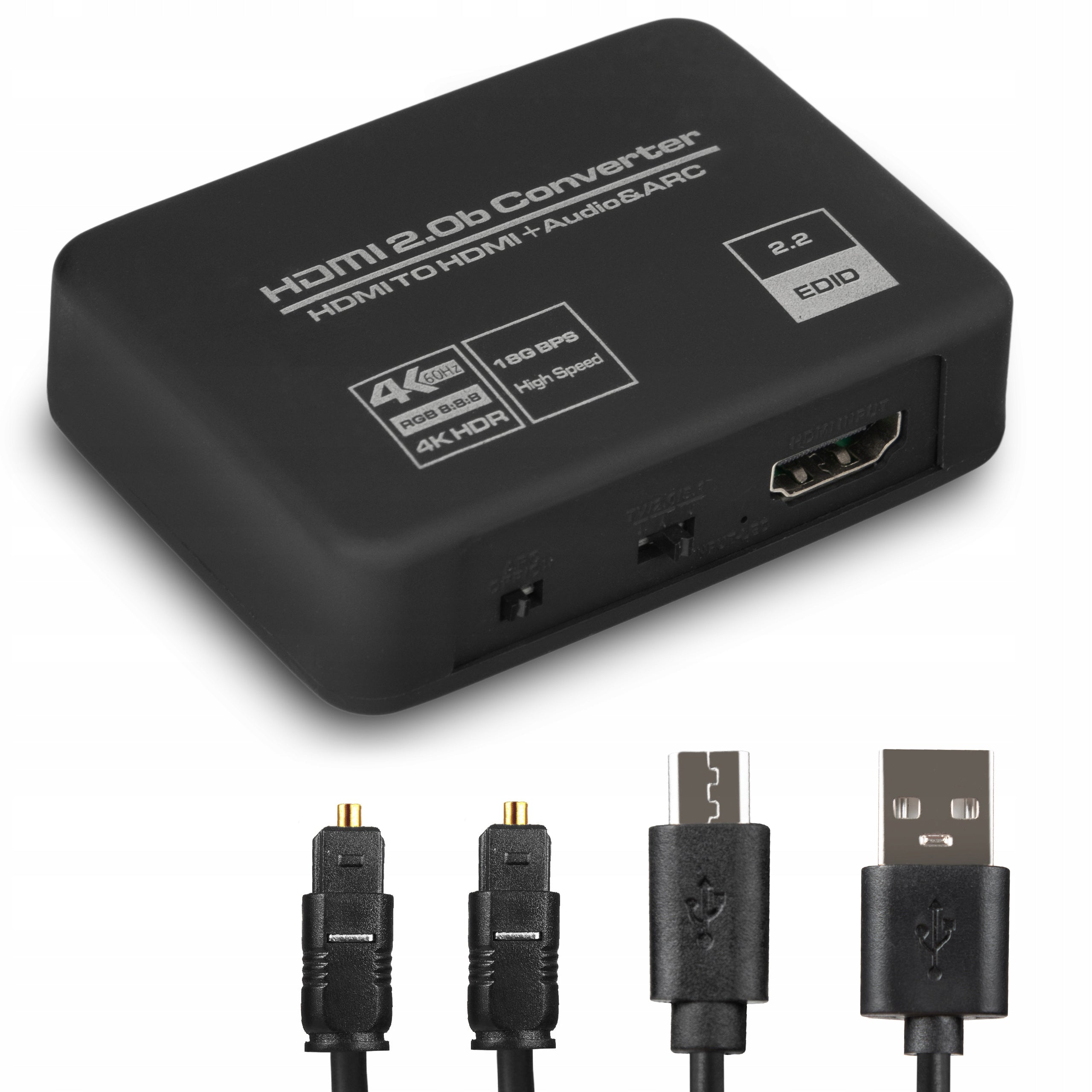

Prekė: HDMI 2.0 į TOSLINK garso keitiklis ARC TOSLINK CINCH AUX HDCP 4K. Kategorija: DAC keitikliai.
- Gamintojas: PAWONIK
- Modelis: JL-C1002P
Auction item:
Model: JL-C1002P
An ideal solution for set-top boxes, TV sets and home theaters
Our devices meet the highest standards. They are made of high-quality materials and are fully shielded, thanks to which they provide the highest quality picture and sound without interference.
This device is used to extract, i.e. extract the audio signal to the possible outputs: - optical Toslink (SPDIF) or audio minijack.
A simple, convenient and affordable solution for expanding your home theater system.
The extractor supports ARC audio return channel and audio formats: PASS, 2.1CH and 5.1CH
Full support for ULTRA HD 2160P and HDCP 2.2.
24 carat gold plated HDMI ports
No drivers required - device is 100% automatic Plug and Play
TECHNICAL SPECIFICATIONS
- Brand new, high quality product.
- Input: 1x HDMI-A 19-pin port
- Outputs: 1x HDMI-A 19-pin port, SPDIF out, audio minijack out
- Full support for ULTRA HD 4K @ 60Hz and HDCP 2.2
- 3D format - supports
- sRGB, YCbCr, xvYCC, Depp Color - supports
- Color depth: 48 bits
- 8-channel LPCM/192kHz/24-bit - supports
- DTS-HD Master Audio - supports
- Audio video synchronization (AV-sync) - supports
- Cable handling : up to 15 meters in and 25 meters out
In addition, it can be placed at the end of a long HDMI cable to regenerate the HDMI signal.

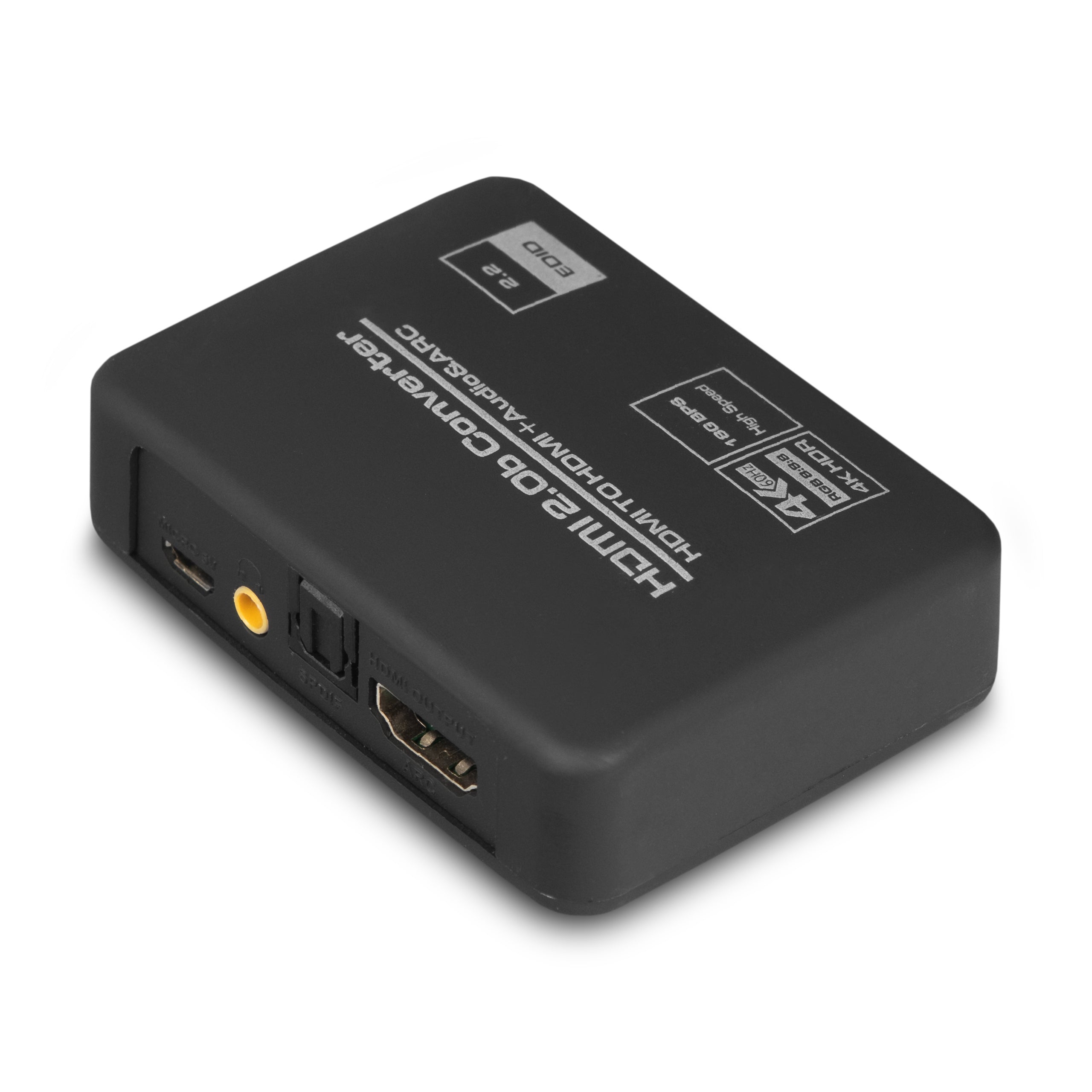

- 5V power connector
- 3.5mm minijack audio output
- Toslink audio output
- HDMI output (supports ARC)
- ARC switch
- Audio format switch (PASS, 2.0, 5.1)
- Diode detecting the input signal
- HDMI input
The most common use of this converter is to connect a new TV with ARC functionality to other audio devices not equipped with HDMI ARC
There are also other converters with this purpose in the network - are you wondering why choose this particular one? I will tell you :)
- ➕ built-in amplifier - often the digital signal is quite weak, so an amplifier is sometimes necessary
- ➕ HDMI 2.0 support - ensures high quality of transferred data and functions
- ➕ high sound quality thanks to the use of a high quality converter
- ➕ HDCP 2.2 support , currently most HDMI 2.0 devices require support for this protocol
- ➕ high sampling rate (192kHz) - unlike most other converters
- ➕ easy connection - just plug in the cables and voilà
- ➕ high aesthetics - if you value design, this device is for you
- ➕ and many other pluses that you will appreciate during use
How does the ARC function work?
- If you want to connect a device via the HDMI ARC port, you must find the HDMI port on the TV marked ARC, e.g. HDMI 2 (ARC).
- Connect the extractor to the TV using an HDMI cable (also supporting ARC, i.e. it must be HDMI 2.0 or higher) through the port marked HDMI OUTPUT ARC
- Then connect with a cable through one of the audio outputs (minijack or Toslink port) to connect the audio device on which you want to get the sound.
- You may need to activate the ARC function in your TV settings, but this is not a rule :)
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | PAWONIK |
| Parametry | Model | JL-C1002P |
| Parametry | Product weight with unit packaging | 0.3 kg |
| Parametry | EAN (GTIN) | 5903684262496 |
| Parametry | Manufacturer code | JL-C1002P |
| Parametry | Product width | 8 cm |
| Parametry | Product height | 3 cm |
| Parametry | Product depth | 7 cm |
| Parametry | Product weight | 0.3 g |
| Parametry | Communications | none |
| Parametry | Ports | digital optical connector |
| Parametry | Packaging status | original |
| Parametry | Certificates of conformity | CE |
| Parametry | Sampling frequency | 32 kHz,44,1 kHz,48 kHz,88,2 kHz,96 kHz,176,4 kHz,192 kHz |
| Parametry | Audio bit depth | 2 b,4 b,8 b,11 b,12 b,16 b,18 b,20 b,24 b |
