HD vaizdo endoskopas su 360° pasukama 3,9 mm zondu dėkle

Trumpai apie prekę

Prekė: HD vaizdo endoskopas su 360° pasukama 3,9 mm zondu dėkle. Kategorija: Multimetrai.

• Gamintojas: Hazet
• Modelis: 4812-244AF

Application:

• Diagnostics and documentation of cavities for self-assessment of damage
• Fully bendable probe with a diameter of 3,9 mm – optimal access to hard-to-reach places
• Record photos and videos using the app or on the base instrument
• Control the camera probe on the basic instrument with a joystick
• Wired connection of smartphone as display (Lightning ∙ USB C)
• Photo memory dependent on smartphone memory
• Replaceable lithium-ion battery (1 x type 18650 — 3350 mAh)
• USB C charging port
• Battery life: ≥ 2 hours
• Focal length (DOF): 5 to 100 mm
• Viewing angle (FOV): 100°
• Temperature warning alarm (application) and automatic shutdown function if the maximum permissible camera temperature is exceeded
• Durable, rotating and adjustable smartphone holder (mounting span: 58 – 100 mm)

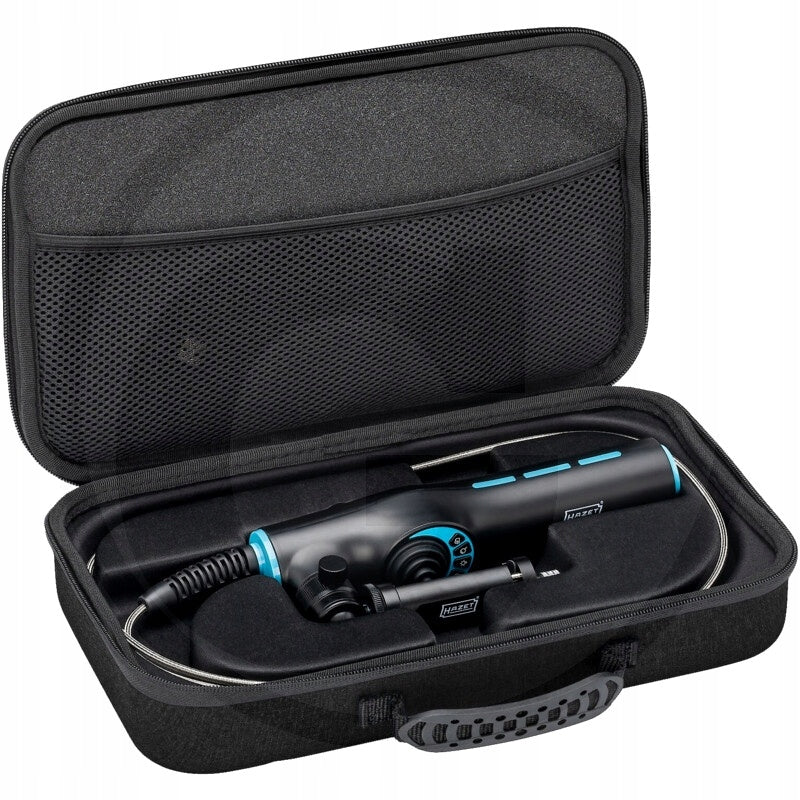

• 5-piece set in a protective soft case with profiled insert:
• USB A to Lightning data cable (IOS legacy) ∙ length: 0,3 m
• USB A to USB C data cable (Android, current IOS, etc. ) ∙ length: 0,3 m
• USB A to USB Micro (Android legacy) data cable, length: 0,3 m
• USB A to USB C charging cable ∙ length: 1,0 m
• Basic instrument and HD probe

Smartphone app

• Four-language app for Android and IOS smartphones
• Indication of camera temperature
• Five-fold magnification (with in-app magnification ratio display)
• Rotating the image with a stroke of 90°
• Additional image magnification (zoom) by operating the smartphone display (dragging)
• Inserting a timestamp

Probe:

• Probe length: 1 m
• Degree of protection: IP67
• Camera probe tilt: in the axial plane 180° ∙ in the radial plane 360°
• Camera light: white LED 6000 to 8000 lux
• Three-stage brightness adjustment
• Operating temperature range: -20°C to 70°C
• Wear-resistant, flexible metal hose (stainless steel)
• Image Format: Jpeg
• Video format: MP4
• Resolution: 1280 x 720 ∙ 640 x 480 pixels

Device:

• Holder and durable smartphone holder
• Degree of protection: IP54
• Operating temperature range: -10°C to 50°C
• Operating humidity up to 90% (non-condensing)
• Weight of the device (with battery ∙ without smartphone): 430 g
• Tripod Mounting thread in the basic device
• On/off buttons ∙ lighting control ∙ zoom ∙ photos ∙ video start on the basic instrument
• Data port and USB C charging port
• Weight of the whole device (with bag and cable set): 1000 g
• Soft-Case Dimensions: 370 x 215 x 750 mm
