Grindų žirklinis keltuvas QJY3.2-1 230V

Trumpai apie prekę

Prekė: Grindų žirklinis keltuvas QJY3.2-1 230V. Kategorija: Žirkliniai keltuvai.

• Gamintojas: Castex
• Modelis: QJY3.2-1 230V

Code: QJY3.2-1 230V

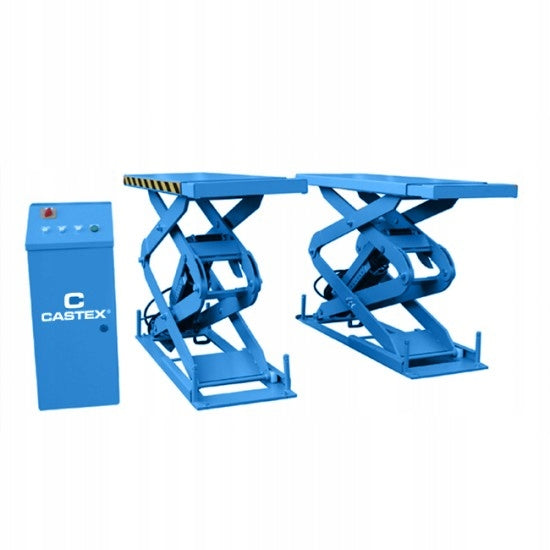

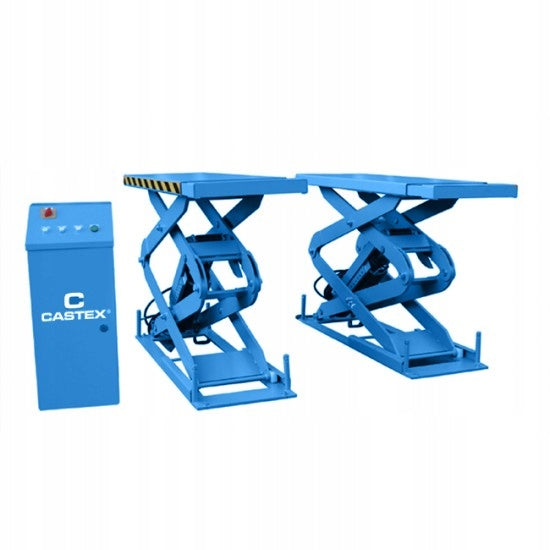

Scissor car lift QJY3.2-1 230V with a lifting capacity of 3500kg is designed to work with passenger and commercial vehicles.

This lever is mounted under the floor so that after leaving it completely equals its level, such a solution allows you to create a fully useful transit workstation, the lowered lift becomes an integral part of the ground allowing passage and not disturbing the existing communication routes in the workshop. Its maximum lifting height is 2150 mm, and the minimum height relative to the ground of 330 mm allows you to work with cars with very low clearance, such as sports cars or tuning suspensions. The platforms of the lift are fully independent, which brings it closer to the functionality of two-column lifts, allowing work with exhaust system components, auxiliary brake cables, etc. . The innovative synchronization system allows you to work only on one of the platforms giving the opportunity to use the jack as a work table for working with motorcycles.

The device uses a number of proven solutions that optimize the blunt operation of your workshop, one of such solutions is automated control of the electrohydraulic unit and the safety lock system.

Installation has been simplified by pre-installing most elements already at the production stage, and the lift includes a set of mounting anchors.

Together with the lift, the customer receives complete documentation necessary for proper use and maintenance, enabling the lift to be reported from the Office of Technical Inspection.

Perfect gift for newborn parents, newborn mother, newborn father, baby shower, birthday, Christmas, festival and so on.

• lifting capacity 3500kg,
• construction of the lift and control unit adapted for installation in the floor,
• maximum working height 2150mm,
• 2 hydraulic cylinders,
• solid construction,
• double lock for safety and stability,
• power supply 230V,
• CE certificate
• electro-hydraulic

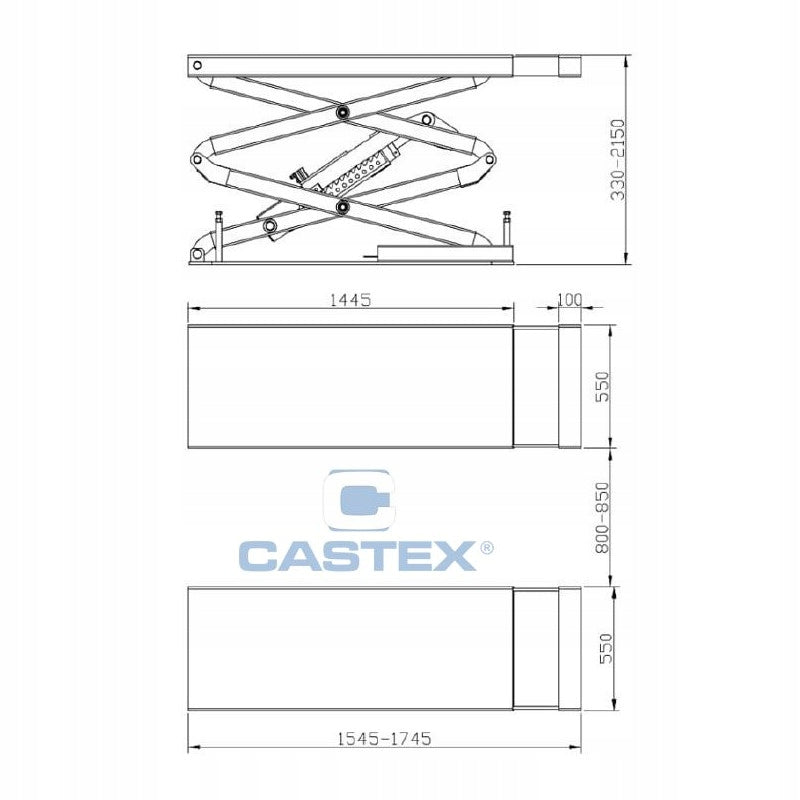

Data:

• Load capacity: 3500 [kg]
• Engine power: 2,2 [KW]
• Memory clock speed Lifting height: 2150 [mm]
• Lifting / lowering time: 45 [s] / none
• Oil pressure: 200 [Bar]
• Power supply: 230 [V]
• Min. Height: 330 [mm]
• Length of overruns: 1545-1745 mm
• Overrun width: 550 mm
