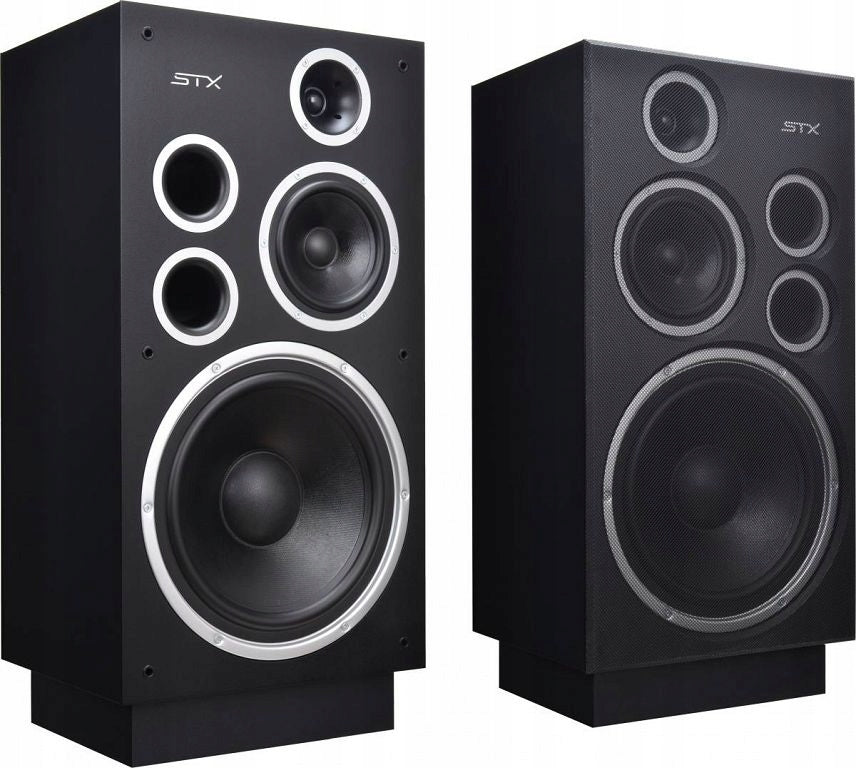

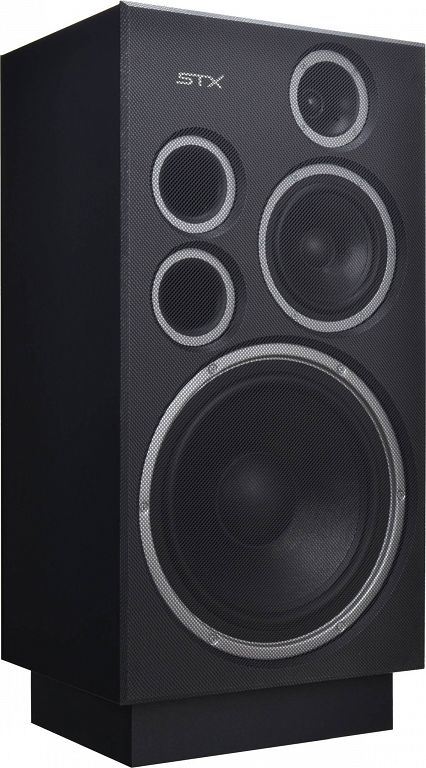

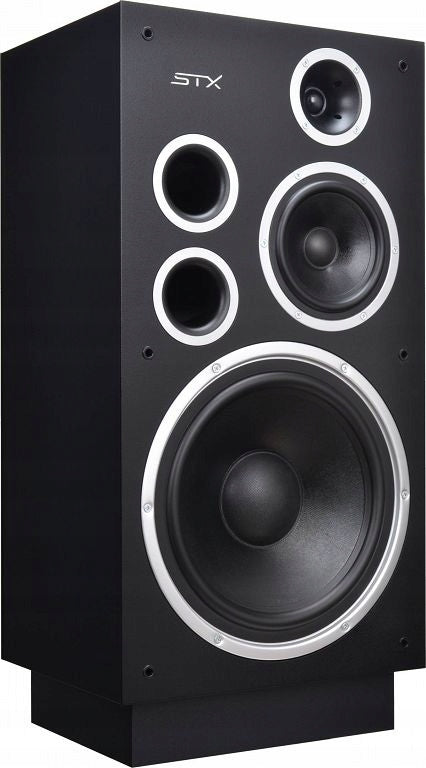

Grindinės kolonėlės STX F-330, juodos ir sidabrinės

Trumpai apie prekę

Prekė: Grindinės kolonėlės STX F-330, juodos ir sidabrinės. Kategorija: Garso aparatūra.

• Gamintojas: STX
• Modelis: F-330n BL
• Spalva: black

The price applies to one brand new set, which includes: two columns with grilles.

The manufacturer does not include wiring, in order to purchase cables, we invite you to our other auctions.

Columns F-330 is a classic three-way design using woofers with a diameter of 320 mm, a midrange speaker of 180mm and a silk 25 mm tweeter dome with waveguide.

The speakers have a good tonal balance. The expressive upper frequency range and solidly outlined low tones are the definite advantages of this model. The sound is harmonious with great detail. A wide sound stage, “open” sound and high dynamics – all this makes us rediscover the beauty of listening to music.

Classic materials were used to build the drivers - cellulose membranes of medium and woofers and a silk tweeter dome.

Based on many years of experience, we have developed our own optimization algorithm in which engineering studies are presented to a multi-person panel of listeners which, based on blind tests, indicates the direction of further work. This enabled us to take full advantage of the properties of the materials and achieve an excellent end result.

Speaker diaphragms are finished in black, subdued non-pretentious design are features that allow you to blend the speakers into the decor of most interiors.

Specification:

• System: 3 way
• Housing type: Bass-reflex
• Peak power: 450 W
• Musical power: 330 W
• Rated power: 160 W
• Recommended amplifier power: 20 - 200 W
• Woofer: 1 x 320 mm
• Midrange speaker: 1 x 180 mm
• Tweeter: 1 x 104 mm
• Efficiency: 93 dB (2,83 V / m)
• Impedance: 4 Ω
• Transmission bandwidth: 24 Hz - 28 kHz (-10 dB)
• Transmission bandwidth: 38 Hz - 20 kHz (-3 dB)
• Dimensions (W x S x G): 690 mm x 375 mm x 300 mm
• Dimensions with grille and base: 760 mm x 375 mm x 315 mm

General properties of the set:

• Manufactured in Poland
• Wide range of linear frequency response
• Impedance course safe for amplifiers
• Solid workmanship
• Masquerades made of translucent fabric
• The use of high-quality materials
• High efficiency
• Excellent sound quality regardless of power
• Very good tonal balance

Housing:

The construction of the loudspeakers uses a bass-reflex housing. The use of the Helmholtz Resonator makes it possible to increase the processing efficiency of low tones in relation to the closed housing. This makes the bass range characterized by high efficiency typical for bass-reflex enclosures while maintaining good sound diversity. An additional advantage of the presented housing type is a noticeable increase in the power strength of the transducers in the low frequency range.

The housings were made on CNC numerical machine tools. The inner walls were covered with a specially selected damping material, in order to reduce the susceptibility to own resonances and maximum loss of reflected energy of sound waves.

Crossover and speakers:

The use of three-way frequency band division enabled the use of specialized woofers and midrange speakers. This division of “tasks” made it possible to optimize each of the above-mentioned speakers for their function and to reject the limitations typical of low-midrange speakers used in two-way systems.

Speakers

All speakers are characterized by a perfect fit in terms of sound color. The transducers used have been developed in our company to achieve minimal nonlinear and harmonic distortion. The diaphragms of low and midrange speakers are made of modified cellulose characterized by excellent acoustic properties. Membranes of tweeters are made of silk subjected to special heat treatment. Speaker crossovers have been developed using modern, advanced programs and design and measurement systems, which is e.g. “CLIO” system from AUDIOMATICA. Particular attention was paid to listening tests, in particular on the acoustic integration of drivers, which has an unconditional impact on the sound stage and the stereo effect. Many listening sessions were conducted, during which, based on the opinions of testers, the optimal design was selected.

Other technical information:

Tweeter:

• Membrane made of silk
• Speaker coil made of best grade CCAW winding wire
• Speaker ferrite magnet made of the best Y35 material
• Speaker diaphragms made of low carbon steel with a C content of less than 0,1

Midrange speaker:

• Membrane made of modified cellulose with high internal damping with very low self-resonance
• Speaker coil made of best grade winding wire in double enamel from Electrisola Germany
• Speaker ferrite magnet made of the best Y35 material
• Speaker diaphragms made of low carbon steel with a C content of less than 0,1

Woofer:

• Membrane made of modified cellulose with high internal damping subjected to special impregnation for higher rigidity.
• Multi-layer speaker coil made of the best quality winding wire in double enamel from Electrisola Germany
• Speaker ferrite magnet made of the best Y35 material
• Speaker diaphragms made of low carbon steel with a C content of less than 0,1

Housing:

• Internal polypropylene damping.
• Masking machine made of "acoustic transparent" fabric
• Wood-like veneer / structural varnish
