Trumpai apie prekę
Prekė: Gręžimo šablonas savisriegiams ASSY Matrix, 3 mm. Kategorija: Trafaretai, šablonai.
- Gamintojas: no brand
- Modelis: 3DEK

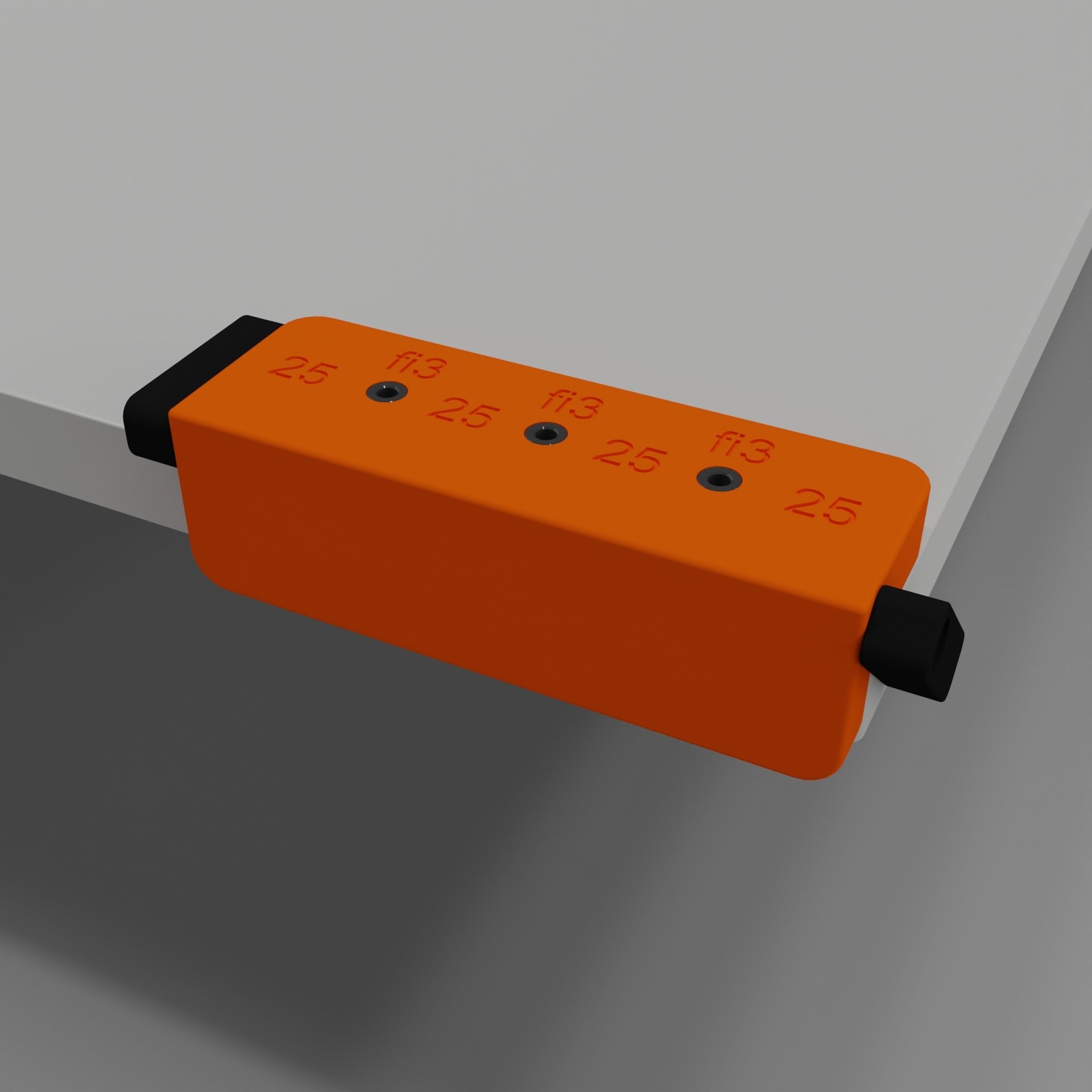

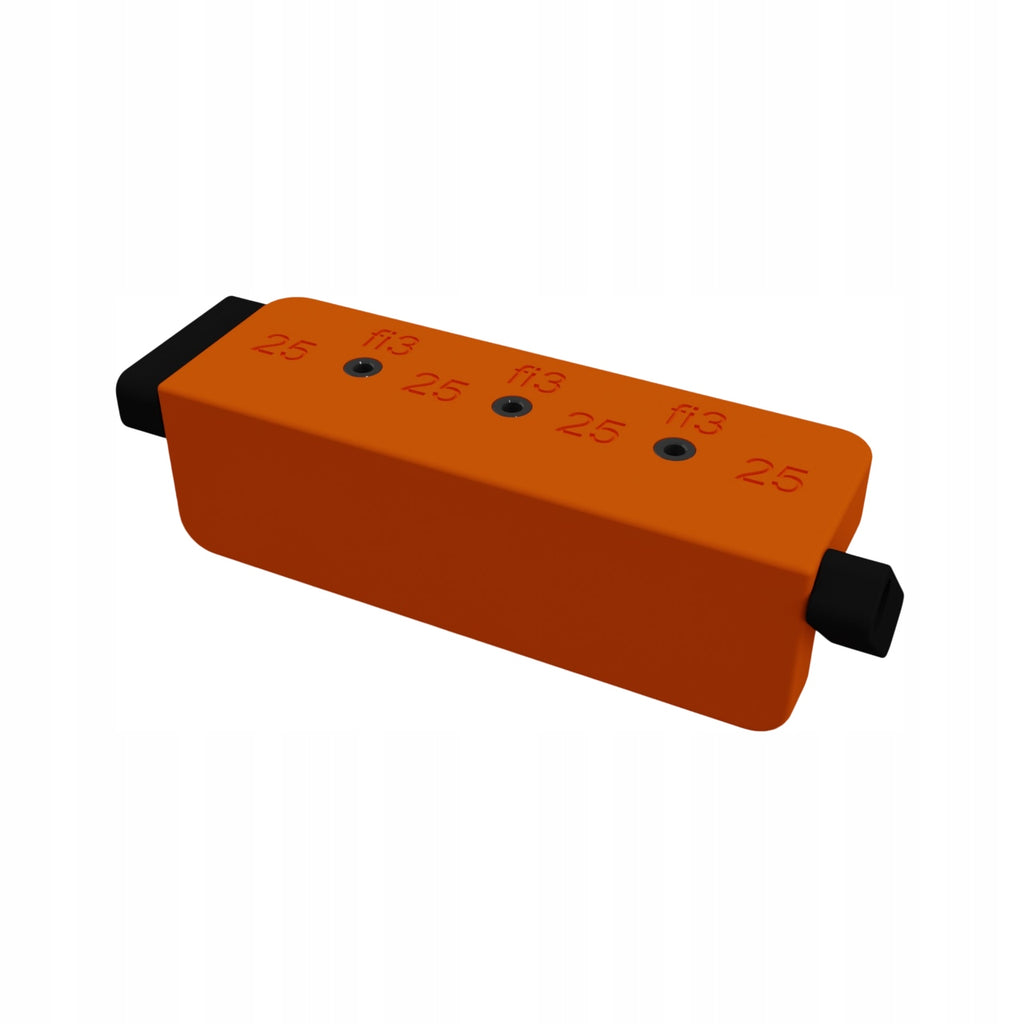

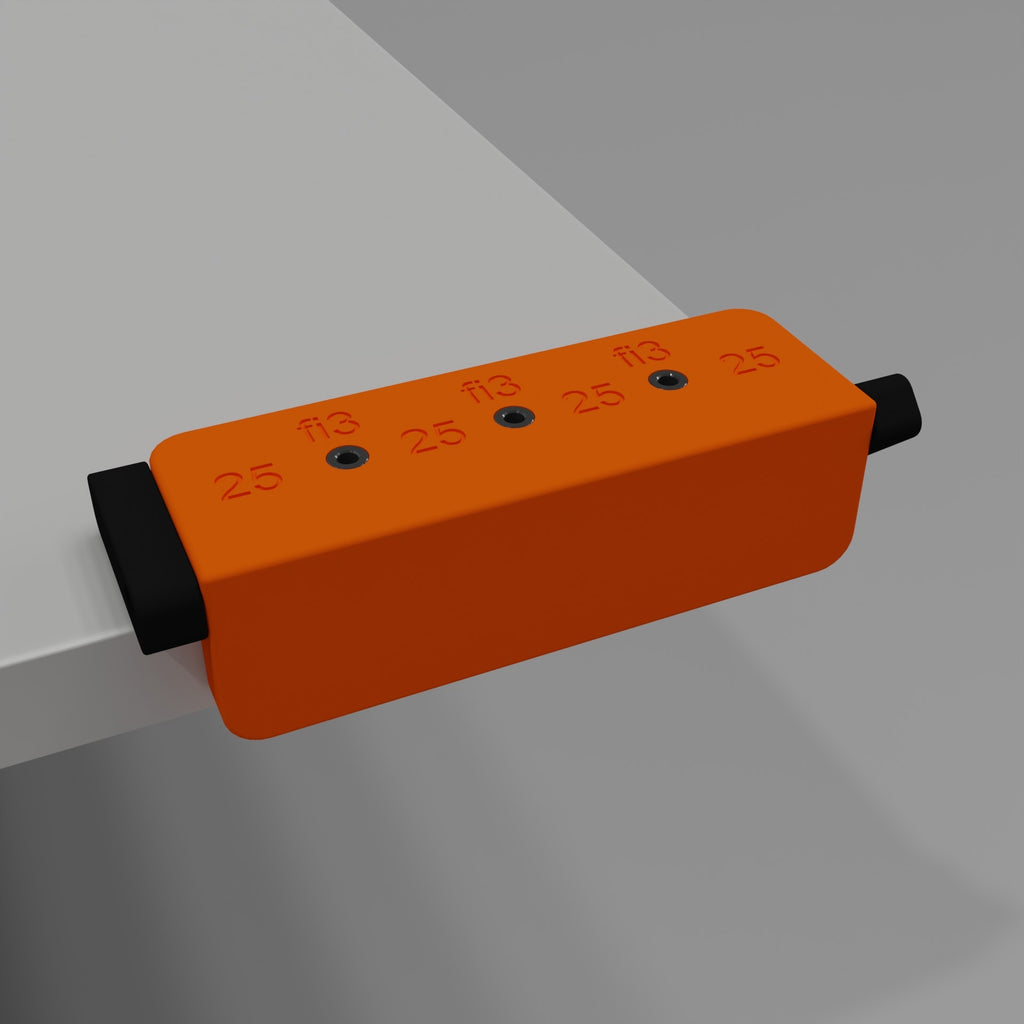

Template for drilling mounting holes fi3 mm 3Dek PETG, steel sleeves
Technical data
- Parameter: Value
- Material: PETG (3D printing, FDM technology)
- Color: Orange
- Bushings: Steel, pressed
- Bushing diameter: 3 mm
- Length of bushings: 9 mm

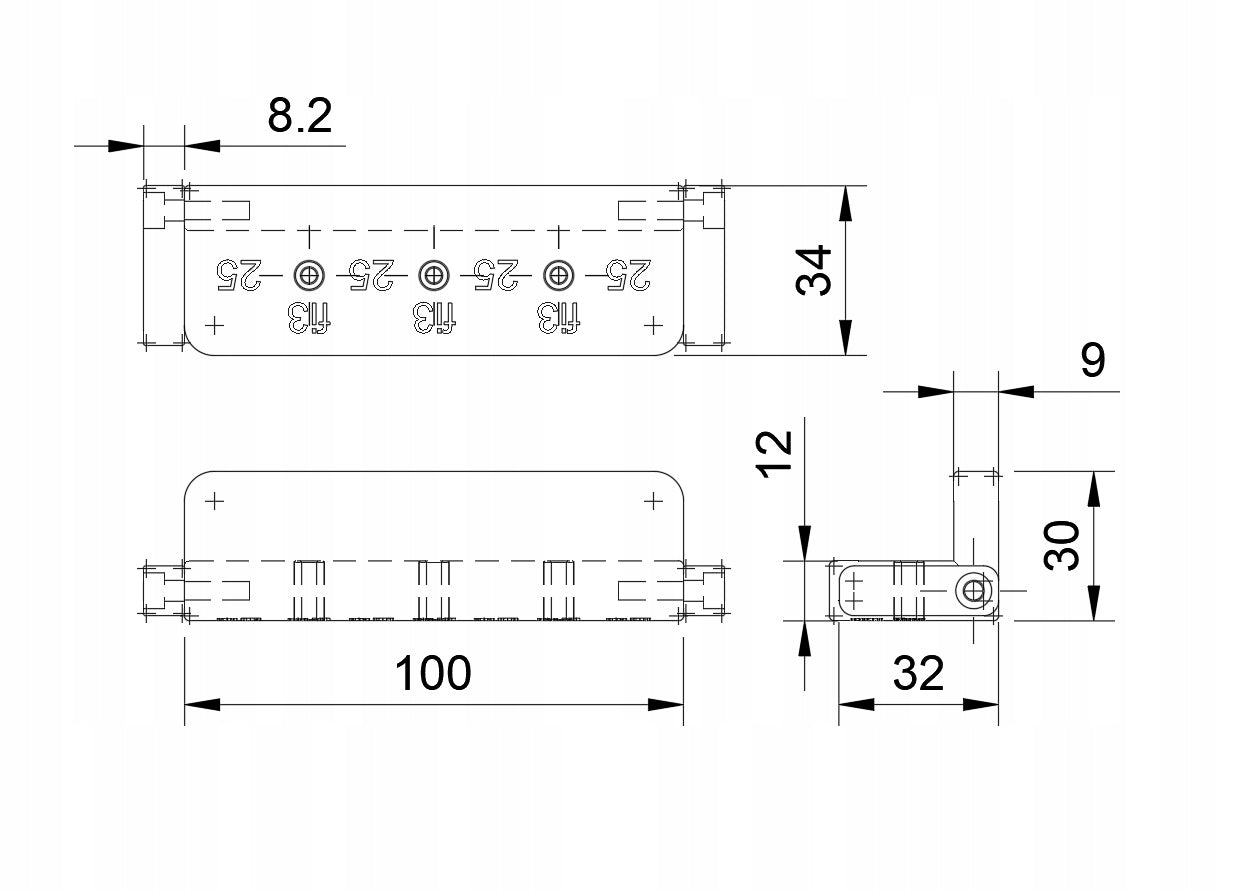

- Stencil dimensions: 114 × 30 × 34 mm
- Purpose: Furniture boards 18 mm
- Weight: approx. 60 g
- Usage pages: Right/left
- Country of manufacture: Poland
Precision drilling for mounting screws
The 3Dek WM3 mounting hole drilling template is a must-have tool for any carpenter, fitter, or DIY enthusiast.
It enables fast, accurate and repeatable drilling of fi3 mm holes for mounting screws in furniture boards with a thickness of 18 mm.
Thanks to three steel guide sleeves, built-in stops and a compact design, drilling holes at distances of 25, 50 and 75 mm from the edge becomes trivially simple and extremely precise.
The most important features of the product
- Precision – 3 steel guide bushings with a diameter of 3 mm and a length of 9 mm ensure perfect drill guidance.
- Universality – the ability to work on the right and left side of the body.
- Stability – movable side stops allow you to quickly reach the edges of the forms.
- Solid workmanship – 3D printing made of durable PETG, resistant to impact and abrasion.
- Professional ergonomics – small dimensions (114×30×34 mm) facilitate work both in the workshop and at the customer’s premises.
- Ready to work – the product is delivered assembled and ready to use.
Application
- Drilling holes for mounting screws fi3 mm in furniture bodies.
- Installation of horizontal and vertical elements in cabinets, drawers and furniture structures.
- Precise assembly work in workshop and outgoing carpentry.
- For professionals and DIY enthusiasts.
Instructions for use
- Set the template where you want to drill.
- Slide it to the edge of the plate with a movable stop.
- Make sure the template is stable – you can use a carpentry squeeze.
- Drill with a fi3 mm drill through steel bushings.
- Move the template to the next place or use on the other side of the body.
Tip: the use of carpentry compression will ensure even better precision and safety of work.
Precautions
- Do not use with impact drills.
- Use at moderate rotational speed.
- Do not expose to high temperatures or direct sunlight.
- Store in a dry place.
- During operation, it is recommended to use protective glasses and gloves.
Ecology
The product is made of PETG material, which is recyclable.
Support Polish low-emission production – all 3Dek templates are created in Poland, with durability and precision in mind.
Contents of the set
- Template for drilling mounting holes fi3 mm – 1 pc.
(assembled, ready to use)
Why choose 3Dek?
3Dek is a polish brand created by a carpentry enthusiast and workshop practitioner.
Each product is developed, tested and adapted to the realities of work in the workshop – so that it is functional, durable and intuitive.
3Dek templates are a combination of experience, precision and modern 3D printing technology.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With invoice (excluding VAT) |
| Parametry | Brand | no brand |
| Parametry | Manufacturer code | 3DEK |
| Parametry | EAN (GTIN) | 5908453131447 |
