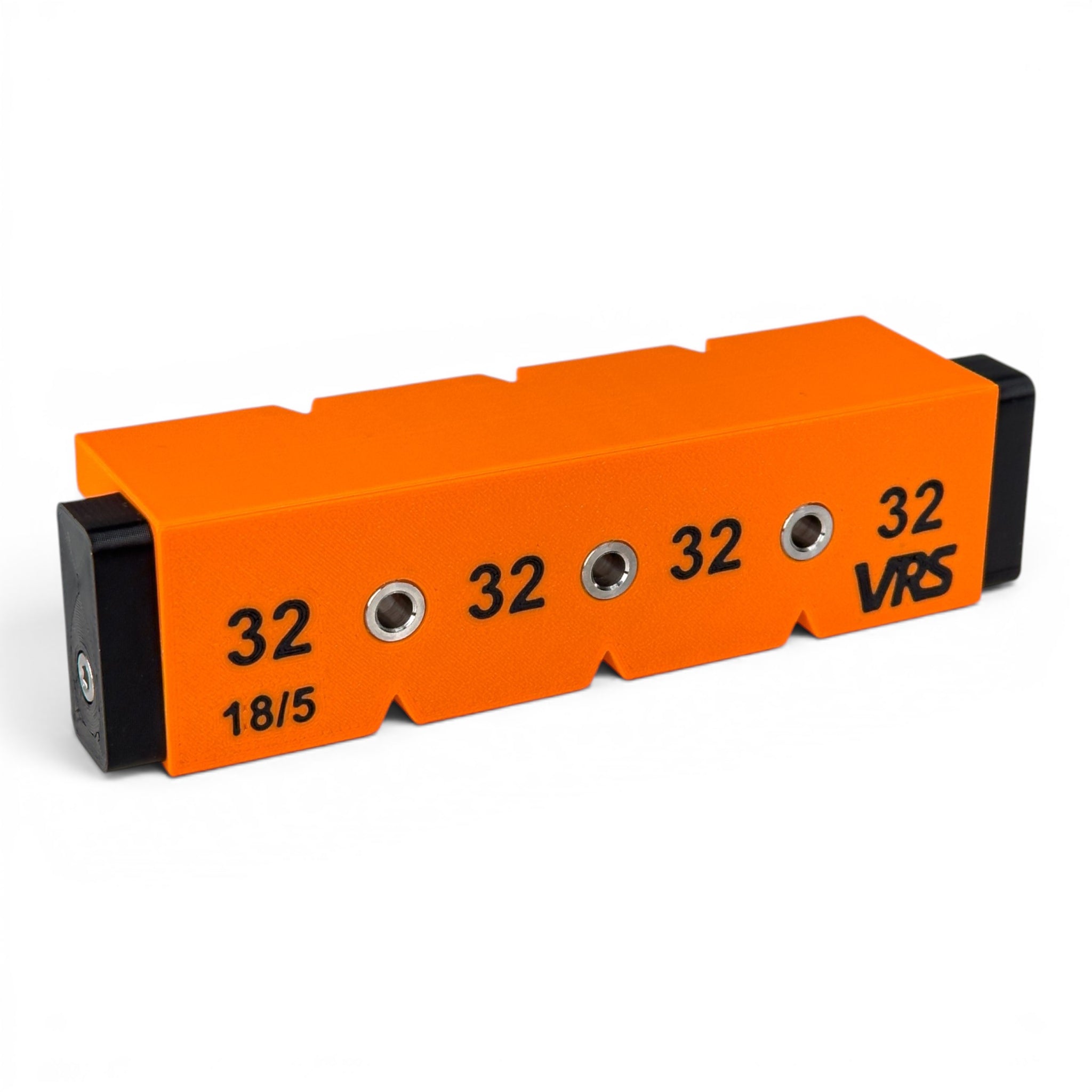

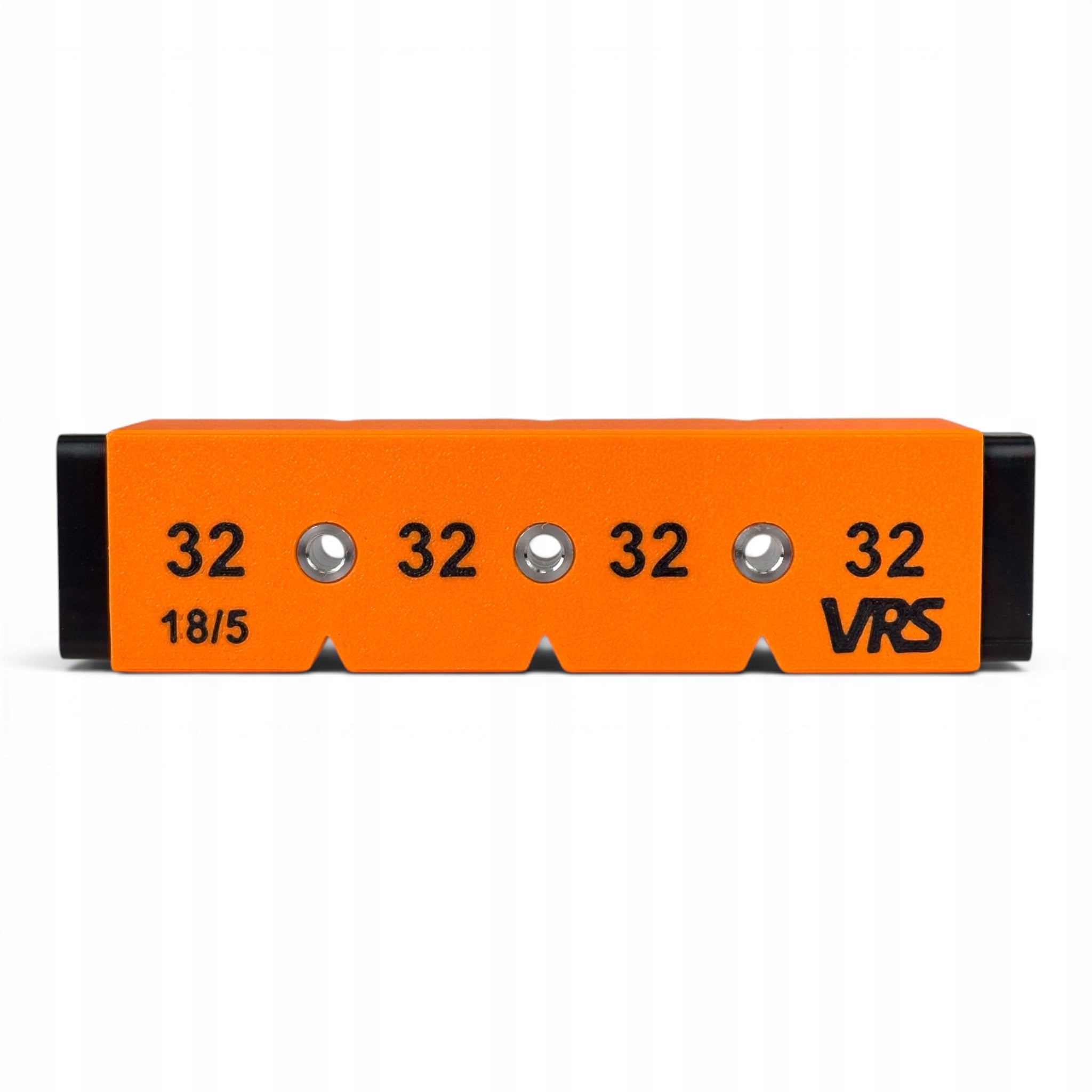

Gręžimo šablonas Confirmate 32-32-32, 18 mm plokštė, 5 mm grąžtas

Trumpai apie prekę

Prekė: Gręžimo šablonas Confirmate 32-32-32, 18 mm plokštė, 5 mm grąžtas. Kategorija: Šablonai, trafaretai.

• Gamintojas: no brand
• Modelis: VRS-323232-18/5

Carpenter fitting for 5mm holes in the 32 system

Template designed for precise drilling of holes in furniture boards with a thickness of 18 mm. The tool facilitates the preparation of drillings requiring a standard spacing of 32 mm.

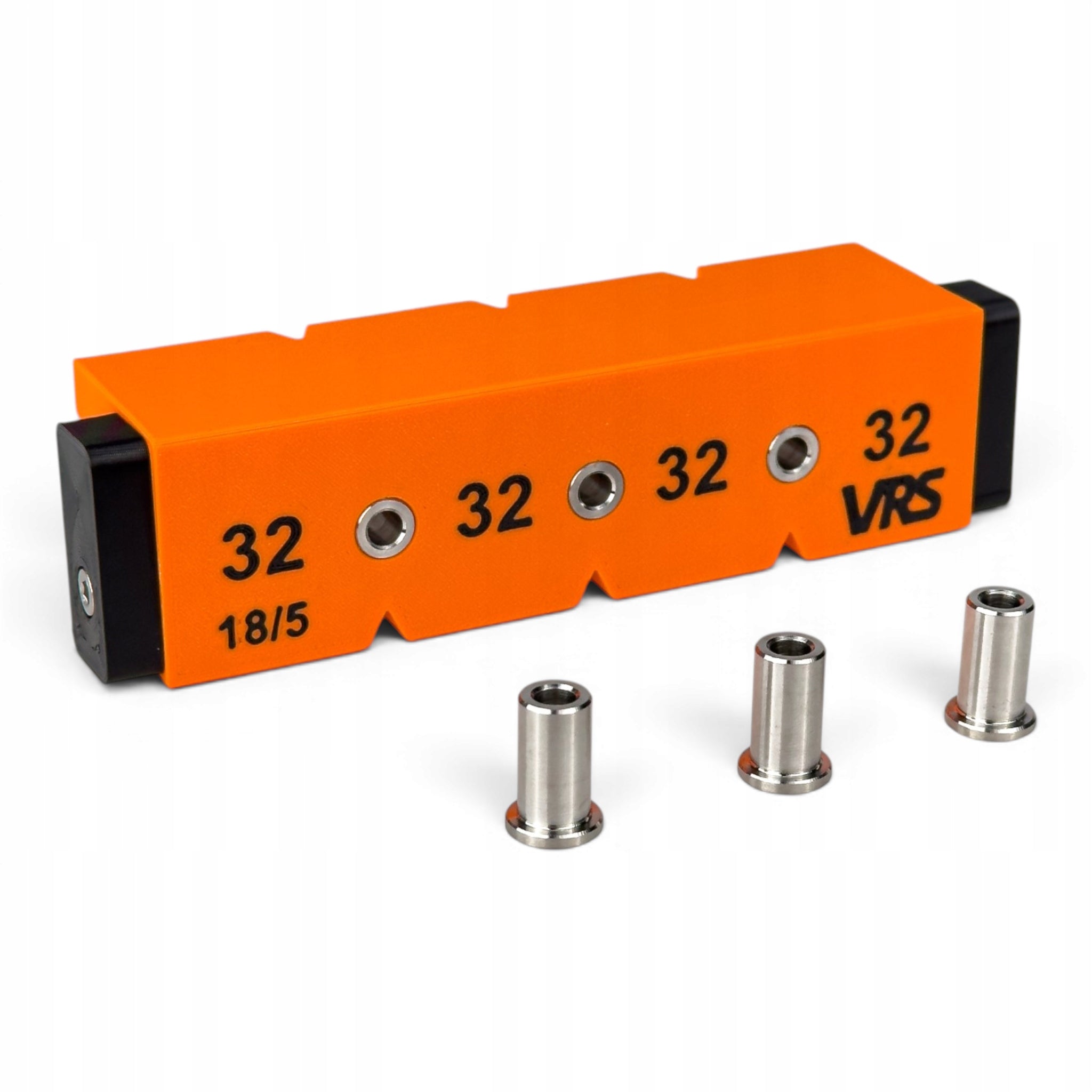

Stainless steel bushings with flange to prevent slipping out under heavy use!

Key features of the product:

• Long drill guide: Three stainless steel bushings with a height of 18 mm are used. The long sleeve stabilizes the drill bit, ensuring the perpendicularity of the hole relative to the edge of the plate and minimizing the risk of "breaking" the hole with frequent use.
• Positioning system: The fitting is equipped with two movable side locks (bumpers). They allow stable support of the template against the edge of the form, which guarantees repeatability of drilling without having to measure the distance each time.
• Precise routing: There are triangular indentations (viewfinders) in the body that coincide with the bushing axis. This makes it easier to position the instrument exactly in place of the drawn line on the material.
• Durable material: The body is made in 3D printing technology from PET-G material. It is a material characterized by high impact strength and chemical resistance, which translates into tool life in workshop conditions.

Technical specification:

• Purpose: Furniture board 18 mm
• Hole diameter: 5 mm
• Hole spacing: 32 mm
• Number of sleeves: 3 pieces
• Bushing material: Stainless steel
• Bushing height: 18 mm
• Body material: PET-G

Check other variants and dedicated solutions:

• Other dimensions: I invite you to my other auctions, where you will find fittings with different hole spacings and dedicated to other plate thicknesses.
• Custom-made solutions: If you need a template with a non-standard spacing, a different sleeve height or a specific hole arrangement – let me know! As a manufacturer, I am able to prepare a design and print tailored to your individual workshop needs.
