Template for drilling holes for furniture shelf supports – custom-made furniture
Template for drilling holes for furniture shelf supports – custom-made furniture EAN (GTIN) 5908453131331
Paslinkite virš paveikslėlio, kad priartintumėte Spustelėkite paveikslėlį, kad priartintumėte
Template for drilling holes for furniture shelf supports – custom-made furnitureTemplate for drilling holes for furniture shelf supports – custom-made furniture EAN (GTIN) 5908453131331

Gręžimo šablonas baldų lentynų laikikliams, individualiems baldams

Kaina:
€30,74
Sandėlys:
Yra sandėlyje

Trumpai apie prekę

Prekė: Gręžimo šablonas baldų lentynų laikikliams, individualiems baldams. Kategorija: Trafaretai, šablonai.

  • Gamintojas: no brand
  • Modelis: 3DEK

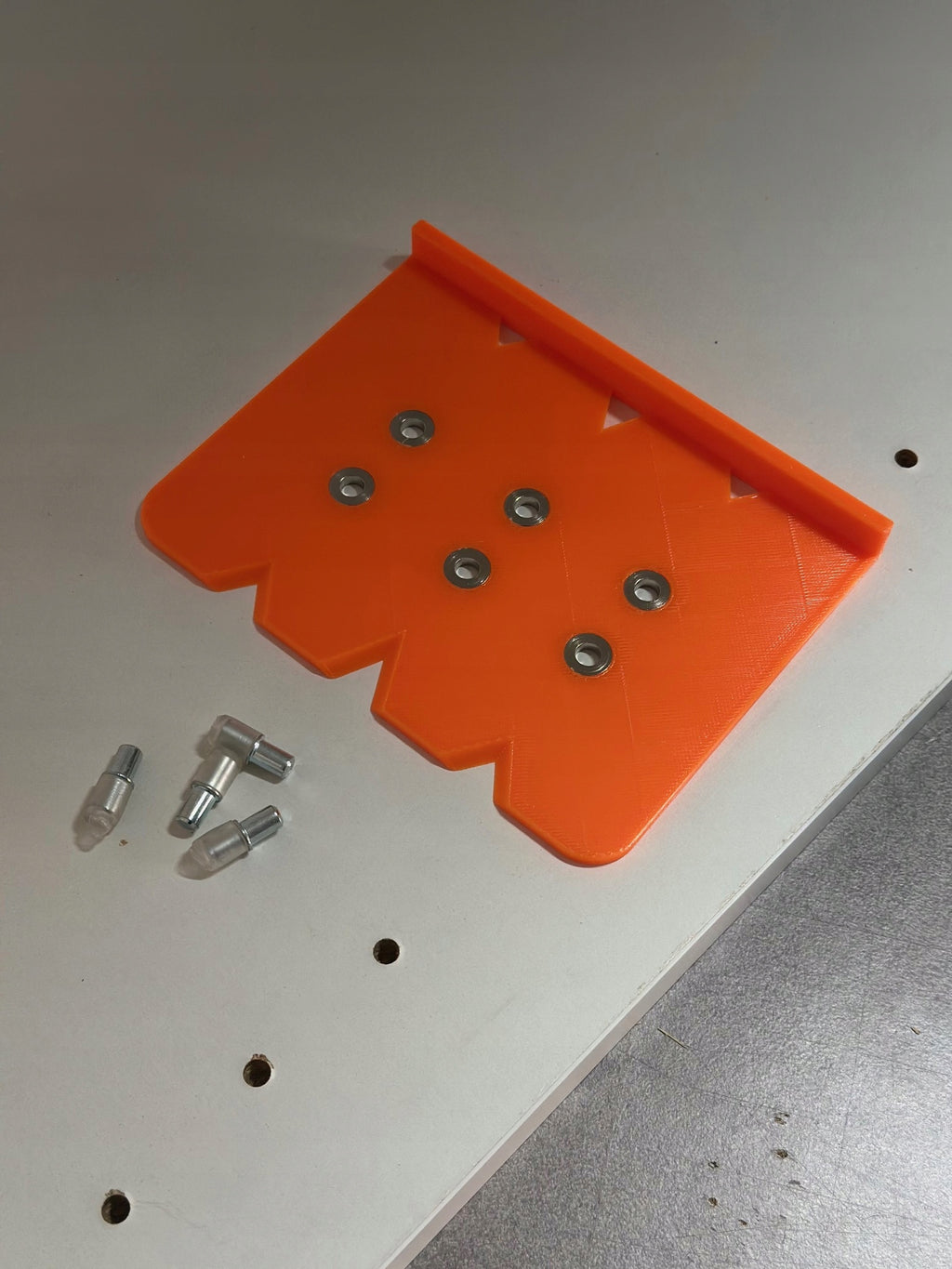

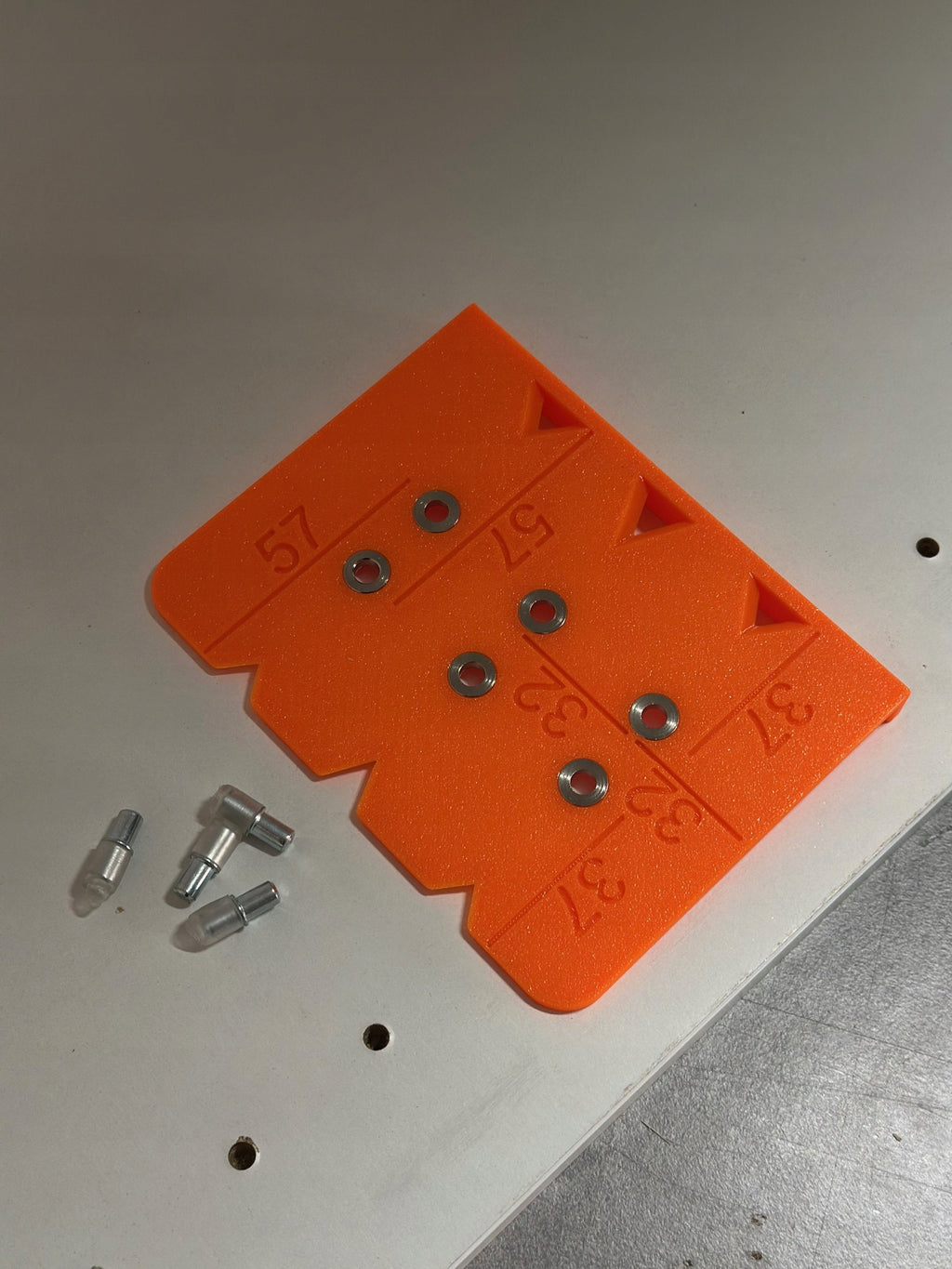

Professional carpentry template for drilling holes for shelf supports in a 32 mm system spacing.

🔹 Made of durable PETG, equipped with 6 steel sleeves fi 5 mm – ideal for carpenters and DIYers.

🔹 Universal – fits left and right sides, for different thickness sides.

Specification:

  • Material: PETG (FDM print)
  • Color: Orange
  • Dimensions: 128 × 97 × 14 mm
  • Thickness of the main part of the template: 5 mm
  • Sleeve diameter: fi 5 mm
  • Sleeve Length: 5mm
  • Number of sleeves: 6 pcs. steel, pressed (replaceable)
  • Distances from edges: 37 mm and 57 mm
  • Spacing between holes: 32 mm
  • Fits HDF back groove/milling bodies (3 mm rebound)
  • Ready to use out of the box

Instructions for use:

  1. Set the template by resting the bounce against the front or back edge of the body.
  2. With HDF grooved bodies – insert a 3 mm bump into the groove.
  3. Working in an assembled cabinet: flip the template upside down, slide it to your back.
  4. Drill the first hole through the bushing fi 5 mm, insert a shelf support into it to stabilize the template.
  5. Drill more holes.

Why is it worth it?

✅ Steel bushings = durability and precision

✅ Universal – left/right side

✅ Convenient fenders for different body types

✅ Ideal for both professionals and hobbyists

✏ I am a carpenter – I design and test all templates personally. I know what to look for to make the work fast and accurate. I can make other custom templates.

NOTE: Templates will be sent in a more massive version (the thickness of the main part and the length of the sleeves will now be 5mm, not 3mm as shown in the listing photos), the rest remains unchanged :)

Specifications

Group Name Value
Parametry Condition new
Parametry Invoice With invoice (excluding VAT)
Parametry Brand no brand
Parametry Manufacturer code 3DEK
Parametry EAN (GTIN) 5908453131331
