Gręžimo šablonas baldų konfirmatams su plieninėmis įvorėmis

Trumpai apie prekę

Prekė: Gręžimo šablonas baldų konfirmatams su plieninėmis įvorėmis. Kategorija: Trafaretai, šablonai.

• Gamintojas: no brand
• Modelis: 3DEK

Precise, versatile and durable – for professionals and DIYers

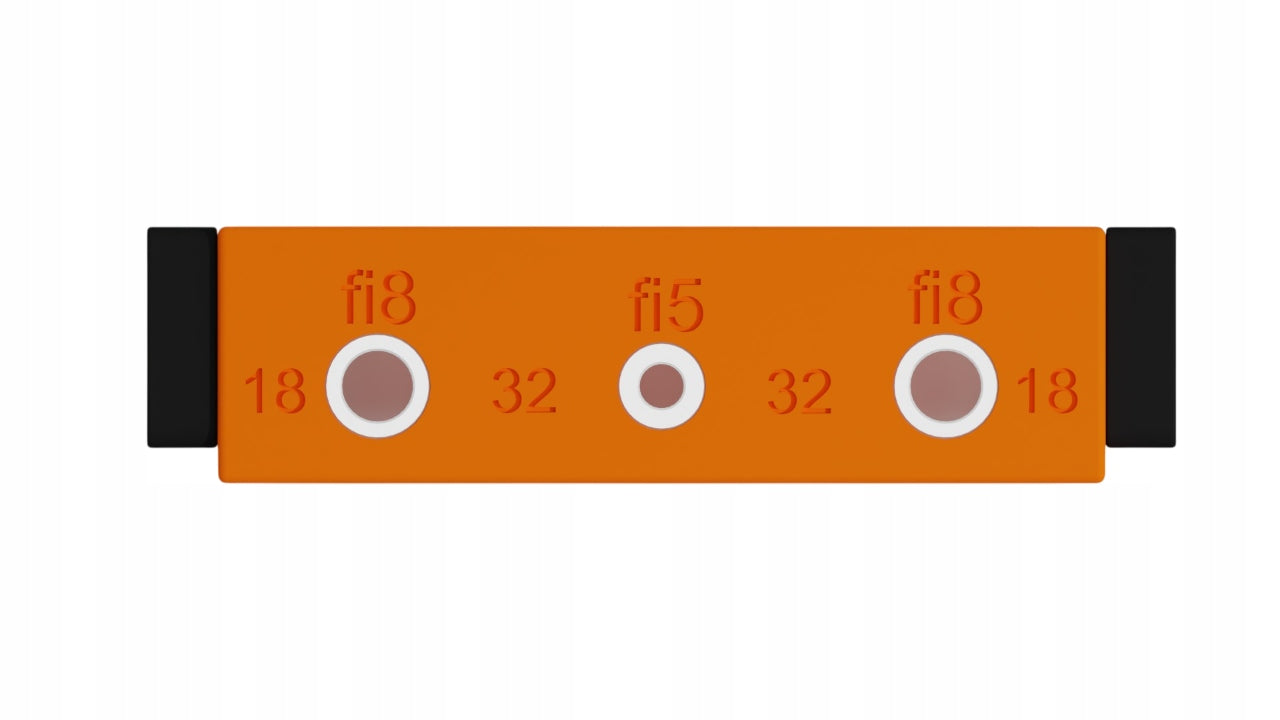

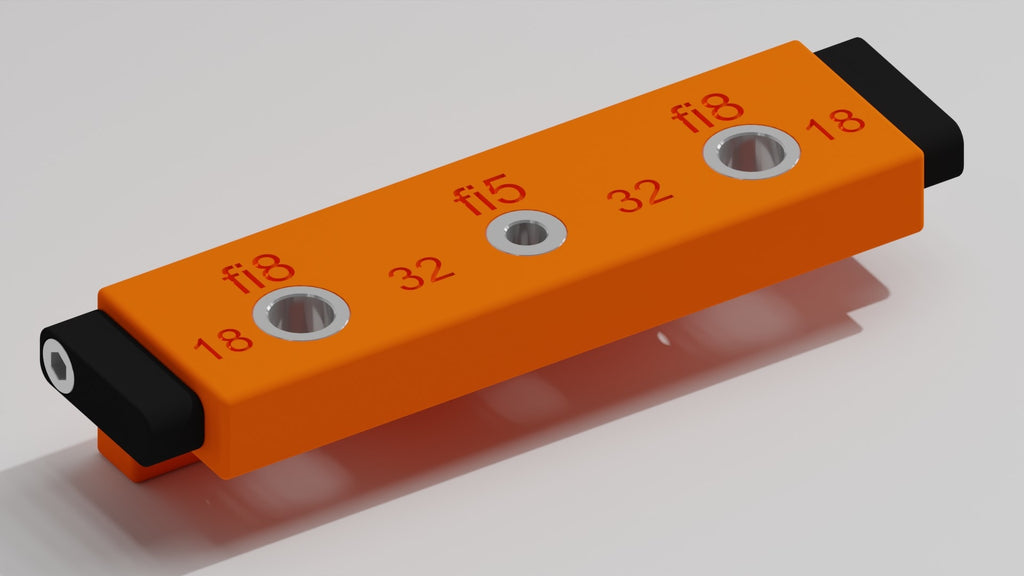

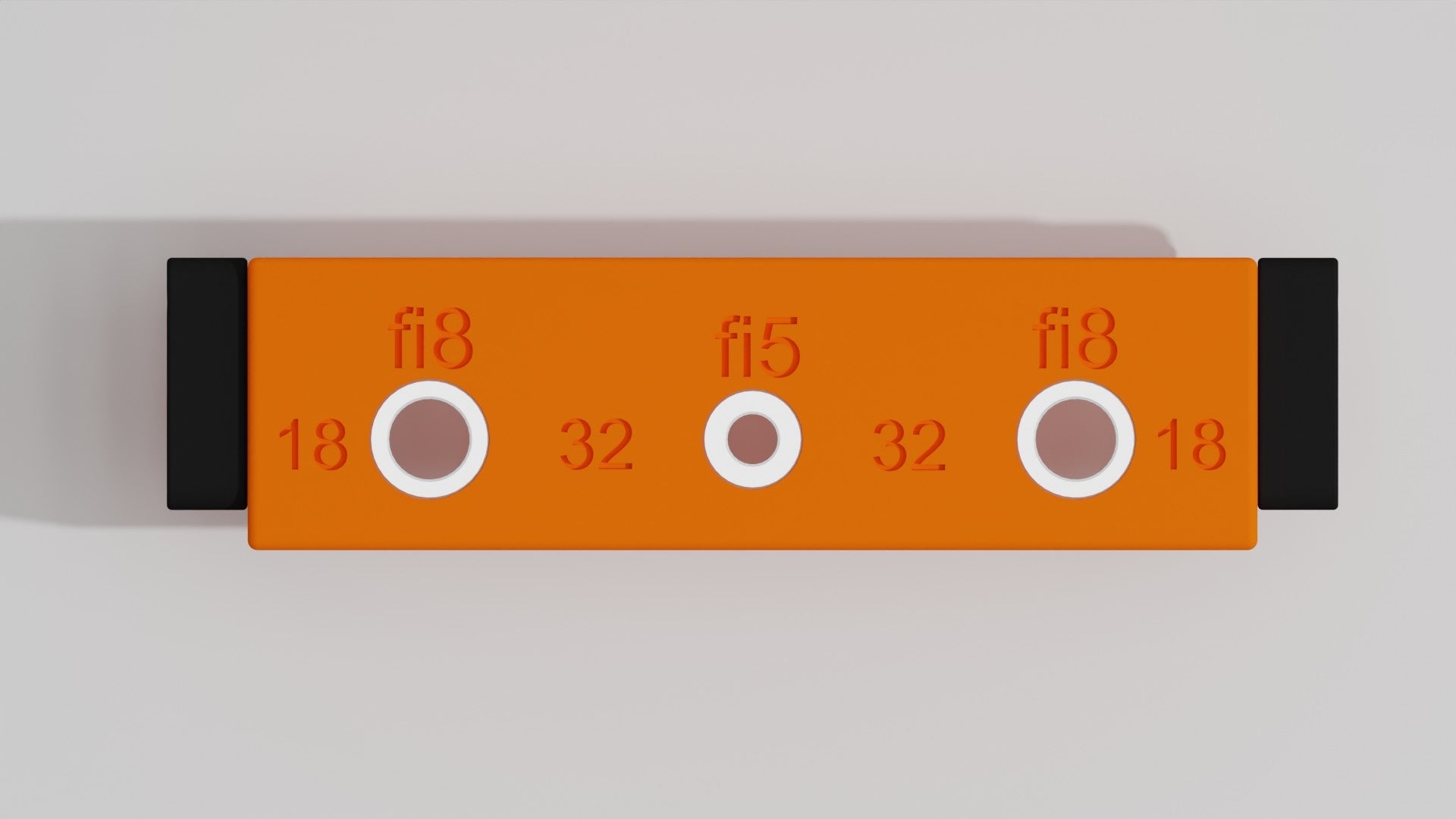

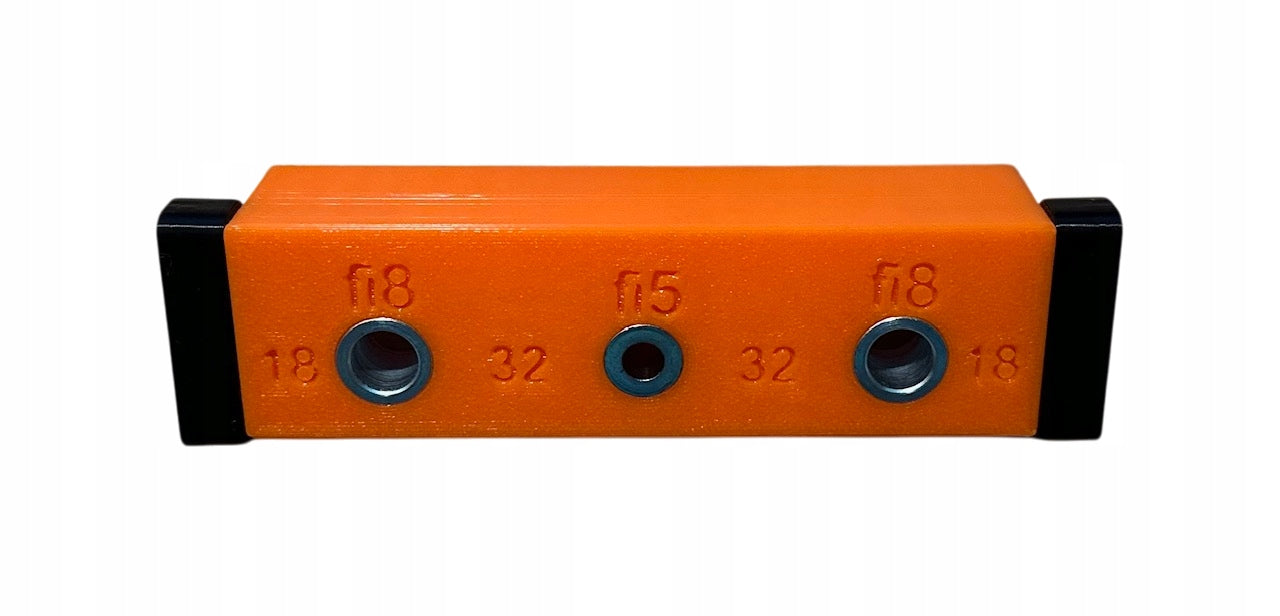

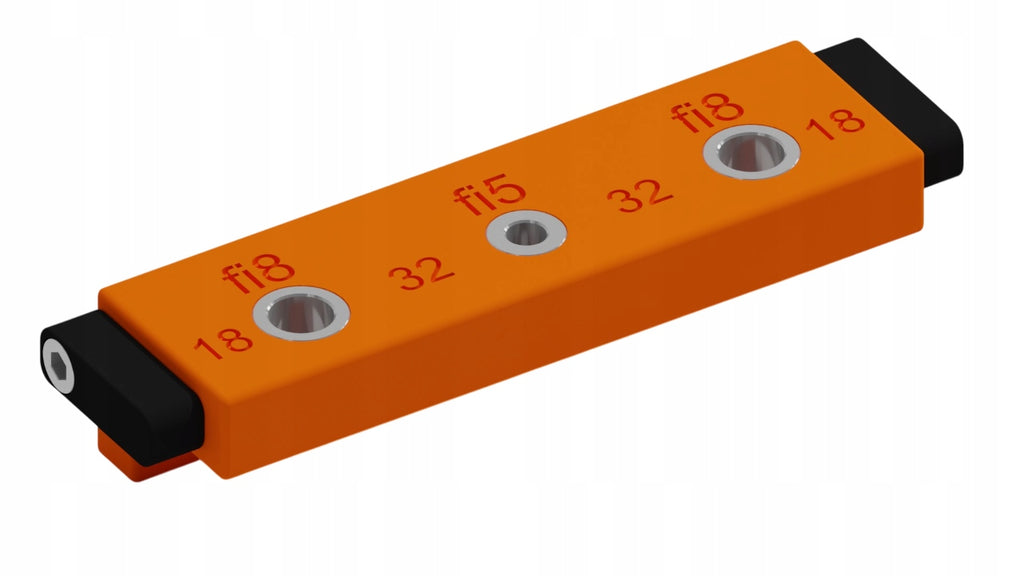

Professional template for drilling dowels and furniture confirmates designed for fast, accurate and repeatable drilling of holes in furniture boards.

Ideal for connecting traverses, sides and furniture bodies.

The template has three metal guide sleeves:

• two with a diameter of ⌀8 mm (for furniture pegs),
• one central with a diameter of ⌀5 mm (for furniture confirmates).

Thanks to steel bushings with a length of 12 mm, it ensures perfect drilling at an angle of 90° – without the risk of shifting or breaking.

The PETG material used guarantees high strength, impact resistance and dimensional stability.

TECHNICAL DATA

• Parameter: Value
• Material: PETG (3D FDM printing)
• Color: Orange
• Bushings: Hardened steel, pressed
• Number of sleeves: 3 (2×⌀8 mm, 1×⌀5 mm)
• Bushing length: 12 mm

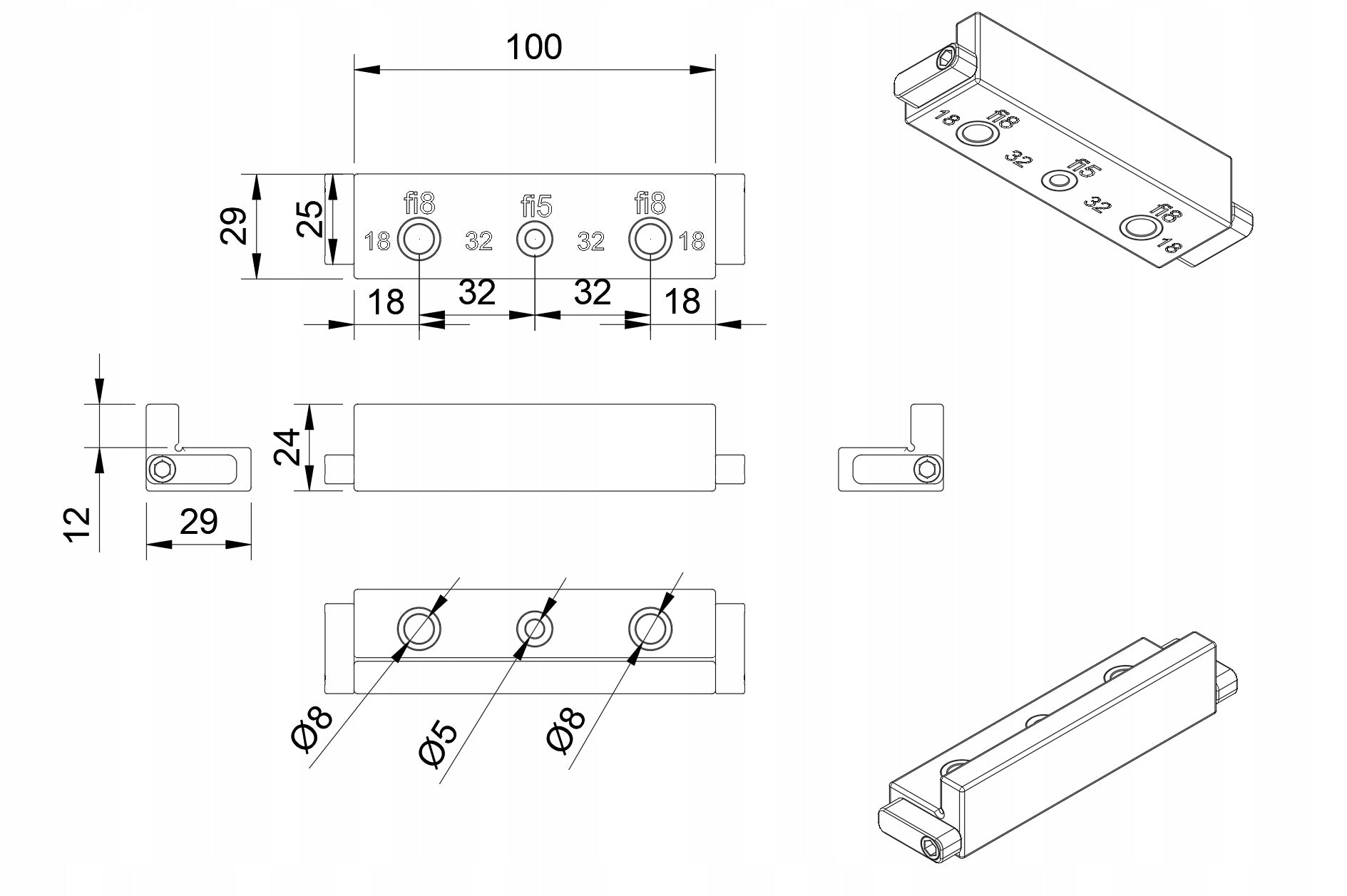

• Stencil dimensions: 100 × 29 × 24 mm
• Length with stops: 116 mm
• Suitable for plates: 18 mm (drilling center 9 mm from the edge)
• Hole spacing: 18 – 32 – 32 – 18 mm
• Supported drill bits: ⌀8 mm, ⌀5 mm
• Execution technology: 3D printing (FDM)
• Application: Furniture boards, traverses, body joints

FUNCTIONS AND ADVANTAGES

✅ Precise drill guidance – thanks to steel bushings embedded with high accuracy

✅ Universal installation – right / left side – just turn the stop

✅ Durable construction – massive body with PETG resistant to damage

✅ Moving stops – fast positioning relative to the edge

✅ Space adapted to carpentry standards (18 / 32 mm)

✅ Full repeatability of drilling – professional results with each series

APPLICATION

• Installation of traverses in cabinets and racks
• Drilling holes for furniture pegs fi8 and confirmates fi5
• Combining furniture bodies of chipboard and MDF
• Ideal for kitchen, office, bathroom and closet furniture

ABBREVIATED INSTRUCTIONS FOR USE

1 Set the stop on the left or right side, depending on the drilling location.

2 Apply the template to the edge of the board and press it flush with the surface.

3 For stability, use the carpentry clamp.

4 Drill through the guide bushings:

• holes ⌀8 mm – for studs,
• hole ⌀5 mm – for confirmation.

  5 Remove chips and proceed to assemble the elements.

⚠ PRECAUTIONS (GPSR)

• The product is not a toy – keep away from children.
• Use only with hand drills or rotary adjustable screwdrivers.
• Do not use at high rotational speeds (>1500 rpm) – there is a risk of overheating the bushing.
• Use safety glasses when drilling.
• Do not expose to temperatures above 50°C or direct sunlight.
• In case of breakage or loosening of the sleeve – discontinue use.

INCLUDED

• 1× Template for studs and confirmates (with pressed steel sleeves)
• 2× Side stops (mounted)
• Ready to go – no assembly or calibration required

♻ MAINTENANCE AND STORAGE

• Clean with a soft brush or compressed air.
• Do not use solvents or alcohol.
• Store in a dry place, away from heat sources and UV light.

carpentry template • template for confirmations • template for furniture pegs • carpentry fitting • guide for drilling • 18mm template • furniture accessories • carpentry tools

SHIPPING AND PACKAGING

Each template is safely packed in bubble wrap and cardboard.

Shipping is done within 24 hours of ordering.

Instructions for use and GPSR document available in electronic version (PDF file in the auction).

FOR PROFESSIONALS AND DIYERS

It is a tool created for people who value precision, repeatability and order at work.

Thanks to it, you will save time when assembling furniture, avoid mistakes and get professional effect even with home projects.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With invoice (excluding VAT)
Parametry	Brand	no brand
Parametry	Manufacturer code	3DEK
Parametry	EAN (GTIN)	5908453131416
