Trumpai apie prekę

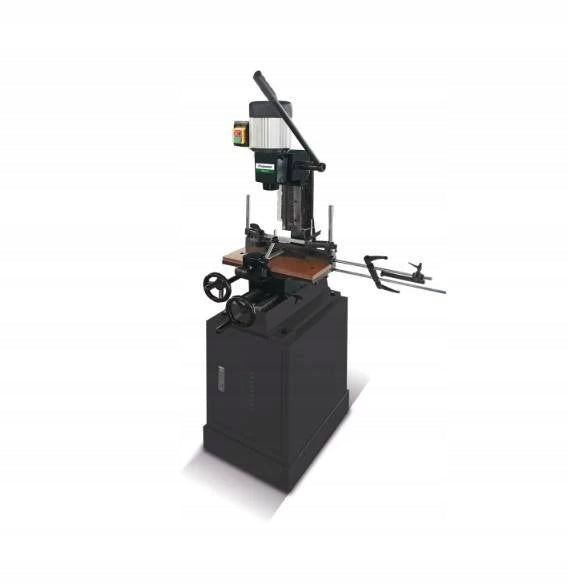

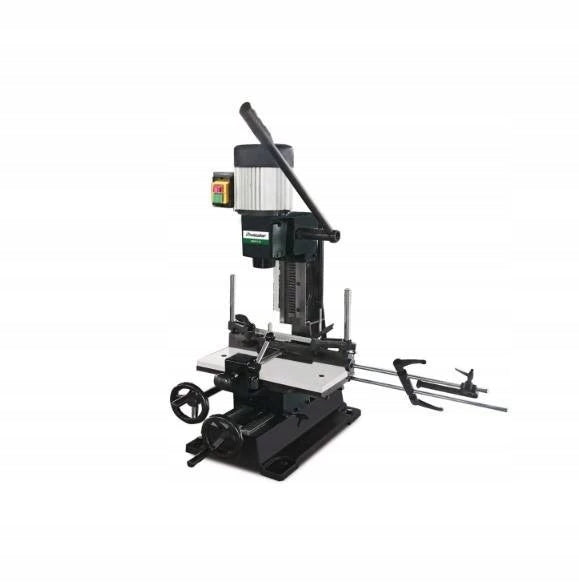

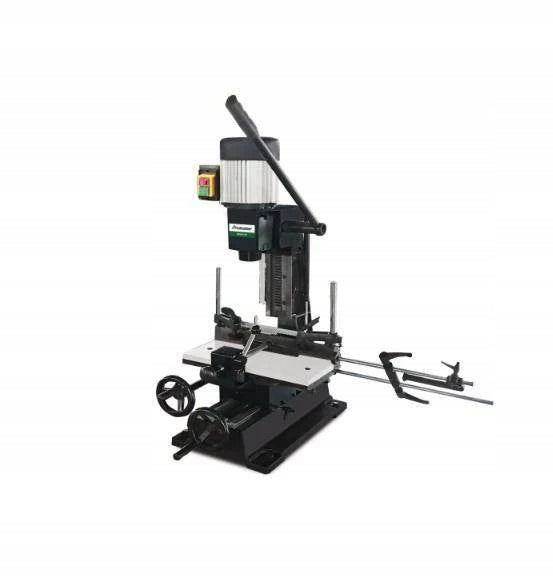

Prekė: Gręžimo ir frezavimo staklės BSM-H 25 HOLZSTAR 5906125. Kategorija: Frezavimo staklės.
- Gamintojas: Holzstar
- Modelis: 5906125
- For easy groove making for pen/groove connections
- Robust, die-cast machine frame construction with precision guides for swallow tail in each axis
- Large Axle Pitch With 200mm For High Details
- Long pinola stroke lever for chiseling with little effort
- Dismountable clamping jaws with quick attachment function
- Two adjustable stops for X and Y direction
- The machine head is additionally held by a gas spring for easier operation
- Tool holder through drill chuck with toothed wreath
TECHNICAL DATA:
- Length (product) approx. 790 mm
- Height (product) approx. 1630 mm
- Width/depth (product) approx. 620 mm
- Weight (net) approx. 89 kg
- Length of working table 400 mm
- Table travel X 175 mm
- Width of the working table 150 mm
- Table travel Y 150 mm
- Supply voltage 230 V
- Rating 0,75 kW
- Network frequency 50 Hz
- Max. workpiece height 210 mm
- Chisel sizes 6 - 25,4 mm
- Max. workpiece depth 145 mm
- Drill chuck B16-16mm
- Max. Chisel stroke 76 mm
- Speed 1400 min-¹
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Holzstar |
| Parametry | Series | BSM-H 25 |
| Parametry | Milling machine type | other |
| Parametry | Power supply | mains |
| Parametry | Maximum no-load speed | 1400 RPM |
| Parametry | Manufacturer code | 5906125 |
| Parametry | EAN (GTIN) | 4036351320005 |
