Trumpai apie prekę
Prekė: Greitoji jungtis 1/2" GW x 1/4" žarnai, su tarpine ir spaustuku, osmosui. Kategorija: Atvirkštinio osmoso sistemos.
- Gamintojas: Green Filter
- Modelis: QCF1214
Universal coupling for RO systems and water filtration – quick installation and tight connection

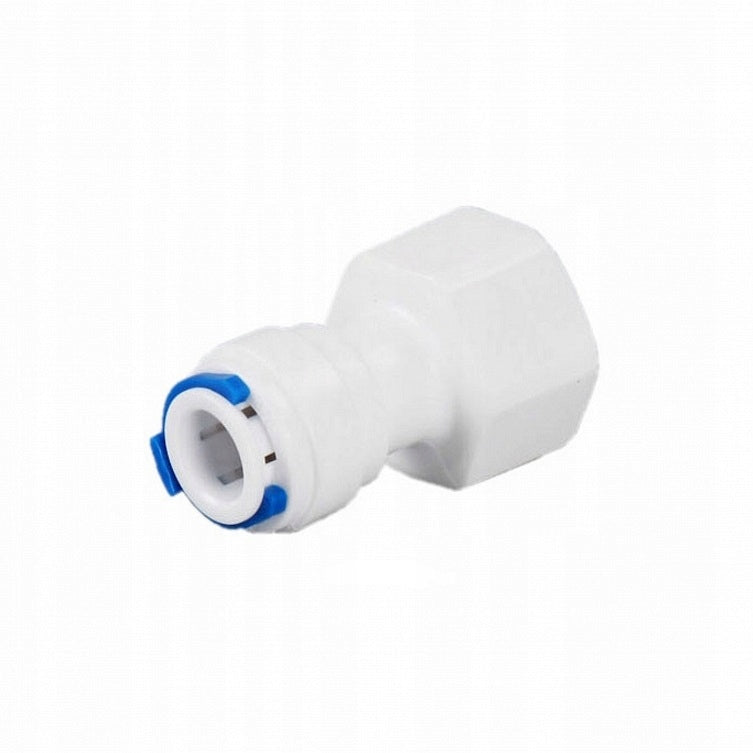

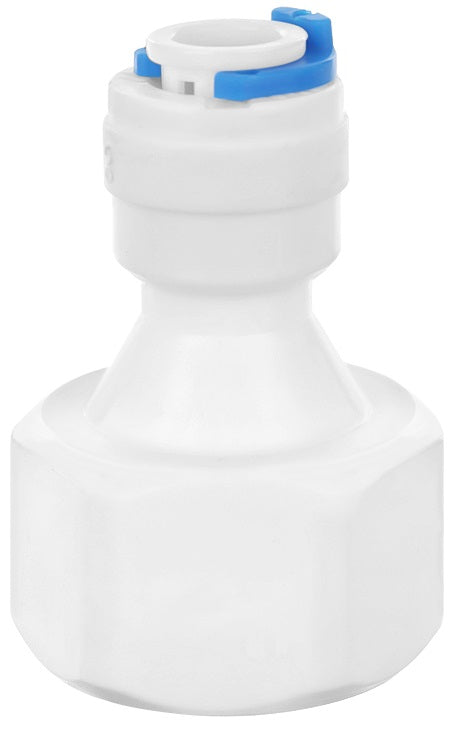

Straight quick coupler with 1/2 inch internal thread and 1/4 inch (6,4 mm) hose socket. Used in many water treatment systems – from reverse osmosis (RO), through side-by-side refrigerators, to icemakers and bioceramic filters. Comes with a gasket and a safety clip that protects against accidental removal of the hose.
Features and technical specification
- Fitting Type: Straight (Straight)
- Connection 1: 1/2" internal thread
- Connection 2: quick coupler socket for 1/4" (6,4 mm) hose
- Sealing: rubber seal included
- Protection: Quick release locking clip included
- Material: durable plastic designed to come into contact with drinking water
Application
✅ Reverse Osmosis (RO) Systems
✅ Refrigerators with ice maker and water connection (side-by-side)
✅ Ice Makers
✅ Bioceramic and kitchen filters
✅ Home and catering installations
Benefits for the user
- Quick and easy installation – no tools required
- Tight connection – thanks to the gasket and precise fit
- High compatibility – fits most RO systems and household appliances
- Protection against accidental unfastening – locking clip included
- Durability and resistance – robust construction of drinking water materials
FAQ – Frequently Asked Questions
Does the fitting fit a standard 1/4" hose?
Yes – the quick coupler socket is designed for a hose with an external diameter of 6,4 mm (1/4").
Do I need Teflon tape for assembly?
The coupling has a rubber seal – in most cases there is no need to use tape. When installed in pressurized installations, it can be additionally used.
Is the fitting suitable for drinking water?
Yes – made of safe plastic intended for contact with food water.
Instructions for assembly
- Screw the fitting into the socket with 1/2" thread (e.g. valve, connection under the sink).
- Insert the 1/4" hose into the quick coupler until it resists.
- Lock the connection with the included safety clip.
- Check the tightness of the connection – start the water flow and observe the installation site.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Green Filter |
| Parametry | Dominant color | white |
| Parametry | Model | QCF1214 |
| Parametry | Manufacturer code | QCF1214 |
