Šablonas paslėptiems sujungimams Hidden Stud

Trumpai apie prekę

Prekė: Šablonas paslėptiems sujungimams Hidden Stud. Kategorija: Kaiščių įrankiai.

• Gamintojas: no brand
• Modelis: Zaxer mimośrody

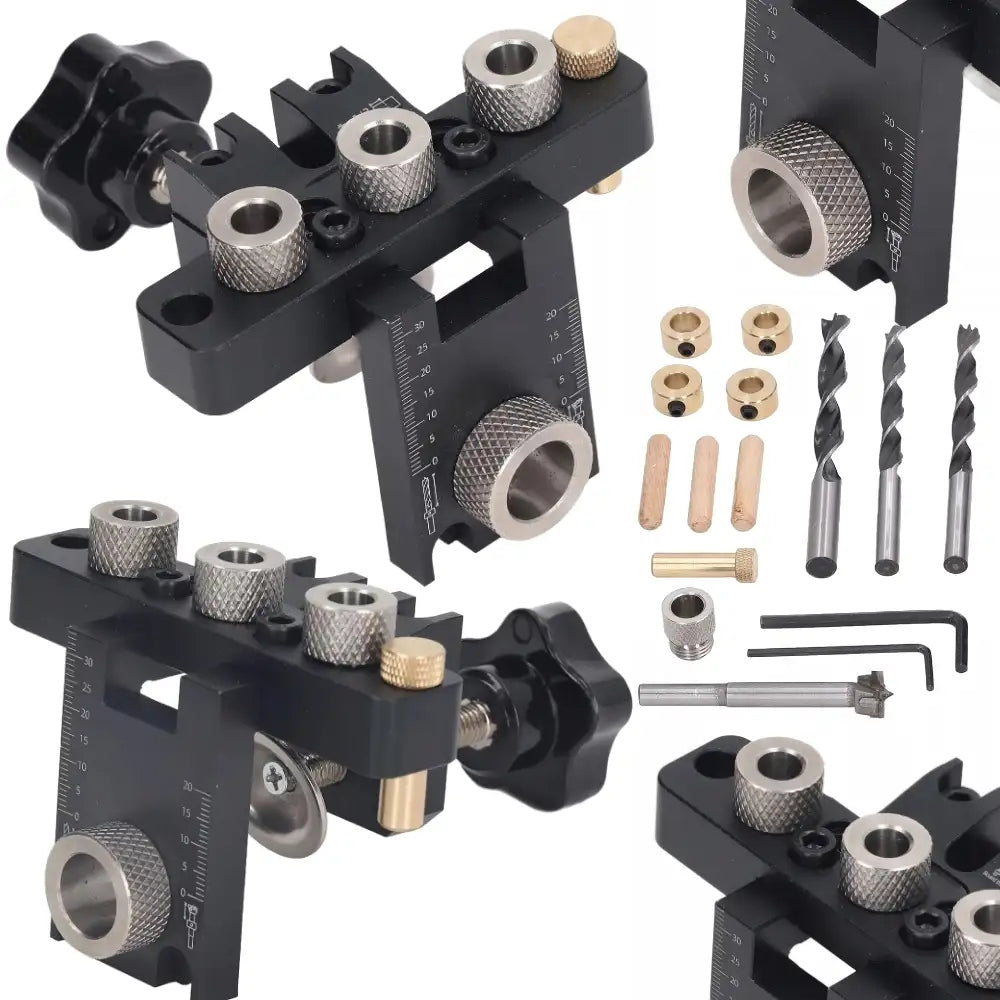

✨✨✨Features ：

✨✨✨【Multiple drill bit sizes, precise positioning】:

⭐ Equipped with 8mm*2, 10mm and 15mm drill bits to meet different drilling needs, and adjustable drill bit spacing.

⭐ The spacing facilitates precise positioning, and the spigot and socket design ensures accurate placement of the drilled hole, simplifying the installation process and increasing the precision of operation.

✨✨✨【High quality material, durable and rust resistant】:

⭐ Made of corrosion-resistant aluminum alloy with anodized surface, effectively prevent rusting and extend the service life.

⭐ The material is durable and unbreakable, and the laser engraving process improves details and allows flexible scaling to match the thickness of the wood.

✨✨✨【Multi-functional design, flexible adaptability】:

⭐ Built-in vertical drilling assist system provides multiple positioning, drilling and joining functions to meet a variety of operational needs.

⭐ Removable clamp facilitates positioning and drilling, ensuring precise placement of holes in different places and guaranteeing accurate assembly of fasteners.

✨✨✨【Small and portable, easy to use】:

⭐ Compact size and light weight make it easy to carry and use daily without taking up too much space.

⭐ Removable positioning plate simplifies the drilling process, and many functions can be switched on demand, making it easy to operate even for beginners.

✨✨✨【Complete set of accessories, without the need to purchase additional accessories】:

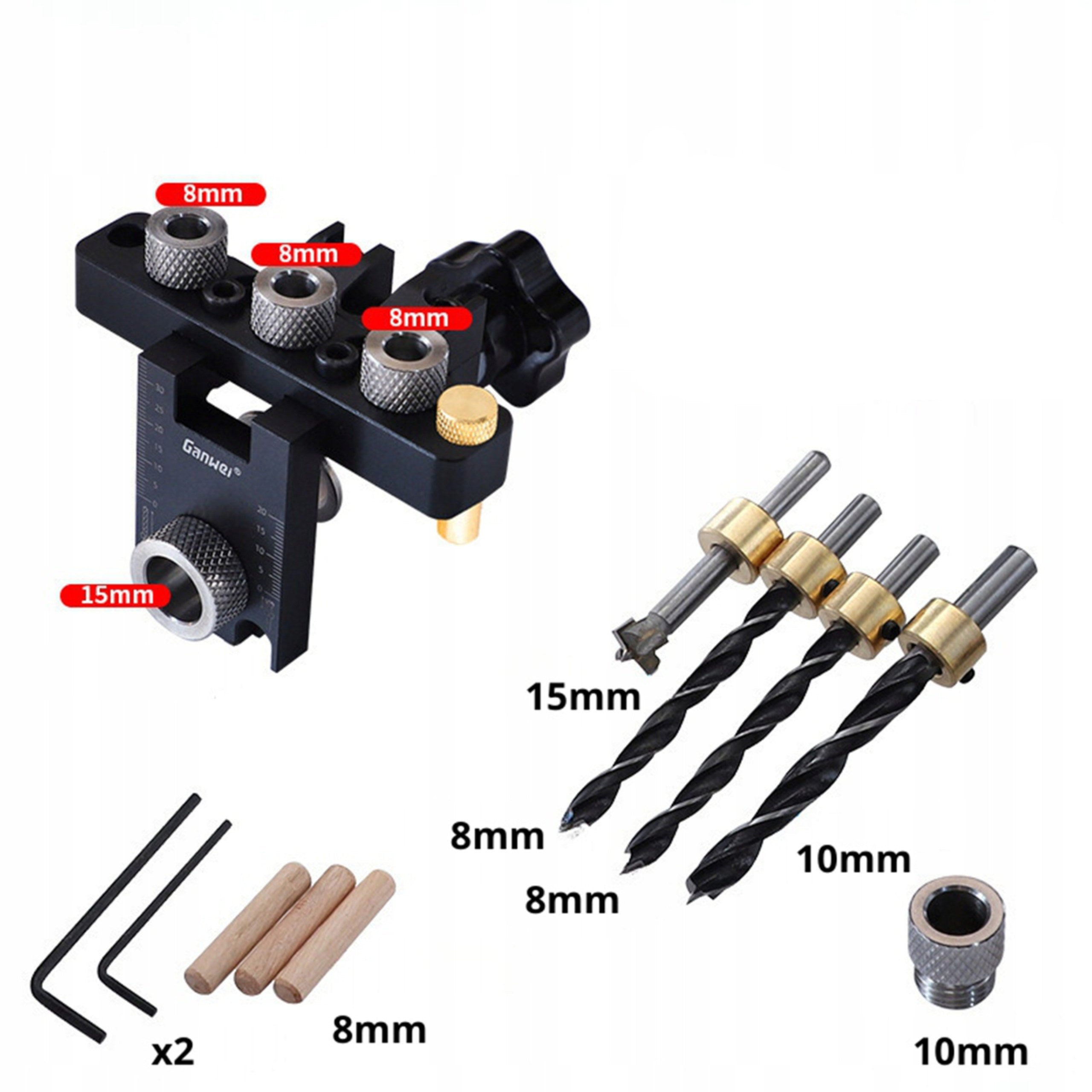

⭐ Includes a 3-in-1 pocket hole template, brass stop and four drill bits of different sizes, offering a wide range of accessories.

⭐ The set also includes three wooden pegs, two Allen wrenches and a pre-set positioning instrument to meet the needs of the complete drilling process.

✨✨✨Specification:

Color: black

Material: aluminum alloy

Size: as shown

✨✨✨Content of the package:

1x Drilling Template

3x drill bits

1x brass stop

2x keys

3x wooden pegs

1x positioning aid

✨✨✨Instructions for use and use

✨✨✨Adjustable hole opener drill bit scale

① Measure the thickness of the plate in which the hole is to be made.

② Prepare the hole opener drill as shown in the picture and install the dimensionally required drill sleeve. Drill bushings in the upper row (3 pieces): 8/8/8 mm

③ Adjust the scale to which the drill sleeve panel indicates – the scale value should be equal to half the thickness of the plate, and then tighten the mounting screw.

✨✨✨Making holes in the side plate

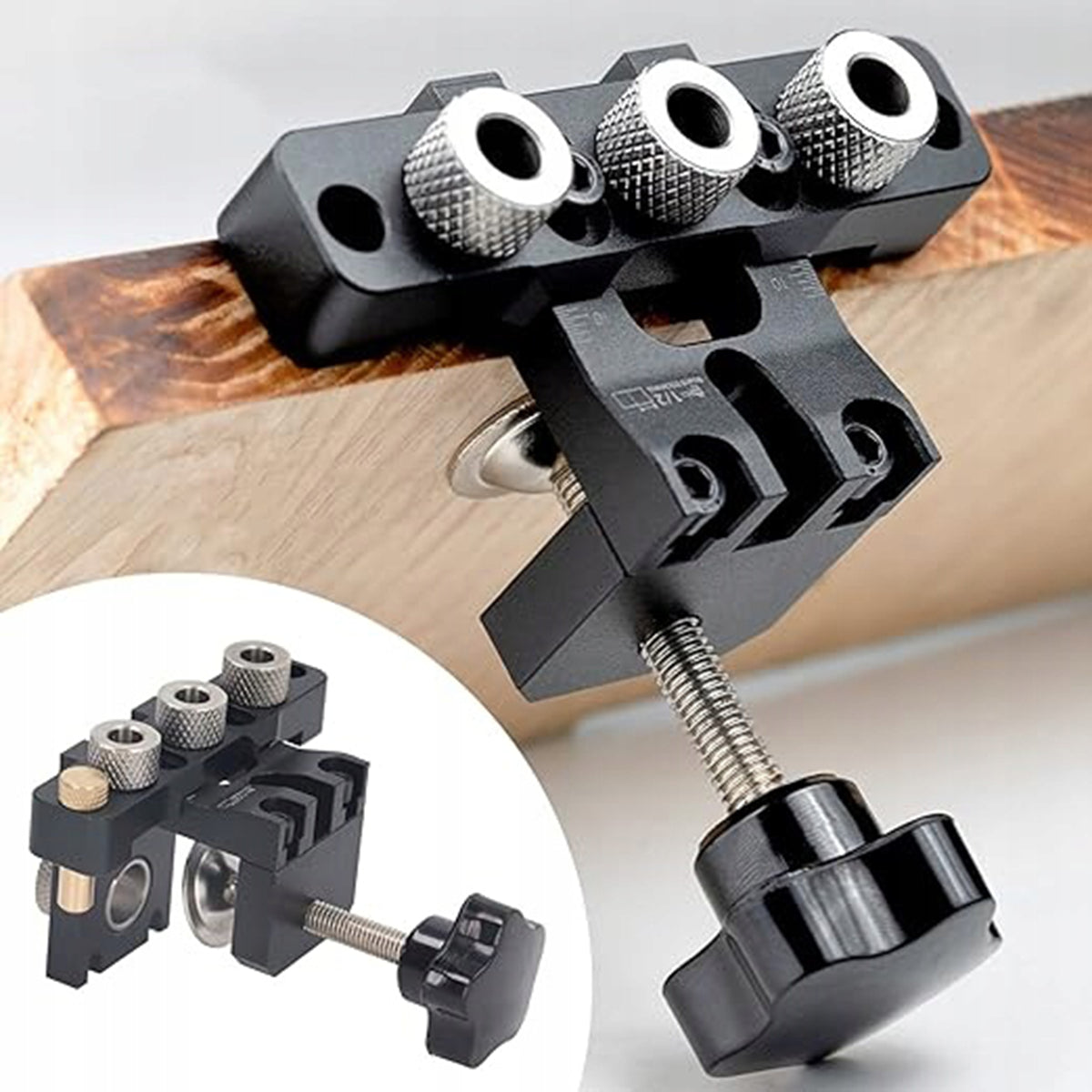

① Place the hole opener drill on the side plate, slide it to the place provided for the hole and tighten the handle.

② Use an 8 mm diameter drill bit and make three 8 mm diameter holes one by one each.

③ Replace the drill with a diameter of 15 mm and make one hole on the other side (for an eccentric wheel) with a diameter of 15 mm.

✨✨✨The effect of holes made in the side plate

8 mm | 8 mm | 8 mm | 15 mm

✨✨✨Drilling and joining the bottom plate —— T-shaped joining

① Use auxiliary plate for fasteners. Dimensions of three drill sleeves: 8/10/8 mm respectively.

② Draw auxiliary lines in the place provided for joining on the bottom plate.

③ Mount one wooden spatula in the middle hole of the side plate, then align and apply the side plate to the bottom plate.

④ Insert the auxiliary plate clamp on the wooden spike, align the indicators on both sides with the auxiliary lines. You can use tools such as strong pliers to attach.

⑤ Use 8mm/10mm diameter drill bits to make 8mm diameter wooden spatula hole and 10mm diameter pre-installed adhesive insert hole accordingly.

⑥ Hole drilling effect: 8 mm 10 mm 8 mm

⑦ Pozostałe operations according to the instructions for L-shaped joining.

✨✨✨Drilling and joining of the bottom plate —— L-shaped joining

① Mount the drill sleeve panel on the other side (as illustrated), then replace the middle drill sleeve with an 8 mm diameter one with one 10 mm. Drill sleeve dimensions: 8 mm 10 mm 8 mm

② Mount one wooden spatula in the middle hole of the side plate, then align the side plate with the bottom and apply them to each other.

③ Insert the hole opener drill clamp onto the wooden spatula (as illustrated), glue the entire hole opener drill to the bottom plate without any gaps, then tighten the handle.

④ Use 8mm/10mm diameter drill bits to make 8mm wooden spatula hole and 10mm pre-installed adhesive insert hole accordingly.

⑤ Hole drilling effect in the bottom plate: 8 mm 10 mm 8 mm

⑥ Install pre-installed adhesive inserts, fasteners and wooden pins.

⑦ Align the holes of the side and bottom plates, then connect them together without gaps.

⑧ Install the eccentric wheel and tighten it – the connection has been completed.
