Graviravimo staklės S9 su itin plona lazerio technologija

Trumpai apie prekę

Prekė: Graviravimo staklės S9 su itin plona lazerio technologija. Kategorija: Rašaliniai ir lazeriniai spausdintuvai.

• Gamintojas: no brand
• Modelis: 6751ABUB

Function:

1. 90W Effect Laser beamforming technology: S9 uses the latest 5,5W laser beam diode laser, has ultra-fine 0,06mm sharp laser focus, with super cutting and precision, can cut into 15mm thick wood, 10mm acrylic, carved ceramic and steel with solid, almost beyond 90W Laser effect.

2. Fast focus design: Combines a fixed focus lens and a sliding design. You just need to move the laser and tighten the screws to finish the focus. This makes it very easy to use.

3. Solid \ U0026 Easy assembly structure: The design of full metal structure makes the machine work stably and improves engraving accuracy. Assembly can be completed in 10-20 minutes. The structural frame is very durable and available for upgrade. During use,

4. Wide compatibility: The machine is compatible with various mature engraving software, such as Lasergrbl, Lightburn, Benbox, GrblController, Litefire, Supports PWM mode engraving, supports Windows system, switch system (Lightburn) and Format Engraving file JPG, PNG, DXF, SVG,

5. Safe design: Filter laser filter 98% ultraviolet light for eyes. And it comes with an A4 steel washer to protect the table from laser damage. Isolate fire hazards.

Specification:

• Model: S9

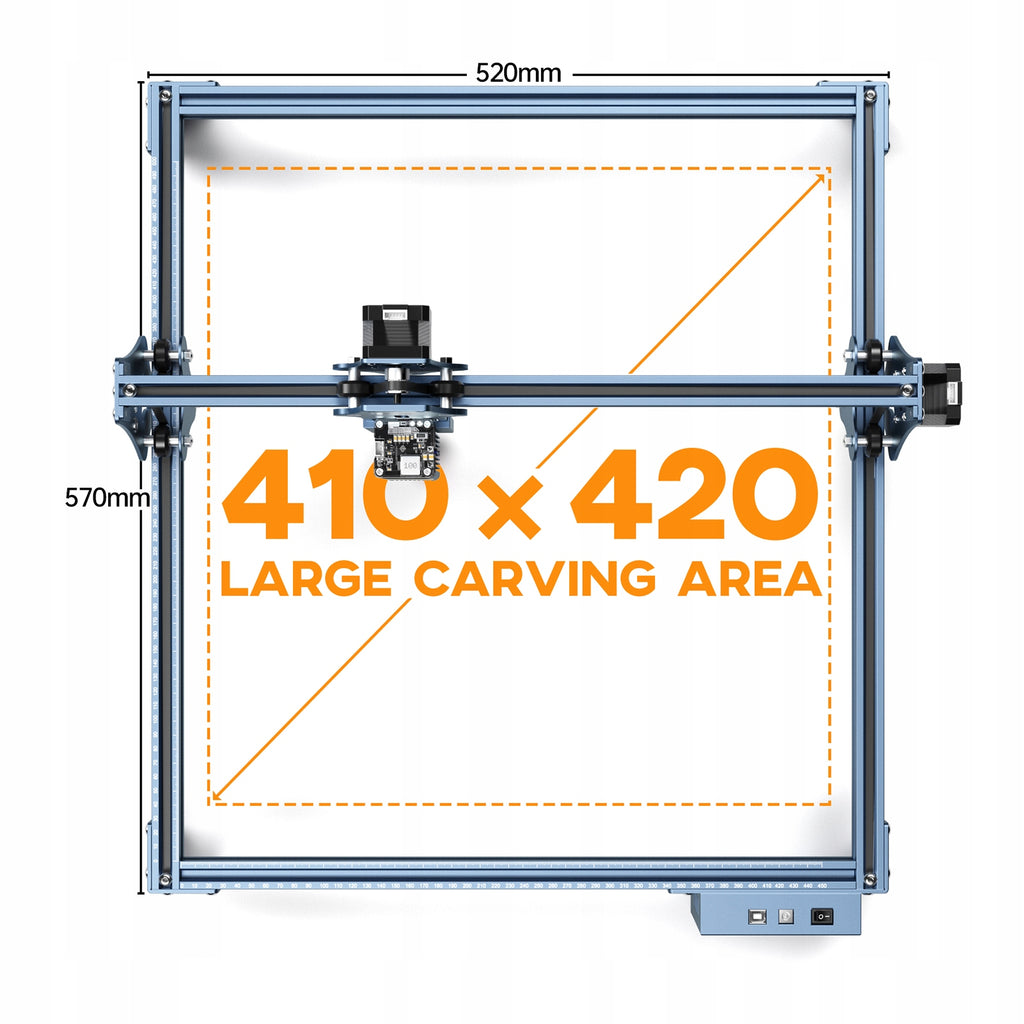

• Engraving size: 410*420 mm
• Engraving materials: wood, paper, cardboard, plastic, white, printed circuit board, aluminium oxide, 304 stainless steel, ceramic, dark stone
• Cutting material: wood, acrylic, cardboard, fabric, bamboo, plastic board, KT board
• Electricity machine: 30W (this has nothing to do with cutting or engraving, only consumes electricity)
• LED laser power: 5,5-6 W
• Laser length 455 ± 5 nm
• Engraving accuracy: 0,01 mm
• Focus Method: Laser Focus Focus + Sliding Device
• Laser protective cover: The light filter cover on the laser protects the user's eyes and prevents animals from grabbing the laser spot.
• Operating Software: Compatible with Lasergrbl, Lightburn, Benbox, GrblController, Litefire,
• e.t.c.
• Operating system: Compatible with switch system. Supported file formats NC, BMP, JPG, PNG, DXF and other image formats.
• Data transmission method: USB connection
• Power Supply: International Universal Standard Power Input: 100-240V AC, 50/60Hz Output: 12V 5A
• Machine weight: 3,0 kg/ 6,61 lb

List of packages:

• Axle Assembly 1 × x 2 × X SHAFT2 × Y SHAFT2 X PETLE1 × Control Box Module
