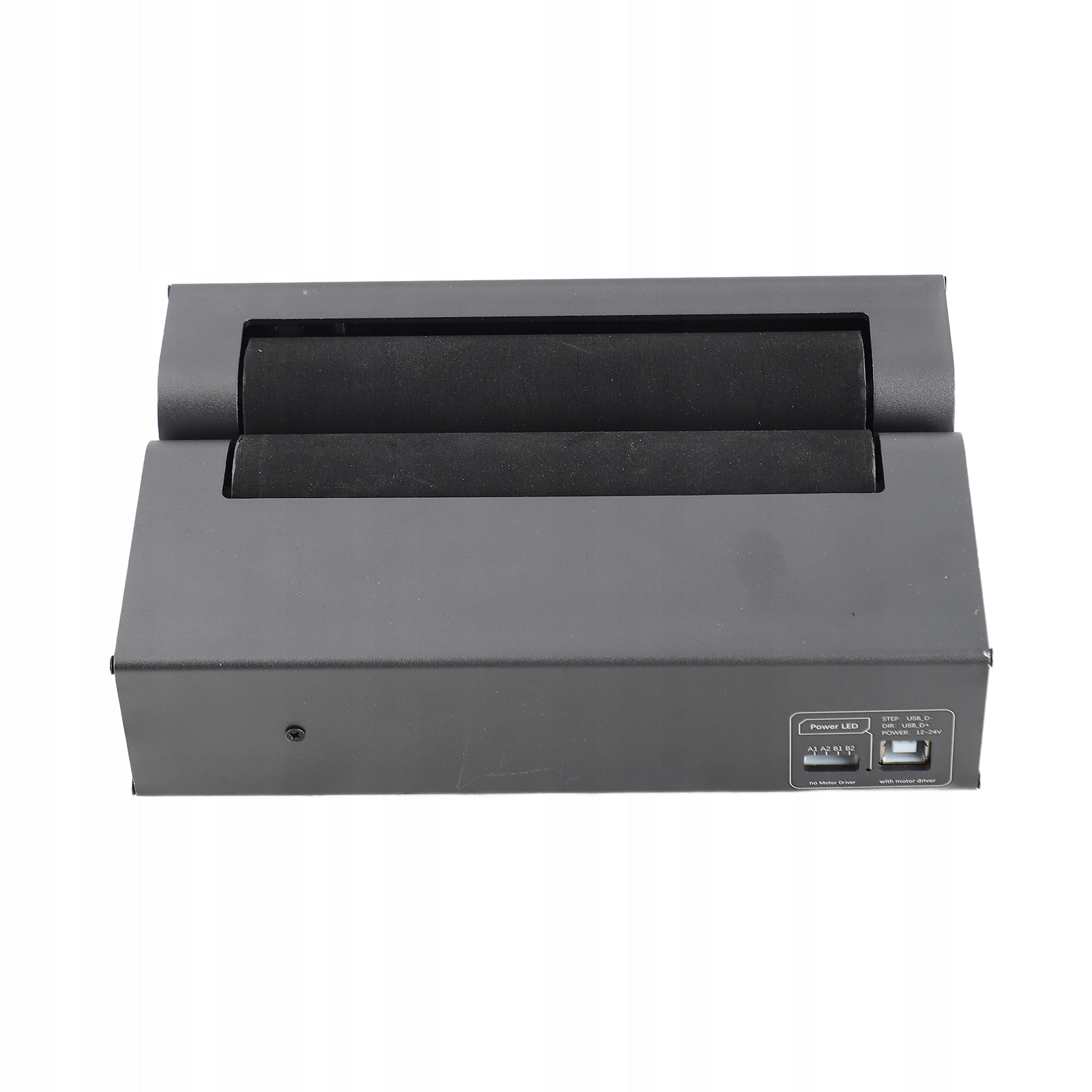

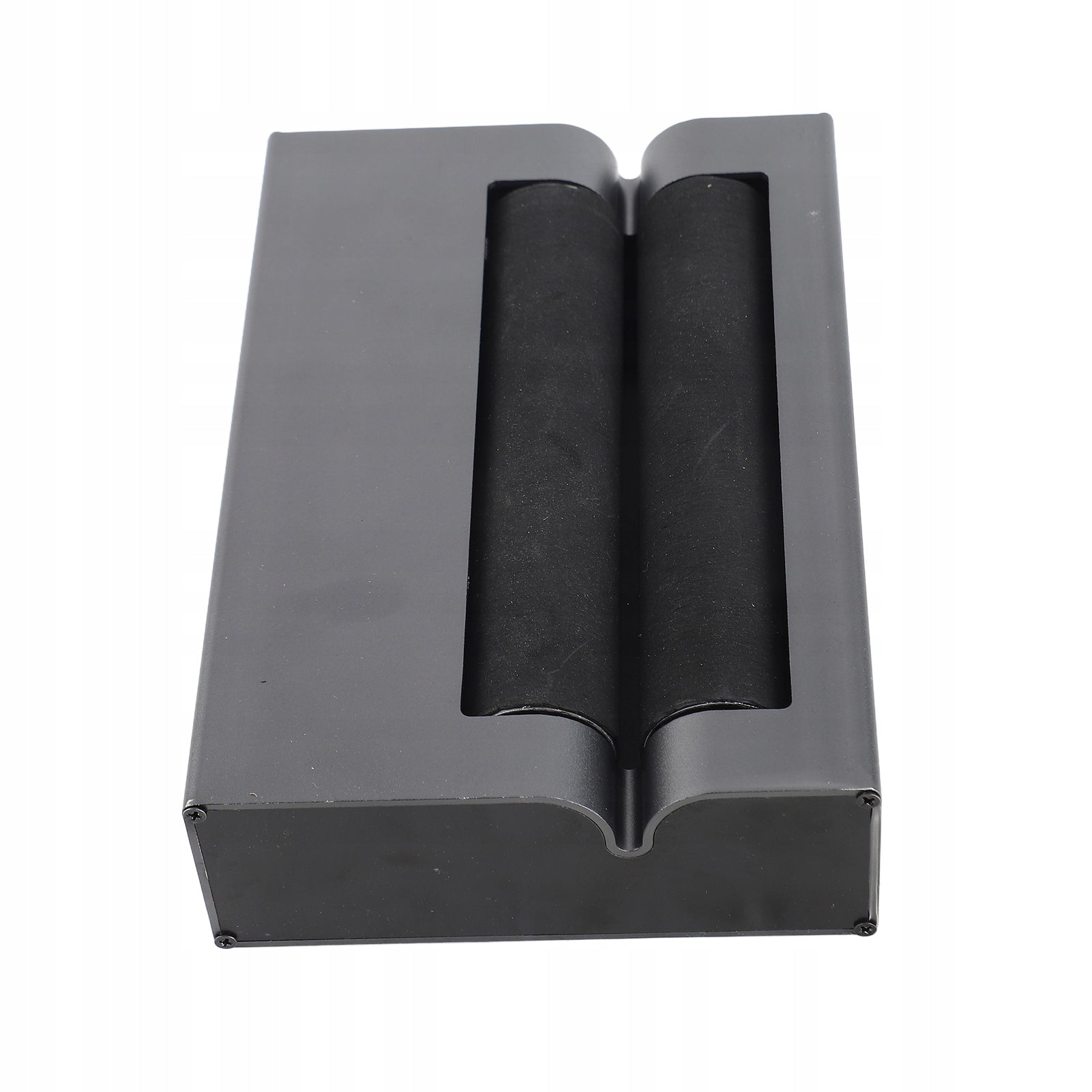

Graviravimo modulis 360° Rotary Roller Y Rotation 5I

Trumpai apie prekę

Prekė: Graviravimo modulis 360° Rotary Roller Y Rotation 5I. Kategorija: Rašaliniai ir lazeriniai spausdintuvai.

• Gamintojas: no brand
• Modelis: 9621WKRP

Function:

1. Cylindrical Object Sculpting: The rotary roller module can be used for cylindrical objects such as cans, peds, cups, cups, bottles, pipes, bowls, guitars, drums, etc.

2. Adjustable width: The engraving diameter can be as small as 5mm and up to 200mm. Whether it is a large can or a small pen, it can achieve 360 degree rotation engraving, which can be used for longer cylinders, small diameter cylinders, over length plate engraving, length plate cutting.

3. Sturdy and reliable: all metal construction, sturdy and stable. Rubber roller with stronger friction to avoid moving engraved objects.

4. Wide compatibility: The rotating roller module is suitable for most engravers and 3D printers. Compatible with the D6/T7 engraving machine, a 12V power supply can be connected.

5. No installation required: The rotary roller is ready to use out of the box without installation, adjusting the roller distance is simple, requiring no tools. You only need to connect the port cable from the Y axis to engraving to pull out cylindrical objects such as pens, water bottle, etc.

Specification:

• Specifications:
• Material: metal
• Maximum load capacity: 3 kg
• Roll diameter: 32 mm
• Axle distance: 36 mm
• Power Line Interface Voltage: 12-24V
• Position Size: 190 * 128 * 46 mm / 7,48 * 5,03 * 1,81 inch
• Item Weight: 843G / 1,85LB

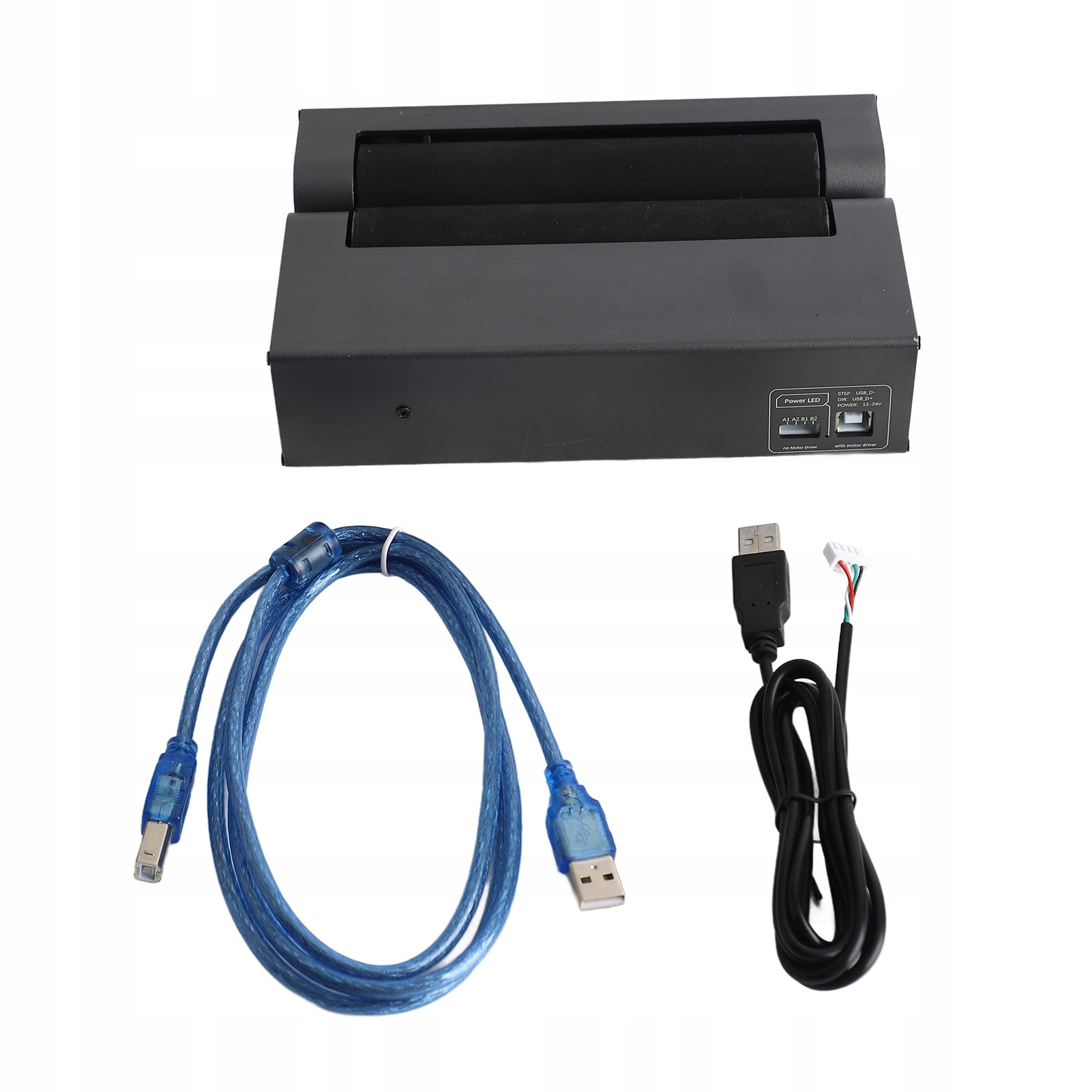

List of packages:

• 1 *Rotary roller
• 1 * Blue USB cable (with driver, connect to driver board)
• 1 * 4 Pin (connected to engine)
