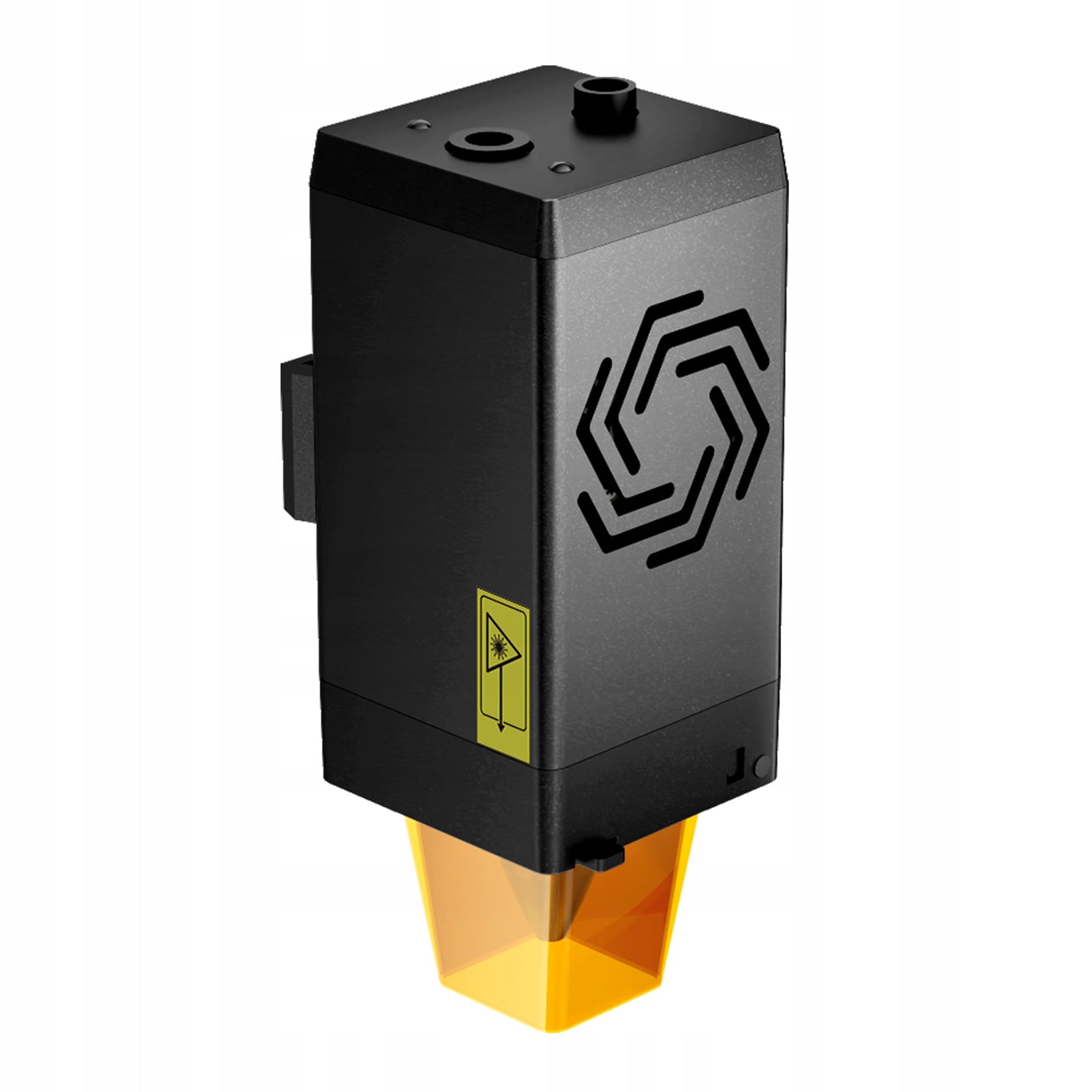

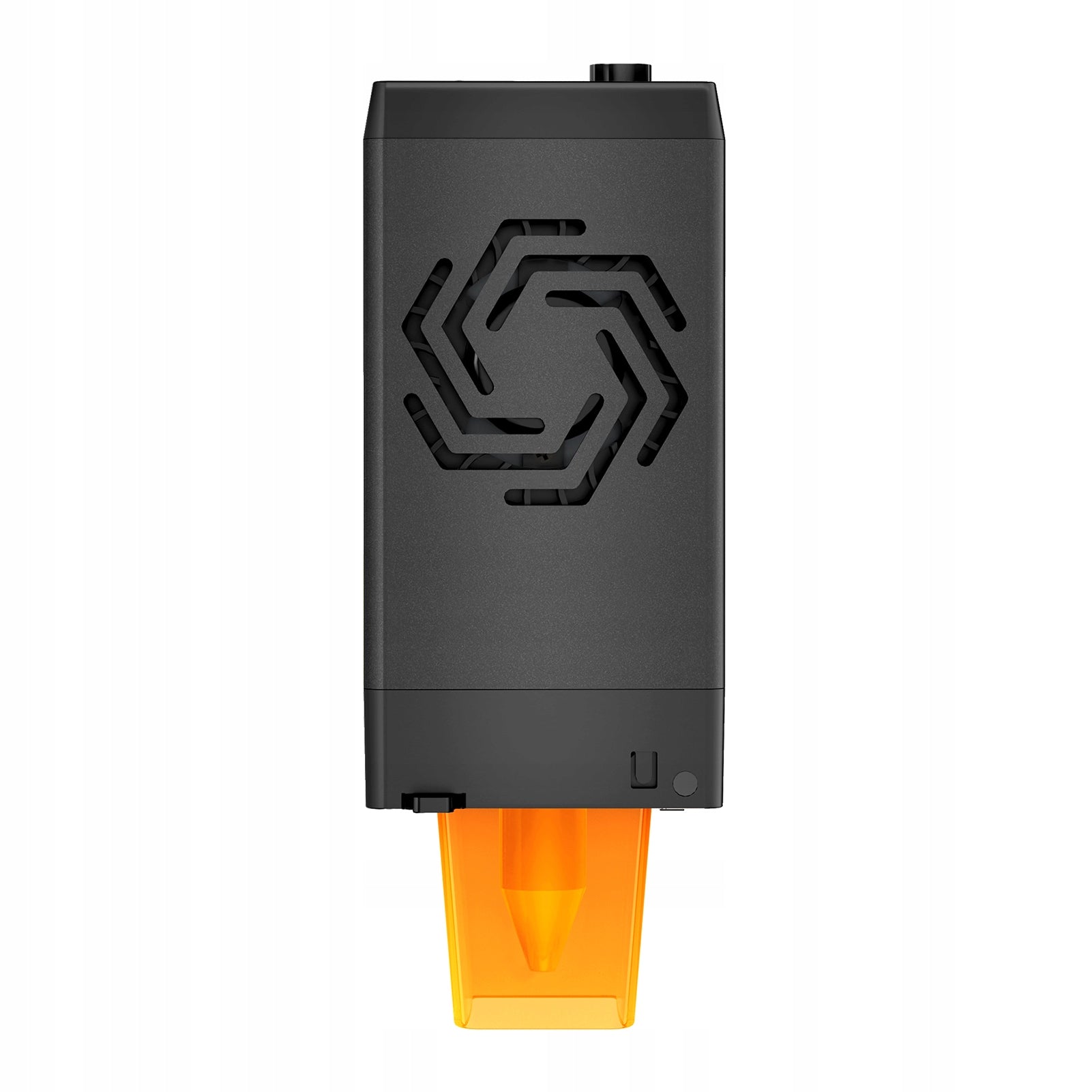

Graviravimo lazerio modulis Ortur LU2-10A 10W Ultra-fine Compressed 2B

Trumpai apie prekę

Prekė: Graviravimo lazerio modulis Ortur LU2-10A 10W Ultra-fine Compressed 2B. Kategorija: Rašaliniai ir lazeriniai spausdintuvai.

• Gamintojas: no brand
• Modelis: 2163EYHO

Function:

1. Commonly compatible design: It can be installed on various brand machines such as Ortur Laser Master 2 Pro S2, Laser Master 2 S2, Laser Master 3.

2. 60W Effect Compressed Laser: 24V LU2-10A with real 10W laser power. It has a very thin square laser, and its cutting penetration and accuracy are twice ordinary lasers. Even in the spot laser field, the LU2-10A has more accurate engraving marks and stronger cutting and penetration capabilities. It can cut 20mm thick wood boards and stroking ceramics and acrylics that are almost beyond the CO2 60W laser effect.

3. Fast fixed cap design: Combines fixed lens and sliding design. You just need to move the laser and tighten the screws to finish the focus. This makes using the laser very easy. Using it on different machines does not affect its sliding function of fixed focus.

4. Circle coverage design: 98% ultraviolet light laser filter cover filters for eyes. You and the people around you can watch laser engraving from any angle without wearing goggles. At the same time, it can prevent animals from catching the laser spot.

5. General 24V/PWM modulation board: This is the latest 24V/PWM modulation board that can be customized for common GRBL or CNC motherboards.

Specification:

• Characteristics:
• Commonly compatible design: it can be installed on various brand machines such as Ortur Laser Master 2 Pro S2, Laser Master 2 S2, Laser Master 3.
• 60W effect compressed laser: 24V LU2-10A with real 10W laser power. It has a very thin square laser, and its cutting penetration and accuracy are twice ordinary lasers. Even in the spot laser field, the LU2-10A has more accurate engraving marks and stronger cutting and penetration capabilities. It can cut 20mm thick wood boards and stroking ceramics and acrylics that are almost beyond the CO2 60W laser effect.
• Fast fixed focus design: Combines a fixed focus lens and a sliding design. You just need to move the laser and tighten the screws to finish the focus. This makes using the laser very easy. Using it on different machines does not affect its sliding function of fixed focus.
• Circle cover design: Poison: laser filter cover filter 98% ultraviolet light for eyes. You and the people around you can watch laser engraving from any angle without wearing goggles. At the same time, it can prevent animals from catching the laser spot.
• General 24V/PWM modulation board: This is the latest 24V/PWM modulation board that can be customized for common GRBL or CNC motherboards.
• Specification:
• Laser Class: Class 4
• Optical power: 9500-10 500 MW
• Electric power: 40 W.
• Product Size: 44x55x121 mm / 1.73" x2.17" x4,76"
• Net Weight: 235 g / 0,52 lbs
• Wavelength: 445 ± 5m
• Lens group: third generation compression lens group
• Focus: Stax Focus
• Laser space size: about 0,05 x 0,1 mm

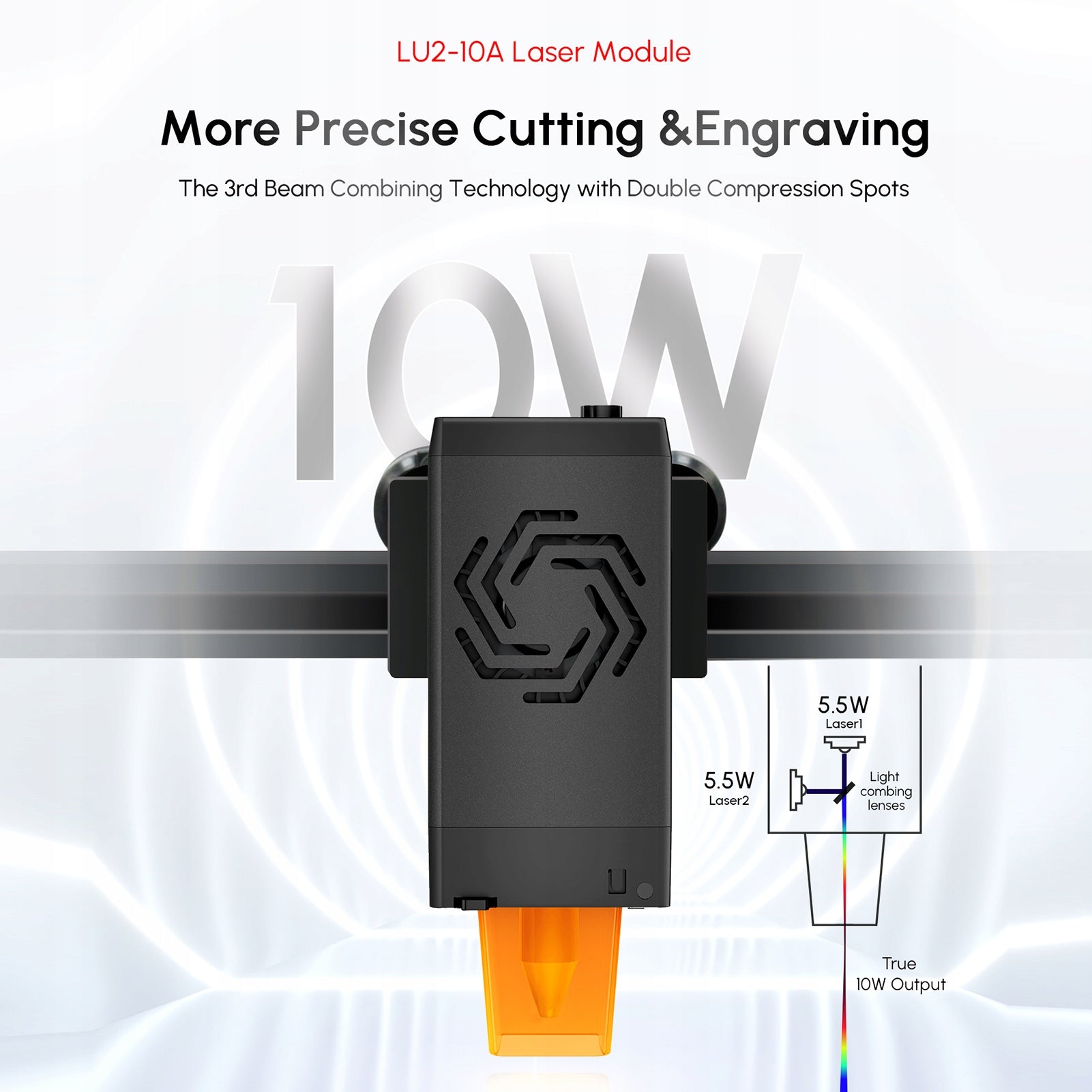

• Laser diode: 5,5W x 2 laser diodes
• Input voltage of laser diode: 8,6 V
• Laser diode input current: 3,8A
• Service life: ≥10 000 hours (every 50 hours of use, check the lens, if it is dirty, please clean the lens with medical cotton and alcohol swab. )
• Control board: DC 24 V/PWM control board
• Control Mode: PWM
• Power Speed: S0-S1000
• Support engraving speed: 0-20 000 mm/min
• Assist: built-in
• Materials: aluminum + brass + computer
• Wires: 4p 22AWG
• Input Voltage Power Adapter: 110V-220V (compatible)
• Power Adapter Output: 24V/2A
• Package Weight: 700 g/24,6 oz
• Package Size: 25x14x10cm/9.8x5.5x4in
• Packing list:
• 1 x Laser Engraving Module

List of packages:

• 1 x Laser Engraving Module
