Grandininio pjūklo Makita sankabos būgnas EA4300F DCS460 grandinės žvaigždutė EA3500F

Trumpai apie prekę

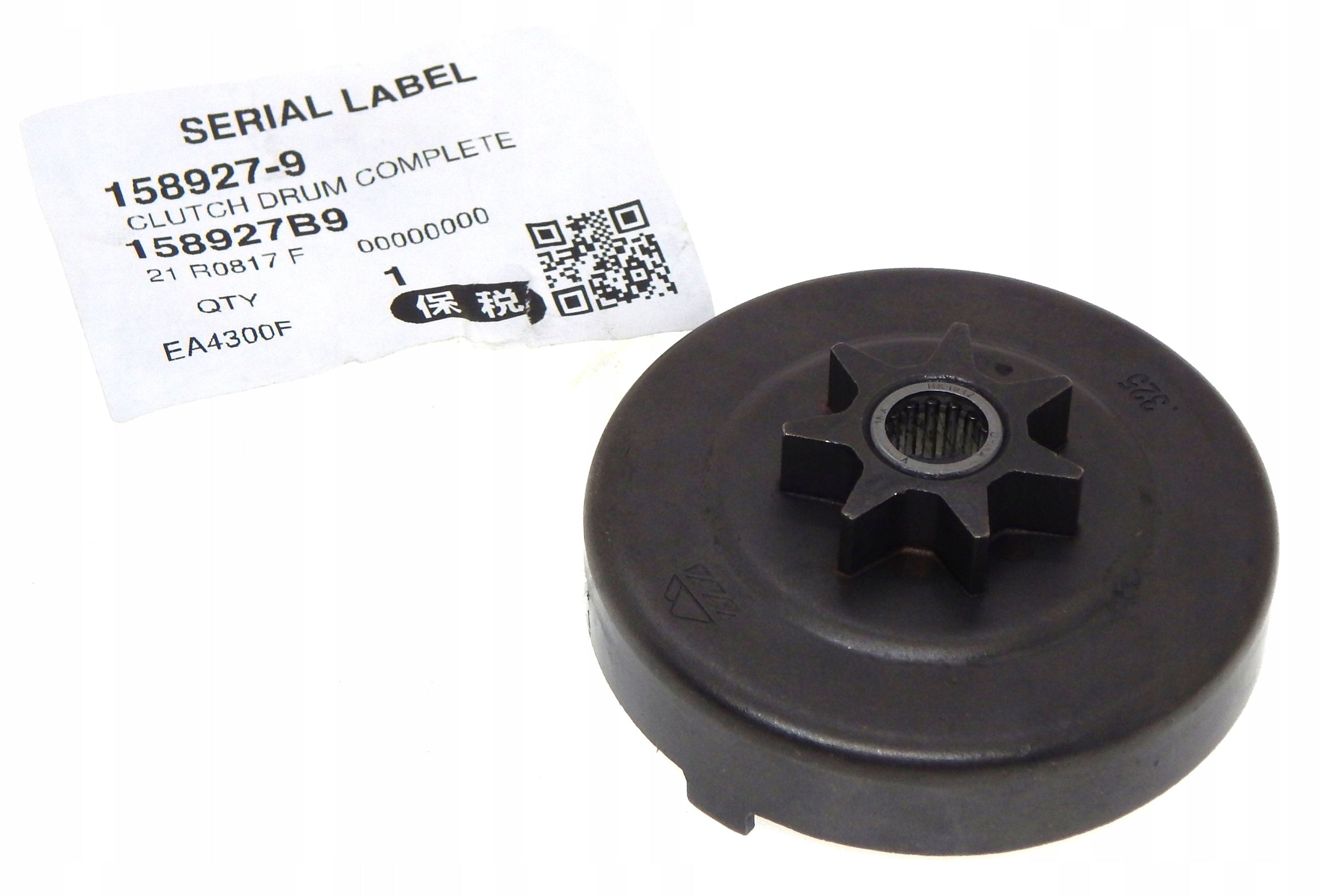

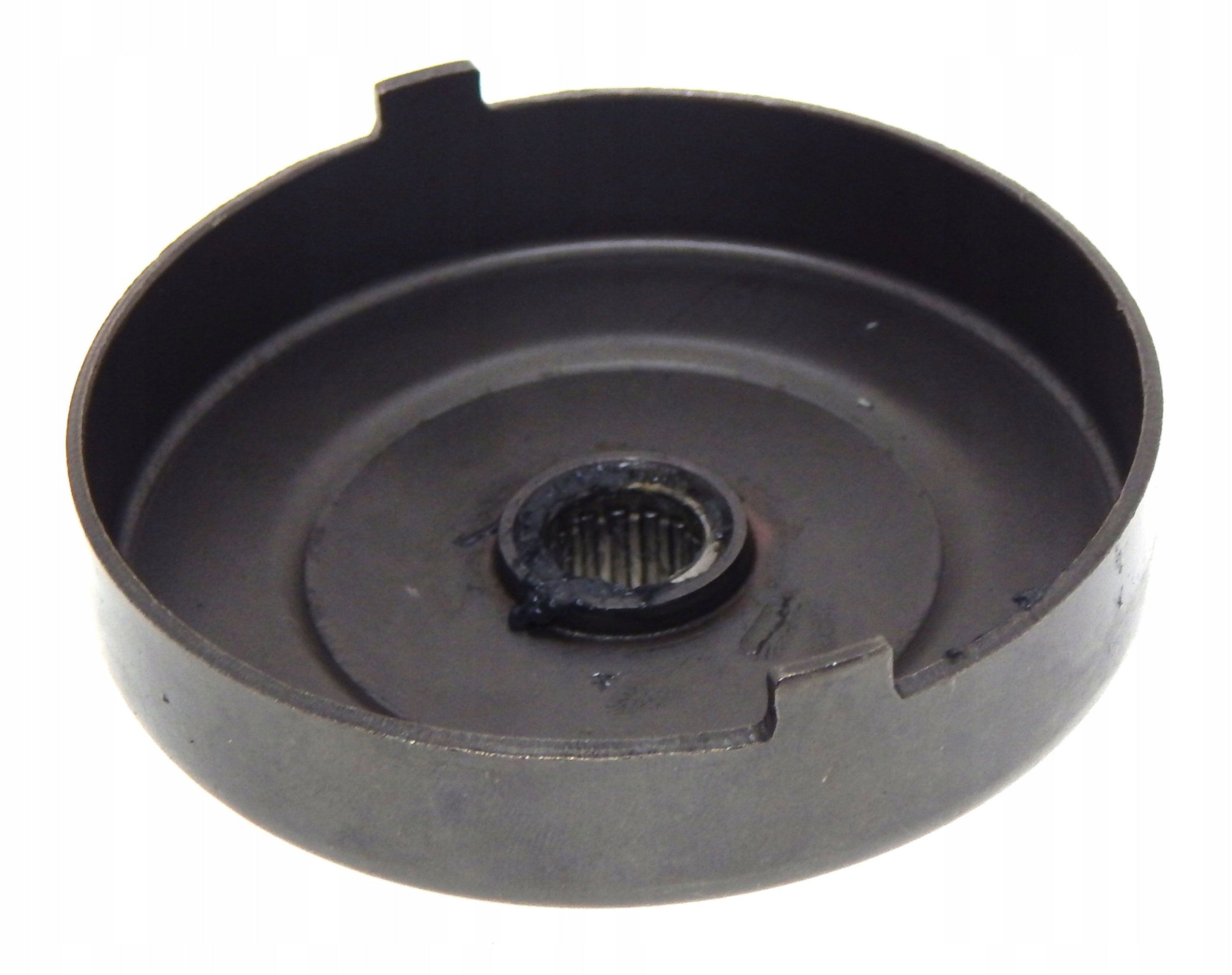

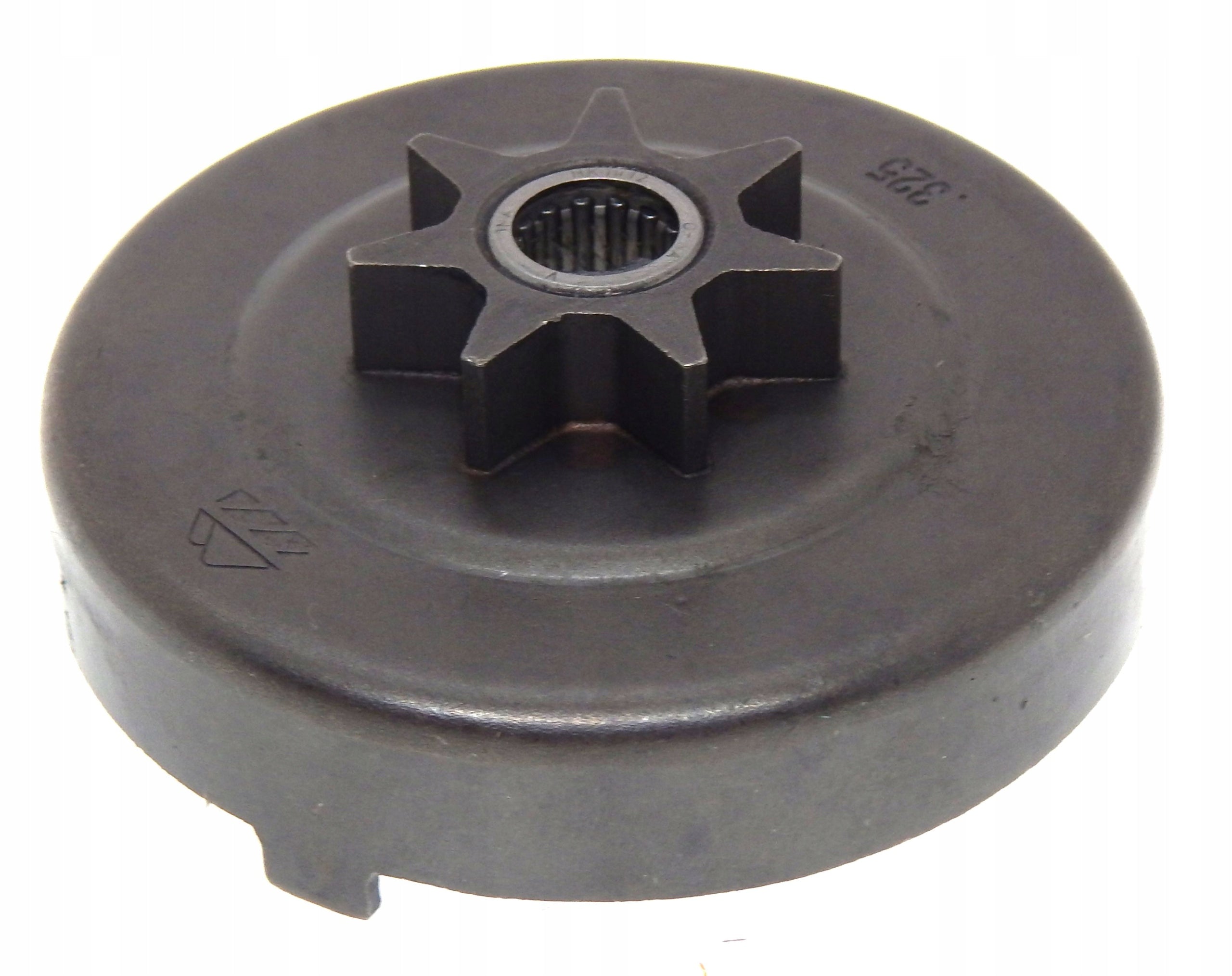

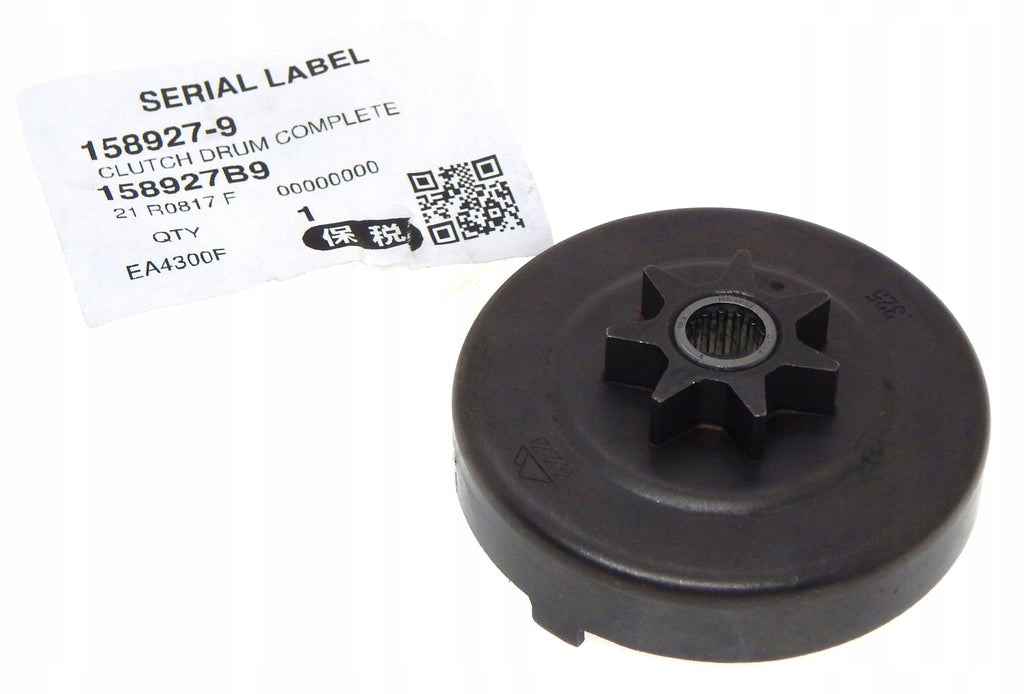

Prekė: Grandininio pjūklo Makita sankabos būgnas EA4300F DCS460 grandinės žvaigždutė EA3500F. Kategorija: Įrankių rinkiniai.

• Gamintojas: Makita
• Modelis: 158927-9

new original

( CLUTCH DRUM COMPLETE / Connecting wheel 325" / PETROL CHAIN SAW / chainsaw / chainsaw )

THE DRUM WORKS ONLY WITH A CHAIN WITH A PITCH OF 325 "

• Manufacturer: Makita
• Manufacturer code: 158927-9
• Catalog No. of original Dolmar part: 181223310 / 181223311 / 181223312
• Item in diagram: nr 135A2 - EA3500F

Application:

saw / chainsaw makita :

• DCS460
• DCS461
• DCS500
• DCS501
• DCS3500
• DCS3501
• DCS4300
• DCS4301
• DCS5000
• EA3500F
• EA3501F
• EA4300F
• EA4301F

dolmar chainsaw / chainsaw :

• PS350
• PS350C
• PS350SC
• PS420
• PS420C

List of parts for EA3500F

item on the diagram, catalog number, product description, quantity:

001-1; 195114642 FUEL TANK CPL.; 1

002-1; 456143-0 Handle outer shell; 1

003-1; 266478-9 Lever plate set 5.5X16; 1

004-1; 456142-2 Line head; 1

005-1; 456141-4 Mushroom head fitted screw; 1

006; 195117010 SPRING; 1

007-1; 195762-4 Air valve set; 1

008; 195114050 FUELLINE; 1

009; 963211020 O-RING; 1

010-1; 424755-7 TUBE 2.5-93; 1

011; 965452660 FUEL TUBE 3MM RED (L=1M); 1

012-1; 168507-3 TANK CAP COMPLETE; 1

013-2; 213080-9 On/off switch cover 29.5; 1

014-1; 163447-0 FUEL FILTER; 1

016-1; 456140-6 Mounting bracket for drapery; 1

017-1; 456151-1 Starter spool; 1

018-2; 234189-4 Pressure spring 12; 4

019-1; 266605-8 M5X16 spacer plate; 4

020-1; 266478-9 Lever plate set 5.5X16; 3

021-1; 266478-9 Lever plate set 5.5X16; 2

022-1; 266478-9 Lever plate set 5.5X16; 2

023-1; 266478-9 Lever plate set 5.5X16; 2

024-1; 346517-2 Carburetor membrane 6; 1

025-1; 459832-6 INTAKE MANIFOLD; 1

026-1; 123453-7 AIR FILTER FLEECE CPL.; 1

026A1; 123452-9 AIR FILTER CPL.NYLON; 1

027; 195131301 CARBURETOR HOUSING CPL.; 1

028-1; 266605-8 M5X16 spacer plate; 2

029-1; 266605-8 M5X16 spacer plate; 2

030-2; 347357-1 Cord; 1

031-1; 456139-1 Channel; 1

032-1; 632F41-0 Short-circuit cable; 1

033-1; 970502120 INSULATING TUBE; 1

034-1; 143330-7 Screw fitted with flat head and 6-angle socket; 1

036-1; 266478-9 Lever plate set 5.5X16; 1

037-1; 266478-9 Lever plate set 5.5X16; 1

038; 908004405 SCREW; 2

041-1; 168398-2 PRIMER PUMP; 1

042-1; 424755-7 TUBE 2.5-93; 1

043-1; 424755-7 TUBE 2.5-93; 1

044-2; 346413-4 BUSH 17; 1

045-1; 424753-1 Inlet hose; 1

046-1; 325939-9 Decompression chamber; 1

048-1; 266605-8 M5X16 spacer plate; 2

049-1; 266612-1 M5X10 spacer plate; 2

050-1; 266943-8 M5X40 spacer plate; 1

052-1; 352027-9 Stem; 1

054; 195174550 MUFFLER WITH CATALIST; 1

055-2; 346304-9 Shoulder strap; 1

056-1; 213085-9 On/off switch cover 20; 1

057-1; 424752-3 Auxiliary roller guard; 1

058-1 183M92-3 NYLON FILTER SET BLACK; 1

058A1; 183M93-1 FLEECE FILTER SET BLACK; 1

059-2; 451462-9 Protective pad; 2

060; 194131202 CYLINDER / PISTON CPL.; 1

061; 194132100 PISTON, PISTON RING & PIN SET; 1

062; 194132020 PISTON RING; 1

063; 195132030 PISTON PIN; 1

064; 195132050 CIRCLIP; 2

065-1; 266960-8 M5X20 spacer plate; 4

066-1; 346925-7 Sticker "sjs2"; 1

067; 195120300 CRANKSHAFT CPL.; 1

068-1; 219024-7 DEEP GROOVE BALL BEARING; 2

069-3; 144393-6 Set of CS crankcase housing; 1

070; 195111622 CRANKCASE LEFT SIDE CPL. BLUE; 1

071-1; 258038-1 Harmonica bushing for dust extraction 3-16; 2

072-1; 346924-9 Crankcase Gasket; 1

073-1; 346928-1 HEAT PROTECTION FOIL; 1

074-2; 346301-5 SPIKE BAR; 1

075-1; 266605-8 M5X16 spacer plate; 2

076-1; 456159-5 Cover; 1

077-1; 168504-9 Exhaust valve; 1

078-1; 266960-8 M5X20 spacer plate; 6

079; 195114060 NIPPLE; 1

086; 195151300 BLIND PLUG; 1

087-1; 168507-3 TANK CAP COMPLETE; 1

088-2; 213080-9 On/off switch cover 29.5; 1

089-1; 161368-0 Cover set; 1

091-1; 346929-9 Portable band saw stand; 1

092-1; 456157-9 Blind plate; 1

093-1; 456138-3 GUIDE; 1

094-2; 266605-8 M5X16 spacer plate; 2

095-1; 816917-5 Switch cover next; 1

096; 962211007 NEEDLE CAGE; 1

100-2; 161365-6 Sponge sleeve cr; 1

103-1; 453783-5 Slip handle; 1

104-1; 267847-7 Square washer 4; 1

105; 021164010 STARTER ROPE 3.0MM L=0.9M; 1

106-1; 195955-3 Set of coil spring; 1

107-2; 455919-2 Handle "loop"; 1

108-1; 234253-1 Pivot spring 20; 1

109; 195160020 STARTER WHEEL; 1

110-1; 266777-9 Starter lever 5X12; 1

111-1; 266605-8 M5X16 spacer plate; 4

112; 980115689 LABEL; 1

113-1; 456137-5 Beater set; 1

114-4; 161357-5 Front arm plate; 1

115-1; 266472-1 M5X20 spacer plate; 2

116-1; 444042-8 ISOLATING TUBE 6-80; 1

117-1; 234358-7 Clamp spring; 1

118-1; 424750-7 PLUG CAP; 1

120-1; 168599-2 SPARK PLUG CMR7A-5; 1

121-2; 143331-5 Flywheel set; 1

122-1; 185166100 STARTER RATCHET SET(2PCS EACH); 2

123-1; 264022-6 HEX. NUT M8X1;1

124-1; 267822-3 Spring washer 8; 1

125-1; 195213502 HAND GUARD COMPLETE; 1

126-1; 266605-8 M5X16 spacer plate; 1

127-1; 325604-0 BUSH; 1

128-1; 450926-0 Limiter housing; 1

129-1; 231870-8 Tension spring 10; 1

130-1; 163500-2 Hitch base; 1

131-1; 257934-0 Harness E-4; 1

132-1; 346029-5 BRAKE BAND; 1

133-1; 259045-7 Harness (EXT) E-8; 1

134-1; 267820-7 Washer 29; 1

135-2; 143339-9 Clutch drum assembly; 1

135A2; 158927-9 Connecting wheel 325"; 1

136-2; 127443-2 CLUTCH ASSEMBLY; 1

137-2; 232352-3 Tension spring 6; 3

138-1; 267389-1 Port cover 12; 1

139-3; 161346-0 OIL PUMP COMPLETE; 1

142; 181245100 OIL LINE CPL.; 1

143-1; 231975-4 Sealing sleeve; 1

144; 001245020 HOSE STEM; 1

145-1; 424178-9 OIL TUBE; 1

146-1; 326596-6 BUSH; 1

147-1; 450956-1 PUMP DRIVE; 1

148-1; 266605-8 M5X16 spacer plate; 2

150-1; 818N32-5 CAUTION LABEL; 1

154; 195232020 BOLT; 1

155-1; 266978-9 BOLT; 2

156; 195232040 BOLT; 1

157-1; 346927-3 Chain brake cover; 1

158-1; 266477-1 Spacer plate M5X12; 2

159-1; 161791-9 SPROCKET GUARD CPL. MAKITA ; 1

160-1; 252145-2 COLLARED HEX NUT M8; 2

161; 195213300 CHAIN TENSIONER COMPLETE; 1

162-1; 251480-5 Starter lever 3.5X9.5; 1

163; 963207020 O-RING; 1

164-1; 227744-9 Screw gear 18; 1

165-1; 227743-1 Screw gear 11; 1

166-2; 452667-4 Resistance ring; 1

167-2; 347252-5 Tension guide; 1

168; 181213260 TENSIONING SCREW BEARING; 1

169-1; 346518-0 Fixed skid; 1

187; 266977-1 Self-tapping screw bt with mushroom head; 1

188; 266605-8 M5X16 spacer plate; 1

300; 195151102 CARBURETOR CPL.; 1

302; 119151350 SHAFT CLIP; 1

306; 021151120 DIAPHRAGM COVER; 1

307; 195151350 PUMP COVER; 1

308; 957151200 KIT THROTTLE SHAFT; 1

309; 957151210 KIT CHOKE SHAFT; 1

321; 957151220 SET DIAPHRAGM / GASKETS; 1

323; 021151150 PUMP DIAPHRAGM,RUBBER; 1

325; 118151190 SCREW; 1

326; 378151210 IDLE STOP SCREW; 1

328; 378151220 SCREW; 4

330; 021151230 PRESSURE SPRING; 1

331; 957151240 SET SPRINGS / WASHERS; 1

332; 001151310 SPRING; 1

335; 195151490 SPRING; 1

337; 195151520 IDLE ADJUSTMENT SCREW; 1

338; 195151530 MAIN ADJUSTMENT SCREW; 1

343; 021151180 SCREEN; 1

346; 957151070 ACCELERATOR PUMP SET; 1

348; 957151230 SET OF CONTROL PARTS; 1

349-1; 195160691 STARTER HOUSING BLUE; 1

A01-1; 165200-0 GUIDE BAR 12; 1

A01A_; 442035661 GUIDE BAR STD 14"3/8".050" M; 1

A01B_; 442040661 GUIDE BAR STD 16"3/8".050" M; 1

A02; 528092646 SAW CHAIN 12"; 1

A02A_; 528092652 SAW CHAIN 14"; 1

A02B_; 531492656 SAW CHAIN; 1

A03; 558092010 TIE STRAP WITH RIVETS 3/8LP050; 1

A04; 558092000 TIE STRAP 3/8LP 1.3MM/.050"; 1

A09; 952010630 CHAIN PROTECTION; 1

A09A1; 419560-5 Outlet valve socket 430; 1

A11-1; 941713161 UNIVERSAL WRENCH; 1

A12-1; 782025-3 Inlet set; 1

A13-1; 783012-5 Screw with flange and 6-angle socket; 1
