Grandininė juosta Baribal 15" 38 cm .325 1,5 mm 64 grandys

Trumpai apie prekę

Prekė: Grandininė juosta Baribal 15" 38 cm .325 1,5 mm 64 grandys. Kategorija: Grandininiai pjūklai.

• Gamintojas: Baribal
• Modelis: B38-15-325L/64Bl

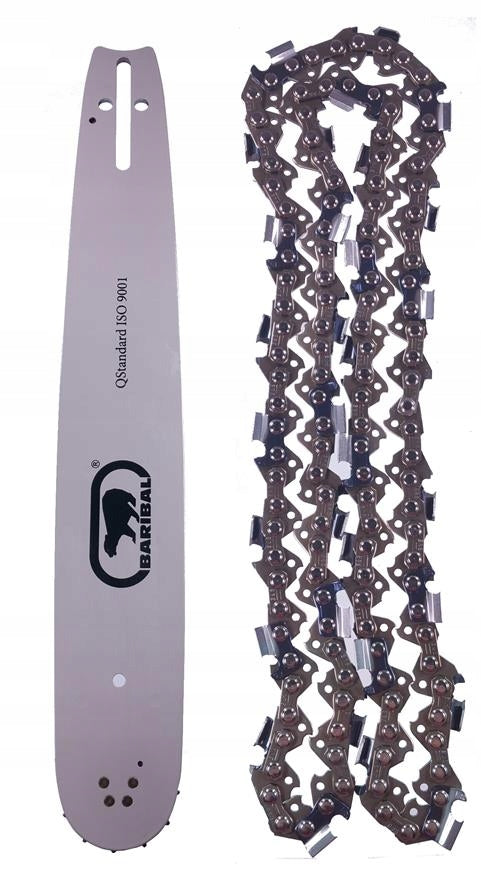

Guide + chain Baribal 325 1,5mm 38cm 15

Guide + chain BARIBAL



General information:

The Baribal Poland guides are made of abrasion-resistant manganese steel Mn65 with additional self-hardening properties during operation. Each guide is laminated and bonded with 4 rivets. The Baribal Poland guides are manufactured in accordance with ISO 9001 quality standards. The guides have been made with the following standards and certificates: CE, GS, RoHs, ReaCH, UL, which guarantees long-term use.

Parameters of the guide:

Manufacturer:BARIBAL POLAND

Jump:0,325" (16,7 mm)

Guide groove width:1,5 mm

For the number of guide cells:64

For the number of cutting teeth:32

Working length of guide A:38 cm / 15"

Total length of guide B:44,5 cm

Guide designation:B38-15-325-095

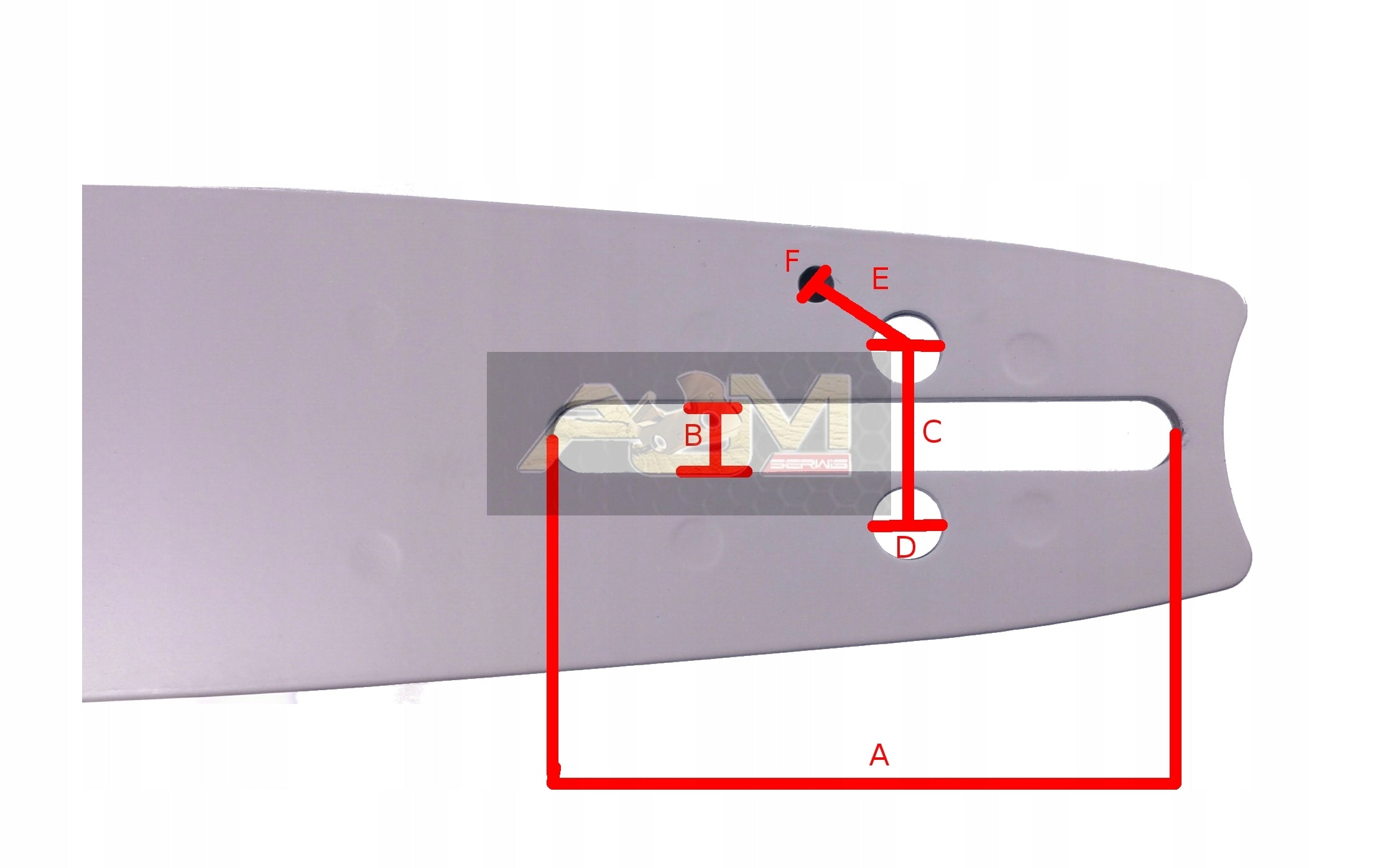

Dimensions: A ~ 75mm; B ~ 8,5mm; C ~ 22mm; D ~ 8,5mm; E ~ 14mm

3/8" with .325"



Interchangeably used with guides marked:

OREGON: 158SLGK095, 158PXBK095, 158SLBK095

HUSQVARNA: 508912164 , 508912364

SOLO: 6900343 , 6900343K , 6900343N

DOLMAR: 415038631

MAKITA: 445038631

WINDSOR: 15CJL58SPNJ

Tri Link L2581564-11095TL

Carlton 15-01W-K2-TC12 15-01W-K264-TC

Ratioparts 210-214

Lagros 138-795

LEADER / FAVOURITE / HANDY: BE16-64-5810P - can be used interchangeably

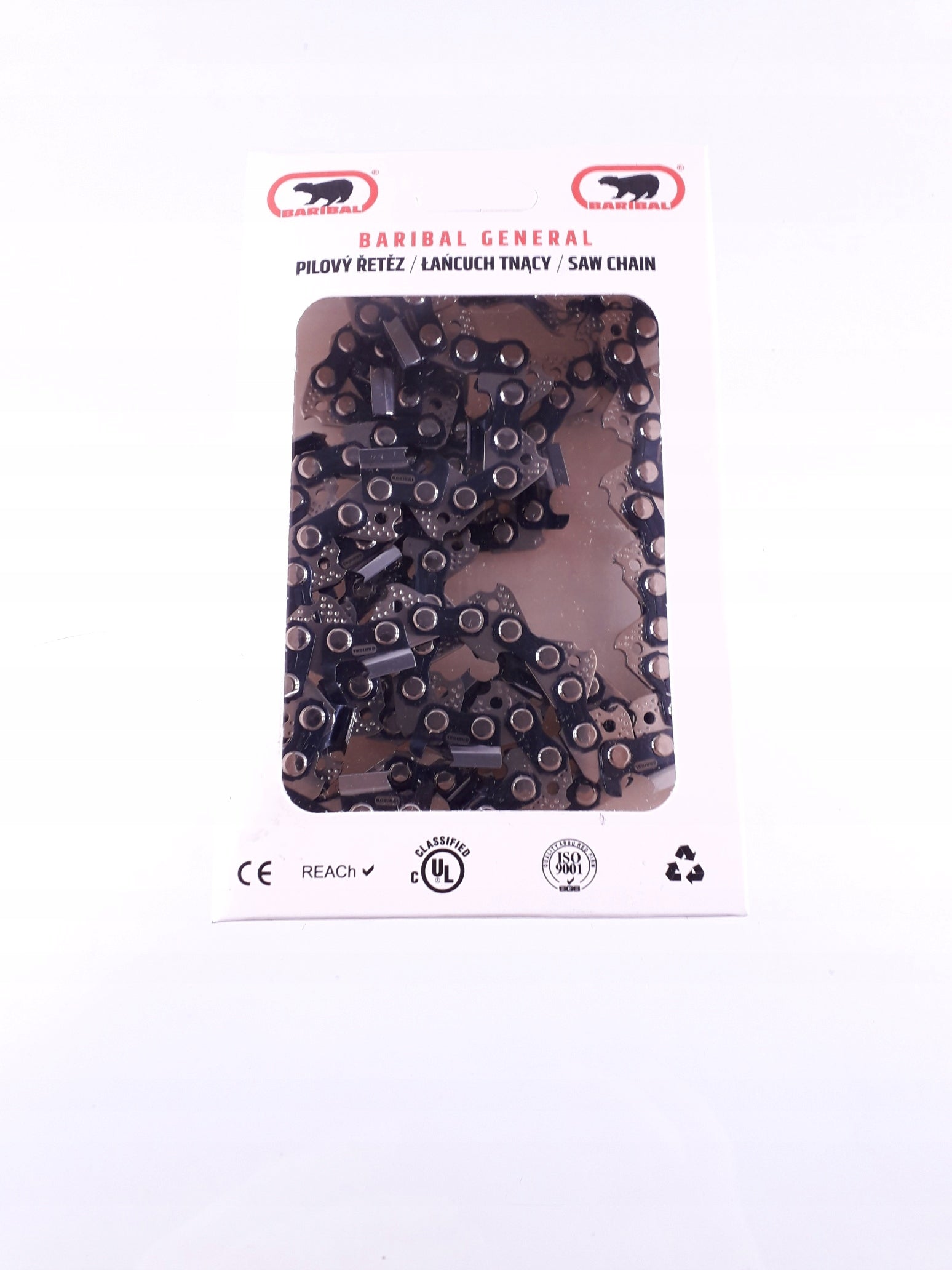

Chain parameters:

Manufacturer:BARIBAL POLAND

MODEL:ES325FC15

Replacements:K2, 21LPX

For guide:38 cm / 15" (working length)

Jump:.325

Guide cell width:1,5 mm

Number of cutting teeth:32

Number of guide links:64



Fits to:

NAC: SPS01-45 (.325”), SPS01-52, SPS02-45, YD, TT-CS 4500, TT-CS 5200, NO-CS38, CA-CS, CST 45, CST 52, CST 61, CG-KW (EXCLUDING 38).

Number of links - length in inches of guide (serial mounted NAC cutting systems)

• (60 - 14", 66-16", 72-18", 76-20", 78-20" - CHAINS .325 1,5MM,
• 57 - 16", 60-18", 62-18", 64-18" CHAINS 3/8 1,3MM)

• Alpina A40, A40E, P41, P45, PROF-41, PROF-45, P400, P450, P460, P500, P510, PRO-540, PRO-600
• Dolmar 109, 110, 110i, 111, 112, 113, 114, 115i, 116, ES1800, PS460, PS500, PS500C, PS510, PS540, PS4600, PS4600S, PS4600SH, PS4605, PS4605H, PS5000, PS5000H, PS5100S, PS5105, PS5105C, PS5105CH, PS5105H, PS6100
• Efco 142, 146, 147, 151, 152, 156, 162, 165
• Einhell PKS45/1AV, PKS50/1AV
• Favorite: MG 52 RG 46 RG52 RG5300-18 RG 5300B3-18
• GO-ON: RG 4640 RG5300-18A
• Handy: HP 4945 RG 5300-18 RG5300-18A RG 4600-16
• Husqvarna 33, 36, 38, 40, 40P, 41, 42, 44, 45, 49, 50, 51, 55, 55 Rancher, 57, 133, 136, 137, 140, 140S, 141, 142, 154, 234, 235, 238, 240, 242, 242XP, 243, 246, 254, 254XP, 254XPG, 257, 261, 262, 262XP, 262XPG, 336, 339XP, 340, 345, 346, 346XP, 346XP TrioBrake, 34
• Jonsered 45, 49, 49SP, 50, 51, 52, 370, 380, 410, 420, 425, 435, 450, 451, 455, 490, 510, 520SP, 521, 525, 535, 590, 2036, 2040, 2041, 2045, 2051, 2054. 2063, 2159, 2163
• Leader: VPS 45 RG 46 TS460 TS520 RG4600-16 RG 4600-16A RG5300-18 RG 5318
• MAKITA: 45, DCS430, DCS43001, DCS4300I, DCS431, DCS460, DCS4600S, DCS4630, DCS500, DCS5000, DCS5030, DCS520, DCS5200I.
• NAC: SPS01-45 (.325”), SPS01-52, SPS02-45, YD, TT-CS 4300, TT-CS 5200, NO-CS38, CA-CS, CST 45, CST 52, CST 61, CG-KW (EXCLUDING 38)
• OLEO-MAC OLYMPIC: 940, 942, 945, 946, 950, 951.
• PARTNER: EL1400, 360, 365, 400, 405, 450, 465, 500, 545, 550, P5500.
• PIONEER: P21, P25, P26, P28, 1072, 1073, 1074.
• POULAN: 325
• REDMAX OF ZENOAH: G390, G450AVS, G455AVS, G5000, 5000AVS
• SOLO: 613, 614, 631, 632, 634, 638, 639, 641, 644, 645, 647, 650, 651, 651SP.
• Texas: TS450-18 TS 500-18



In the offer guides .325 1,5 13"-33cm; 15"- 38cm; 16" -40cm; 18" - 45cm; 20" - 50cm (working lengths given)

Also guides for 3/8 x 1,3; 3/8 x 1,5; 3/8 x 1,6; .325 x 1,3 and others

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Baribal
Parametry	Manufacturer code	B38-15-325L/64Bl
Parametry	EAN (GTIN)	88032154121254
Parametry	Batteries included	no
Parametry	Power supply	combustion
