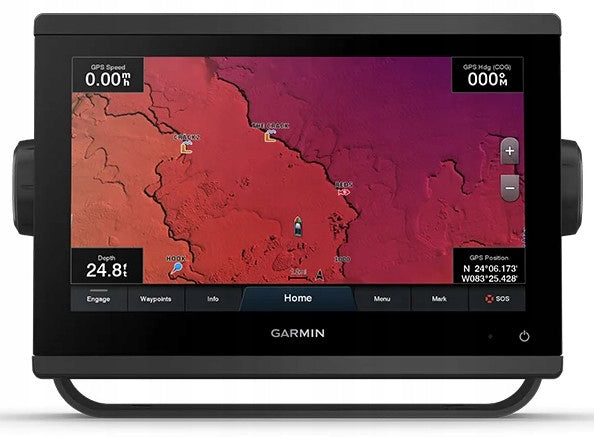

GPS navigatorius Garmin GPSMAP 1223xsv su Panoptix Livescope LVS34 ir GLS10

Trumpai apie prekę

Prekė: GPS navigatorius Garmin GPSMAP 1223xsv su Panoptix Livescope LVS34 ir GLS10. Kategorija: Echolotai.

• Gamintojas: Garmin
• Modelis: GPSMAP 1223xsv + SideVü + ClearVü + CHIRP

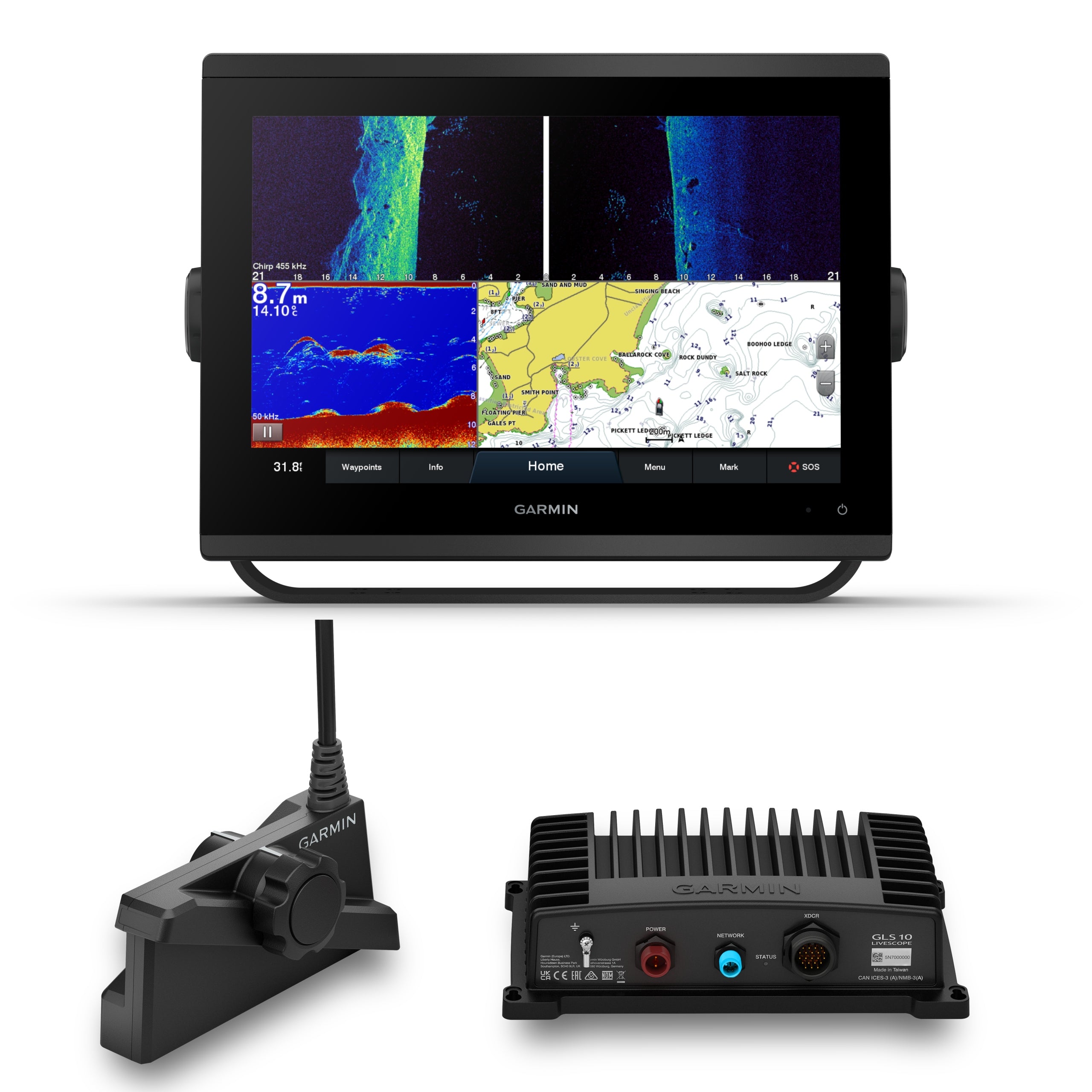

The subject of the offer is a new GPS Plotter Kit with Garmin GPSMAP 1223xsv and Panoptix Livescope LVS34 sonar module with GLS10

Main features of the plotter:

• Color multi-touch IPS screen 12" WXGA 1280 x 800 pixels
• good visibility in polarized glasses
• Menu in Polish and metric system
• rich color palette of the displayed image
• 10 position very bright screen backlight

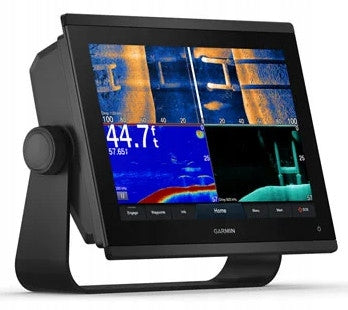

• possibility of vertical and horizontal division of the screen up to 4 windows
• Supported traditional frequencies: 50/77/83/200 kHz and CHIRP (low, medium and high frequencies)
• realistic lower scan CHIRP ClearVü 260/455/800 kHz and UHD ClearVü 800/1000/1200kHz

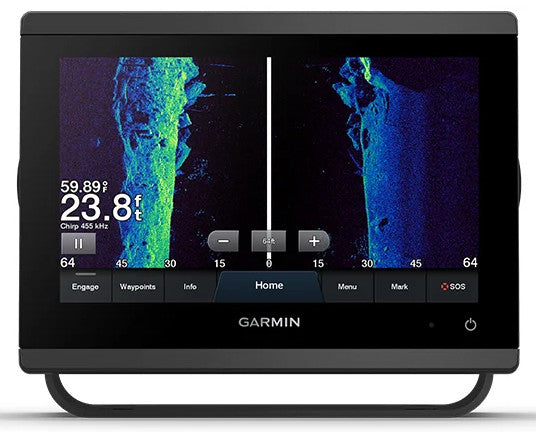

• realistic side scanning CHIRP SideVü™ 260/455/800 kHz and UHD SideVü 800/1000/1200kHz (depending on the transducer
• built-in precision GPS 10Hz: marking positions up to 5000 points, drawing the trace traveled, boat speed, the ability to read maps
• Quickdraw Contours allows you to create your own bathymetric maps in HD quality while swimming
• maximum ranges depending on the transducer (1500 m with 1kW transducer)
• measurement of power source voltage
• max. current consumption 3,56 A, typical 1,7A
• supply voltage 10-32V DC
• Operating temperature -15°C to +55°C
• waterproof housing class IPX 7
• slot for two micro SD memory cards up to 32 GB
• Ability to read maps: BlueChart g3 HD and BlueChart g3 Vision HD
• Built-in Wi-Fi module that allows you to pair with the free ActiveCaptain application with HELM
• The ability to transfer the image to the phone and control the sonar through the application

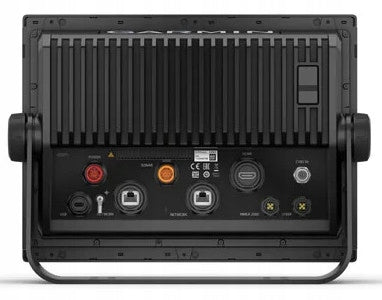

• communication NMEA2000
• communication NMEA0183
• communication J1939
• Radar support
• Support for Panoptix converters (except Livescope LVS12)
• HDMI video output
• BNC video input
• micro-USB port to external card reader Garmin
• 2 Ports GARMIN MARINE NETWORK

Main features of Livescope:

• frequency of transducer 530 - 1100 kHz
• transducer power 500 W
• beam width 20° x 135°
• maximum forward range 61 m
• maximum range down 61 m
• 21 W average current consumption
• max. power consumption 58 W
• supply voltage 10-32V DC
• Operating temperature -15°C to +40°C
• waterproof housing class IPX 7
• Data output - Garmin Marine Network
• Minimum depth: 0,91 m (3′)
• Transducer cable length: 6,1 m (20′)
• Number of Transducer Contacts: 21
• DISTINGUISHING OBJECTS AT A DEPTH OF 30,48 M - 14"

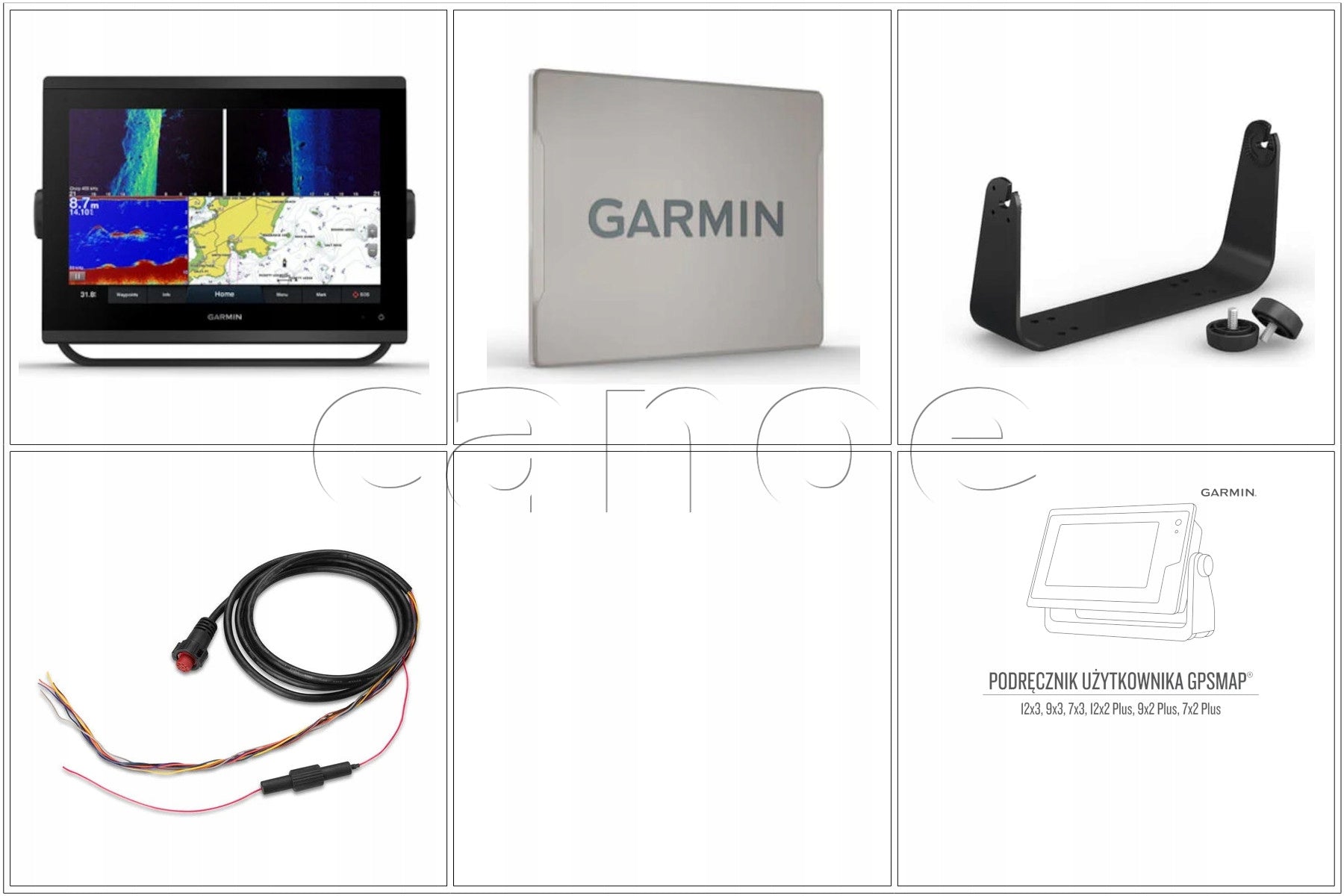

By purchasing from this listing you will receive:

• sonar screen
• screen protector
• Tilting handle with knobs
• power cable with fuse
• NMEA 2000® Tee
• Connection cable NMEA 2000 (2 m)
• Recessed mounting kit with gasket
• Adaptive cable with 8-pin transducer connector and 12-pin sonar
• Pre-installed microSD™ card
• instruction in Polish uploaded in the device

• Black box LiveScope GLS10
• Panoptix LVS34 transducer
• Outboard motor shaft mounting bracket
• Outboard motor body mounting bracket
• Holder for Perspective mode
• Power cord
• Two-meter Garmin Marine Network cable (small connector)
• Network Adaptation Cable for Garmin Marine Network
• Mounting elements
• instruction in Polish
• 2-year warranty

ULTRA HIGH-DEFINITION SCANNING ECHO SOUNDER

Buy the built-in Ultra High-Definition SideVü and ClearVü scanning sonars with vibrant, high-contrast color palettes that make it easy to distinguish fish from other objects. The GPSMAP® 1223xsv also supports a traditional 1 kW CHIRP echo sounder.

ECO-SOUND PANOPTIX™

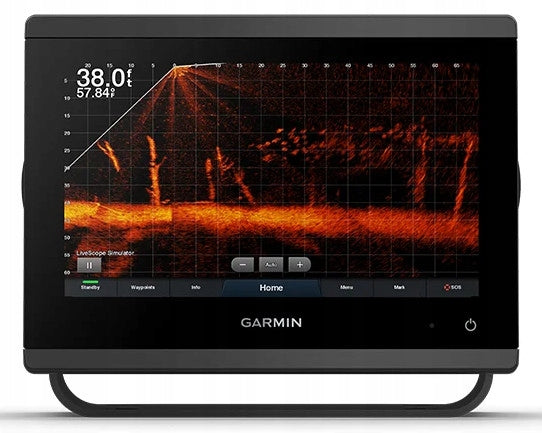

Panoptix LiveScope Plus is the latest real-time imaging system for the underwater world of Garmin. We get three LiveScope™ modes with down beam and LiveScope™ with forward beam and LiveScope™ with perspective mode in one transducer. Thanks to them, we can easily adjust the mode of operation of the transducer to the fishing technique. Thanks to this technology, we can see exactly what is happening under and around our boat. We can look forward and observe the work of our bait and the reaction of the fish passing by. We can look down fishing vertically and see live fish swimming into our bait. The image quality allows you to identify species of larger fish.

The transducer is equipped with stabilisation of the reference system and the AHRS course, thanks to which the view on the sonar is clear even in difficult conditions with high water undulation.

FASTER, CLEARER, SMARTER

With its ultra-thin design, vibrant sonar color palette, and high-resolution IPS screen with a 12˝ diagonal, this large-format multifunction device provides better readability in sunlight and a wide viewing angle.

OPTIONAL BLUECHART® G3 VISION® MAPS

These optional maps provide the best data from Garmin and Navionics®, automatic navigation technology and other advanced navigation features.

GARMIN MARINE NETWORK

If there are multiple Garmin devices available on the boat, you can share different data between them, e.g. maps, user data, radar and IP cameras.

NMEA 2000® AND NMEA 0183 NETWORKS

Connect to autopilot systems, digital switching, weather monitoring, FUSION-Link™ audio system, multimedia, VHF, AIS and many other devices from a single screen.

ACTIVECAPTAIN® APPLICATION

The built-in Wi-Fi® module allows you to pair with a free, universal mobile application, which provides access to OneChart™, phone notifications, software updates, Garmin Helm™ digital switching, Garmin Quickdraw™ community data and more.

INTEGRATED ANT® TECHNOLOGY

Connect to your favorite devices like quatix® watches, gWind™ Wireless 2 pickups, GNX™ Wind marine instruments, and wireless remote controls.

J1939 CONNECTIVITY

Now you can connect your navigation plotter to a variety of engines, including Yamaha engines.

ONEHELM™ FUNCTION

This unique feature combines all the operations and capabilities of selected third-party devices, such as EmpirBus™ digital switching, on a single screen.
