GPS navigacija Garmin GPSMAP 1223xsv be jutiklio

Trumpai apie prekę

Prekė: GPS navigacija Garmin GPSMAP 1223xsv be jutiklio. Kategorija: Echolotai.

• Gamintojas: Garmin
• Modelis: GPSMAP 1223XSV

The subject of the offer is a new echo sounder with GPS Garmin GPSMAP 1223xsv without transducer

p/n 010-02367-02

Main features:

• Color multi-touch IPS screen 12" WXGA 1280 x 800 pixels
• good visibility in polarized glasses
• Menu in Polish and metric system
• rich color palette of the displayed image
• 10 position very bright screen backlight

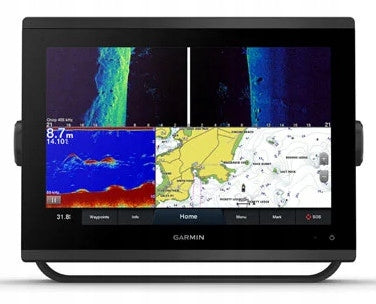

• possibility of vertical and horizontal division of the screen up to 4 windows
• Supported traditional frequencies: 50/77/83/200 kHz and CHIRP (low, medium and high frequencies)
• realistic lower scan CHIRP ClearVü 260/455/800 kHz and UHD ClearVü 800/1000/1200kHz
• realistic side scanning CHIRP SideVü™ 260/455/800 kHz and UHD SideVü 800/1000/1200kHz (depending on the transducer
• built-in precision GPS 10Hz: marking positions up to 5000 points, drawing the trace traveled, boat speed, the ability to read maps
• Quickdraw Contours allows you to create your own bathymetric maps in HD quality while swimming
• maximum ranges depending on the transducer (1500 m with 1kW transducer)
• measurement of power source voltage
• max. current consumption 3,56 A, typical 1,7A
• supply voltage 10-32V DC
• Operating temperature -15°C to +55°C
• waterproof housing class IPX 7
• slot for two micro SD memory cards up to 32 GB
• Ability to read maps: BlueChart g3 HD and BlueChart g3 Vision HD
• Built-in Wi-Fi module that allows you to pair with the free ActiveCaptain application with HELM
• The ability to transfer the image to the phone and control the sonar through the application
• communication NMEA2000
• communication NMEA0183
• communication J1939
• Radar support
• Support for Panoptix converters (except Livescope LVS12)

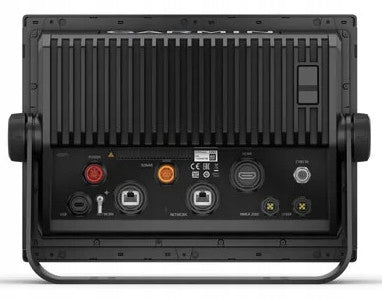

• HDMI video output
• BNC video input
• micro-USB port to external card reader Garmin
• 2 Ports GARMIN MARINE NETWORK

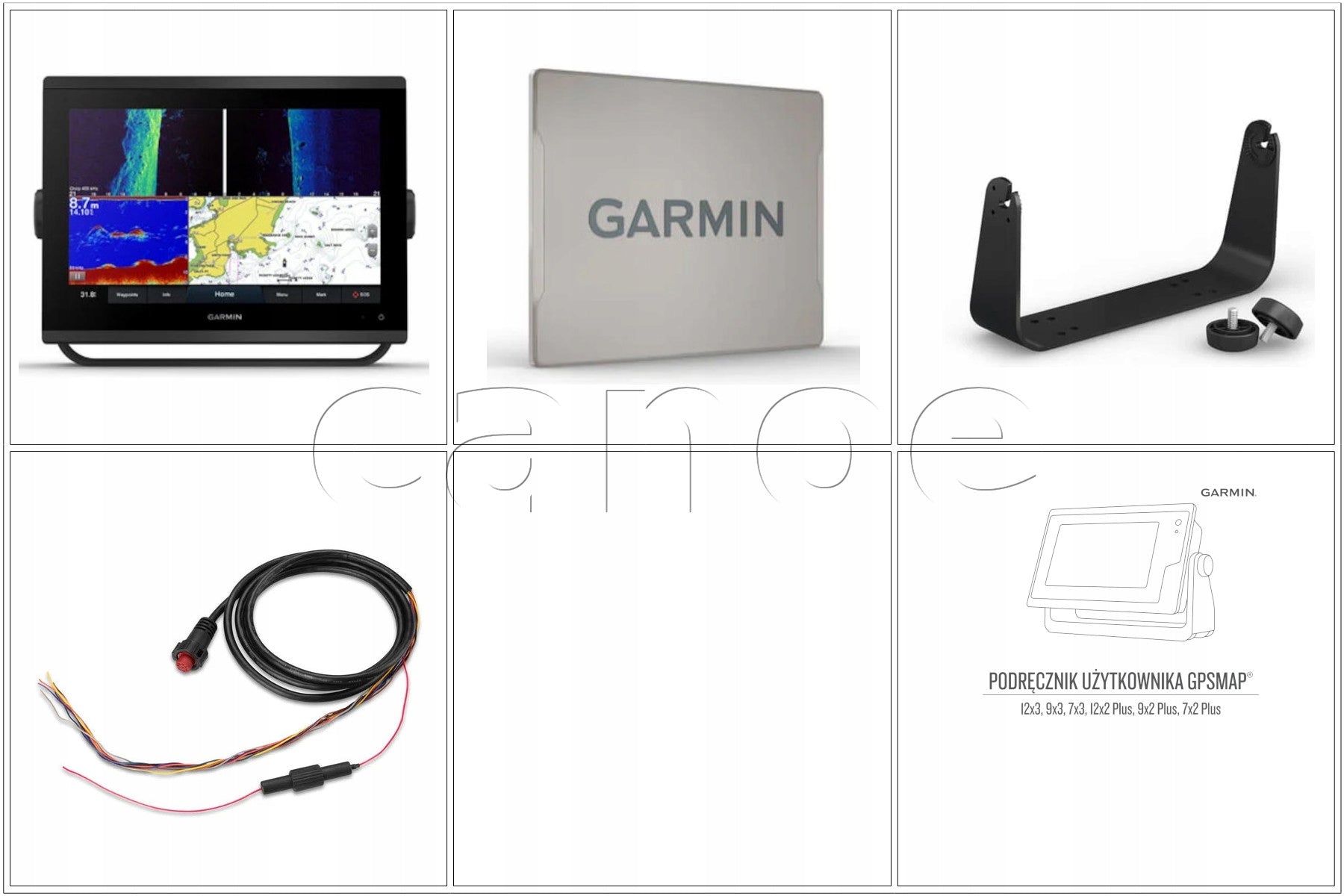

By purchasing this product you get:

• sonar screen
• screen protector
• Tilt handle with knobs
• power cable with fuse
• NMEA 2000® Tee
• Connection cable NMEA 2000 (2 m)
• Recessed mounting kit with gasket
• Adaptive cable with 8-pin transducer connector and 12-pin sonar
• Pre-installed microSD™ card
• instruction in Polish uploaded in the device

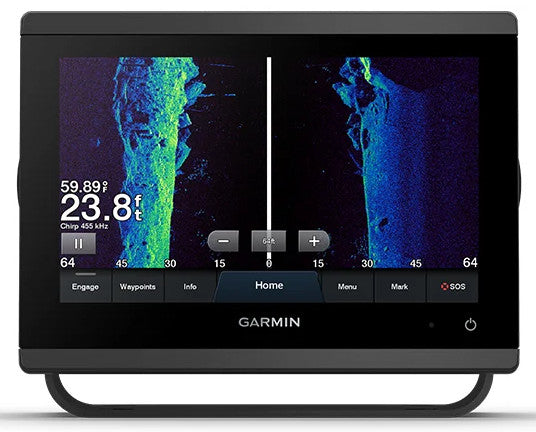

ULTRA HIGH-DEFINITION SCANNING ECHO SOUNDER

Buy the built-in Ultra High-Definition SideVü and ClearVü scanning sonars with vibrant, high-contrast color palettes that make it easy to distinguish fish from other objects. The GPSMAP® 1223xsv also supports a traditional 1 kW CHIRP echo sounder.

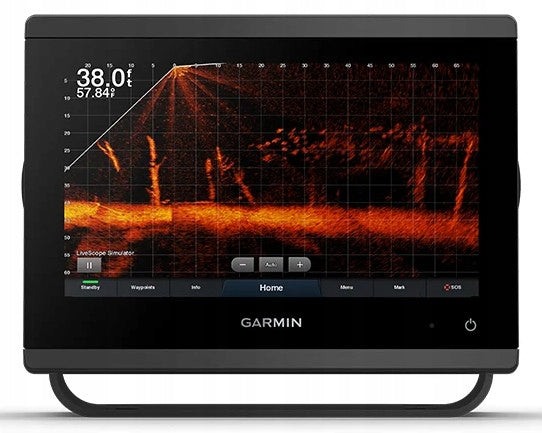

SUPPORT FOR PANOPTIX™

Pair with Panoptix or Panoptix LiveScope™ sonars delivering an easy-to-interpret live image (converter to be purchased separately) that allows you to observe the area around the boat in real time.

FASTER, CLEARER, SMARTER

With its ultra-thin design, vibrant sonar color palette, and high-resolution IPS screen with a 12˝ diagonal, this large-format multifunction device provides better readability in sunlight and a wide viewing angle.

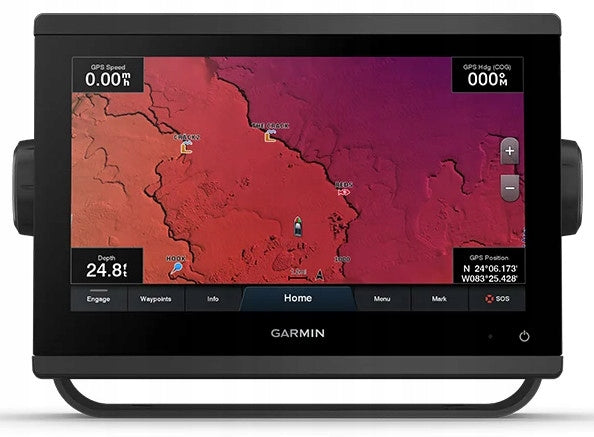

OPTIONAL BLUECHART® G3 VISION® MAPS

These optional maps provide the best data from Garmin and Navionics®, automatic navigation technology and other advanced navigation features.

GARMIN MARINE NETWORK

If there are multiple Garmin devices available on the boat, you can share different data between them, e.g. maps, user data, radar and IP cameras.

NMEA 2000® AND NMEA 0183 NETWORKS

Connect to autopilot systems, digital switching, weather monitoring, FUSION-Link™ audio system, multimedia, VHF, AIS and many other devices from a single screen.

ACTIVECAPTAIN®

The built-in Wi-Fi® module allows you to pair with a free, universal mobile application, which provides access to OneChart™, phone notifications, software updates, Garmin Helm™ digital switching, Garmin Quickdraw™ community data and more.

INTEGRATED ANT® TECHNOLOGY

Connect to your favorite devices like quatix® watches, gWind™ Wireless 2 pickups, GNX™ Wind marine instruments, and wireless remote controls.

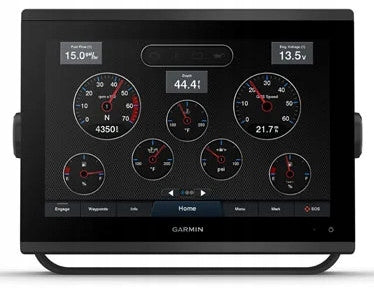

J1939 CONNECTIVITY

Now you can connect your navigation plotter to a variety of engines, including Yamaha engines.

ONEHELM™ FUNCTION

This unique feature combines all the operations and capabilities of selected third-party devices, such as EmpirBus™ digital switching, on a single screen.
