GoolRC rinkinys: 3650 4300KV bešepetėlinis variklis, 60A ESC, servomechanizmas

Trumpai apie prekę

Prekė: GoolRC rinkinys: 3650 4300KV bešepetėlinis variklis, 60A ESC, servomechanizmas. Kategorija: Nuotolinio valdymo.

• Gamintojas: GoolRC
• Modelis: 0755732934689
• Spalva: gold
• Medžiaga: other

RC Motor Combo Set 3650 4300KV Motor 60A Brushless ESC 20kg Servo with 25T Servo Arm for 1/10 RC Car Truck Off Road

Features

Made of high-quality components to achieve reliable power, which suits for 1/10 scale RC car.

High purity copper windings and high-power output raising efficiency and recision engineered for maximum energy conversion.

100% Waterproof characteristic exists in all parts of this set, which allows it eminently practical, strong and durable.

​High torque servo provides accurate movement.

The ESC with built-in 5.8V / 3A BEC features fast response to throttle input and accurate throttle linearity.

Multiple conservation functions including low voltage cut-off conservation for lithium or nickel battery, over-heat conservation, throttle signal loss conservation and motor blocked conservation.

An economical combo comes with a 3650 4300kv motor, a 60A ESC and a 20kg servo is more convenient for DIY.

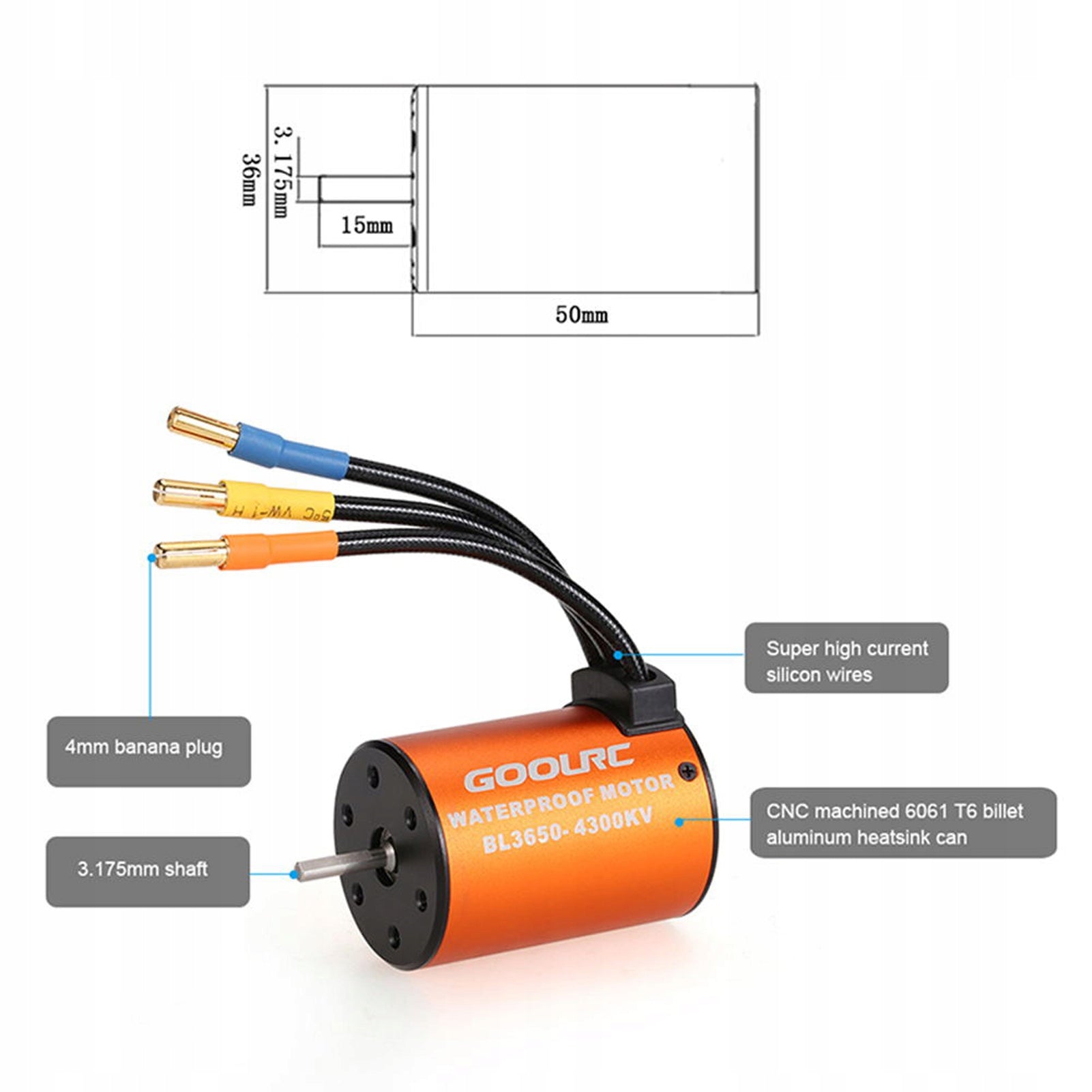

Motor Specifications:

Watts: 900W

Maximum voltage: <12V

Maximum Amps: 75A

KV(RPM/Volt): 4300KV

Maximum RPM: 50000

Diameter: 36mm

Length: 50mm

Shaft length: 15mm

Shaft diameter: 3.175mm

Plug type: 4mm golden banana plug

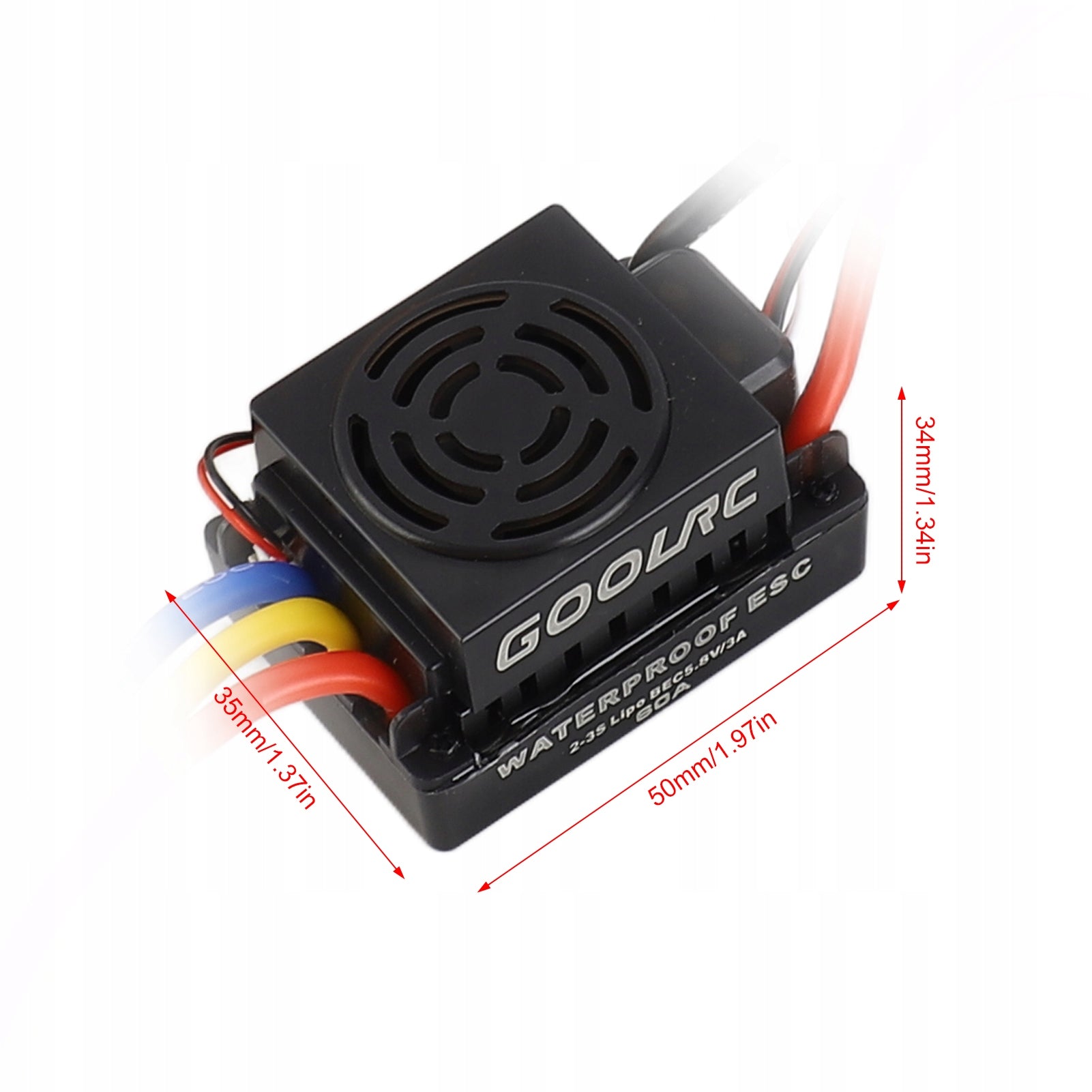

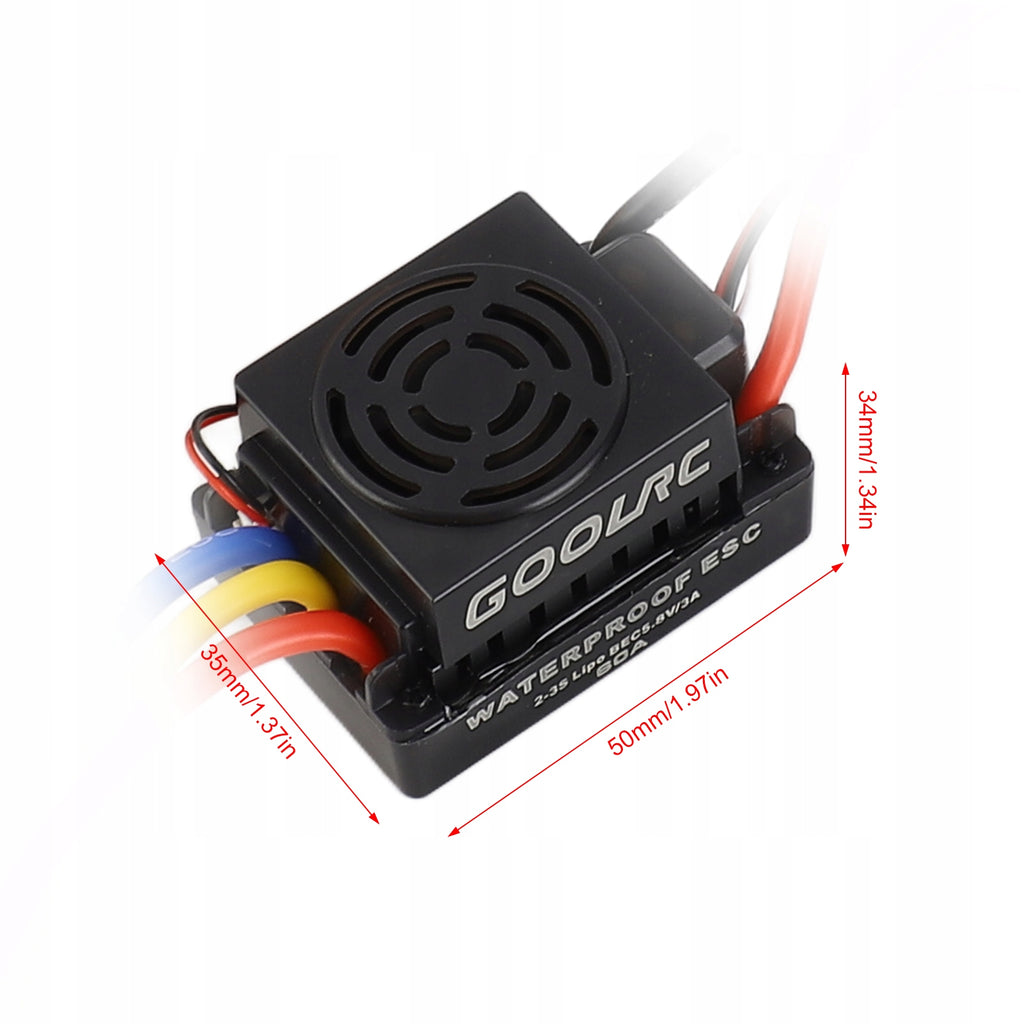

ESC Specifications:

Item name: water resistant ESC

Continue current: 60A

Burst current: 320A

Battery: 2sLi-Po / 4-9S Ni-Mh Ni-Cd

BEC output: 5.8V / 3A

Power supply plugs: T plug male

Motor plugs: 4mm banana plug female

Dimension: 50 * 35 * 34mm / 2.0 * 1.4 * 1.3in (without cables)

Servo Specifications: 20kg servo black/red shipped randomly

Bearing: 2BB

Dead band: 1μs default

Mechanical Angle: 120°

Water Resistant: Yes

Operating Voltage: DC6.0~7.4V

Working frequency: 1500μs/330hz

Operating Speed (6.0V): 0.23sec/60 degrees

Operating Speed (7.4V): 0.20sec/60 degrees

Stall Torsion (6.0V): 20kg.cm (239.05oz/in)

Stall Torsion (7.4V): 22kg.cm (294.75oz/in)

Item Size: 40 * 39 * 20mm

Weight: 76g

Connector Wire Length: JR300 mm (12.6in)

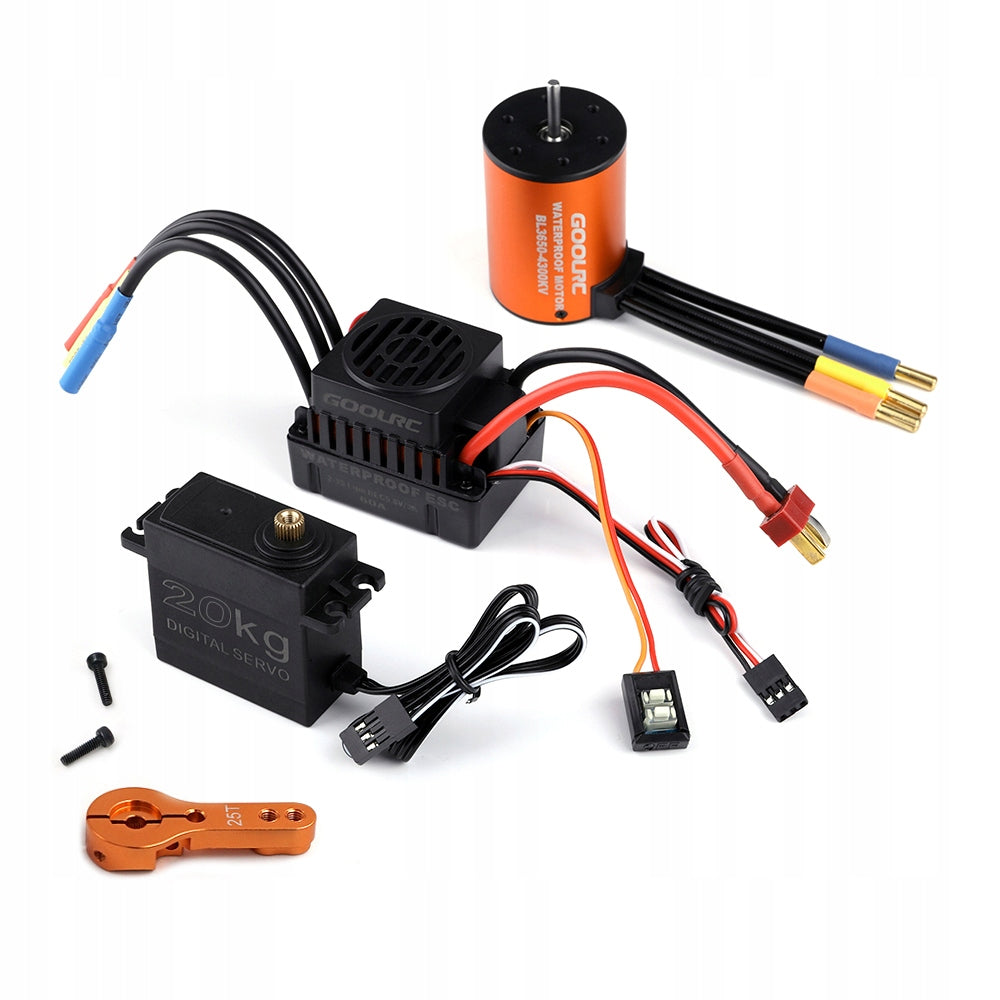

Package List

1 x 3650 4300KV Motor

1 x Water Resistant 60A Brushless ESC

1 x 20kg Servo

1 x 25T Adjustable Metal Servo Arm

Note

The color of the motor wire head is shipped randomly

There could be a few deviations due to manual measurement or slight color difference owing to photographing condition. Thank you for your understanding.
