Gnybtų suspaudimo replės KNIPEX 97 78 180, 0,25–16 mm

Trumpai apie prekę

Prekė: Gnybtų suspaudimo replės KNIPEX 97 78 180, 0,25–16 mm. Kategorija: Replės, žirklės, žnyplės.

• Gamintojas: Knipex
• Modelis: 97 78 180
• Ilgis: 180 mm

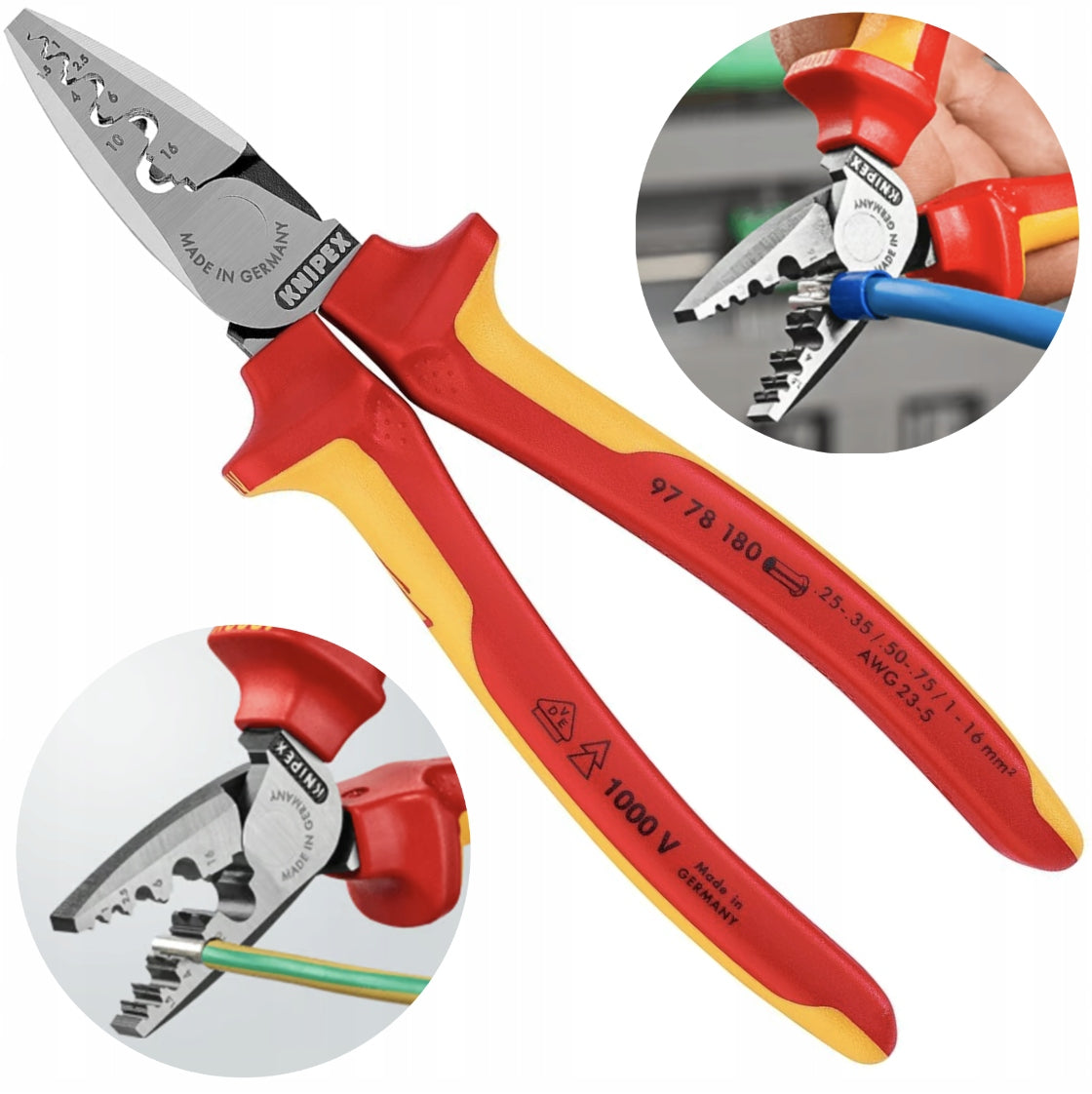

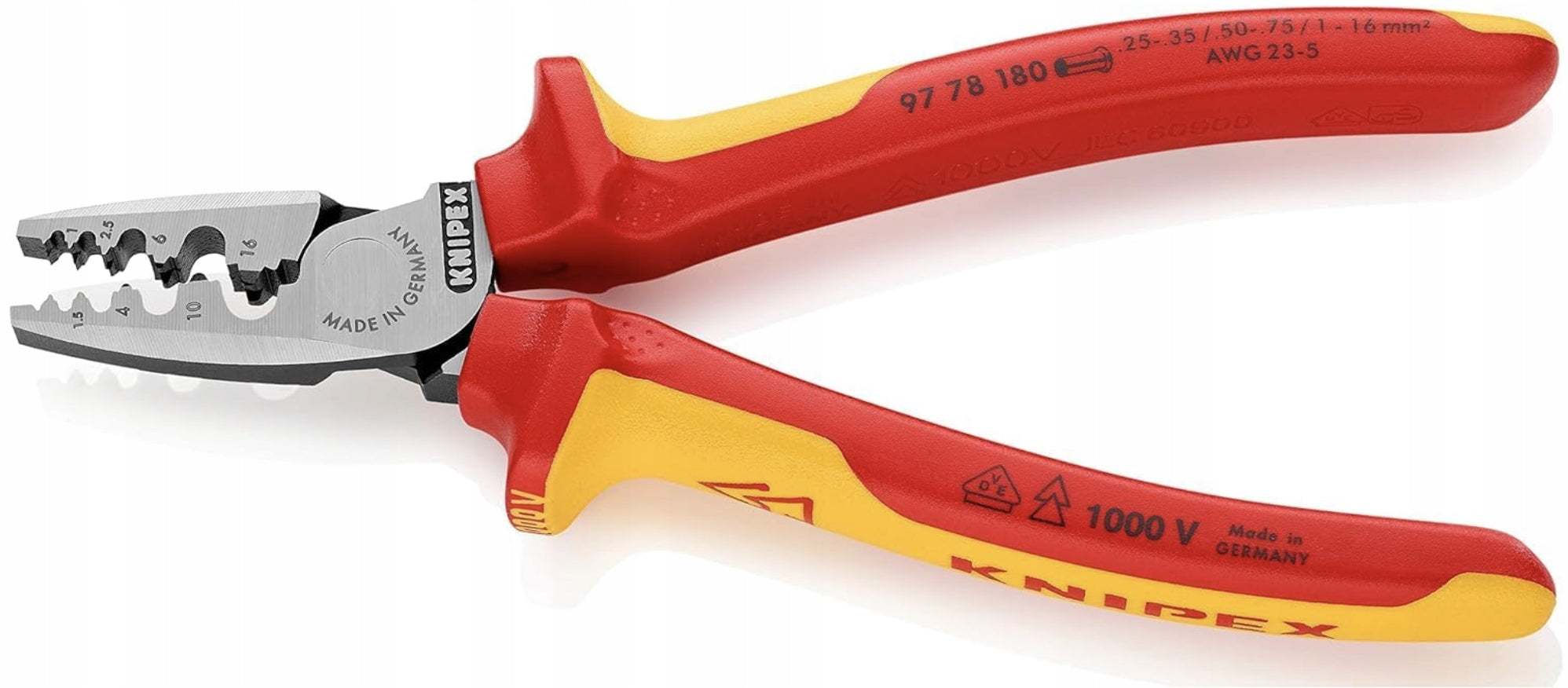

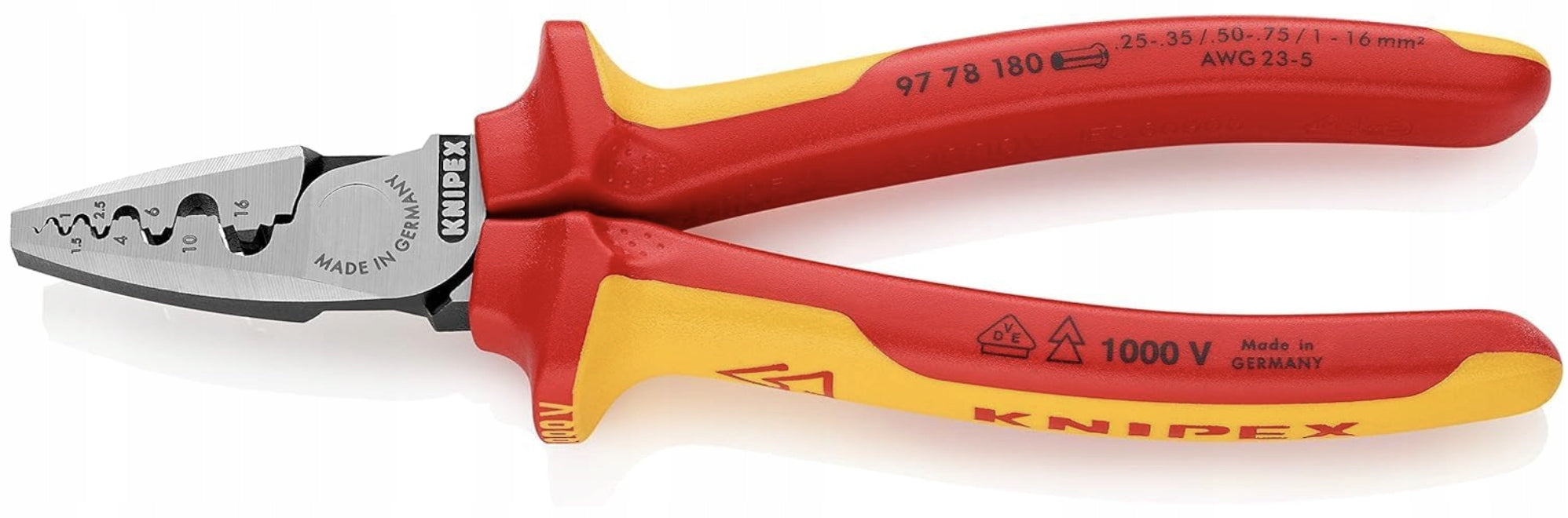

CRIMPING PLIERS FOR CRIMPING BUSHINGS

KNIPEX 97 78 180

Technical specification:

• Article No: 97 78 180
• Pliers: chrome plated
• Head: chrome plated
• handle/handles: insulated with multi-component handles, VDE certified
• Weight: 254 g
• dimensions: 180 x 54 x 28 mm
• insulation standard: DIN EN 60900 IEC 60900
• application: bushings without flange
• working range in mm2: 0,25 - 16,0 mm?
• AWG: 24 - 6
• tested by VDE

Product description:

• strong pliers for crimping bushings with VDE approval
• designed for crimping cable bushings according to DIN 46228 part 1 + 4 in the range from 0,25 to 16 mm?
• thanks to the improved gear ratio, they require 30% less force when crimping
• lightweight and compact design
• semicircular crimping profile provides a secure connection between bushing and cable
• 9 extremely deep crimping profiles with conical side surfaces
• special tool steel, forged, oil-hardened

Set and permanently clamp the end bushings

according to DIN 46228 part 1 + 4

• also for working with live parts - e.g. In IT and home electrical installations
• Crimping pliers 97 78 180 from Knipex are a solid and precise tool that can be used wherever the tips (sleeves) with fir profile are clamped: e.g. during adaptive work in IT in the server room, when crimping the ends of control cabinets or home electrical installations, e.g. during the installation of lighting elements
• These clamping pliers are insulated with multi-component handles and tested according to VDE according to IEC 60900 / DIN EN 60900 insulation standard

Adjustment of crimping profile to crimping volume

• To achieve a crimping effect in accordance with the standard, the crimping profile must be precisely matched to the material volume of the tip (sleeve) and wires
• This means that it is also necessary to have the right tool here
• is also suitable as a keyword when choosing the right crimped matrix
• In total, nine crimp dies with a capacity range of 0,25 to 16 mm are available?
• profiles are clearly marked to prevent improper insertion
• thanks to the conical shape of the crimped profiles, the tips (sleeves) are held firmly by the pliers

Accurate and reliable crimping

• The manual force can be easily measured when crimping bushing tips (sleeves) with crimping pliers 97 78 180, as the pliers transmission is designed for strong crimping with little manual force
• there is no need to use high force, after selecting the appropriate clamping matrix, the end sleeve is permanently and securely mounted on the cable

Clamping pliers from Knipex:

good quality for maximum durability

• Pliers for crimping tips (sleeves) from the Knipex offer convince with smooth operation and optimal gear ratio
• Crimping is easy, and Knipex crimping pliers are manufactured on modern machines made of special tool steel, and then they are hardened in oil
• safe use and great advantages of the tools are the result of decades of experience in tool manufacturing, continuous product development and Knipex’s commitment to high quality standards
