Gigabitinis 5 prievadų nesuvaldomas tinklo komutatorius

Trumpai apie prekę

Prekė: Gigabitinis 5 prievadų nesuvaldomas tinklo komutatorius. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: no brand
• Modelis: SG5

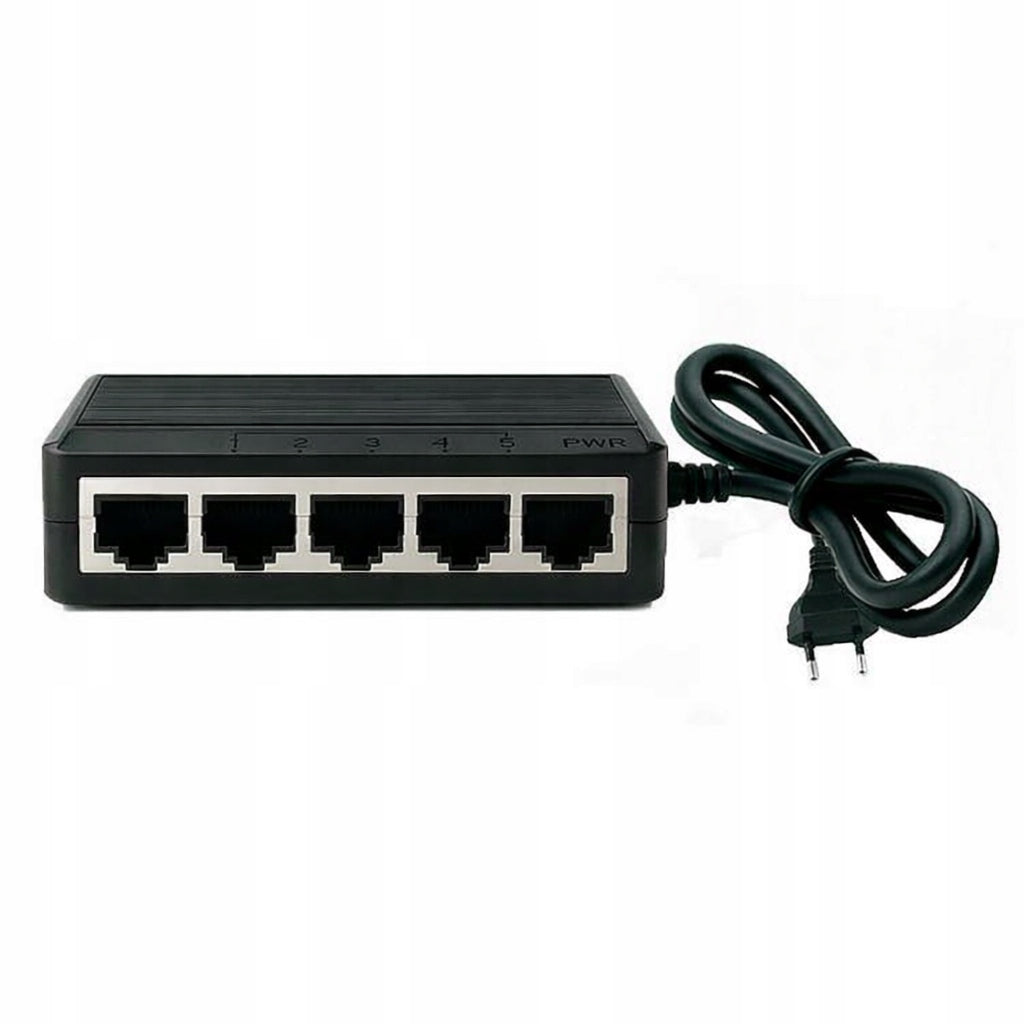

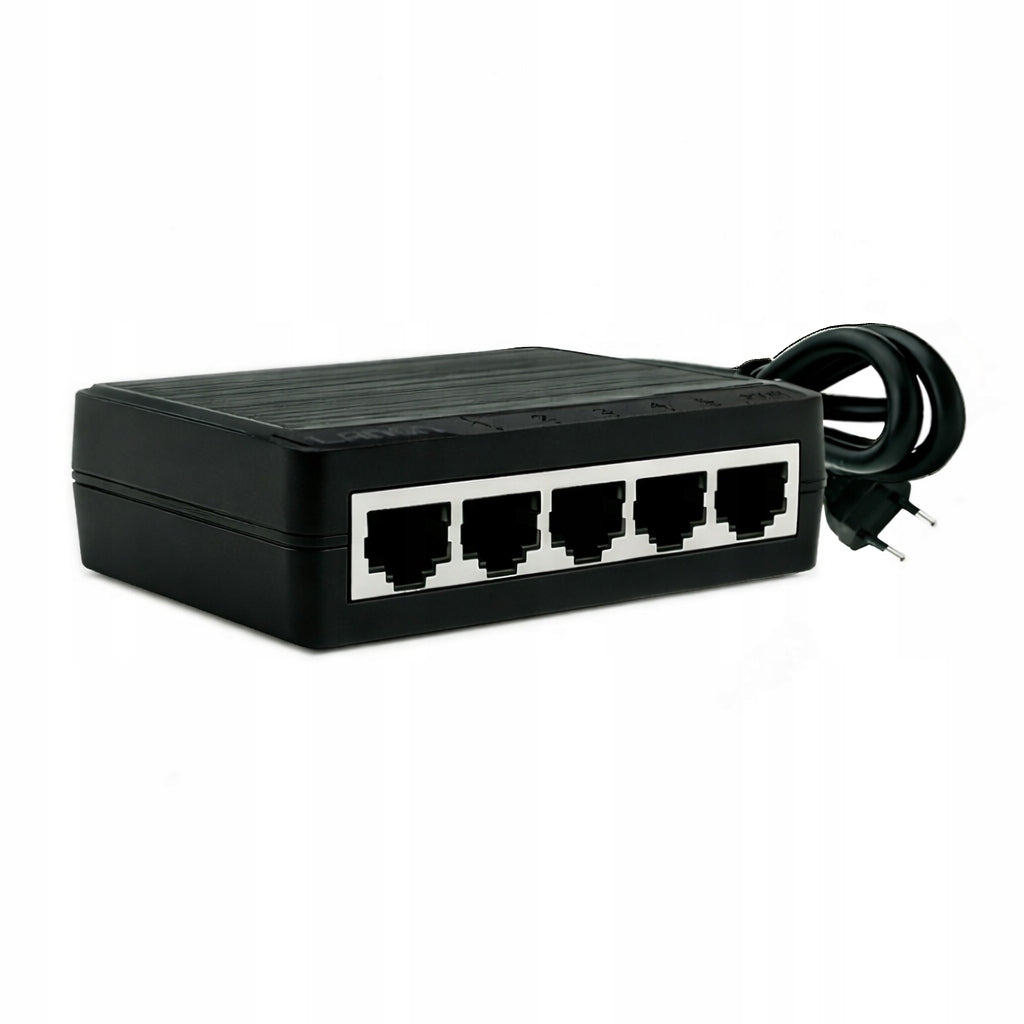

SG5 is an unmanaged gigabit 5-port switch.

It provides high lossless 10Gbps bandwidth for lightning-fast data transfer over distances of up to 130m over a 10/100/1000Mbps Gigabit Ethernet network.

MAIN FEATURES :

5 RJ45 1Gb/s ports

6KV lightning protection

Protection against 8KV electrostatic discharges

TECHNICAL SPECIFICATION

Ports

RJ45 1-5: 10/100/1000Mb/s

Transmission speed

2000 Mbps Full Duplex (simultaneous communication in both directions)

1000 Mbps Half Duplex (alternating communication in both directions)

100 Mbps Half Duplex (alternating communication in both directions)

10 Mbps Half Duplex (alternating communication in both directions)

Transmission distance

130m for 10Mbps

130m for 100Mbps

130m for 1000Mbps

Performance specification

Bandwidth: 10Gbps

Network latency (10/100/1000 Mbps): ≤16μs (64bytes packet size)

MAC Address Table: 8K

Frame filter and transmission speed:

- maximum 14800pps for 10M port

- maximum 148800pps for 100M port

- maximum 1488000pps for 1000M port

Network standard

IEEE 802.3 and 10BASE-T

IEEE802.3u 100BASE-TX

IEEE 802.3ab 1000BASE-T

IEEE 802.3x Flow Control

Power support

Power Input: AC 90~264V 3W

Level of protection

Protection against atmospheric discharges: 6KV

Protection against electrostatic discharge: 8KV

Physical specifications

Size: 93 x 70 x 25mm

Weight: 0.18kg

Working environment

Working temperature: -30℃-60℃

Storage temperature: -40℃-70℃

Working humidity: 10%-90% non-condensing

Storage humidity: 5%-90% non-condensing

Certification

CE

FCC

RoHS 2.0
