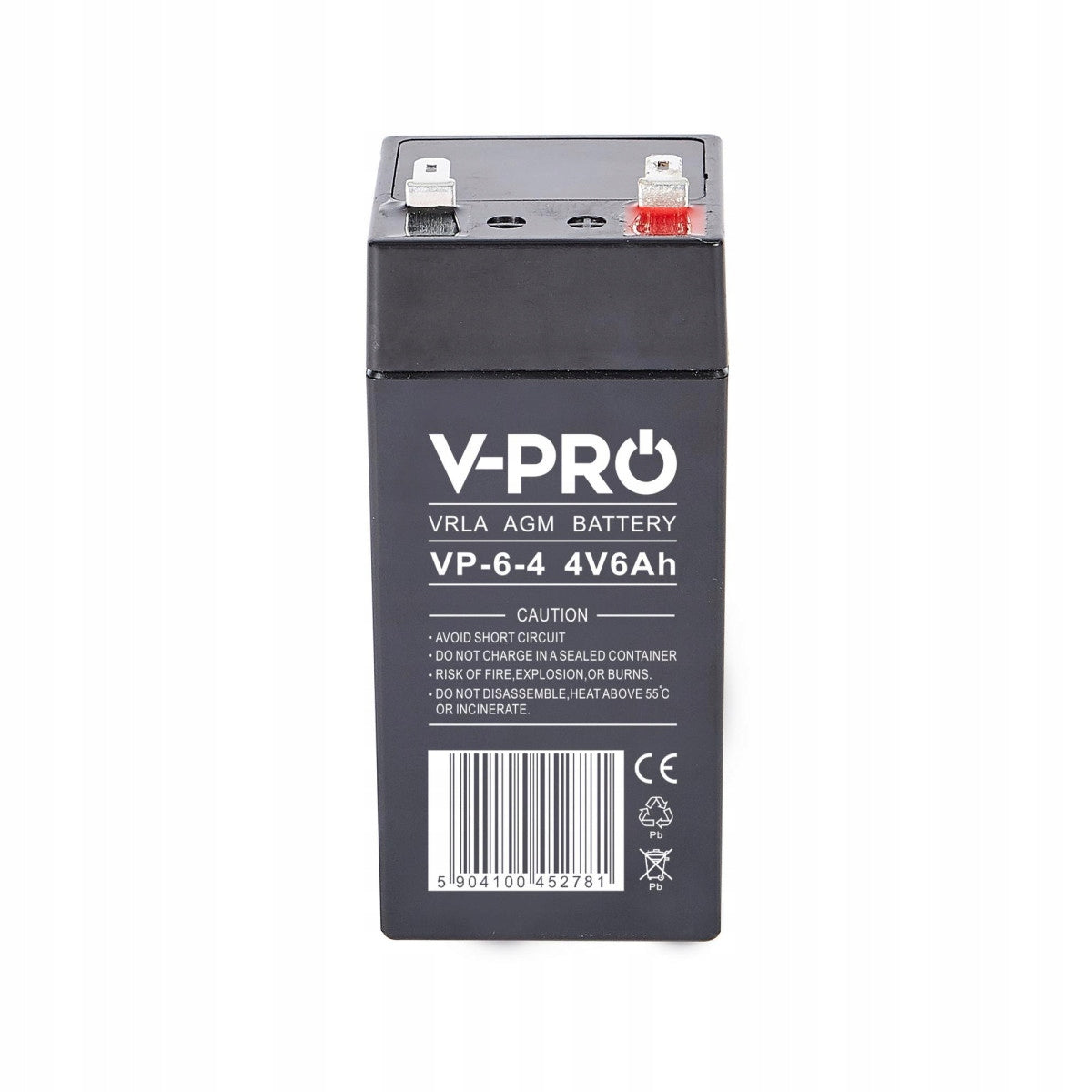

Gelinis akumuliatorius VOLT VPRO 4V 6Ah 510g kasos aparatams, žaislams, automobiliams

Trumpai apie prekę

Prekė: Gelinis akumuliatorius VOLT VPRO 4V 6Ah 510g kasos aparatams, žaislams, automobiliams. Kategorija: Svarstyklės.

• Gamintojas: Volt
• Modelis: 6AKAAGM406

The best on the market, high quality VOLT VPRO gel battery with 4V voltage, 6Ah capacity.

Used in electronic scales, surveying equipment, toys. Heavy - weight up to 510g.

The VPRO series battery is designed for m.in. to power supply systems emergency (UPS, automation systems), photovoltaic installations, or voltage converters. It works best in buffer charging systems. It can also be used in applications where the battery is cyclical. For discharge depths up to 50 %, it has about 600 duty cycles. Design lifespan (25°C):8-10 years.

Most important features:

• Internal structure based on separators made of fiberglass in which the electrolyte is concentrated

• Automatic sealing system. When the pressure inside the battery is too high, the valves open, causing the resulting gas to be safely discharged to the outside of the housing and preventing damage. This happens when the battery is overcharged

• Battery housing made of ABS material, copper cells

What devices are powered by the VPRO battery?

• • Emergency power supply systems (UPS, automation systems)
• • Photovoltaic installations
• • Voltage converters
• • Alarm systems
• • Access control systems
• • Powering cash registers
• • CCTV systems
• • Telecommunications systems
• • Backup lighting systems
• • Power supply for medical equipment
• • Powering scooters, mopeds
• • Power supply for electric toys

Why use a VPRO battery?

• • No need to refill or replace the electrolyte
• • Work in any position
• • High efficiency and efficiency
• • Long life span of 8-10 years
• • High resistance to mechanical damage and high temperatures
• • Safe to use (no electrolyte leakage)

SPECIFICATION:

• Nominal Voltage:4V
• Nominal capacity:6Ah
• Overall height:106mm
• Height: 101mm
• Width: 43mm
• Length: 43mm
• Weight:0,5kg, 515g
• Capacity (at 25°C) 20h (0,25A):5Ah
• Capacity (at 25°C) 10h (0,46A):4,60Ah
• Capacity (at 25°C) 5h (0,85A):4,25Ah
• Capacity (at 25°C) 1h (3,00A):3Ah
• Internal resistance (at 25°C):18mΩ
• Capacity: (40°C):102%
• Capacity (25°C):100%
• Capacity (0°C):85%
• Capacity (-15°C):65%
• Self-discharge (25°C) 3msc:91% of nominal capacity
• Self-discharge (25°C) 6msc:82% of nominal capacity
• Self-discharge (25°C) 12msc:64% of nominal capacity
• Recommended operating temperature:25°C±3°C
• Operating temperature range - discharge:-15°C to 50°C
• Operating temperature range - charging:-10°C to 50°C
• Operating temperature range - storage:-20°C to 50°C
• Buffer charging voltage (25°C):7,2VDC-7,5VDC
• Cyclic charging voltage (25°C):6,7VDC-6,9VDC
• Maximum charging current:2A
• Design lifespan (25°C):8-10 years
