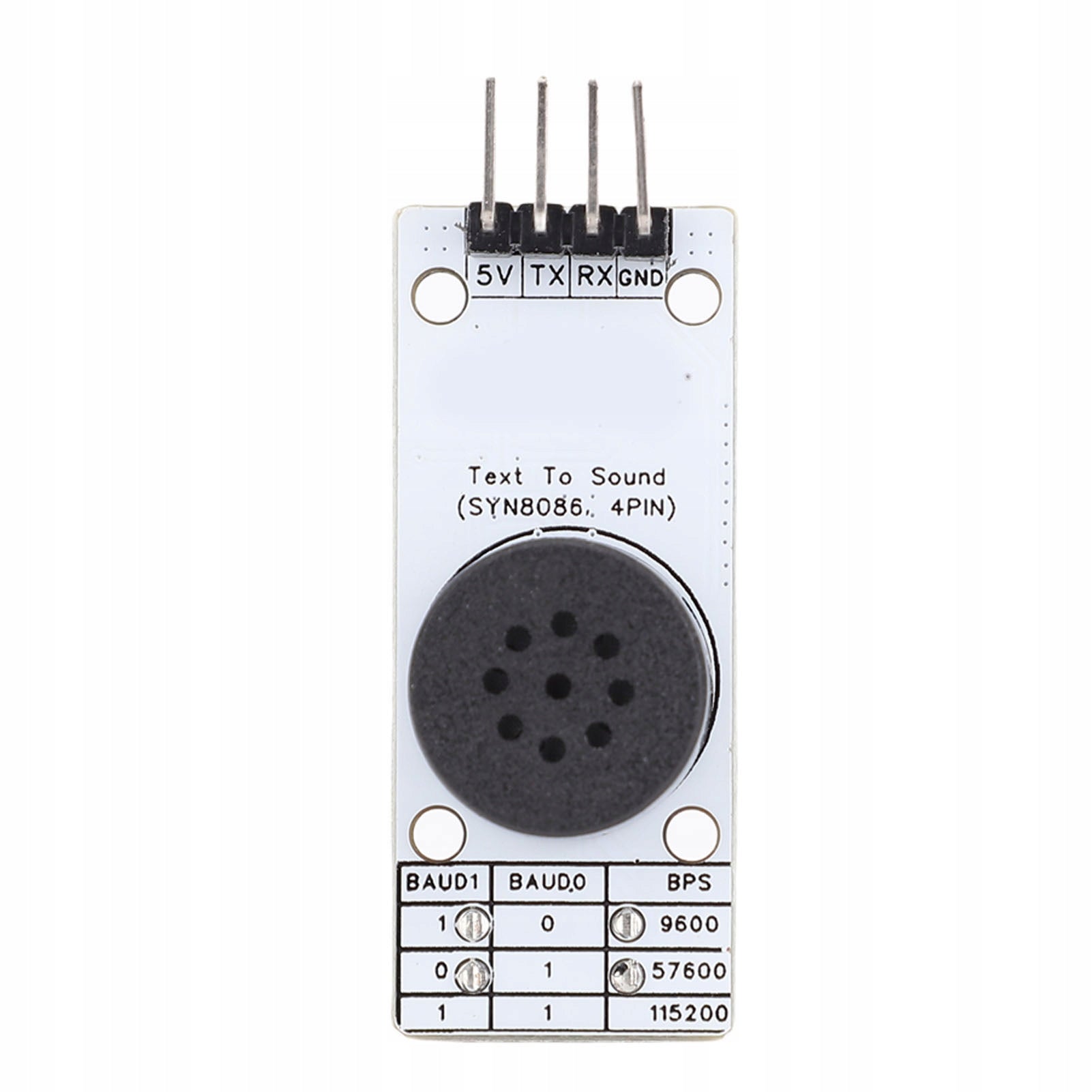

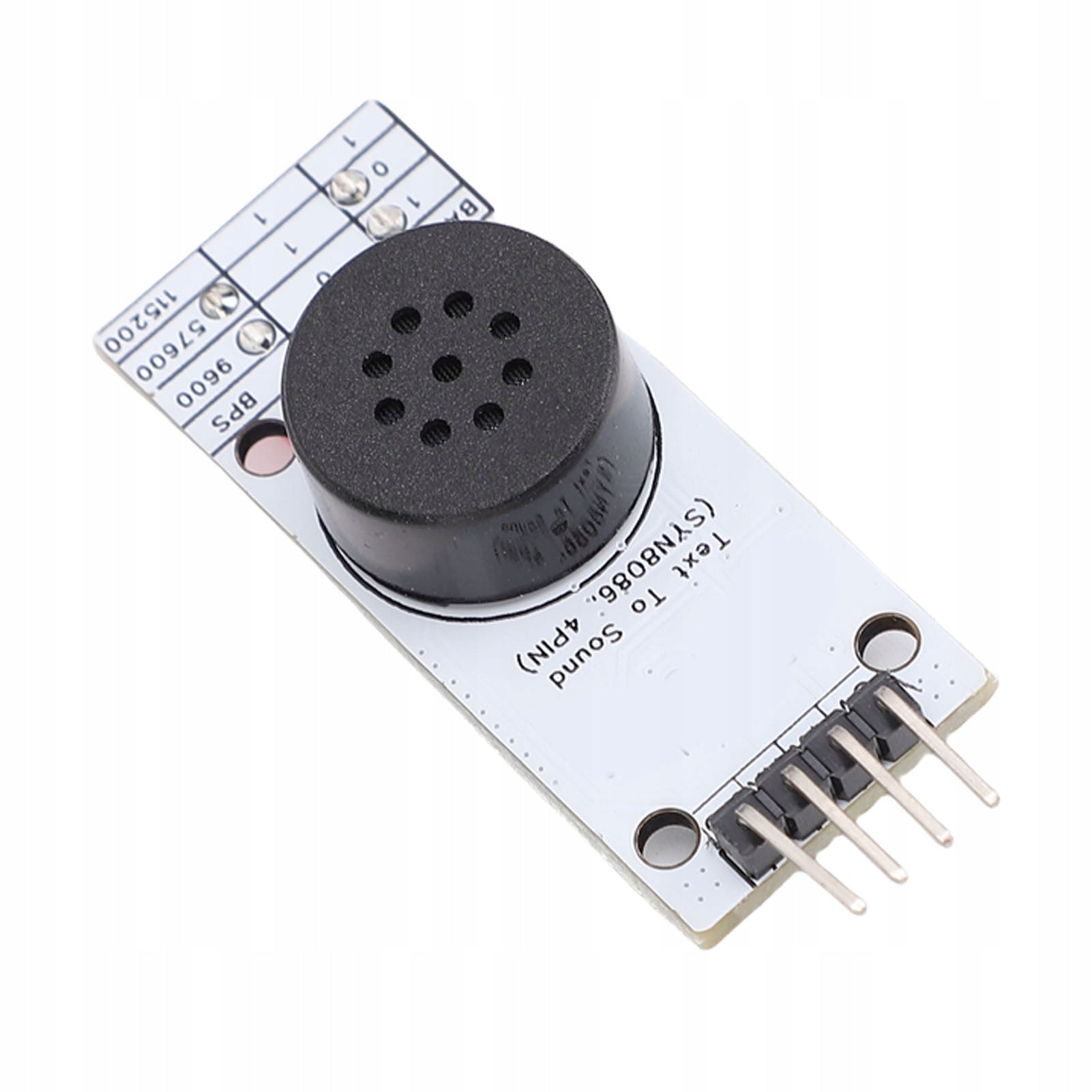

Garso modulis su Syn8086 mikroschema, Chinese GW

Trumpai apie prekę

Prekė: Garso modulis su Syn8086 mikroschema, Chinese GW. Kategorija: Maitinimo šaltiniai ir įkrovikliai.

• Gamintojas: no brand
• Modelis: AG250819003624

Function:

1. [Sound Synthesis Text] This is a Chinese speech synthesis module, support Syn8086 chip. Can convert text data to speech (or TTS speech) via UART interface, producing clear and melodic sound quality

2. [Support Encoding] Supports GB2312, GBK, UTF-8 and Unicode encoding methods, recognition of numeric values, phone numbers, time and date, measurement symbols and automatically pronouncing correct polyphonic words

3. [Comprehensive Features] The module includes 10 volume levels, 30 speech speed levels, and 10 levels of intonation adjustment. It also offers multiple text control labels to increase the accuracy of text processing, various playback controls including synthesis, stop, pause and resume

4. [Flexible Communication Control] This speech synthesis module supports UART COMP method, with BAUD selection speed (9600BP, 57600BP, 115200BPS), supports deep sleep mode, ensuring versatile use and efficient integration

5. [Applications] Chinese speech synthesis module is suitable for applications in harsh outdoor environments including vehicle terminals, attendance terminals, bus stop announcements, voice intercoms and other fields

Specification:

• Item Type: Voice Synthesis Module
• Product Material: PCB
• COMM Interface: UART
• Output: There is no need for external load in the amplifier and speaker circuit on board
• Indicators: one power indicator and two communication indicators
• BAUD rate support: 9600BP, 57600B/s, 115200b/s, selected by DIP switch
• Low Power Mode: Support deep sleep mode

List of packages:

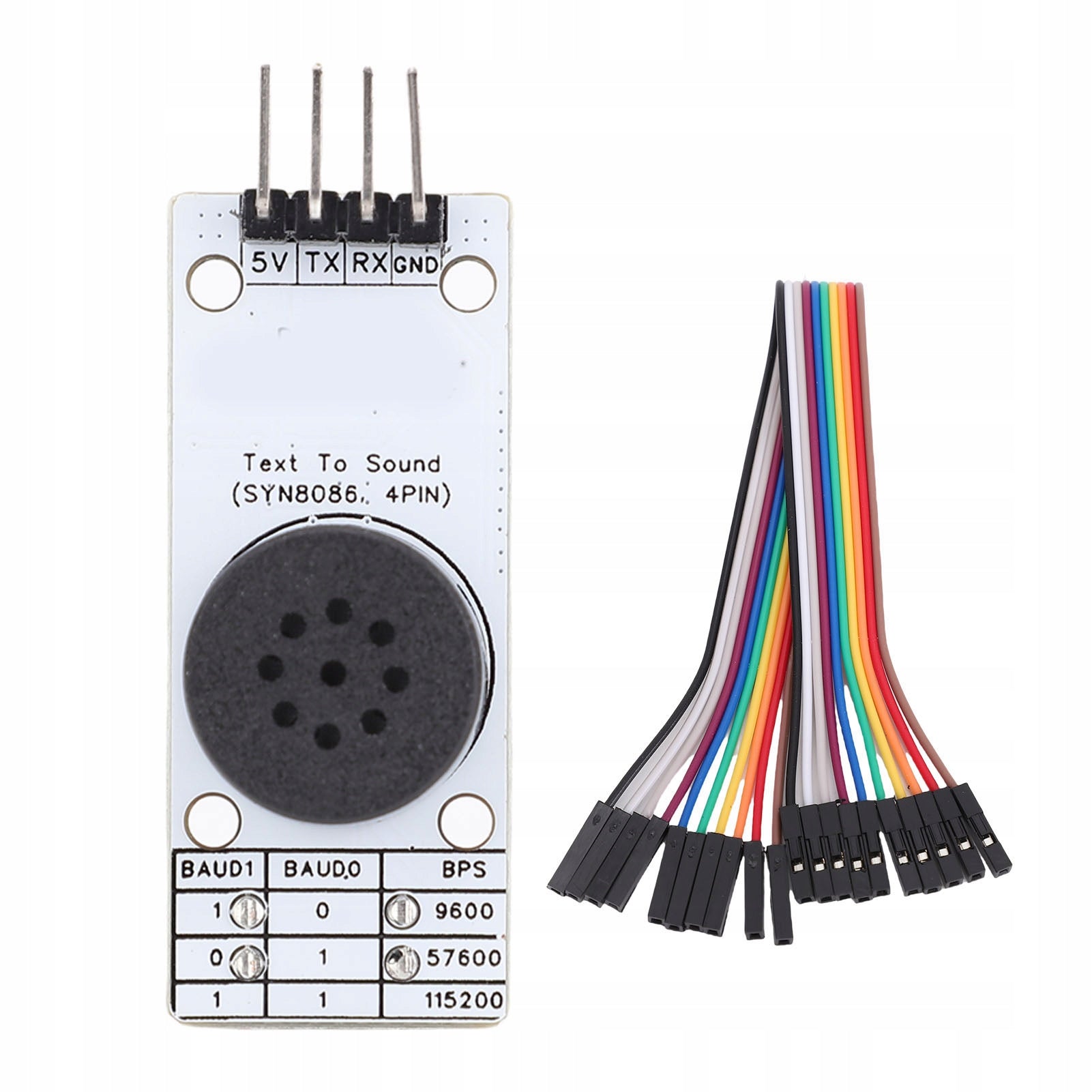

• 1 x Voice Synthesis Module
• 1 x Jumper Wire
