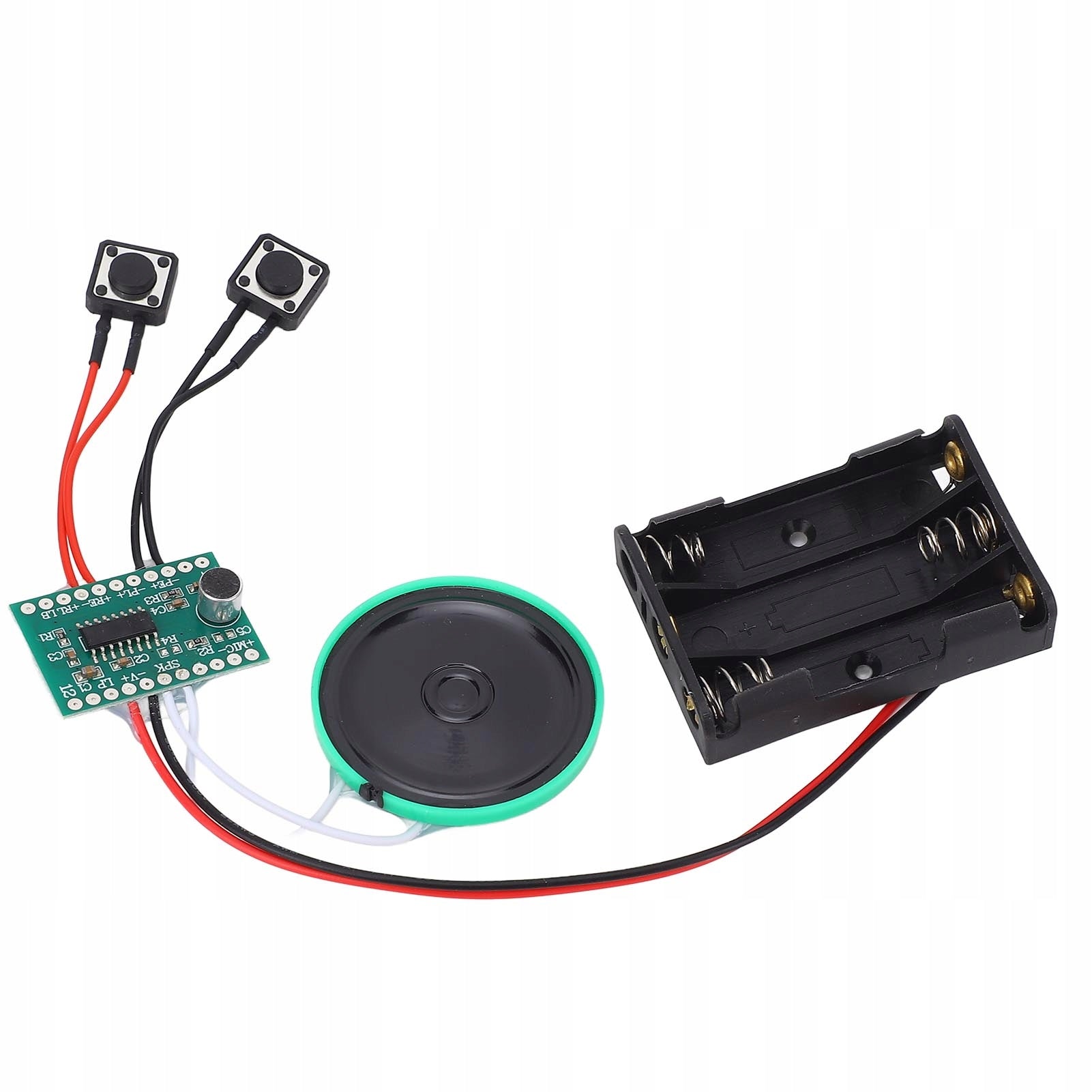

Garso modulis su mygtuko valdymu, 4 min., DIY, leristra IA

Trumpai apie prekę

Prekė: Garso modulis su mygtuko valdymu, 4 min., DIY, leristra IA. Kategorija: Maitinimo šaltiniai ir įkrovikliai.

• Gamintojas: no brand
• Modelis: AG250819084149

Function:

1. Four minutes: According to a guest request, recording music, or whatever you want to say, for up to four minutes.

2. Convenient: This sound module has been welded microphone, buttons, speakers, etc., Users can use after receiving the product, very convenient.

3. Wide usage: The sound module is perfect for making DIY Music Box, Musical Greeting Cards, photo frames, album, gift box and other gifts.

4. Battery supported: Musical sound chip needs three AAA batteries, 16 ohms 0,25 watts, sounds great.

5. Easy to install: Install this sound board layout in your project or gift, then press the button.

6. Button control: key playback, repetitive recording. The cable length is designed for your convenience.

Specification:

• Item Type: Sound Module
• Material: PCB
• Recording time: 4 minutes
• Operating voltage: 3.0 V-4,5 V.
• Horn size: approx. 40x4 mm / 1.6x0,2 inch
• Circuit board size: approx. 31x21 mm / 1,2x0,8 inch
• Battery Type: 3 x AAA battery (not included)

How to use:

• Recording and playback working:
• Press the recording button, hear the sound of the “drip”. Save the key and then point it to the microphone 5 – 10 cm/2,0 – 3,9 inches away
• Start recording before speaking, press the recording button again, release the recording button when hearing the sound "sound signal" for recording
• The sound is complete; then press the lower tone button to play the recorded sound. During playback,
• Press the lower tone button again to stop playing the sound.
• List of packages

:

• 1 x Sound Module
