Garso ekstraktorius su HDMI į Toslink SPDIF ir Cinch

Trumpai apie prekę

Prekė: Garso ekstraktorius su HDMI į Toslink SPDIF ir Cinch. Kategorija: DAC keitikliai.

• Gamintojas: no brand
• Modelis: Ekstraktor dźwięku

HDMI 1080P audio signal extractor, HDMI to HDMI optical audio signal splitter and analog stereo RCA (L/R), suitable for Blu-ray players, cable TV set-top boxes, etc.

[HDMI 4K Sound Extractor] This HDMI to HDMI SPDIF+R/L audio converter allows you to connect a high-resolution signal source to a single high-resolution display, adding an additional L+R and SPDIF audio output port. Note: HDMI ARC (Audio Return Channel) is not supported.

[High definition 4K video resolution] This HDMI audio converter supports resolutions up to 4K@30Hz and is compatible with HDMI 1.4, HDCP 1.4, Full HD 1080P, 3D and 36-bit color depth standards. Audio formats: DTS-HD / Dobly TrueHD / LPCM7.1 / DTS / Dobly AC3/DSD.

[3 EDID Audio Settings] Offers three audio mode options: pass-through, 2-channel and 5.1-channel. Analog RCA output supports 2-channel PCM stereo sound and 5.1-channel digital audio; SPDIF output supports 2-channel PCM, 5.1-channel digital audio and DTS audio for optimal flexibility.

[Metal housing] Fully shielded design effectively prevents signal interference, provides excellent heat dissipation and extends service life. (Note: This HDMI audio splitter operates in low power mode using a 5V USB power cable. For high power devices, please connect a 5V 1A charger to ensure proper operation. )

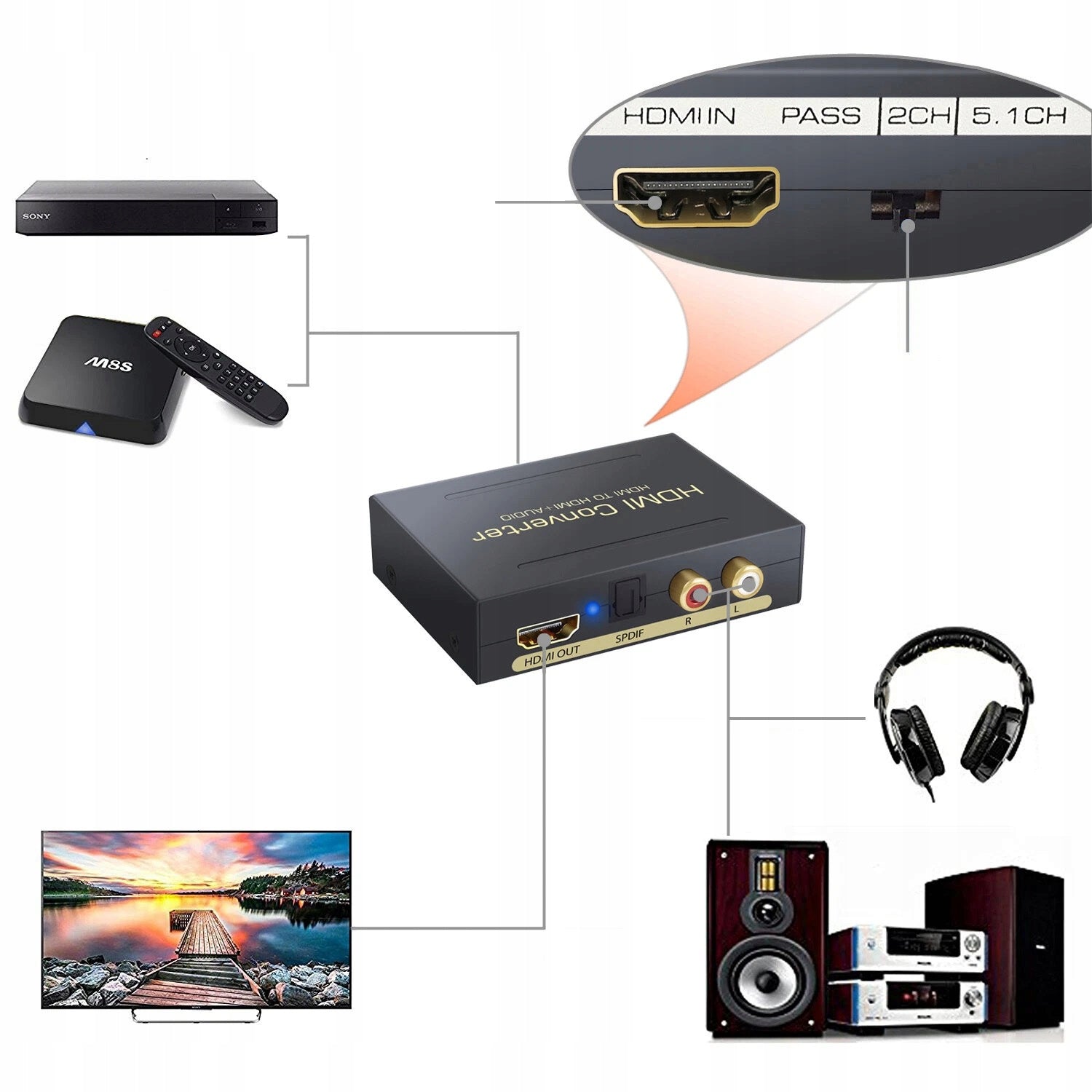

[Wide Compatibility] Suitable for various HDMI source devices without dedicated audio output (such as Roku or Chromecast), as well as Blu-ray/DVD/HD players, cable/satellite TV set-top boxes, laptops, HD cameras, HD set-top boxes, etc.

The HDMI 1Goal sound extractor not only meets the ideal picture quality requirements of HDTVs, but also satisfies the need to extract audio from HDMI sources. It can extract the digital audio signal embedded in the HDMI source and simultaneously convert it via the analogue 3,5 mm audio output and SPDIF output. SPDIF output supports 2-channel or 5.1-channel audio, including Dolby Digital 5.1-channel and DTS 5.1-channel.

Specification:

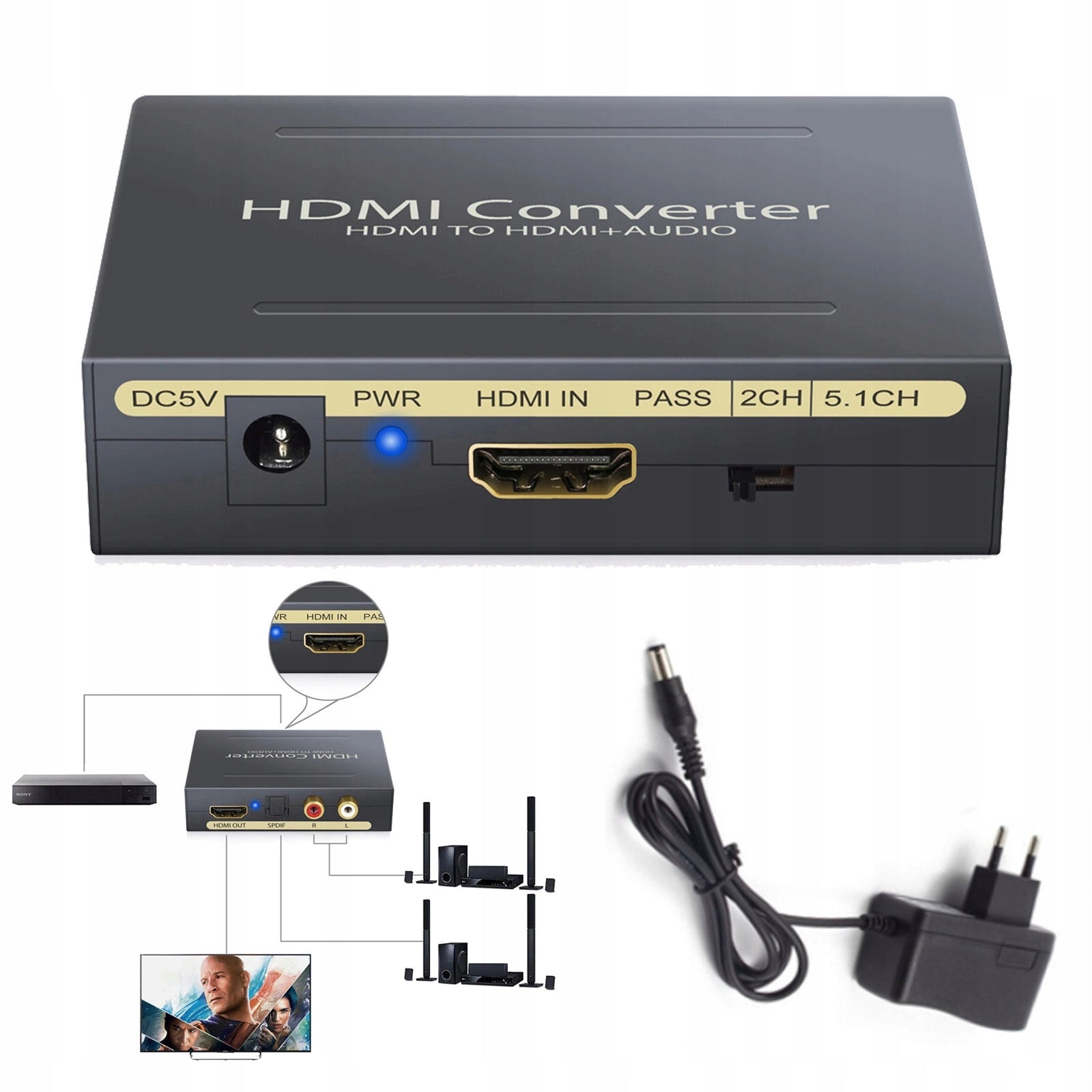

Input ports: 1 HDMI input port, 1 Micro USB power port, 3 EDID audio output ports (pass-through/2-channel/5.1-channel)

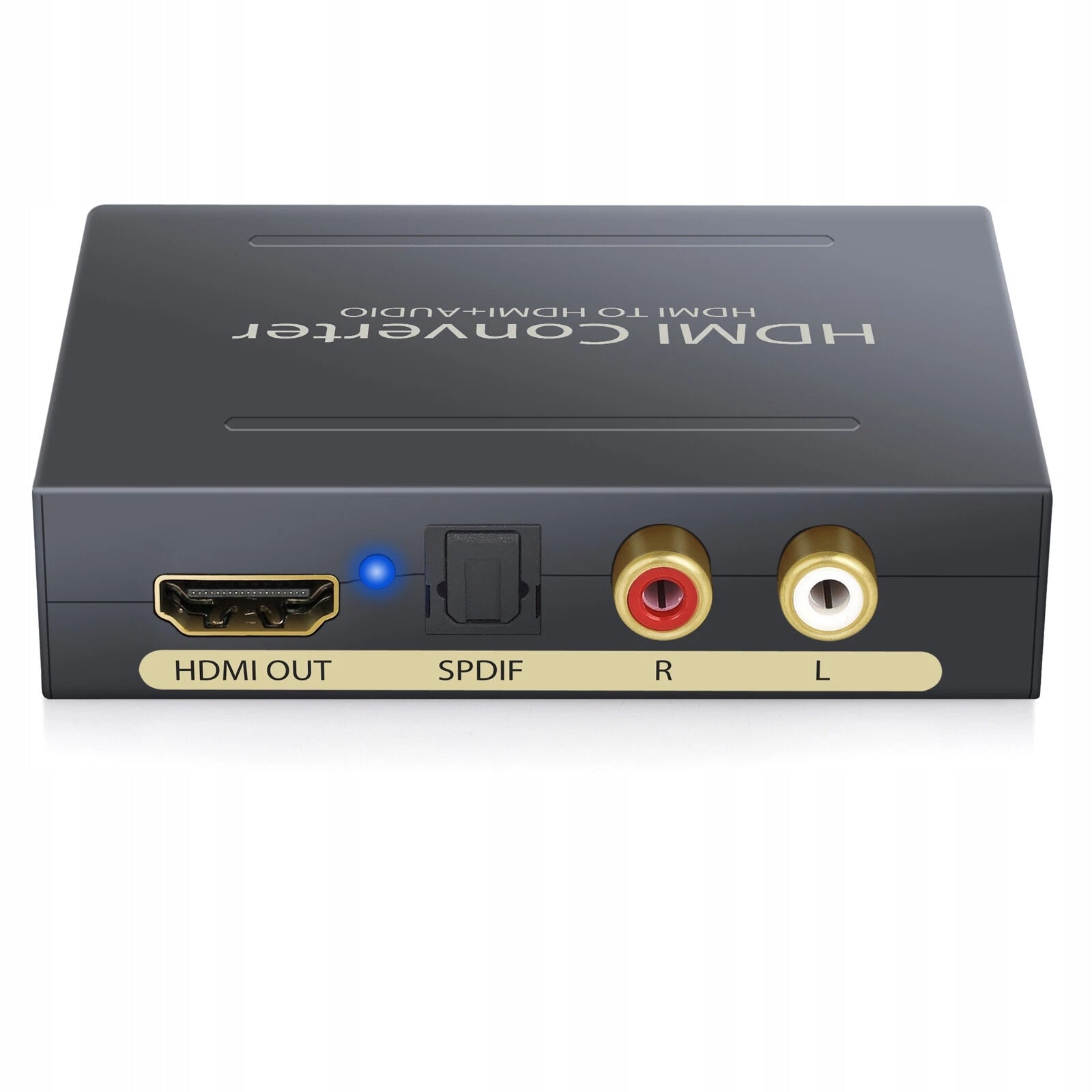

Output ports: 1 HDMI output port, 1 SPDIF output port (optical), 1 audio output port for left/right channel

HDMI resolutions:

1080p, 24/50/60 kl. /s/1080p/1080i/720p/576p/576i/480p/480i

Supported video color formats: 24-bit/Dark 30-bit, 36-bit

Maximum bandwidth: 225 MHz

Maximum bit rate: 6,75 Gbps

Maximum current consumption: 190 mA

Three EDID audio settings:

Pass-through: pass-through HDMI mode. Audio and video can be converted from HDMI output. SPDIF and left/right channel output ports will not play audio.

2-Channel Mode: Extracts 2-channel digital PCM stereo audio signal from HDMI input and plays L/R stereo audio via HDMI/SPDIF.

5.1-Channel Mode: Extracts 5.1-channel Dolby Digital/DTS audio signal and plays it via HDMI/SPDIF.

Note:

1. Dolby Digital+ audio is not supported; DTS and Dolby Digital sounds are supported.

2. USB power supply – For devices with low power consumption via HDMI interface, you can use a power adapter (sold separately) or a mobile phone adapter (5V/1A).

3. Copyrighted content is not supported.

Note: If your device's resolution is 1080p, use HDMI version 1.2 because versions 1.3 and 1.4 are not supported.
