Garažo vartų pavaros mechanizmas MPG800N, 2,2 m, 80 kg

Trumpai apie prekę

Prekė: Garažo vartų pavaros mechanizmas MPG800N, 2,2 m, 80 kg. Kategorija: Kietieji diskai.

• Gamintojas: Seltex
• Modelis: mpg800n

MPG800N - SELTEX

Complete set for automating garage doors with a maximum wing weight of 80 kg

• Aesthetic, quiet engine operation and soft start and stop
• Precise travel control thanks to electronic limit setting
• Easy programming with LED panel
• Obstacle detection - encountering an obstacle, the gate turns back traffic
• Manual clutch from inside the garage in case of power outage or failure
• Automatic light (LED lamp) activated at the start, which turns off automatically after a few minutes from the end of work

• Maximum gate weight: 80kg
• Maximum gate width: 2,5m
• Number of memorable remote controls (pcs): 30
• Type of guidance: Rail
• Application: for backyard use
• Self-assembly possible: Yes
• Water resistance rating: IP 44
• Gross weight kg: 15
• Locking in closed position: Yes

Technical specification:

• Model: MPG800N
• Strength: 800N
• Voltage: 24V DC
• Power supply: 230V, 50Hz
• Travel speed: 120mm/2
• Operating temperature: -20~+45
• Radio Frequency: 433.92 MHz
• Remote control power supply: 12V, 27A
• Encoding mode: variable code/rolling code
• Remote control range (in open space): 50m

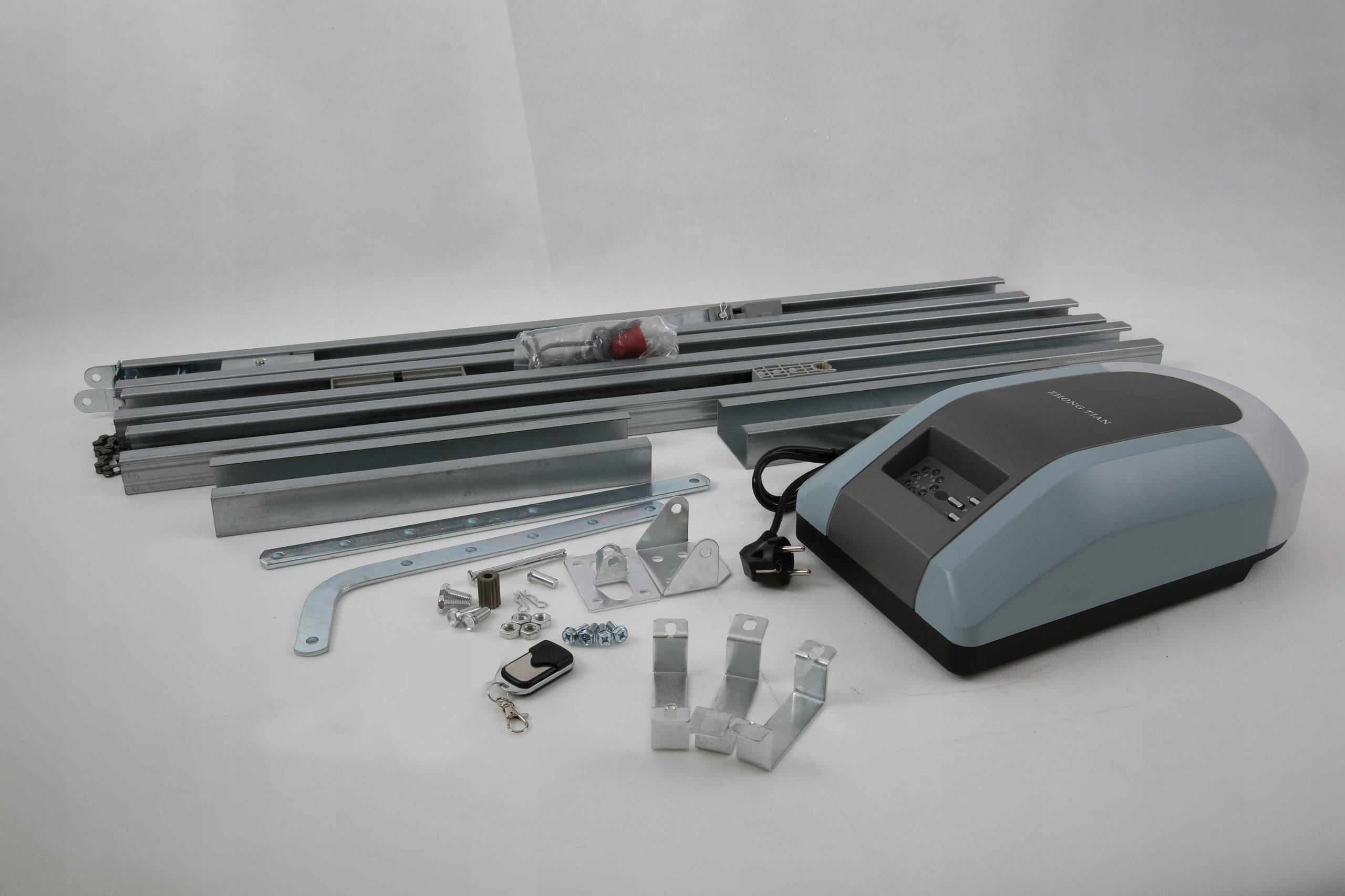

• drive head with control panel and radio receiver
• rail with steel chain

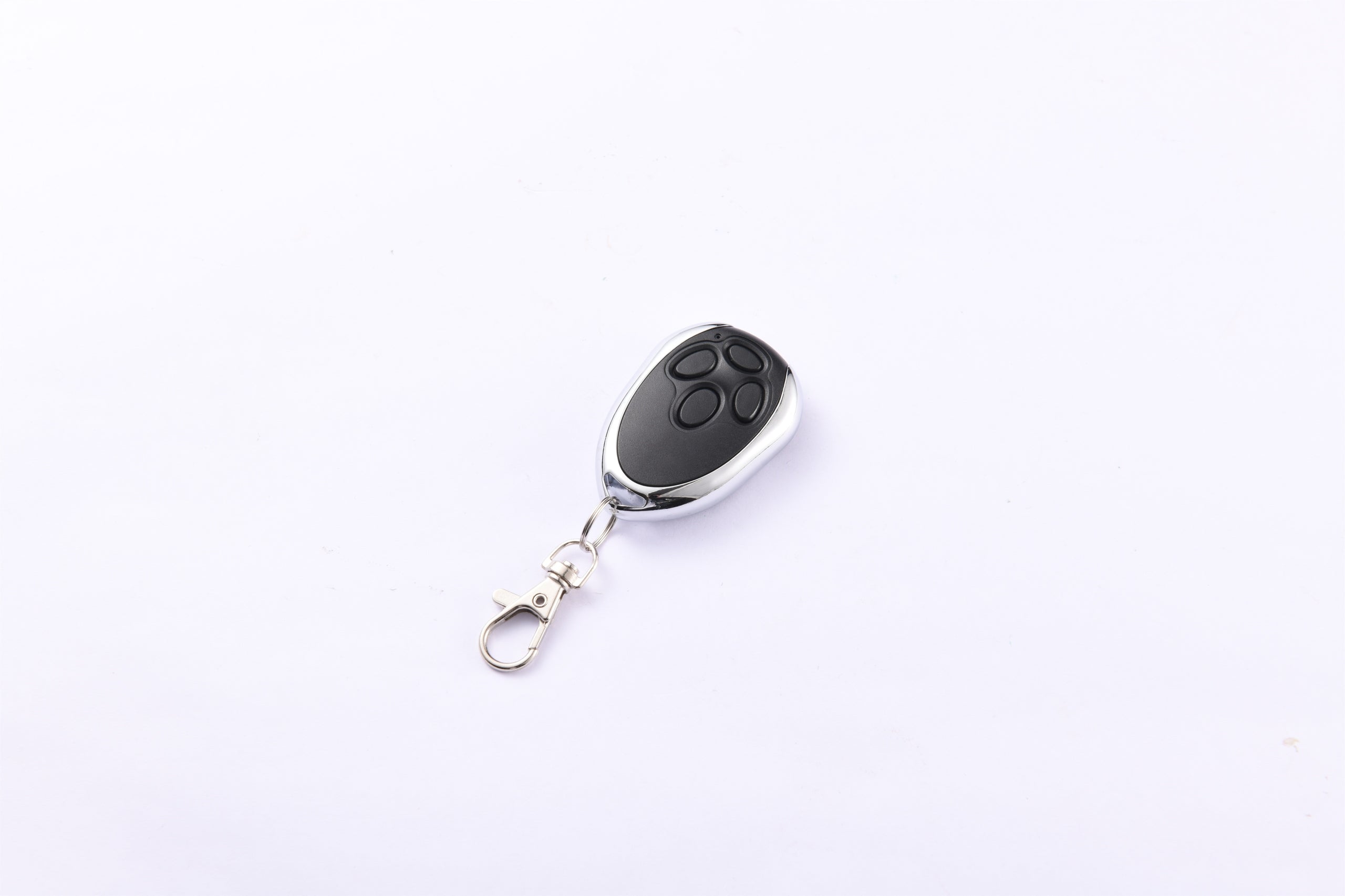

• 1 four-channel remote control (variable code; frequency 433,92MHz; compatible with SELTEX V / Avidsen systems)

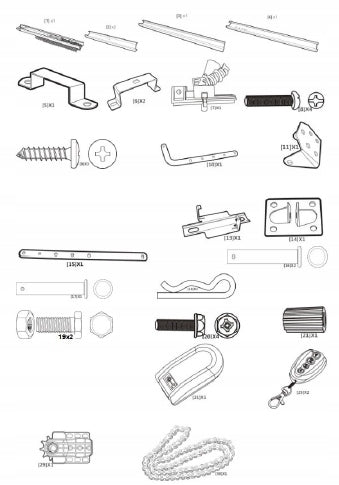

• mounting accessories
• instruction manual in Polish in PDF format (Appendix under the offer description, in the Additional information section. )

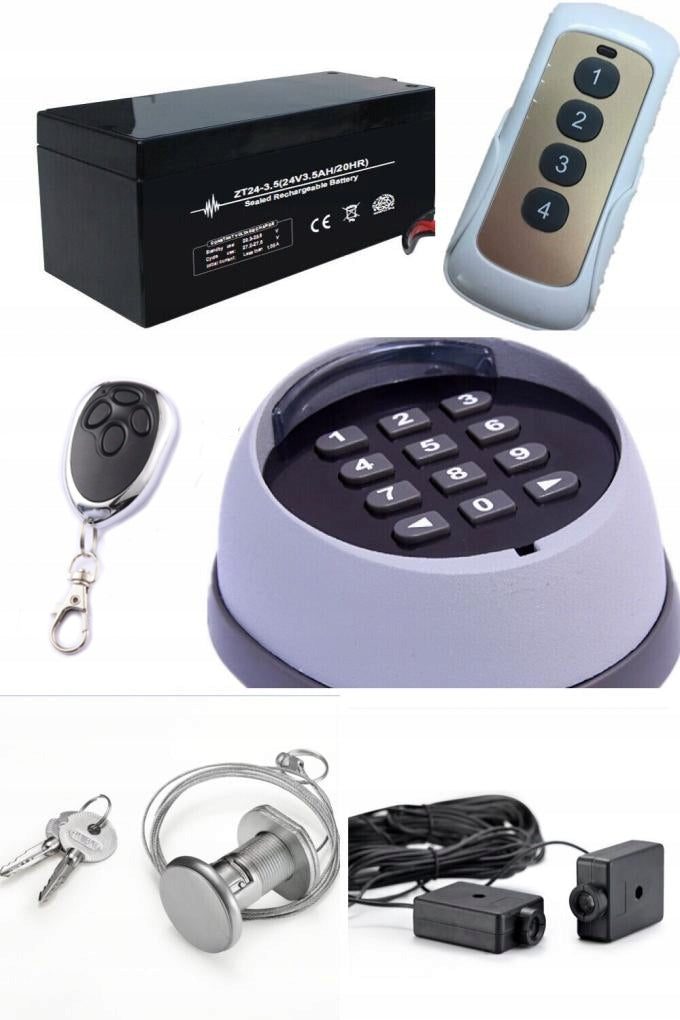

Optional accessories:

• additional pilots

• code keyboard

possibility of connecting a wired and wireless keyboard

• Battery/Emergency Power Battery

recommended in case of frequent loss of electricity supply

• photocells

otherwise known as the infrared barrier. It provides an additional protective barrier against accidental closing of the gate in the situation of an obstacle in its light (car, child, etc. )

• External decoupling

By default, the drive can only be decoupled from the inside. In a situation where the garage does not have an additional entrance outside the gate, it is recommended to use a lock for decoupling from the outside.

Specifications
