Garažo vartų pavaros Hato SILENT 300, su pulteliu, 1000N

Trumpai apie prekę

Prekė: Garažo vartų pavaros Hato SILENT 300, su pulteliu, 1000N. Kategorija: Kietieji diskai.

• Gamintojas: Hato
• Modelis: Silent
• Įtampa: 230 V

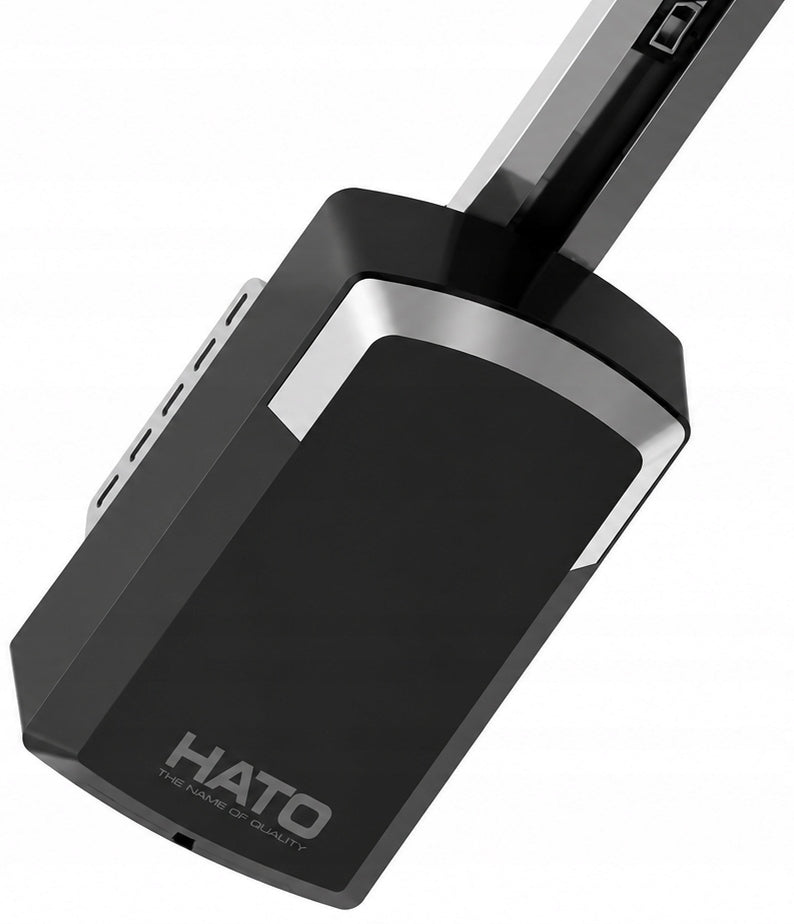

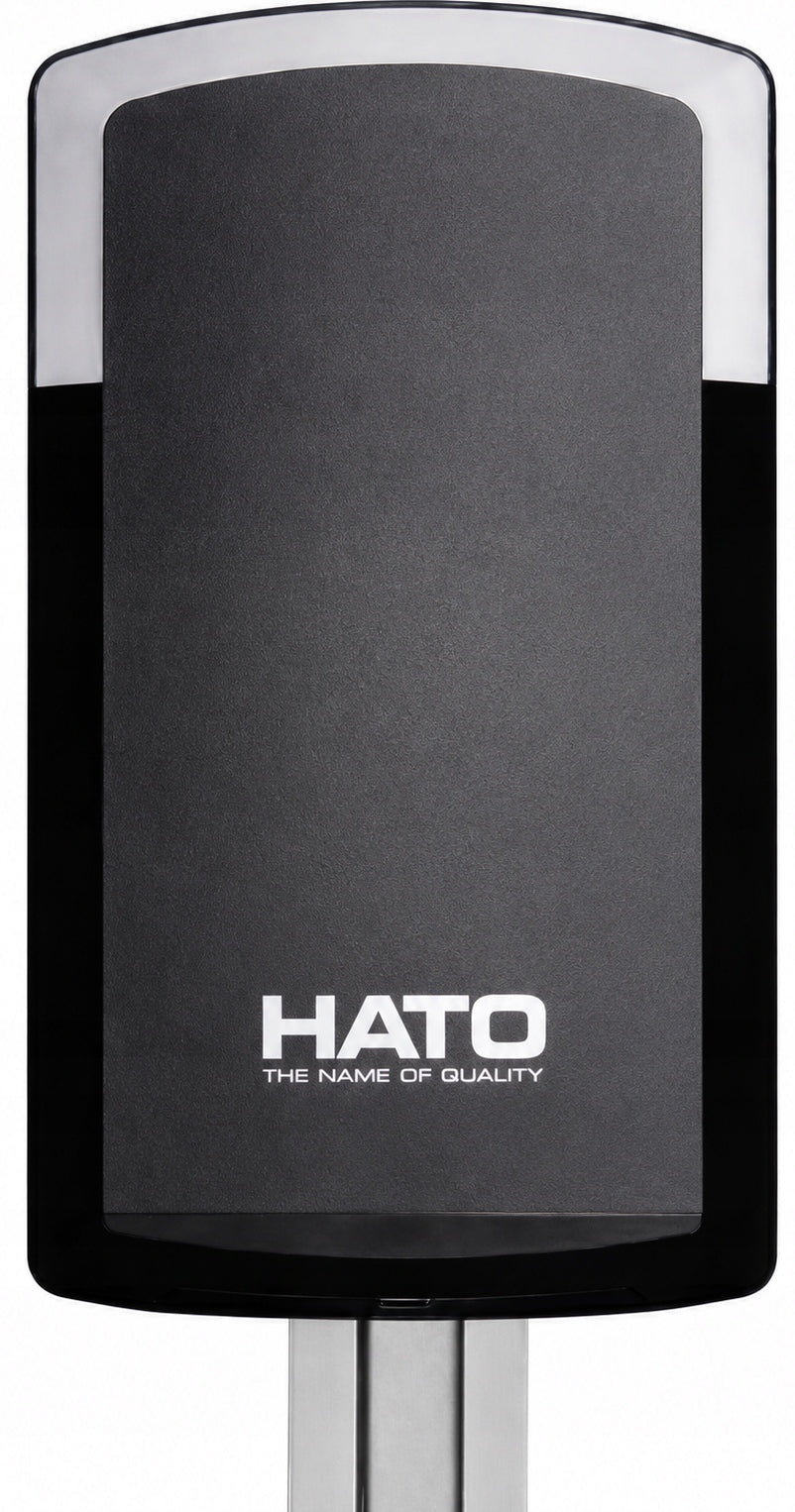

HATO Silent 300 - 1000N

Sectional and tilt garage door kit - with quiet and durable Kevlar drive and advanced automation.

Max gate dimension 12m2 ( 5 x 2,4m )

The set includes:

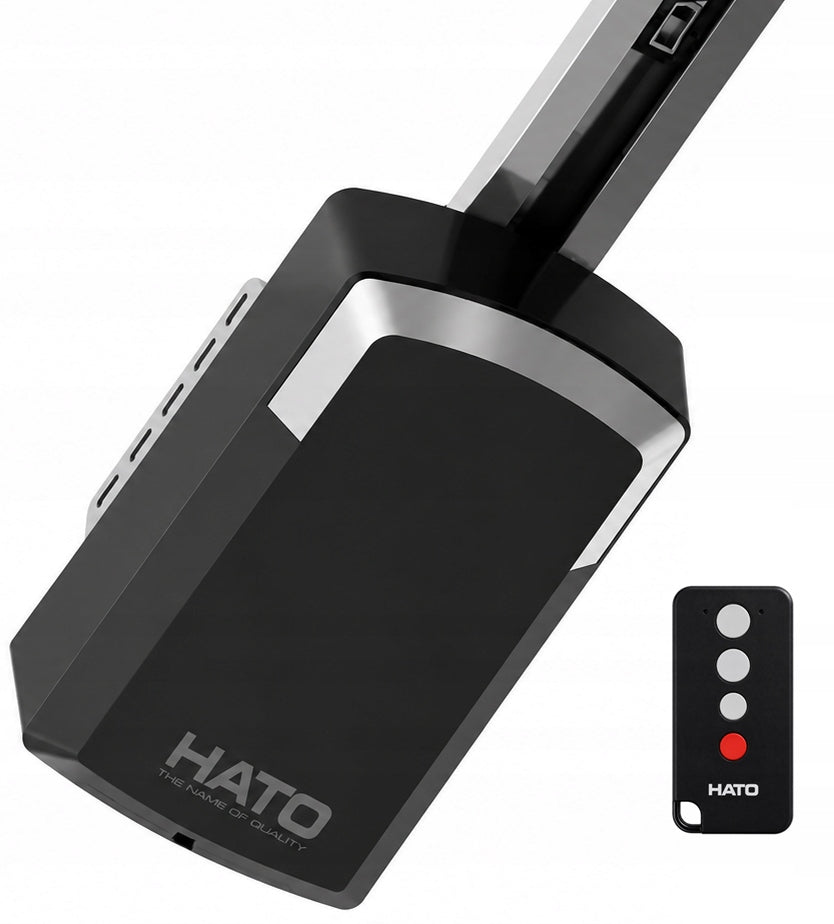

• Drive SILENT 300 - head with built-in control panel
• 1x remote control HATO SILENT 4 - channel
• 24V motor with encoder
• radio receiver integrated with the control panel
• built-in LED illumination lamp
• 3,3m rail with a quiet and strong Kevlar belt (max gate height about 2,4m)
• set of mounting elements
• instruction in Polish (available in the tab below the auction)

NOW POSSIBILITY OF EXPANSION O DEDICATED MODULE WiFi HATO

The drive is equipped with a USB port for quick connection of the WiFi module. Thanks to this, you can remotely control the garage door using your smartphone, check its status and open and close the gate from anywhere with Internet access - WiFi modules available at other auctions

Drive Features:

• remote control and wall button
• HATO copy-resistant variable-code remote controls
• 24V DC motor with encoder
• programmable marginal positions
• smooth start and stop of the gate
• regulation of force and speed of operation
• photocell support
• automatic closing function
• partial opening of the gate
• service alarm – operating cycle counter
• Garage LED Backlight
• automatic detection of obstacles
• possibility of connecting the WiFi module via USB port

Specifications of HATO Silent 300 - 1000N

• Pulling force: 1000 N
• Power supply: 220 – 240 V AC, 50/60 Hz
• Motor: 24 V DC with encoder
• Maximum gate area: 15 m²
• Maximum gate weight: 100 kg
• Maximum gate height: 2400 – 3500 mm (depending on the rail - 3,3m to 2400mm is included)
• Drive mechanism: gear belt
• Opening and closing speed: 160 mm/s
• Lighting: 24 V LED (15 LEDs)
• End Programming: Electronic
• Operating frequency of pilots: 433,92 MHz
• Pilot Encoding: Variable Code (Rolling Code)
• Receiver memory: up to 50 remote controls
• Built-in LED warning lamp
• Operating temperature: -40°C to +50°C
• Degree of protection: IP20
• Safety features: soft start and stop, automatic obstacle detection, photocell operation

1 x remote control 4-channel HATO SILENT

• Operating frequency: 433,92 MHz
• Coding method: KEELOQ variable code
• Number of channels: 3 + gate call
• Minimum range in open area (with HATO devices): 30 m
• Power supply: CR2450 3V battery
• Dimensions: 70 × 35 × 11 mm

Split rail with durable and quiet kevlar strap with a length of 3,3m (gate support up to 2,4m ) + connector

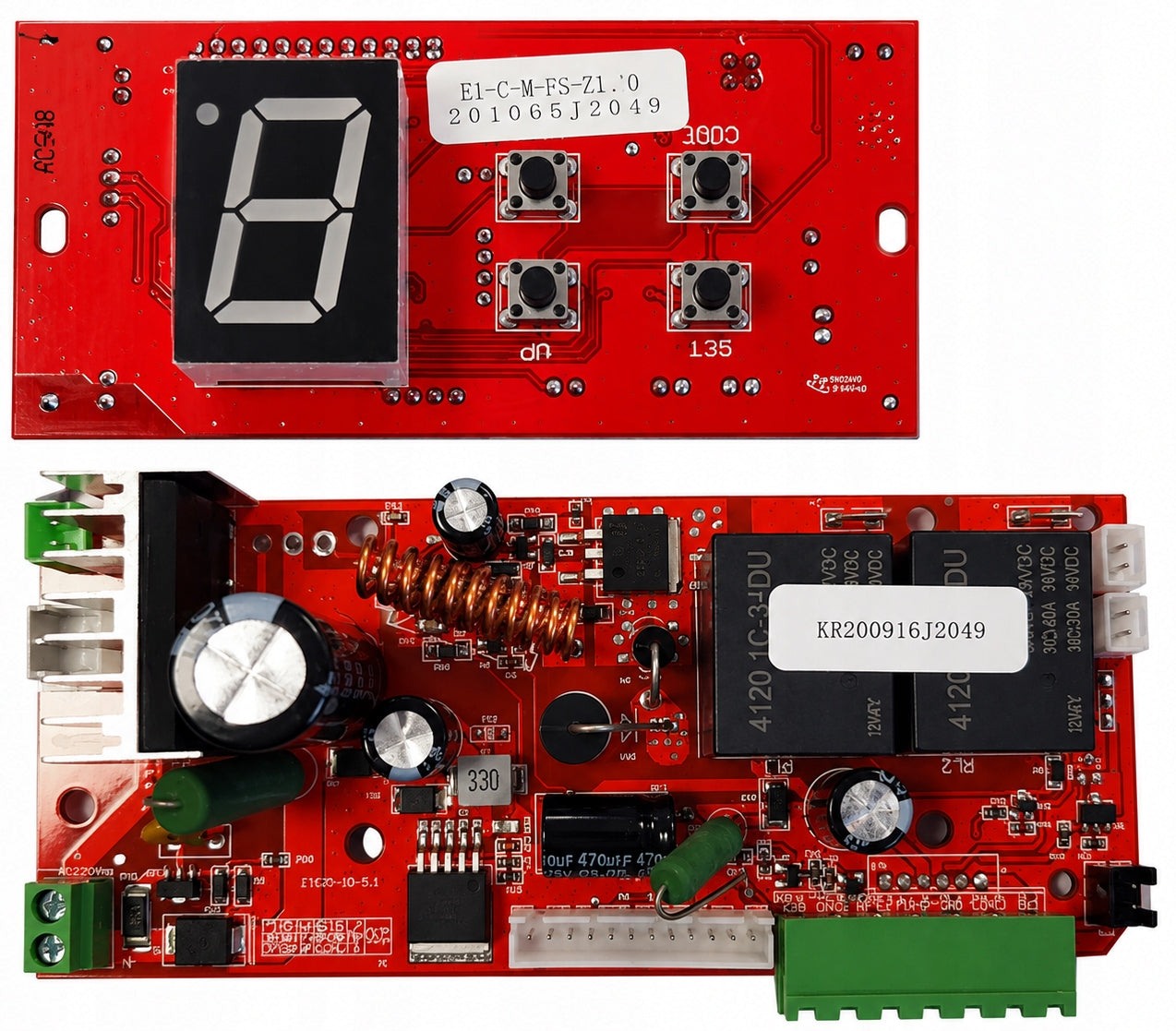

Modern control panel with display (installed under the drive housing )

The modern 24V DC motor with encoder ensures smooth, quiet and precise drive operation. The use of an encoder allows accurate control of the gate position, increases safety of use and allows for effective detection of obstacles and overloads.

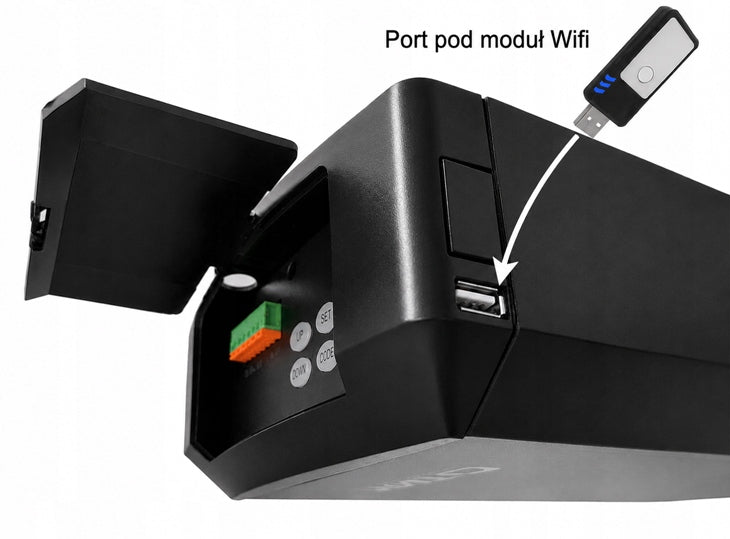

The drive is equipped with a USB port for quick and easy connection of the WiFi module (the module is available at our other auctions). Thanks to this, it is possible to conveniently control the gateway using a mobile application from anywhere.

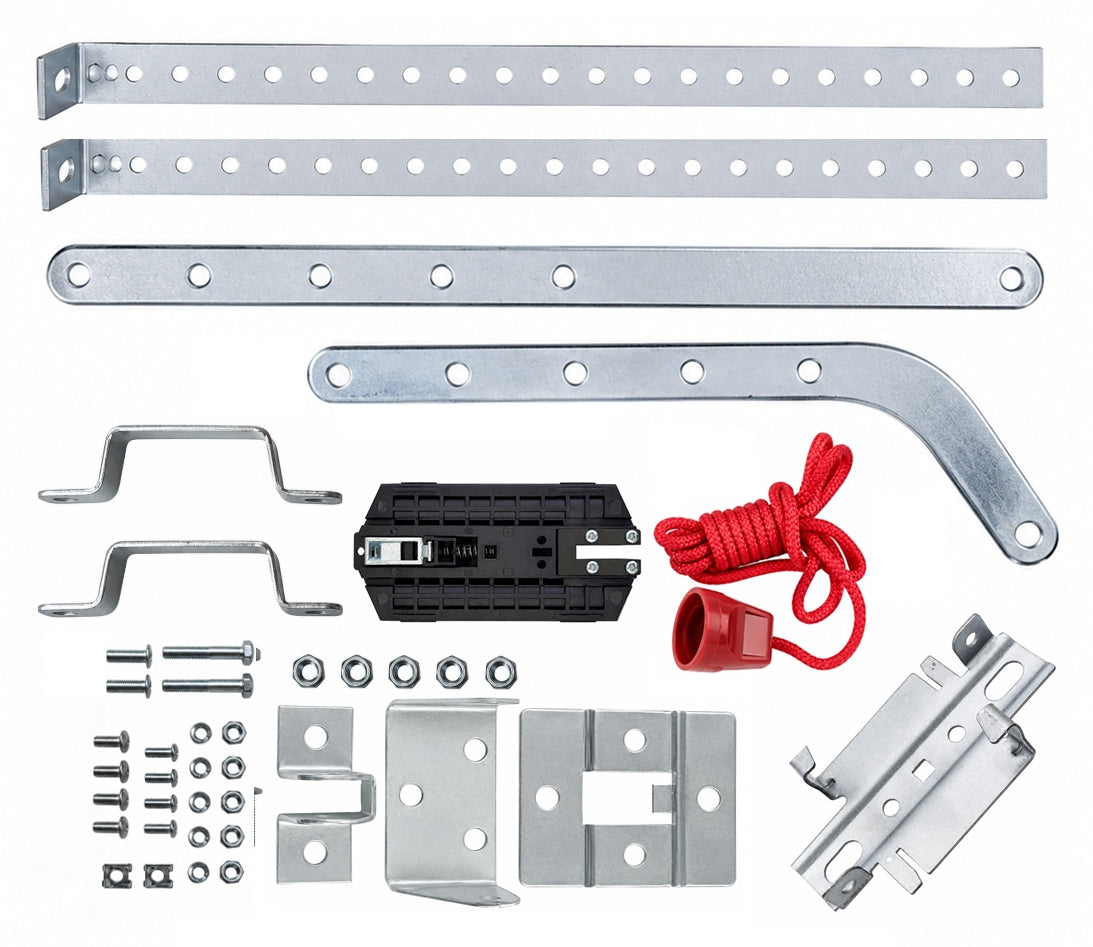

A set of mounting elements , as standard emergency opening from the inside of the garage (if there is no other entrance, you should purchase a set with a lock to open from the outside which is located at other auctions )

We are an authorized partner and distributor of the HATO brand

• We offer only original HATO products from the official distribution
• We provide professional technical advice and after-sales support
• Products are covered by a full manufacturer's warranty
• Many years of experience in the sale and installation of gate automation
