Galinė parkavimo kamera IP67 su laidiniu pagalbos įrenginiu

Trumpai apie prekę

Prekė: Galinė parkavimo kamera IP67 su laidiniu pagalbos įrenginiu. Kategorija: Automobilio vaizdo registratoriai.

• Gamintojas: Blow
• Modelis: 78-545

Wired reversing camera brand Blow designed for installation in both passenger cars and vans. The task of the camera is to transmit the current image behind the vehicle, which will definitely facilitate parking and reversing in places with limited visibility. In a simple way, we can avoid hitting an obstacle invisible to the naked eye, but also better observe the lines of the designated parking space.

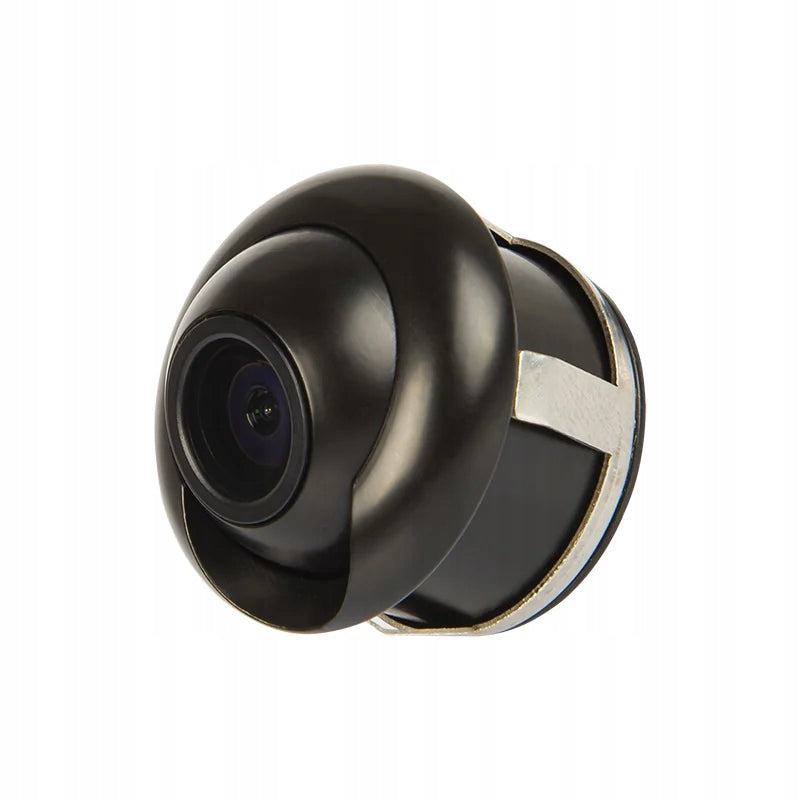

• REVERSE CAMERA BLOW BVS-545
• Wired reversing camera
• Excellent assistance when parking
• Ability to adjust camera angle
• Designed for passenger cars and vans
• Vertical sensor viewing angle: 90 degrees
• Horizontal sensor viewing angle: 120 degrees
• Water resistance class: IP67
• Permanent auxiliary lines: Show the straight track of the car and the width of the car. They help keep the direction straight.

Good quality for a low price

The parameters of the device ensure good fulfillment of their basic tasks which is the transmission of the image behind the vehicle - in a special way it is necessary to emphasize the very wide viewing angle of the image sensor and horizontal vision. The device has an IP67 waterproof rating ensuring continuity of operation even in rainy conditions. In addition, it is possible to gently change the angle of the camera itself in order to better adjust visibility. In addition, the kit also has necessary wires to mount the camera.

Fits most monitors and universal multimedia stations and car radios equipped with the function of connecting a reversing camera, which ensures wide compatibility.

Bet on the highest quality

The parameters of the device ensure good fulfillment of their basic tasks which is the transmission of the image behind the vehicle - in a special way it is necessary to emphasize the very wide viewing angle of the image sensor and horizontal vision. The device has an IP67 waterproof rating ensuring continuity of operation even in rainy conditions. In addition, it is possible to gently change the angle of the camera itself in order to better adjust visibility. In addition, the kit also has necessary wires to mount the camera.

Resistant to harsh weather conditions

The Blow reversing camera is designed for reliable operation all year round – regardless of the weather. With its robust construction and high resistance class, it is suitable for both heavy rainfall, snow, and low and high temperatures. This guarantees safe reversing and parking even in the most demanding weather conditions.

Permanent auxiliary lines can be removed by cutting the white wire.

Specification:

• Image converter: 1/3,6 inch CMOS
• Resolution: 648x488
• Measurement area: 4.9 x 3.7
• Lens: F = 1,9 mm / F = 2,0
• Signal system: PAL
• Horizontal synchronization (kHz): 15625/15734
• V-Sync (Hz): 50/60
• Automatic gain adjustment and backlight adjustment: YES
• Horizontal definition: 480 TV lines
• Minimum lighting: 0,01 lux
• Signal/noise: < 48,0 [dB]
• Image sensor viewing angle: 170 degrees
• Horizontal viewing angle: 120°
• Vertical viewing angle: 90°
• Angle of diagonal vision: 165°
• Water resistance class: IP67
• Voltage range: DC 9-15V
• Video output: 1.0Vp-p / 75 Ω
• Working temperature: -20 ~+70°C, RH 95% Max
• Storage temperature: -30 ~+80°C, RH 95% Max
• Cable length at the camera: 55 cm
• Power cord length: 75 cm
• Video cable length for monitor: 580 cm
• Mounting hole: 22,5 mm

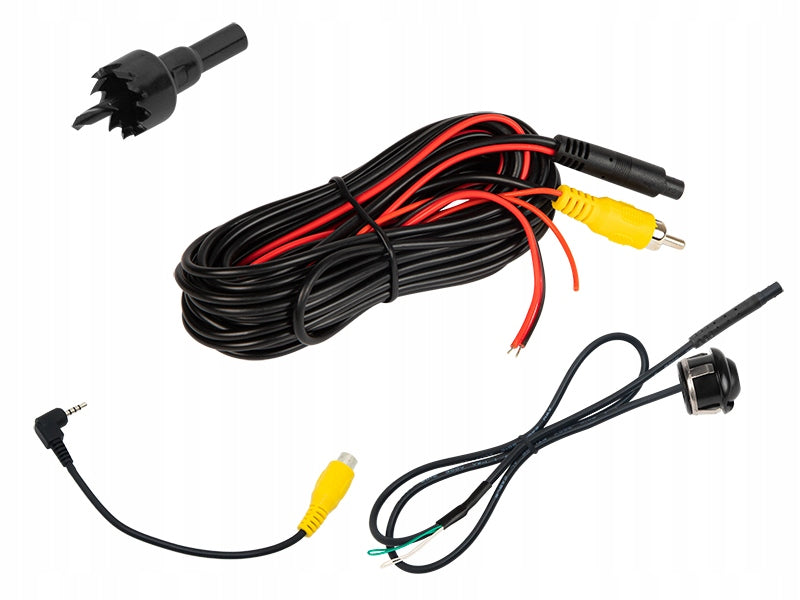

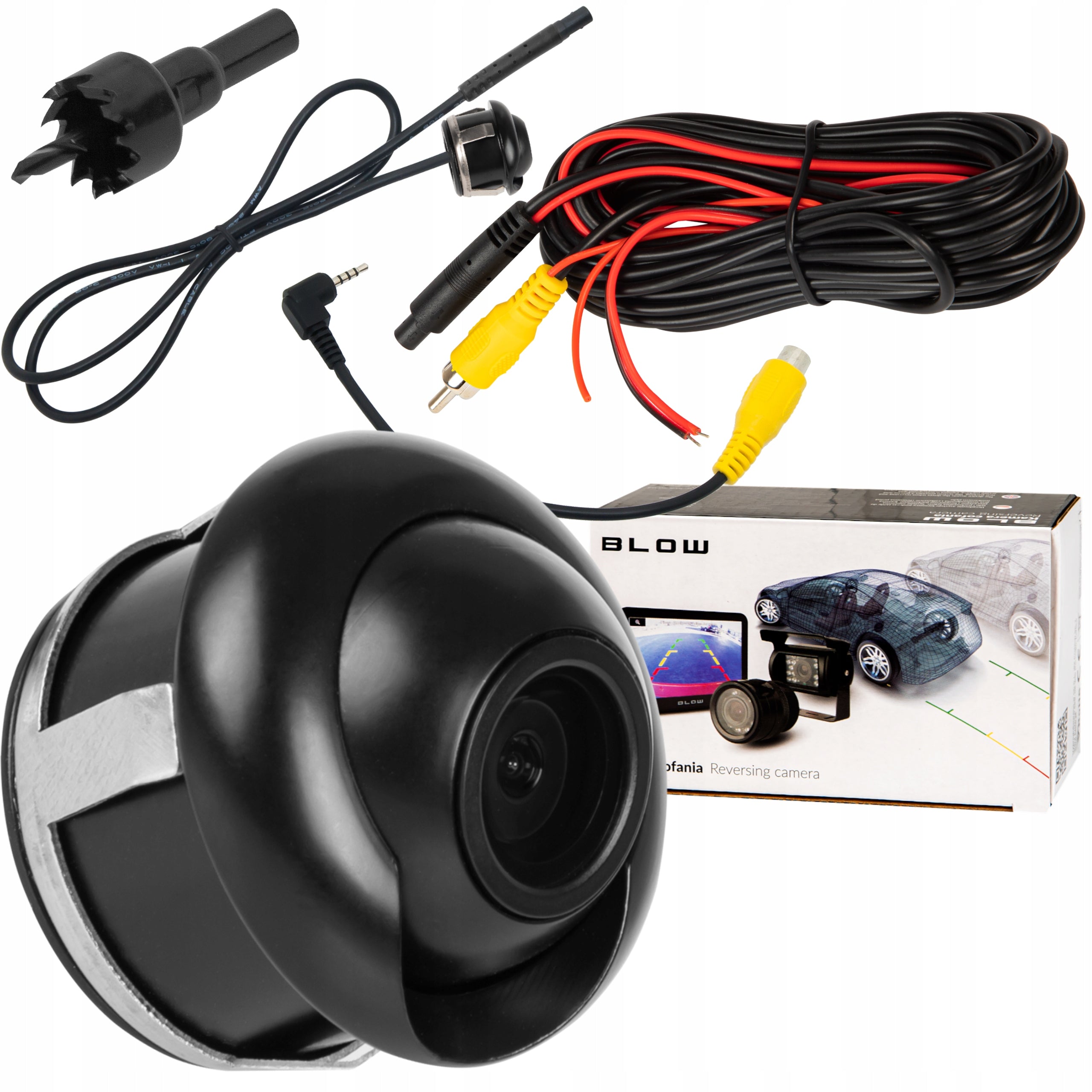

The set includes:

• Reversing camera BLOW BVS-545
• Assembly cables and accessories
• Instruction manual in Polish
