Frezavimo staklių variklis 107mm 1800W su jungikliu ir greičio reguliavimu

Trumpai apie prekę

Prekė: Frezavimo staklių variklis 107mm 1800W su jungikliu ir greičio reguliavimu. Kategorija: Frezos.

• Gamintojas: ujk
• Modelis: 10034

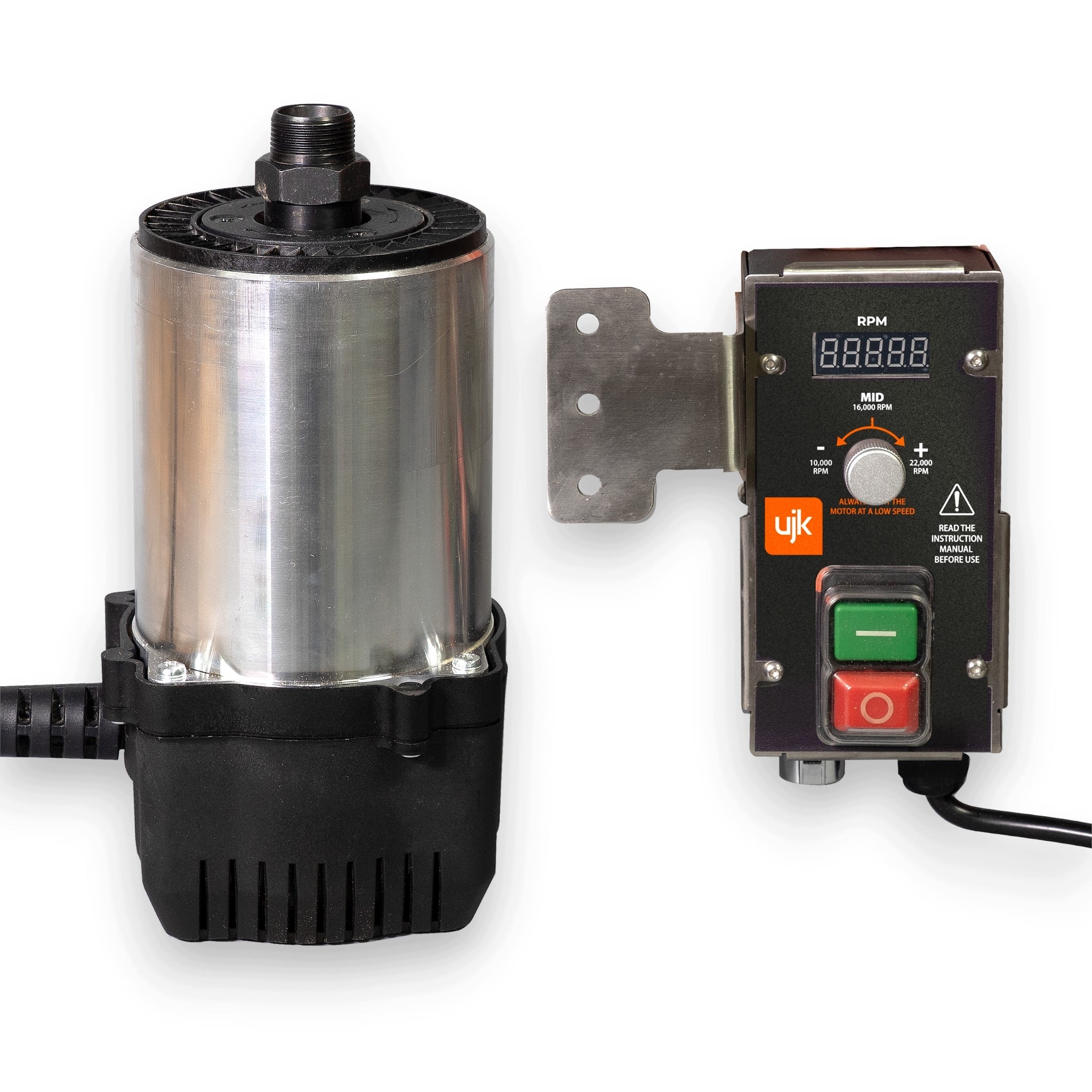

Spindle 107mm 1800W motor milling machine with switch speed control

Spindle 107mm milling machine 1800W with adjustable speed and digital display UJK

Self-contained milling motor with a power of 1800 W, designed for installation in stationary carpentry tables.

The refreshed version of Mk II is distinguished by a modern control system, in which the speed control and digital display are placed on a completely separate panel. This solution guarantees maximum comfort of work, eliminating the need for cumbersome reaching under the countertop to change the spindle settings.

Application:

• construction of a fully adapted milling station with a precision lift.

Features:

• Reliable power and stability: The powerful 1800W motor is equipped with a soft-start system that effectively reduces at start-up. Advanced electronics ensure a constant rotational speed even under heavy loads during deep milling.

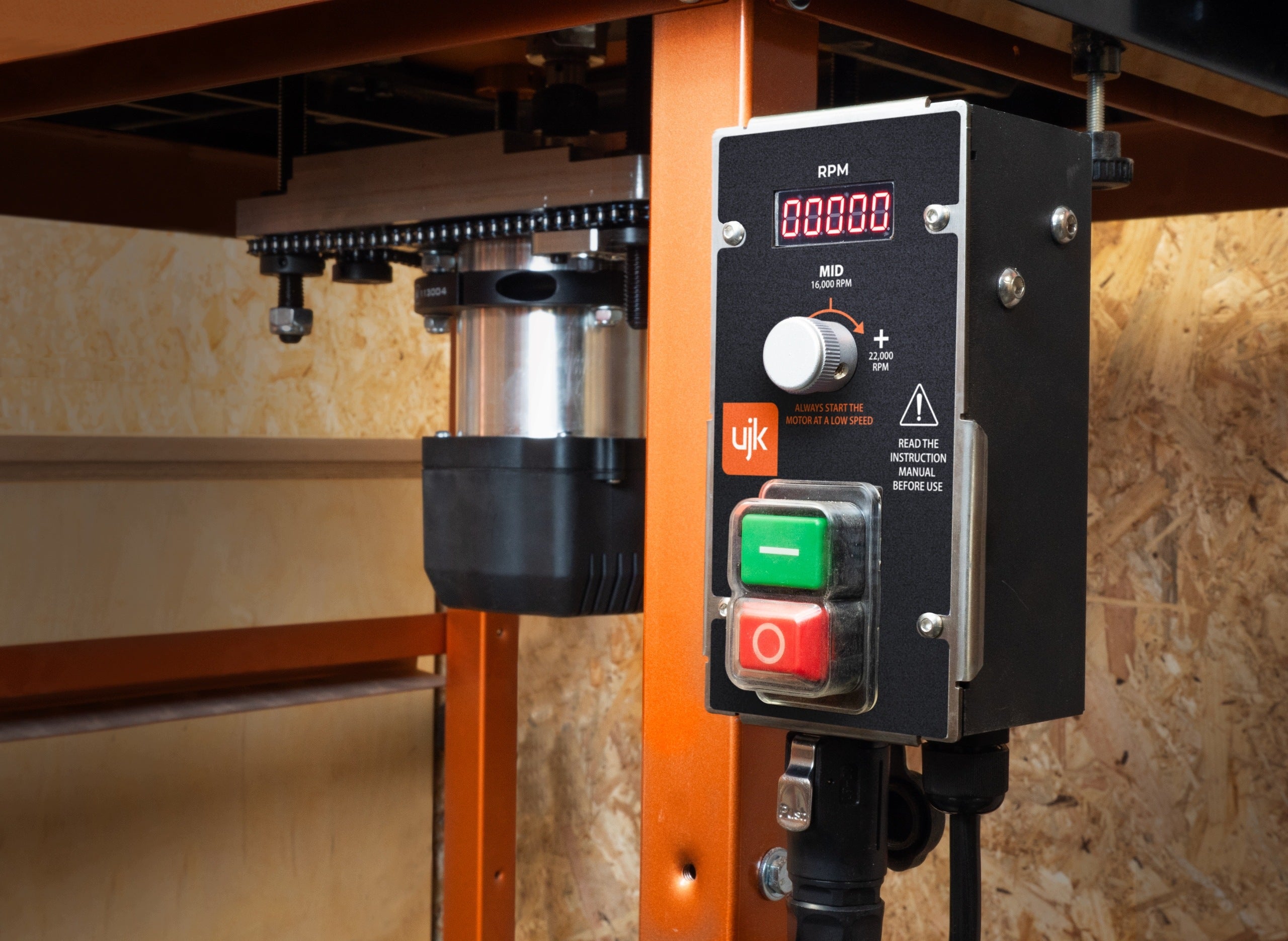

• Convenient control panel with display: digital reading and smooth speed control knob (ranging from 10 000 to 22 000 rpm. /min) are on an independent cassette. This solution allows you to quickly and precisely adjust parameters without taking your eyes off the work table.
• Precision clamping system ER: the use of the industrial standard of ER20 collets guarantees exceptional precision, secure grip and reduction of spindle beating, which directly translates into higher cutting quality. The set includes bushings covering the most popular diameters of cutter shanks.

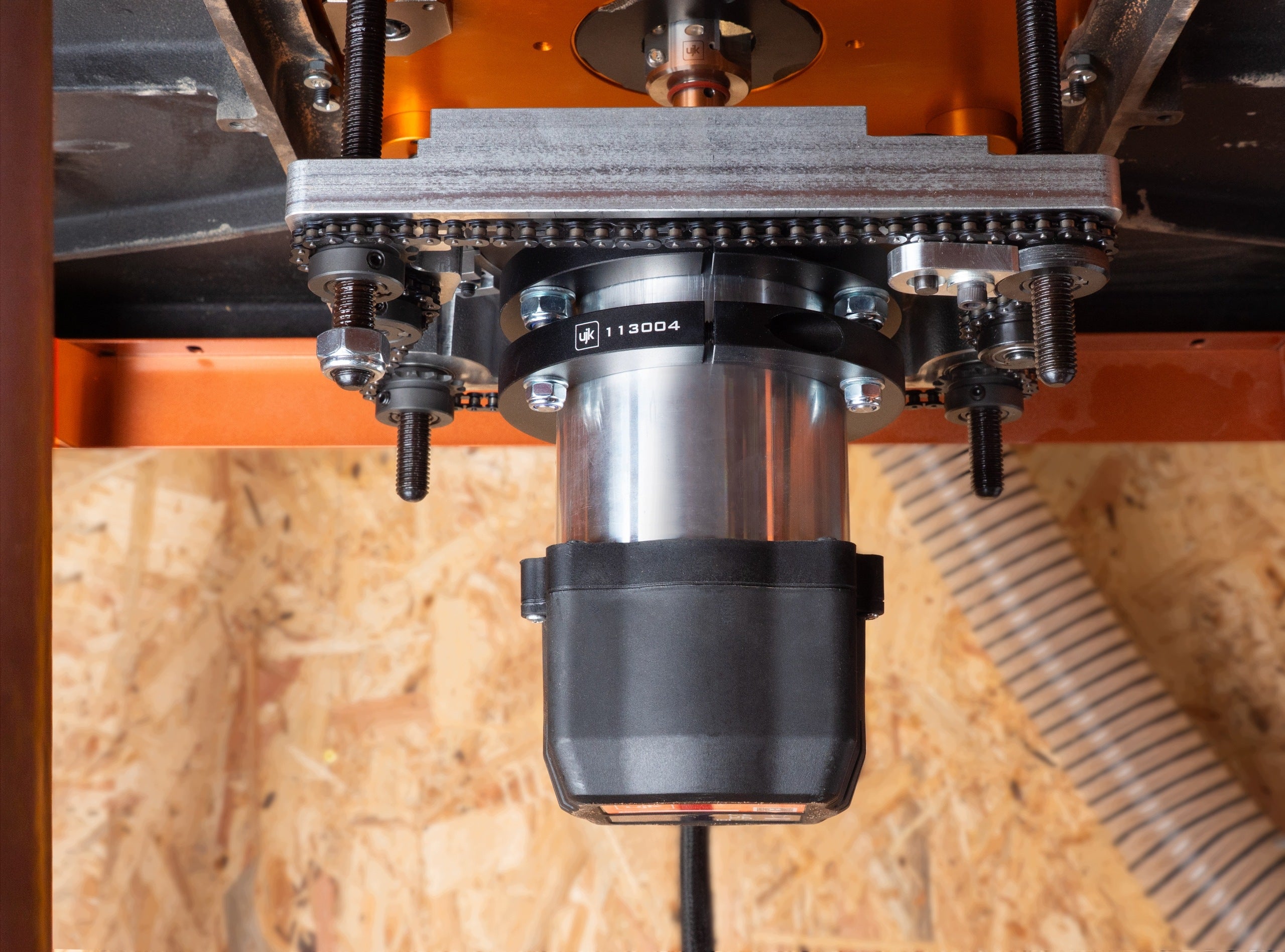

• Full system compatibility: module and handle design has been optimized for close cooperation with the UJK Router Lift milling elevator and dedicated tops with mounting plate (with hole dimensions of 305 x 229 x 6 mm). The kit includes the necessary mounting flange, creating a ready-made kit for seamless integration.

Technical parameters:

• Spindle compatible with lifts for mounting 107mm, for example: with lift for milling machine UJK (SKU: 502701) or lift for milling machine SKU: AWHDL;
• Engine power: 1800 W (2,4 HP)
• Rotary speed (no load): 10 000 - 22 000 rpm /min
• Power supply voltage: 230 V
• Cutter clamping system: Clamp bushings ER20
• Bushing sizes included: 8 mm, 12 mm, 1/4", 1/2"
• Total engine diameter: 106,6 mm
• Net weight: 4,5 kg
• Power cable length: 2,5 m

Note: The spindle fits directly into the AWHDL lift, without additional mounting hardware. For use with the UJK lift, a mounting flange is required (SKU: 113004)

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	ujk
Parametry	Series	pozostałe
Parametry	Milling machine type	plunge
Parametry	Power supply	mains
Parametry	Manufacturer code	10034
Parametry	EAN (GTIN)	5052511145720
